Khaled bin Sultan Living Oceans Foundation — Global Reef Expedition
Coral Reef Diagnostics

N. GBR - Green (AUYG39)

Australian Institute of Marine Science
⬇ Download this page as a report card
05
Photo: Anderson Mayfield/Coral Reef Diagnostics
Country
Survey date(s)
2014-09-09
Coordinates
-14.5888, 145.6162
Coral cover
36%
Benthic transects+photo-quadrats
Observations
not yet tagged for this site
Heat stress
Today’s heat load
3 Oct 2026 · No heat stress
5-year thermal stress load
5-year mean max. degree heating weeks (DHW)
2021–2025
NOAA Coral Reef Watch — Northern GBR virtual station
i 5-year mean max. DHW is the mean of the annual maximum DHWs over the five complete years named above, not conditions today.
More infoNorthern GBR (NOAA CRW virtual station)
Photographs
17
7 shown on this page
Site summary

The gentler leeward face of Yonge Reef, a sand apron scattered with bommies whose tops are crowded with mounding Porites, violet, chartreuse, and cream corals, and blue-gray octocorals. A large cuttlefish at 20 m was the standout sighting, and no bleaching, disease, or crown-of-thorns were noted. Surveyed on the Living Oceans Foundation's Global Reef Expedition.

Max. depth dived
22.9 m
dive-log maximum
Sea surface temp. (satellite)
24.8°C
satellite sea surface temperature (SST) on the survey date (NOAA Coral Reef Watch, Northern GBR), not an in-water reading; it is the warmest-pixel (90th percentile) reading in the station area and can run 1–1.5°C above the reef
Bottom time
61 min
in at 11:19

Eight independent survey stations shown with the program’s logo — click one to see how far it is from this site.

Eight other CRD dive sites within 5 km shown in orange — click a marker to open its page.

Site description

Setting

The second Yonge Reef dive of 9 September 2014 explored the gentler, leeward face: a sloping sand apron scattered with bommies, stepping down from the crest through a 12-19 m bommie field before the reef fell away beyond 25 m. The expedition surveyed Yonge Reef as one of its Green (no-take) reefs; under the GBRMPA Zoning Plan the reef is a Scientific Research Zone (no-take, research by permit) with a Conservation Park Zone on its lee side, and the recorded position lies inside the Scientific Research Zone.

General benthic features

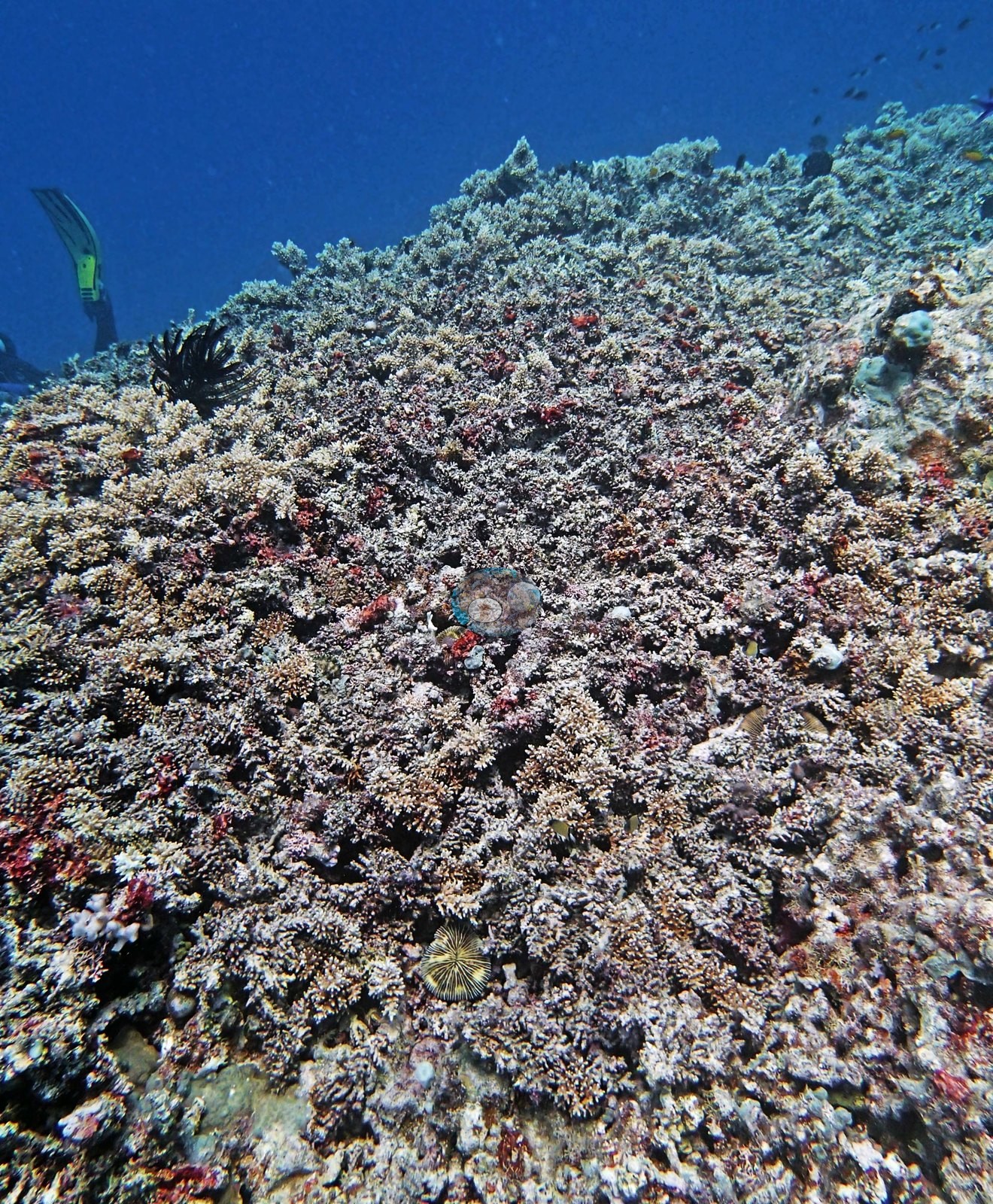

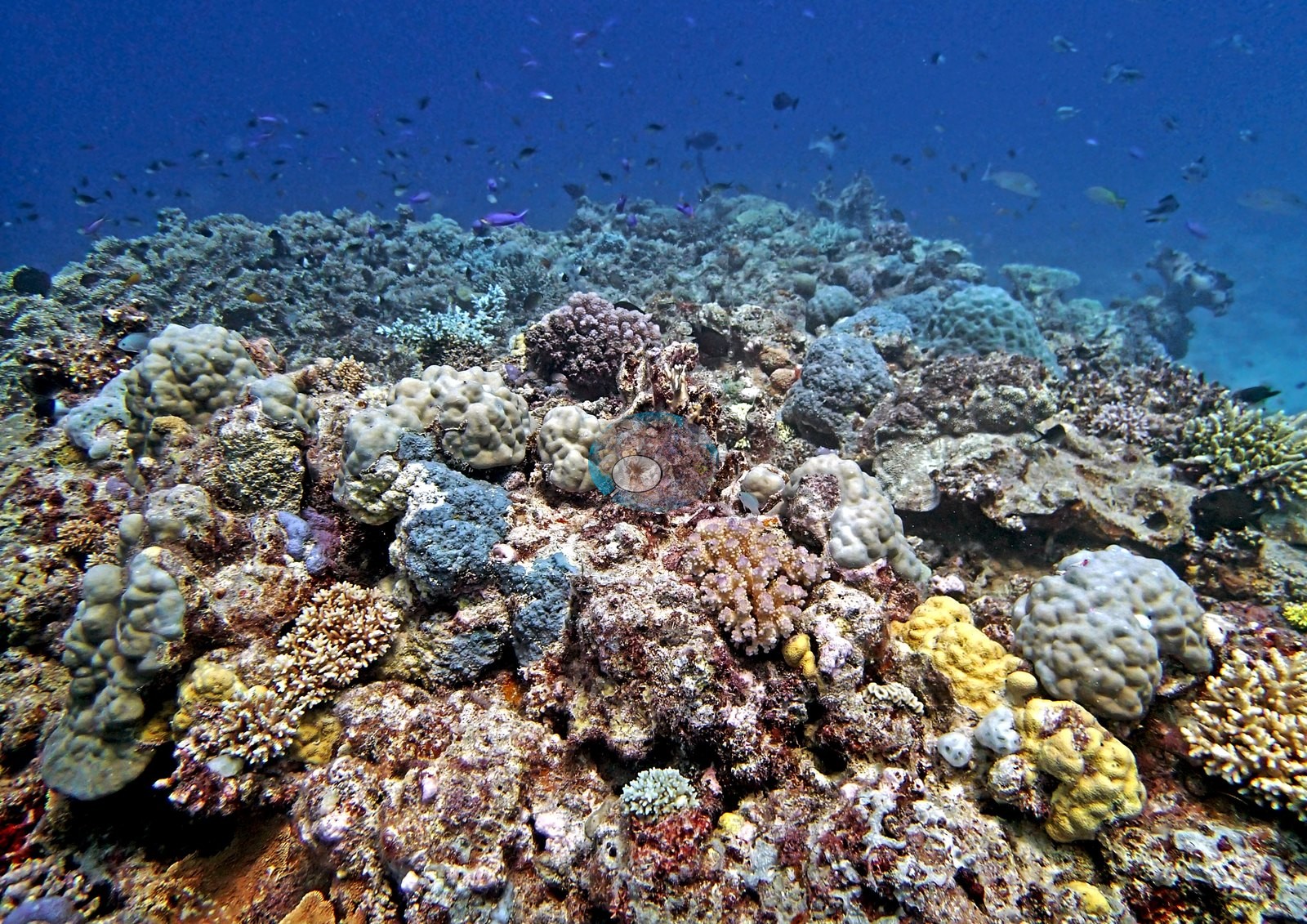

The photographs are bommie-top portraits. One shows a head crowded with mounding Porites, yellow faviids, and mixed small colonies with fish strung out into the blue behind it; another is a crest so densely packed with small branching colonies that the rock disappears, an urchin wedged in among them and a diver's fin in the corner (e.g., Image 3, Image 4).

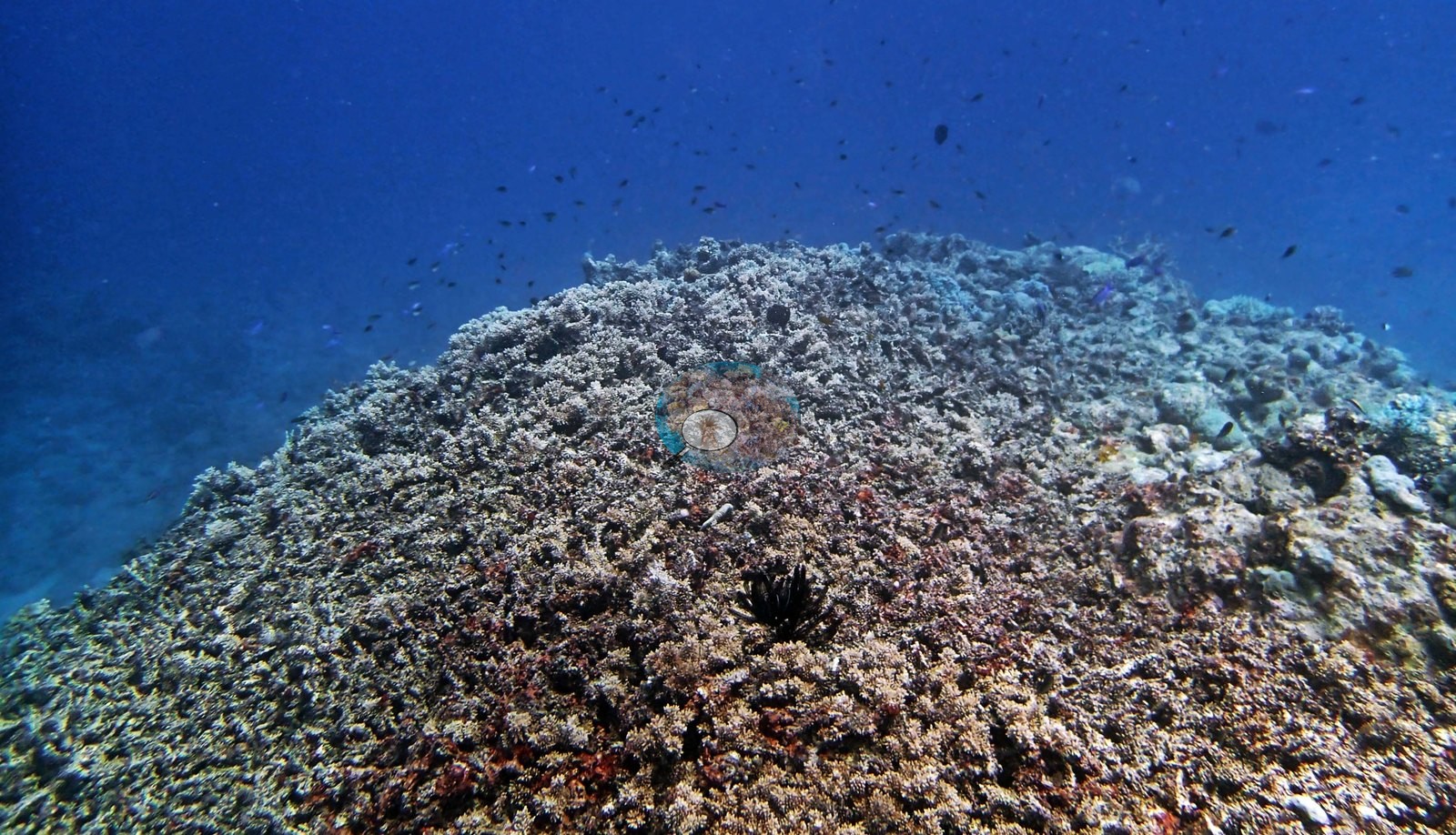

Seen side-on, another bommie top is carpeted the same way, a continuous mat of small branching colonies rising into the blue with a dark feather star among them (e.g., Image 7).

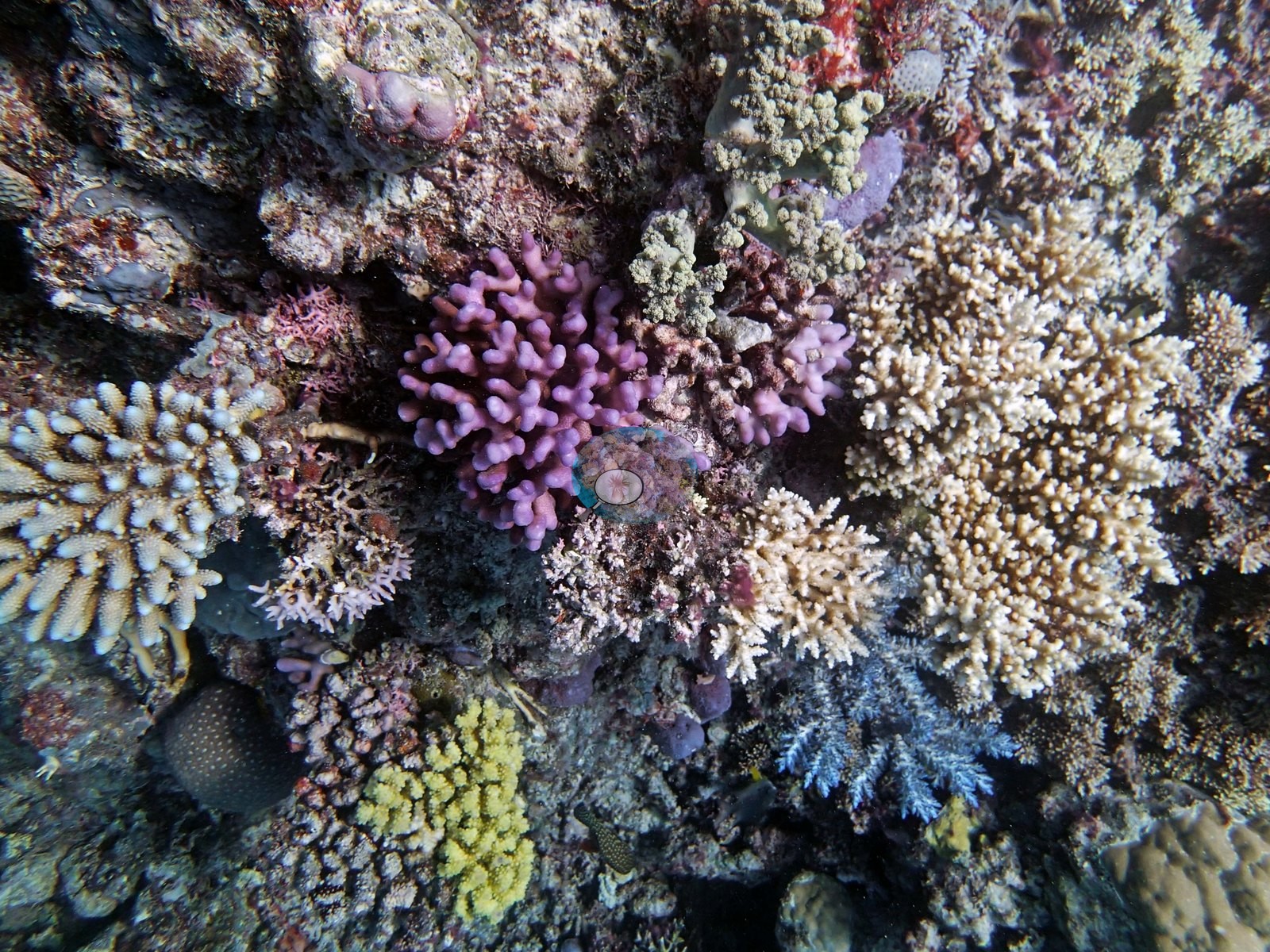

A close frame catches the color range at this site: a violet knobby Stylophora-type colony, chartreuse digitate Porites, cream corymbose Acropora, and a blue-gray feathery octocoral within a hand's span of each other (e.g., Image 2).

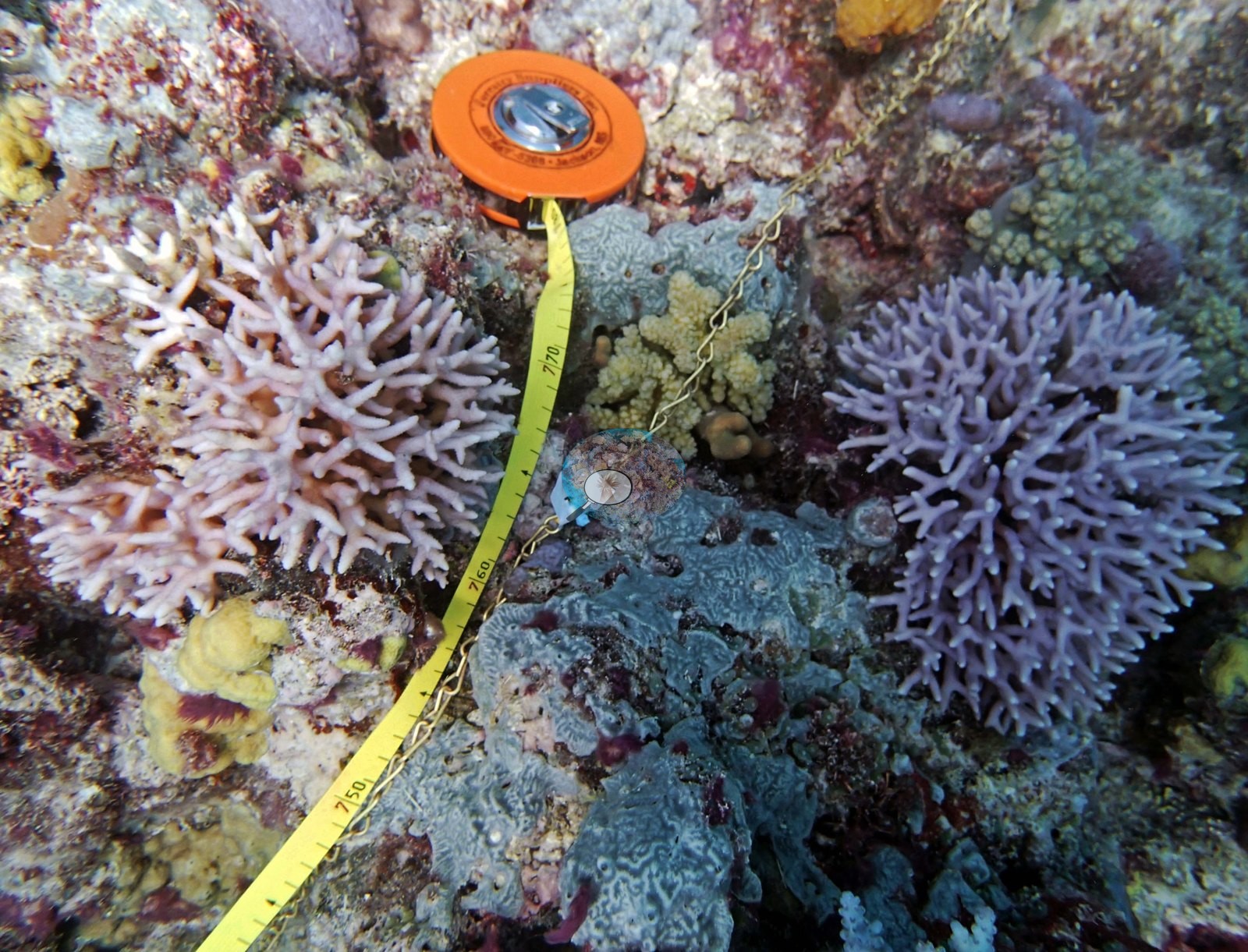

On the survey line, the tape runs between a pale pink and a lilac branching colony, over a blue-gray encrusting colony and small yellow knobby colonies (e.g., Image 6).

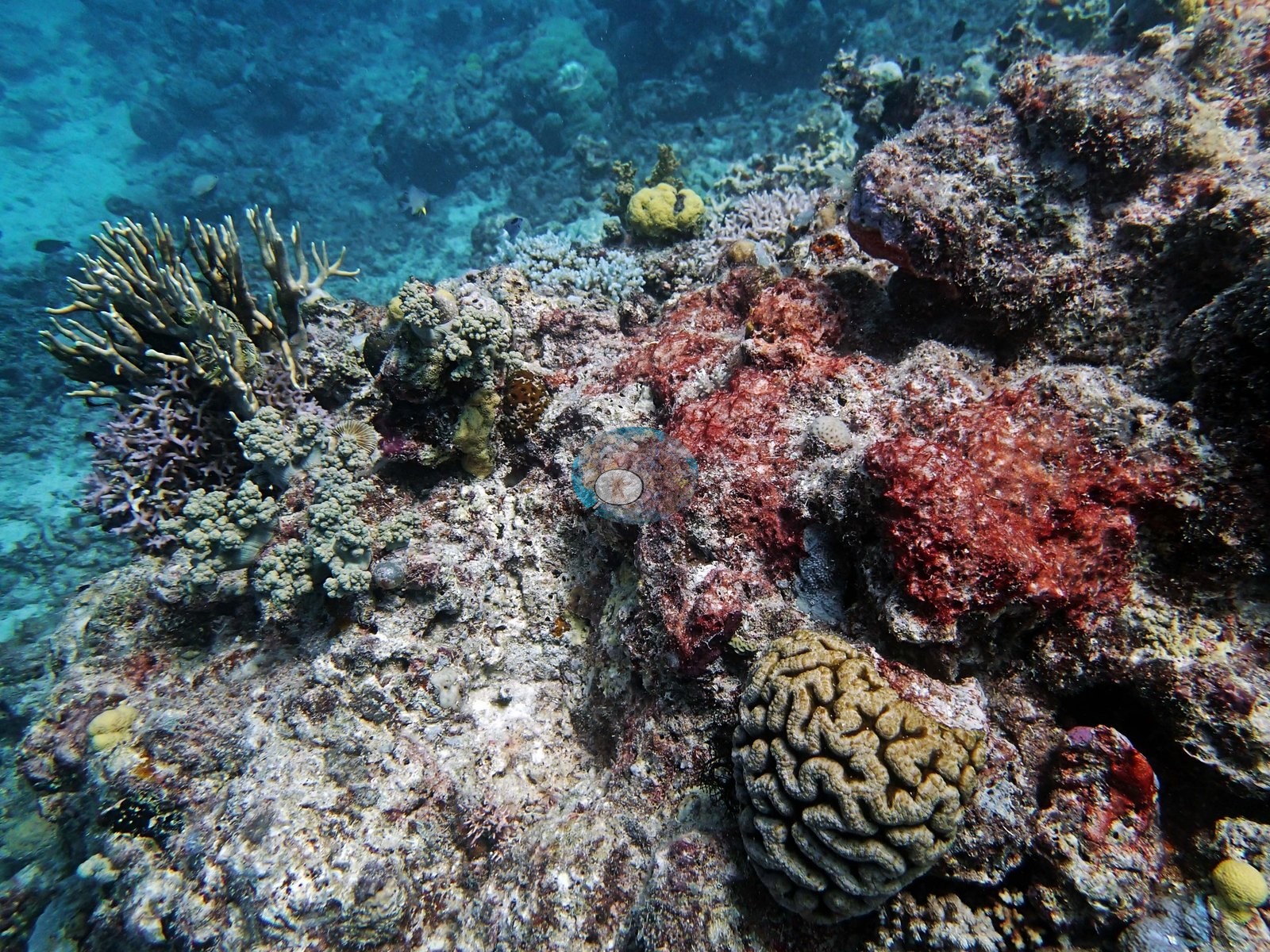

A brain coral and red algal crusts fill out a fourth (e.g., Image 1), and a lower head carries rounded massive mounds, small corymbose and branching colonies, and bright red encrusting growths, with fish strung out over the slope beyond (e.g., Image 5).

Coral cover

Stressors

No bleaching, disease, or crown-of-thorns starfish were noted.

Fish and other fauna

The standout sighting was a large cuttlefish at 20 m.

Comparisons with other data

No other surveys have been conducted at this site to date. Within 5 km, eight independent stations recorded 3.9–66% hard coral cover between 1993 and 2023; the nearest, XL Catlin Seaview Survey at transect 12005, 0.90 km away, read 5.9–17% between 2012 and 2017.

Independent surveys nearby

Data availability near this site
Agency / programYear(s)Stations / distanceLink
AIMS LTMP1993–20223 stations, 1.41–2.09 kmRecords ↓
AIMS manta tow1993–20231 station, 1.56 kmRecords ↓
Reef Check20031 station, 4.20 kmRecords ↓
XL Catlin Seaview Survey2012–20173 stations, 0.90–3.90 kmRecords ↓
Hard coral cover over time — this site and every independent station within 5 km. Programs are shown separately because they use different methods at different stations; the lines are not one comparable series.
0%17%34%51%68%199320082023AIMS LTMP 1993: 7.6%AIMS LTMP 1993: 12%AIMS LTMP 1993: 15%AIMS LTMP 1994: 16%AIMS LTMP 1994: 20%AIMS LTMP 1994: 23%AIMS LTMP 1995: 25%AIMS LTMP 1995: 28%AIMS LTMP 1995: 28%AIMS LTMP 1996: 29%AIMS LTMP 1996: 34%AIMS LTMP 1996: 36%AIMS LTMP 1997: 38%AIMS LTMP 1997: 45%AIMS LTMP 1997: 47%AIMS LTMP 1998: 44%AIMS LTMP 1998: 59%AIMS LTMP 1998: 60%AIMS LTMP 1999: 47%AIMS LTMP 1999: 58%AIMS LTMP 1999: 58%AIMS LTMP 2000: 51%AIMS LTMP 2000: 58%AIMS LTMP 2000: 64%AIMS LTMP 2001: 55%AIMS LTMP 2001: 63%AIMS LTMP 2001: 66%AIMS LTMP 2002: 51%AIMS LTMP 2002: 58%AIMS LTMP 2002: 62%AIMS LTMP 2003: 51%AIMS LTMP 2003: 62%AIMS LTMP 2003: 64%AIMS LTMP 2004: 44%AIMS LTMP 2004: 50%AIMS LTMP 2004: 51%AIMS LTMP 2006: 23%AIMS LTMP 2006: 27%AIMS LTMP 2008: 31%AIMS LTMP 2008: 31%AIMS LTMP 2008: 38%AIMS LTMP 2010: 36%AIMS LTMP 2010: 43%AIMS LTMP 2010: 44%AIMS LTMP 2012: 17%AIMS LTMP 2012: 25%AIMS LTMP 2014: 13%AIMS LTMP 2014: 18%AIMS LTMP 2014: 23%AIMS LTMP 2016: 3.9%AIMS LTMP 2016: 8.2%AIMS LTMP 2016: 9.6%AIMS LTMP 2018: 7.2%AIMS LTMP 2018: 13%AIMS LTMP 2018: 18%AIMS LTMP 2020: 17%AIMS LTMP 2020: 22%AIMS LTMP 2020: 25%AIMS LTMP 2021: 29%AIMS LTMP 2021: 30%AIMS LTMP 2021: 31%AIMS LTMP 2022: 29%AIMS LTMP 2022: 31%AIMS LTMP 2022: 34%AIMS manta tow 1993: 14%AIMS manta tow 1994: 17%AIMS manta tow 1995: 23%AIMS manta tow 1996: 18%AIMS manta tow 1997: 25%AIMS manta tow 1998: 30%AIMS manta tow 1999: 30%AIMS manta tow 2000: 29%AIMS manta tow 2001: 30%AIMS manta tow 2002: 27%AIMS manta tow 2003: 26%AIMS manta tow 2004: 24%AIMS manta tow 2005: 34%AIMS manta tow 2006: 18%AIMS manta tow 2007: 15%AIMS manta tow 2008: 18%AIMS manta tow 2009: 17%AIMS manta tow 2011: 15%AIMS manta tow 2013: 13%AIMS manta tow 2015: 9.2%AIMS manta tow 2017: 5.5%AIMS manta tow 2019: 12%AIMS manta tow 2021: 19%AIMS manta tow 2022: 29%AIMS manta tow 2023: 35%Reef Check 2003: 24%XL Catlin Seaview Survey 2012: 17%XL Catlin Seaview Survey 2012: 24%XL Catlin Seaview Survey 2014: 7.7%XL Catlin Seaview Survey 2014: 8.7%XL Catlin Seaview Survey 2014: 16%XL Catlin Seaview Survey 2016: 5.1%XL Catlin Seaview Survey 2016: 6.4%XL Catlin Seaview Survey 2016: 11%XL Catlin Seaview Survey 2017: 4.3%XL Catlin Seaview Survey 2017: 5.9%XL Catlin Seaview Survey 2017: 8.6%LOF Global Reef Expedition 2014: 36%Year-averaged across all programs: illustrative only; the programs differ in stations and method, so no trend is claimed (31 years)
AIMS LTMP AIMS manta tow Reef Check XL Catlin Seaview Survey LOF Global Reef ExpeditionYear-average (illustrative only, programs differ)

Within 5 km, 8 independent survey stations recorded hard coral cover in 106 surveys between 1993 and 2023. Of the 7 stations surveyed in more than one year, 4 were scored by divers or by people annotating photographs: 4 increased (by 16.9–23.3 points) between their first and latest surveys. The other 3 were scored by automated image analysis: 2 declined by more than 7 points; 1 changed by 7 points or less, inside the 7-point method-noise floor (inconclusive). The longest record, YONGE REEF (AIMS manta tow, 1.56 km away), went from 14% in 1993 to 35% in 2023. Since 2021, station-year means average 30% (range 19–35%; n = 9 station-years from 9 surveys). This site's own estimate (36%) sits 1 point above the recent range up to 2 km away (19–35%); the methods differ, so the comparison is context, not a like-for-like test.

Collected by other programs using different methods (Reef Check uses point-intercept transects; AIMS manta tow is a towed visual estimate in categorical bins; AIMS LTMP uses fixed photo-transects; the XL Catlin Seaview Survey uses photo-transects with automated image annotation), so these are context for the figures above, not a like-for-like comparison. Where a station was surveyed more than once, the cell shows either the range of its values or, as a single value, the mean of surveys made in one year. Station names are not dive-site names.

Independent survey data near this site
AgencySite / locationDateHard coral cover (%)DistanceLink
AIMS LTMPYONGE REEF site 31993–20223.9–55% (range of yearly means; 23 surveys)1.41 kmdoi:10.25845/5c09bc4ff315c
AIMS manta towYONGE REEF1993–20235.5–35% (25 surveys)1.56 kmdoi:10.25845/5c09b0abf315a
AIMS LTMPYONGE REEF site 21993–20227.6–64% (range of yearly means; 23 surveys)1.74 kmdoi:10.25845/5c09bc4ff315c
AIMS LTMPYONGE REEF site 11993–20229.6–66% (range of yearly means; 23 surveys)2.09 kmdoi:10.25845/5c09bc4ff315c
Reef CheckPixie Reef Ribbon #3200324%4.20 km—
XL Catlin Seaview Surveytransect 120052012–20175.9–17% (4 surveys)0.90 kmdoi:10.14264/uql.2019.930
XL Catlin Seaview Surveytransect 120282012–20178.6–24% (4 surveys)1.38 kmdoi:10.14264/uql.2019.930
XL Catlin Seaview Surveytransect 120042014–20174.3–7.7% (3 surveys)3.90 kmdoi:10.14264/uql.2019.930

Data & links

All images from Coral Reef Diagnostics. Data are from the Khaled bin Sultan Living Oceans Foundation Global Reef Expedition, Coral Reef Diagnostics, and the organizations named in the data sources above.

© Coral Reef Diagnostics.
