Chagos Archipelago - Salomons Island (BISA107)

Khaled bin Sultan Living Oceans Foundation — Global Reef Expedition
⬇ Download this page as a report card
05
Photo: Anderson Mayfield/Coral Reef Diagnostics
Survey date(s)
2015-04-30
Coordinates
-5.3102, 72.2689
Coral cover
25%
± 4.3% SE, n = 6 transects · Benthic surveys
Coral bleached
7.1%
Observations
Heat stress
Most recent heat load record
26 Oct 2026 · Bleaching Warning
5-year thermal stress load
5-year mean max. degree heating weeks (DHW)
2021–2025
i 5-year mean max. DHW is the mean of the annual maximum DHWs over the five complete years named above, not conditions today.
More infoChagos Archipelago, UK (NOAA CRW virtual station)
Photographs
39
Site summary

A deep fore reef outside Salomon atoll (dived to 30.8 m), paved with a thick crust of pink coralline algae, with 25% hard coral cover, led by Acropora and Stylophora. The most actionable find was an abandoned fishing net draped across live coral inside the British Indian Ocean Territory (BIOT) no-take marine protected area; white branching colonies beside brown ones, three sharks, and a spiny lobster were also seen. Surveyed on the Living Oceans Foundation's Global Reef Expedition.

Max. depth dived
30.8 m
sample-sheet maximum
Water temp. during survey
29.3°Cii
CTD-cast midpoint of 28.5–30.1°C
+0.2°C vs the 2015 mean sea temperature (29.1°C)
ii Station CTD-cast midpoint, not a dive reading: midpoint of the station's maximum and minimum CTD water temperature (Living Oceans Foundation Chagos station records); range 28.5–30.1°C.
Bottom time
57 min
in at 07:20

Four independent survey stations shown with the program’s logo — click one to see how far it is from this site.

Eight other CRD dive sites with their own pages within 5 km shown in orange — click a marker to open its page.

5 of the 39 photographs on this page are shown beside the text that discusses them under "Site description" below.

4689111314151617182021222324252627293031323334353637383940414243

Photo credit & attribution

Site description

Setting

BISA107 is a deep side-on fore reef outside Salomon atoll (from its position on the northeast side of Salomon atoll relative to the prevailing southeast trade winds), surveyed 30 April 2015 on a dive to 30.8 m.

General benthic features

Across 25 genera Acropora holds 41% of the coral and Stylophora 15%, while Porites is nearly absent at 3.5%. Cover more than doubles down the profile, 16% to 20% to 37%, Millepora confined to the shallowest stratum, Stylophora peaking at the middle one, and Acropora surging to 55% of the coral at the deepest — yet algae outweighs coral at every depth.

Coral cover

Stressors

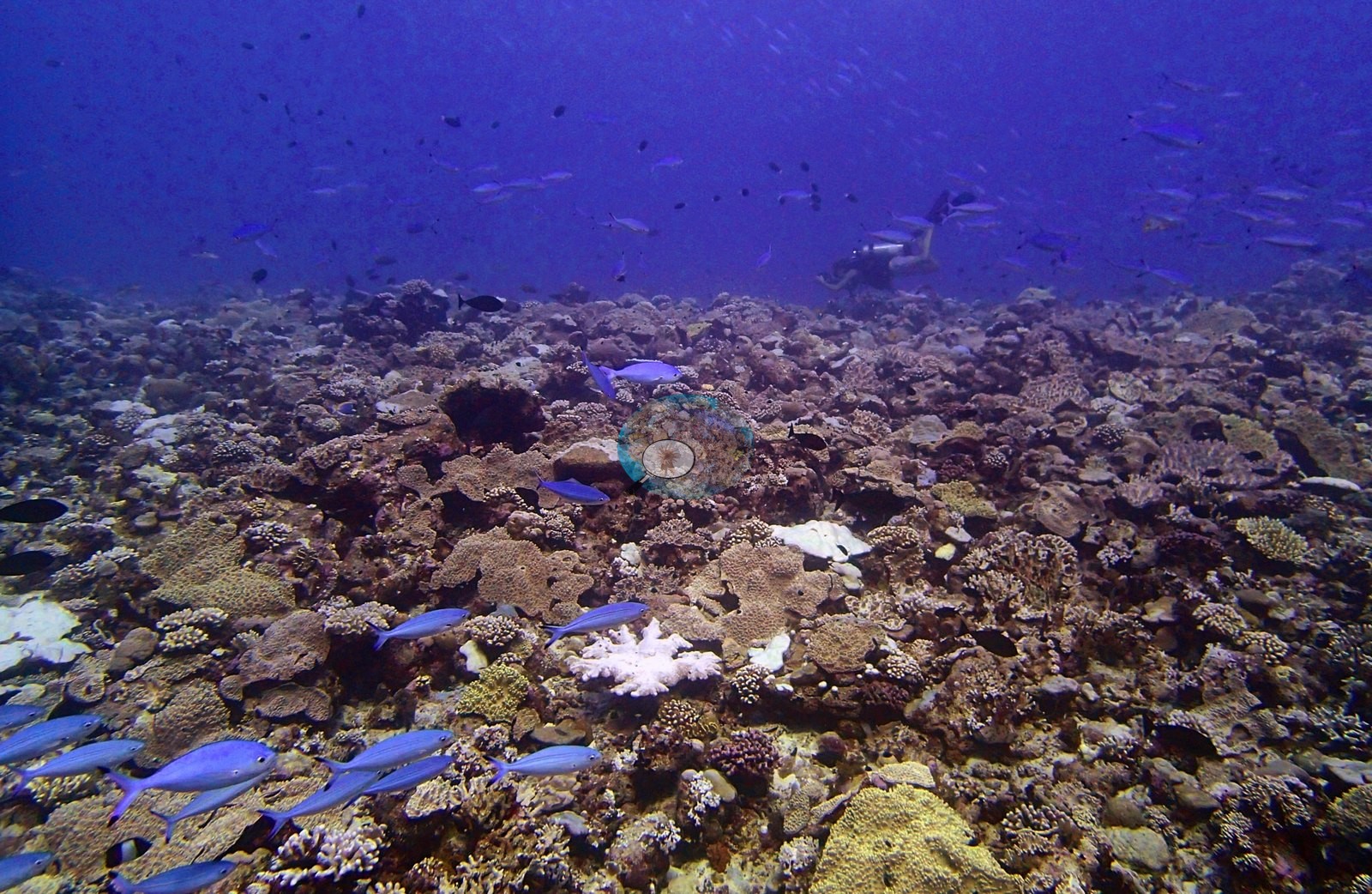

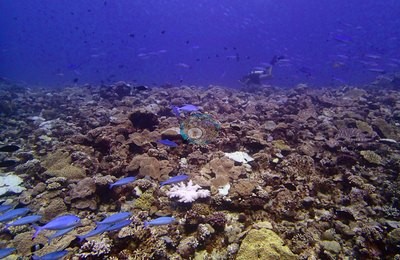

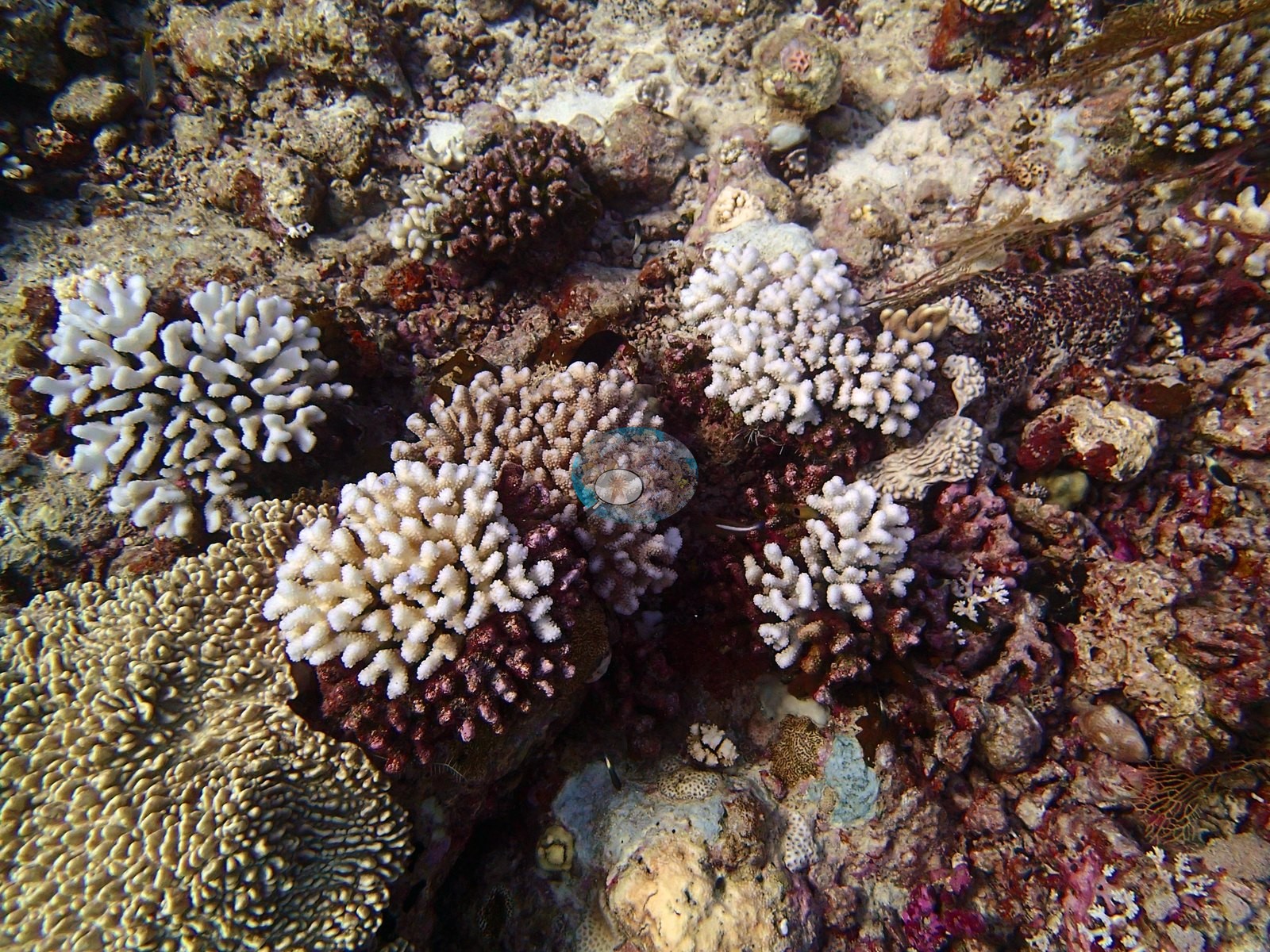

Published bleaching is 7.1% (CoralNet analysis of the survey images; Mayfield & Dempsey 2026, suppl. S1). The photographs show stark-white branching colonies beside pigmented massive and plating colonies and beside brown branching colonies of the same form in at least three frames (e.g., Image 7), although the pale coralline crust covering a third of the benthos makes color-based calls across the wider reef less certain.

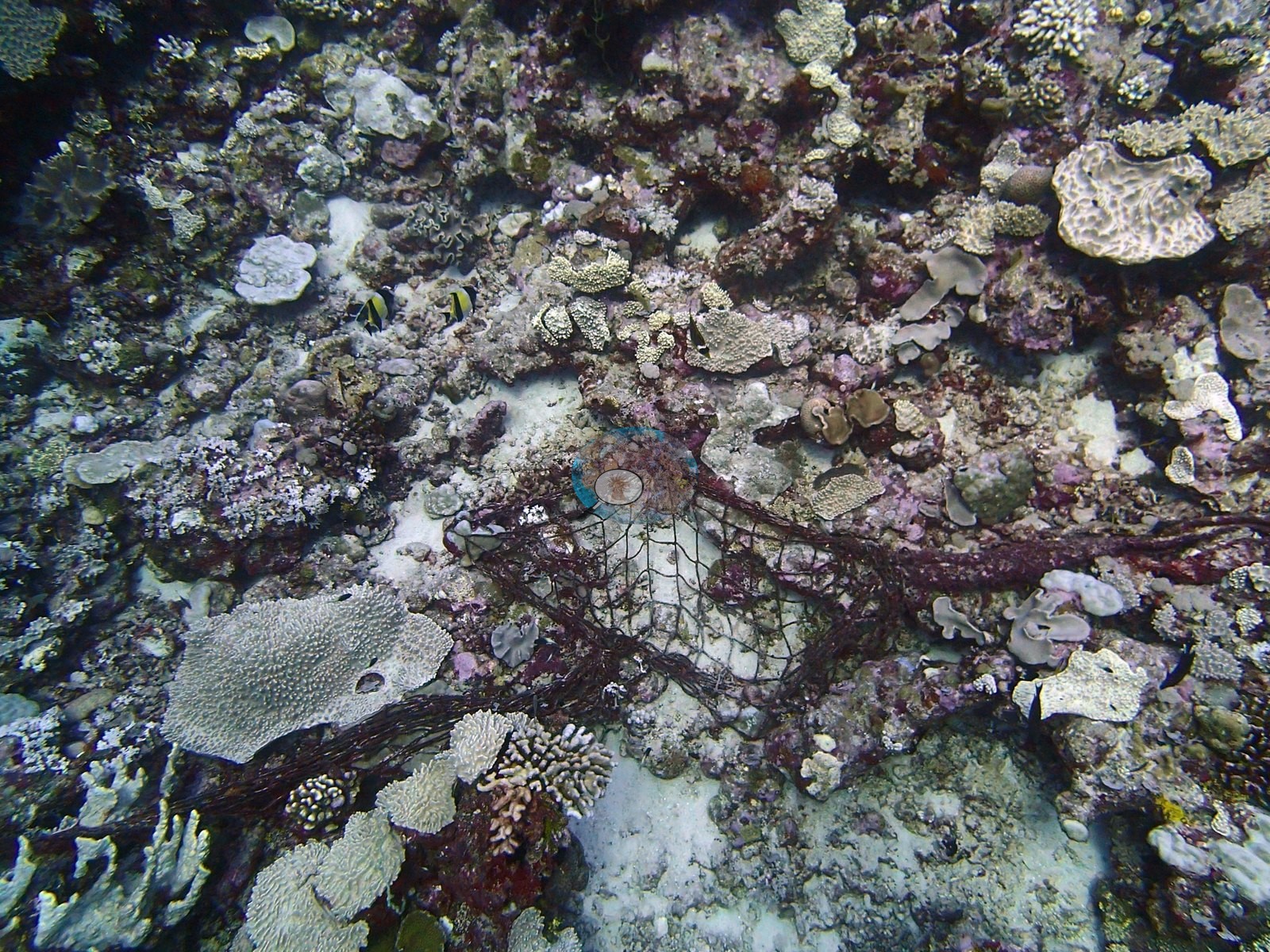

The most actionable observation is an abandoned fishing net photographed draped across live coral and pavement inside the BIOT no-take MPA (e.g., Image 10).

The Living Oceans Foundation transects here recorded under 0.1% cyanobacteria and under 0.1% recently dead coral. No crown-of-thorns starfish (COTS) or other corallivores were evident.

Fish and other fauna

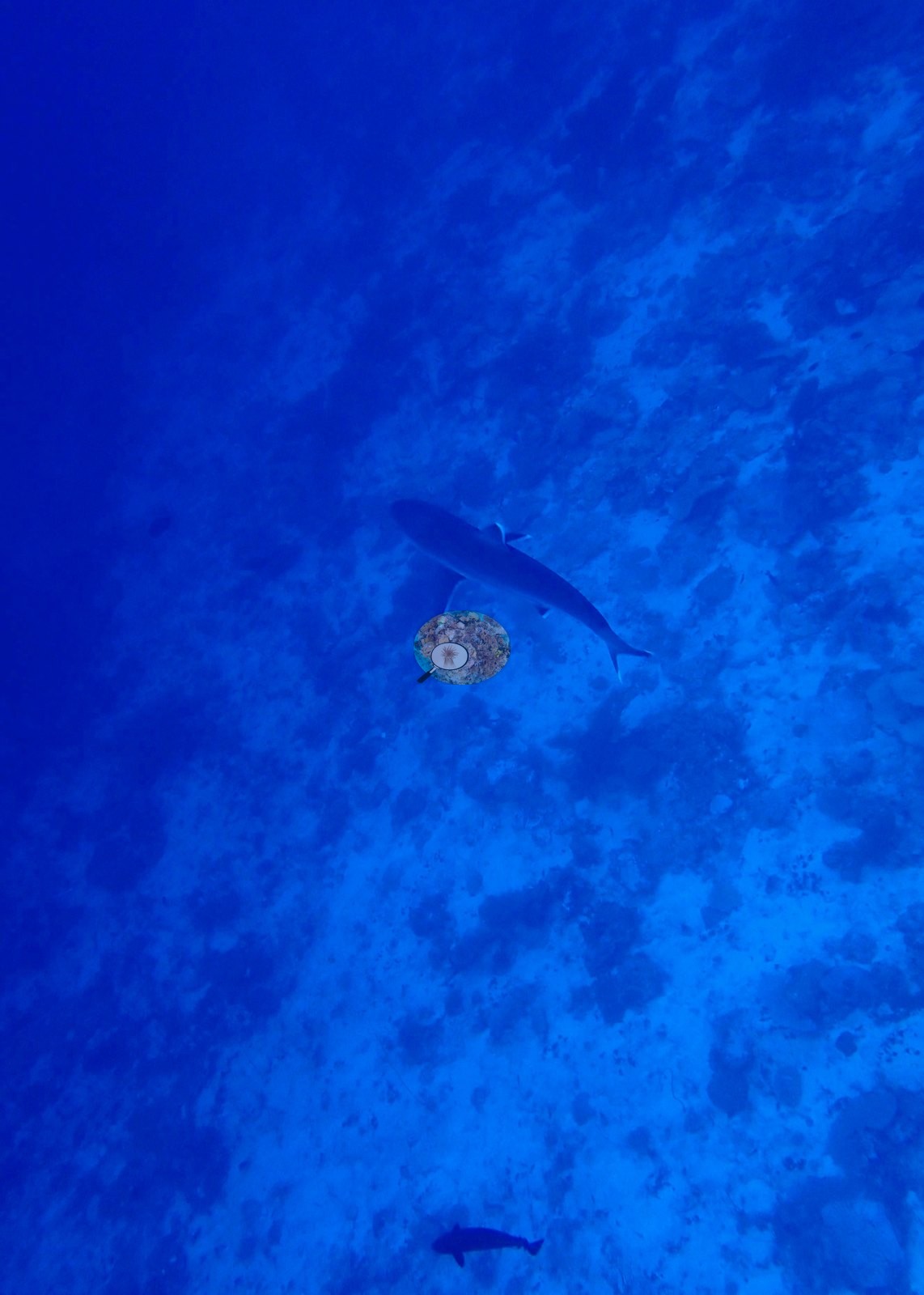

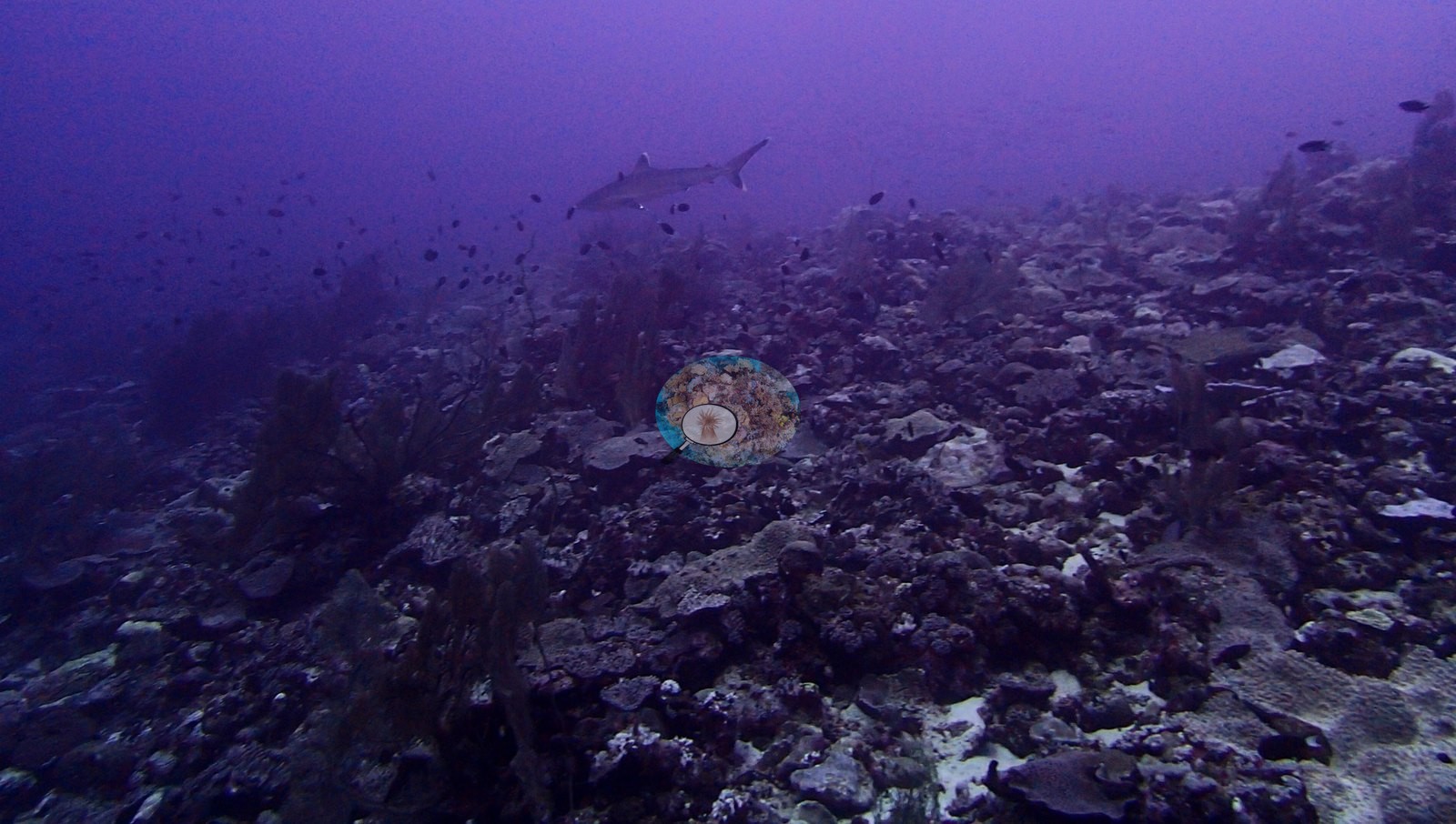

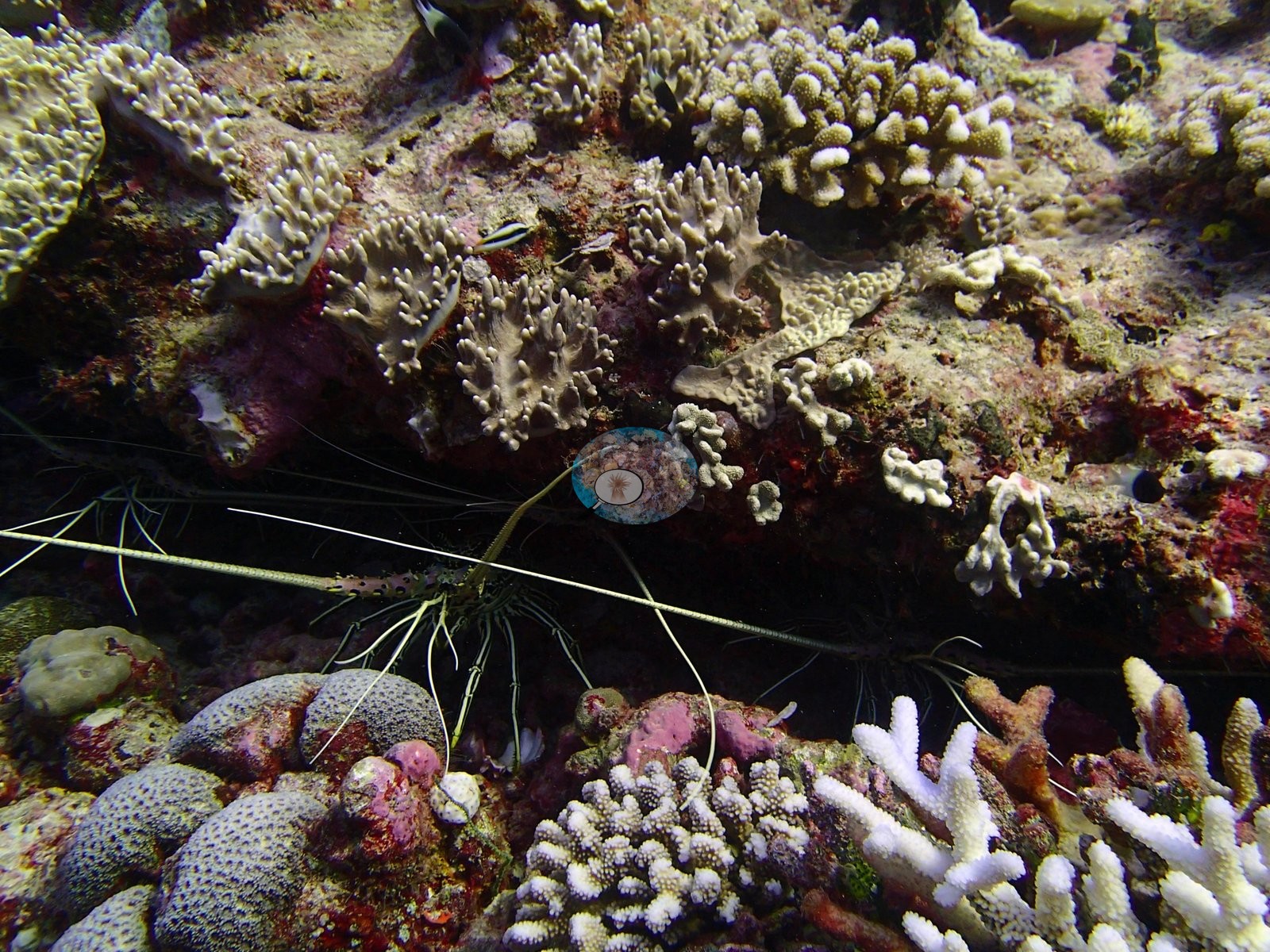

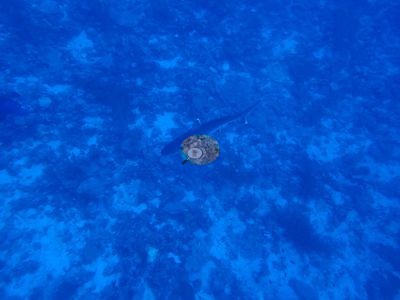

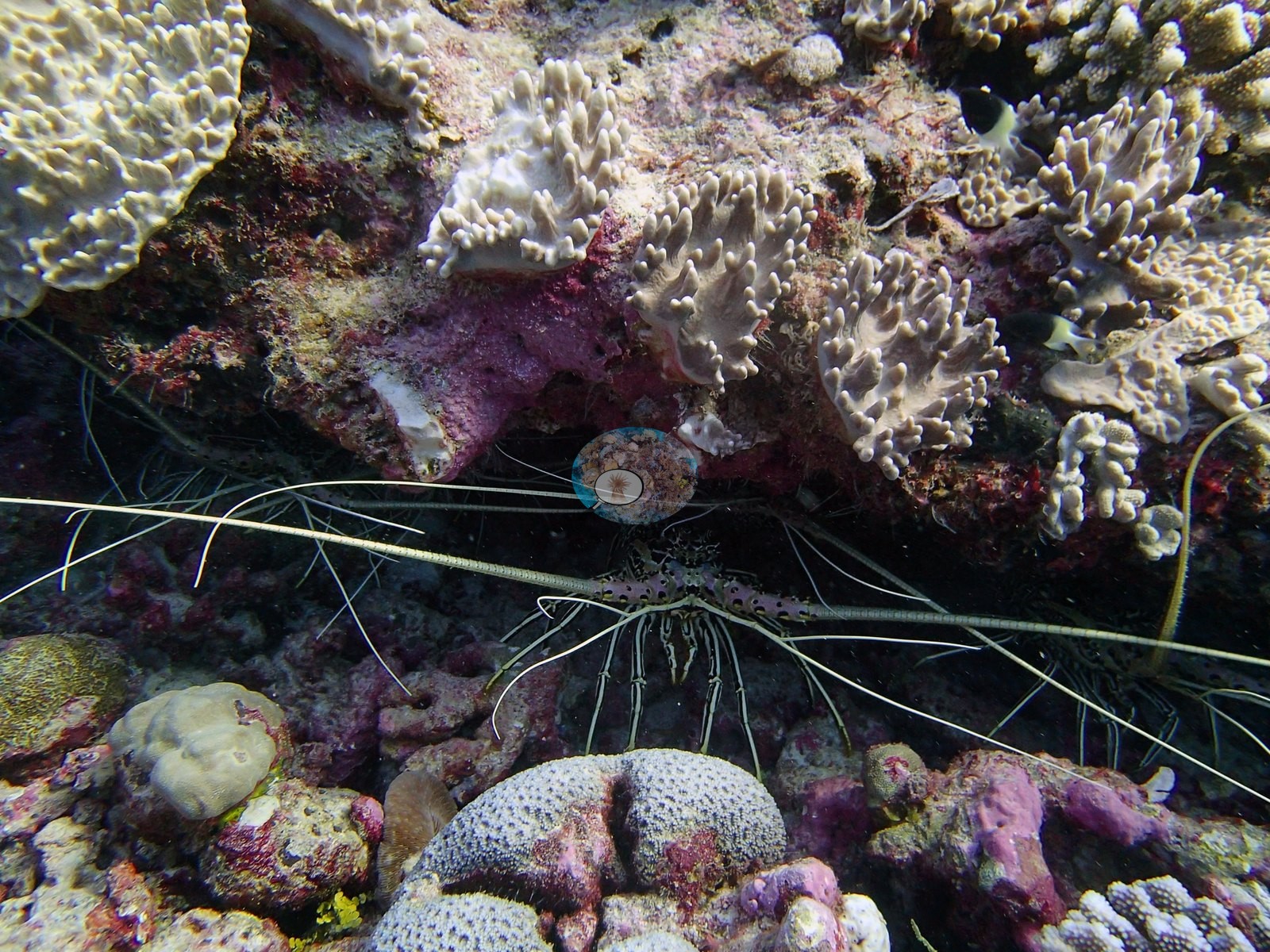

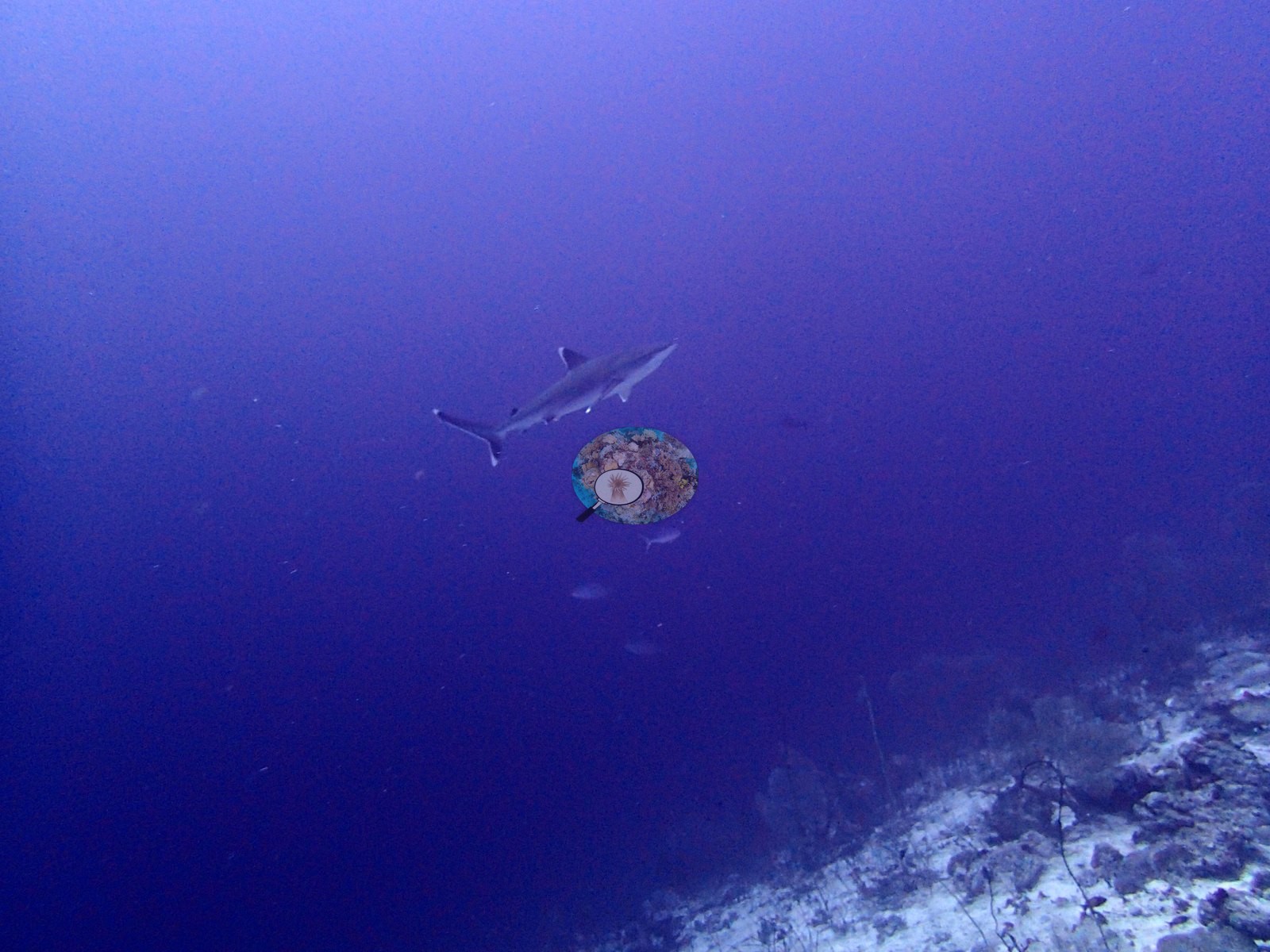

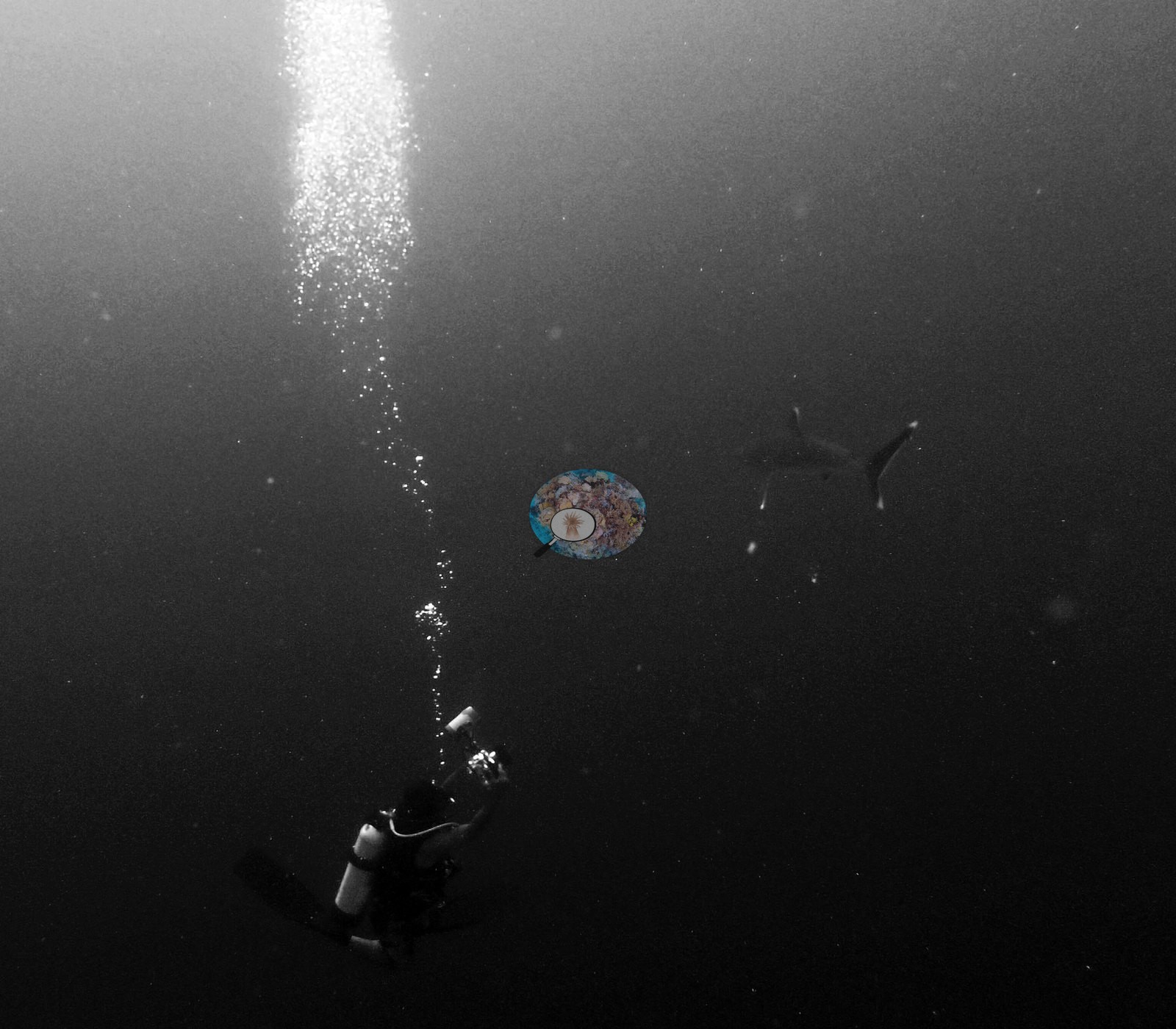

Three shark encounters and a spiny lobster were also recorded (e.g., Image 1, Image 2).

Comparisons with other data

Apart from the Living Oceans Foundation survey shown here, we found no other surveys at this site as of 2026. Within 5 km, four independent stations recorded station-year means of 9.9–43% hard coral cover between 2006 and 2020; the nearest, XL Catlin Seaview Survey at transect 36014, 1.99 km away, read 34% in 2015.

Other notes

Anderson's field sheet (LOF fellowship 2016 workbook) records 'forereef' and leaves the aspect blank; the expedition's 933-site table classes the station as 'exposed' (fringing reef). No LOF habitat map covers Salomon atoll (the LOF Chagos habitat map covers only Peros Banhos), so, satellite imagery (Esri World Imagery) puts the pin off the northeast- to east-northeast-facing outer reef, near the side-on cutoff for the prevailing southeast trade winds. The aspect shown, 'side-on', comes from the station's GPS position on the northeast side of Salomon atoll relative to the prevailing southeast trade winds (about 86° off the upwind direction; the reef-edge reading agrees), which takes precedence over slope facing, lagoon shelter, imagery, and field labels.

CV model comparison

Headline is the transect value; every other row is listed beside it for comparison and none is averaged in. ⚠ The reference here is NOT the same instrument as at Mauritius, Oman, Kenya, or the Red Sea.
More infoThose are point counts on the photographs; this is a diver swimming a transect. The models and the reference never saw the same thing. ⚠ SITE-LEVEL ONLY. None of the Chagos photographs (2,500 frames across all stations) can be matched to a transect taken within 200 m, so transect-vs-image comparisons use site means, never individual frames. The transect value is the mean of all of this station's own transects in the expedition's per-transect benthic data. The transect is THE coral-cover value for this site and stands alone. The rows below it are a methods comparison only: no computer-vision value is averaged with it, feeds the headline, or carries over to the site's cover figure.
MethodHard coral cover (%)Photos (n) ± SE
Transect mean (all transects)24.6
CoralNet18.0*n = 12 · SE 2.7
In-house DINOv320.6*n = 12 · SE 3.0
CoralSCOP edited21.7*n = 12 · SE 2.9
Claude18.5*n = 12 · SE 3.3

The four computer-vision methods agree within 3.7 pp (18.0–21.7%) and read within 6.6 pp of the in-water transect (24.6%).

*Based on only 12 reef-habitat photos; this estimate is less certain.

Independent surveys nearby

Data availability near this site
Agency / programYear(s)Stations / distanceLink
Lange et al. (2021)2006–20201 station, 4.53 kmRecords ↓
XL Catlin Seaview Survey20153 stations, 1.99–4.39 kmRecords ↓
Hard coral cover over time — this site and every independent station within 5 km. Programs are shown separately because they use different methods at different stations; the lines are not one comparable series.
0%12%24%36%48%200620132020Lange et al. (2021) 2006: 29%Lange et al. (2021) 2010: 43%Lange et al. (2021) 2016: 9.9%Lange et al. (2021) 2019: 14%Lange et al. (2021) 2020: 12%XL Catlin Seaview Survey 2015: 19%XL Catlin Seaview Survey 2015: 28%XL Catlin Seaview Survey 2015: 34%LOF Global Reef Expedition 2015: 25%Year-averaged across all programs: illustrative only; the programs differ in stations and method, so no trend is claimed (6 years)
Lange et al. (2021) XL Catlin Seaview Survey LOF Global Reef ExpeditionYear-average (illustrative only, programs differ)

Within 5 km, 4 independent survey stations recorded hard coral cover in 8 records between 2006 and 2020. The one station surveyed in more than one year declined by 17 points between its first and latest surveys. The longest record, Salomon Atoll (Lange et al. 2021, 4.53 km away), went from 29% in 2006 to 12% in 2020. The most recent nearby survey is from 2020, so these values predate recent heat stress. This site's own estimate (25%) sits 9 points below the one survey station up to 2 km away (34%); the methods differ, so the comparison is context, not a like-for-like test.

Collected by other programs using different methods (the XL Catlin Seaview Survey uses photo-transects with automated image annotation), so these are context for the figures above, not a like-for-like comparison. Where a station was surveyed more than once, the cell shows either the range of its values or, as a single value, the mean of surveys made in one year. Station names are not dive-site names.

Independent survey data near this site
AgencySite / locationDateHard coral cover (%)DistanceLink
Lange et al. (2021)Salomon Atoll2006–20209.9–43% (range of yearly means; 5 records)4.53 kmdoi:10.1007/s00338-021-02184-w
XL Catlin Seaview Surveytransect 36014201534%1.99 kmdoi:10.14264/uql.2019.930
XL Catlin Seaview Surveytransect 36016201519%2.26 kmdoi:10.14264/uql.2019.930
XL Catlin Seaview Surveytransect 36013201528%4.39 kmdoi:10.14264/uql.2019.930

Data & links

All images from Coral Reef Diagnostics. Data are from the Khaled bin Sultan Living Oceans Foundation Global Reef Expedition, Coral Reef Diagnostics, and the organizations named in the data sources above.

© Coral Reef Diagnostics.

References

  1. Mayfield AB, Dempsey AC (2026). Using tourist diver images to estimate coral cover and bleaching prevalence in a remote Indian Ocean coral reef system. Oceans 7(1):1. PDF
  2. Lange ID, Benkwitt CE, McDevitt-Irwin JM, Tietjen KL, Taylor B, Chinkin M, et al. (2021). Wave exposure shapes reef community composition and recovery trajectories at a remote coral atoll. Coral Reefs 40:1819-1829. PDF
  3. Gonzalez-Rivero M, et al. (2019). Seaview Survey photo-quadrat and image classification dataset. The University of Queensland (UQ eSpace) data collection. DOI
