Coral Reef Diagnostics

Chagos Archipelago - Peros Banhos (BIPB63)

Khaled bin Sultan Living Oceans Foundation — Global Reef Expedition
⬇ Download this page as a report card
05

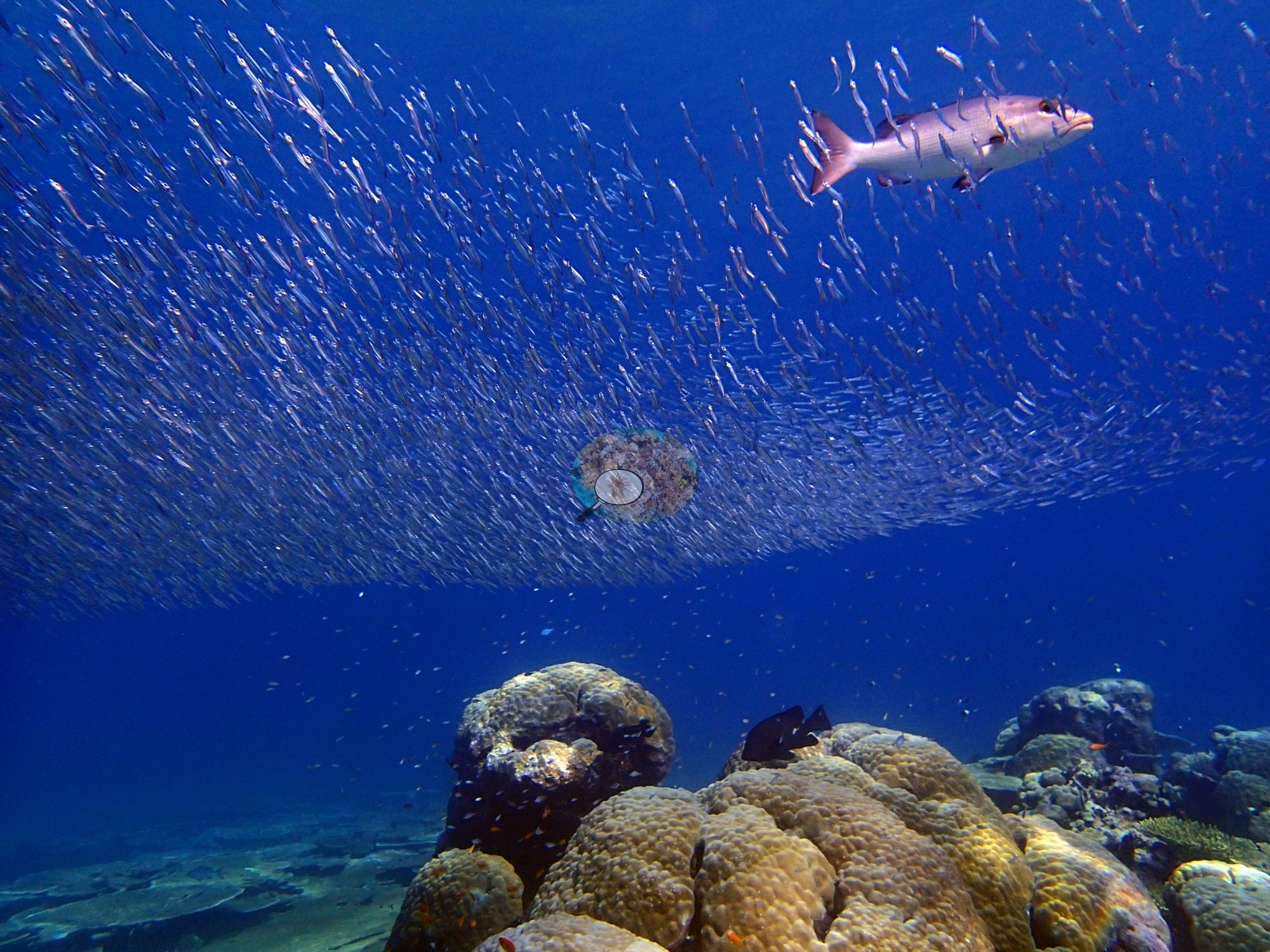

Photo: Anderson Mayfield/Coral Reef Diagnostics
Survey date(s)
2015-04-15
Coordinates
-5.4152, 71.7750
Coral cover
56%
± 5.4% SE, n = 15 transects · Benthic surveys
Coral bleached
2.0%
Observations
None tagged; see Stressors below
Heat stress
Most recent heat load record
26 Oct 2026 · Bleaching Warning
5-year thermal stress load
5-year mean max. degree heating weeks (DHW)
2021–2025
i 5-year mean max. DHW is the mean of the annual maximum DHWs over the five complete years named above, not conditions today.
More infoChagos Archipelago, UK (NOAA CRW virtual station)
Photographs
31
Site summary

A leeward lagoonal pinnacle reef in Peros Banhos (dived to 25.8 m) where Acropora makes up 91% of the coral, as dense staghorn thickets and table shelves over old dead framework in the shallows; cover across the station is 56%. Published bleaching is 2.0%, but several photos show white table corals, and three of the Seriatopora colonies Anderson sampled were more than 90% bleached. Surveyed on the Living Oceans Foundation's Global Reef Expedition.

Max. depth dived
25.8 m
sample-sheet maximum
Water temp. during survey
30.0°Cii
CTD-cast midpoint of 29.9–30.2°C
+1.0°C vs the 2015 mean sea temperature (29.0°C)
ii Station CTD-cast midpoint, not a dive reading: midpoint of the station's maximum and minimum CTD water temperature (Living Oceans Foundation Chagos station records); range 29.9–30.2°C.
Bottom time
58 min
in at 08:11

Two independent survey stations shown with the program’s logo — click one to see how far it is from this site.

Five other CRD dive sites with their own pages within 5 km shown in orange — click a marker to open its page.

24 of the 31 photographs on this page are shown beside the text that discusses them under "Site description" below.

261819222731

Photo credit & attribution

Site description

Setting

A leeward lagoonal pinnacle reef in Peros Banhos (branching coral dominated on the LOF habitat map), dived to 25.8 m on 15 April 2015.

General benthic features

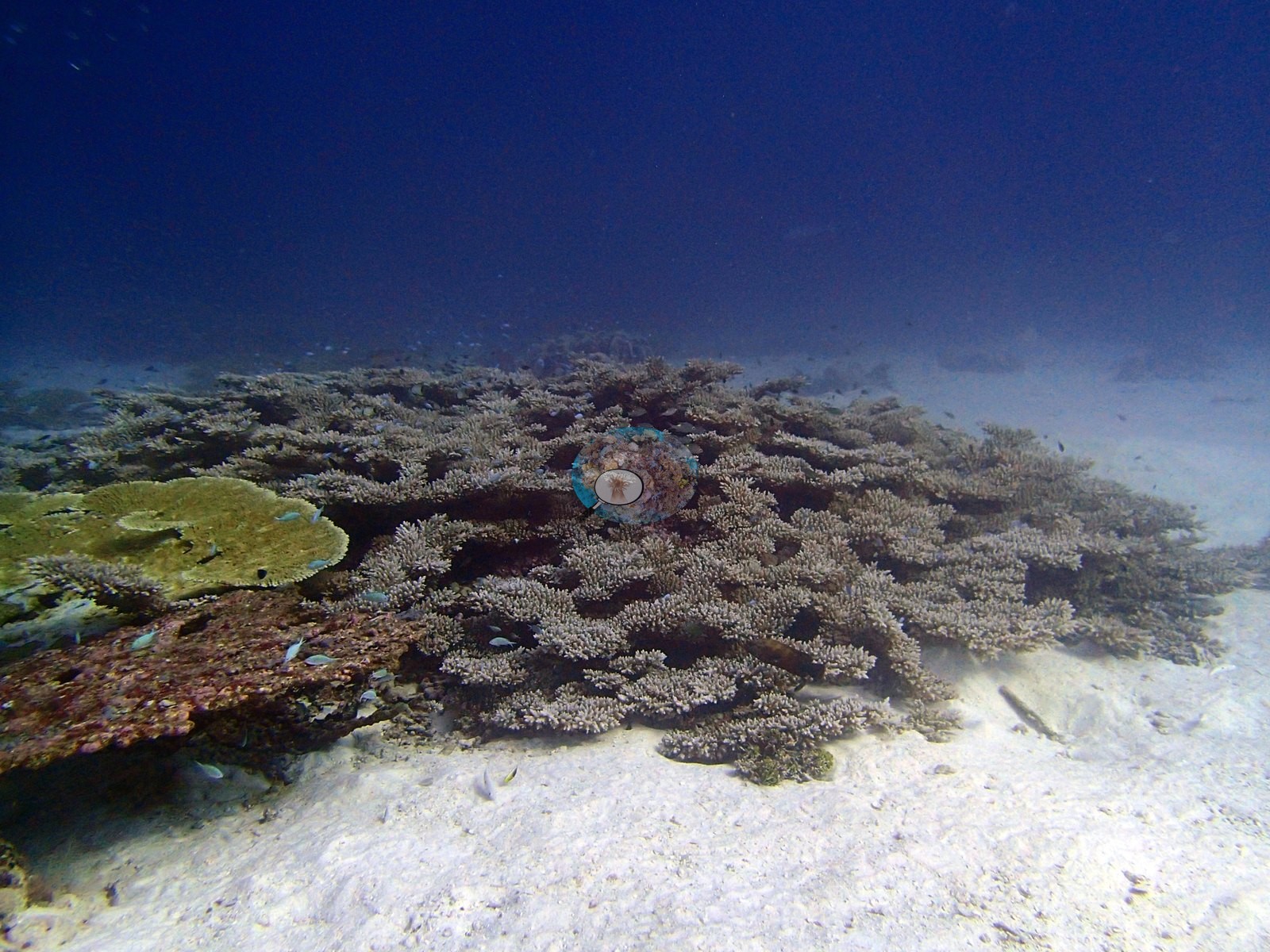

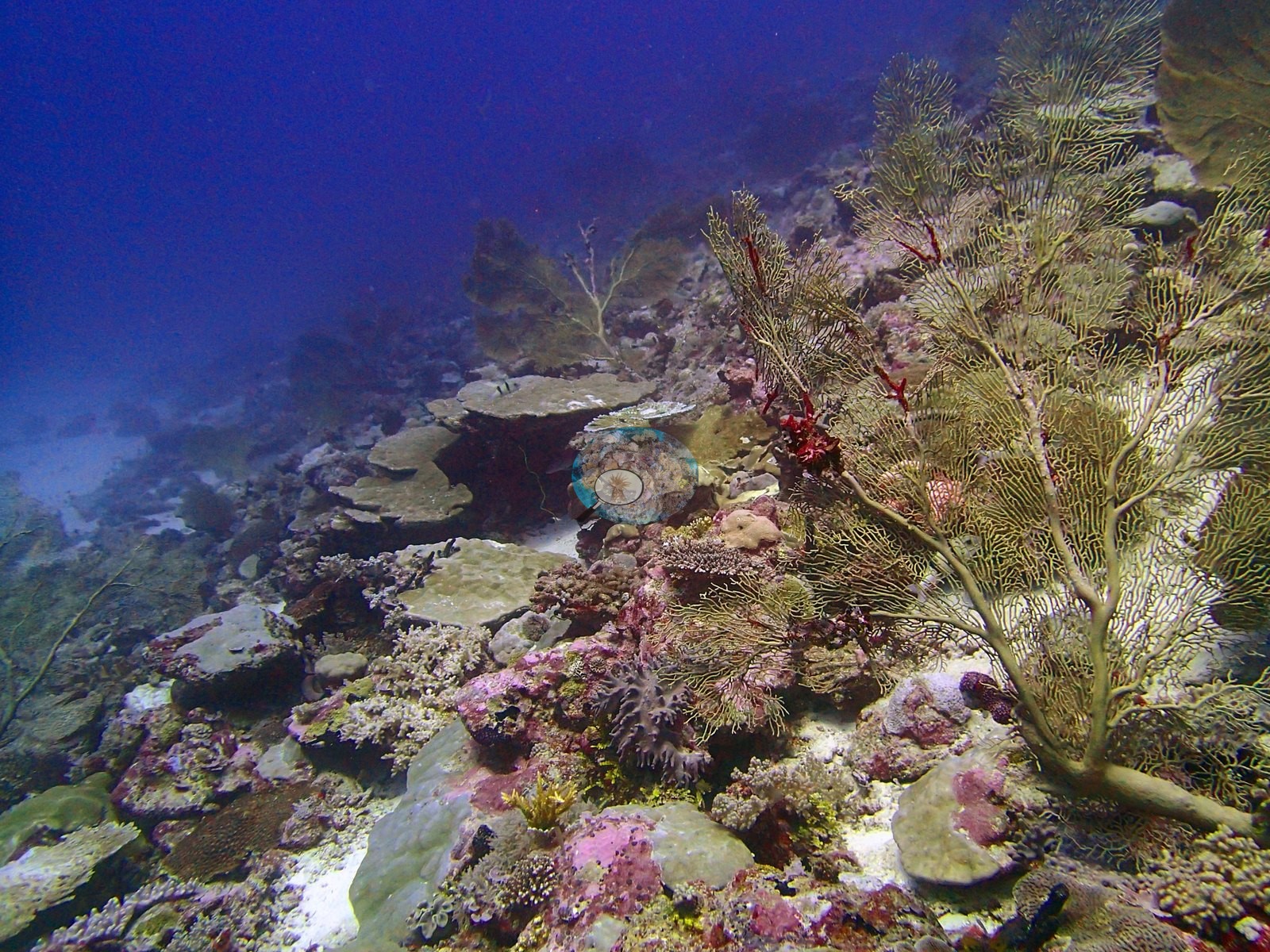

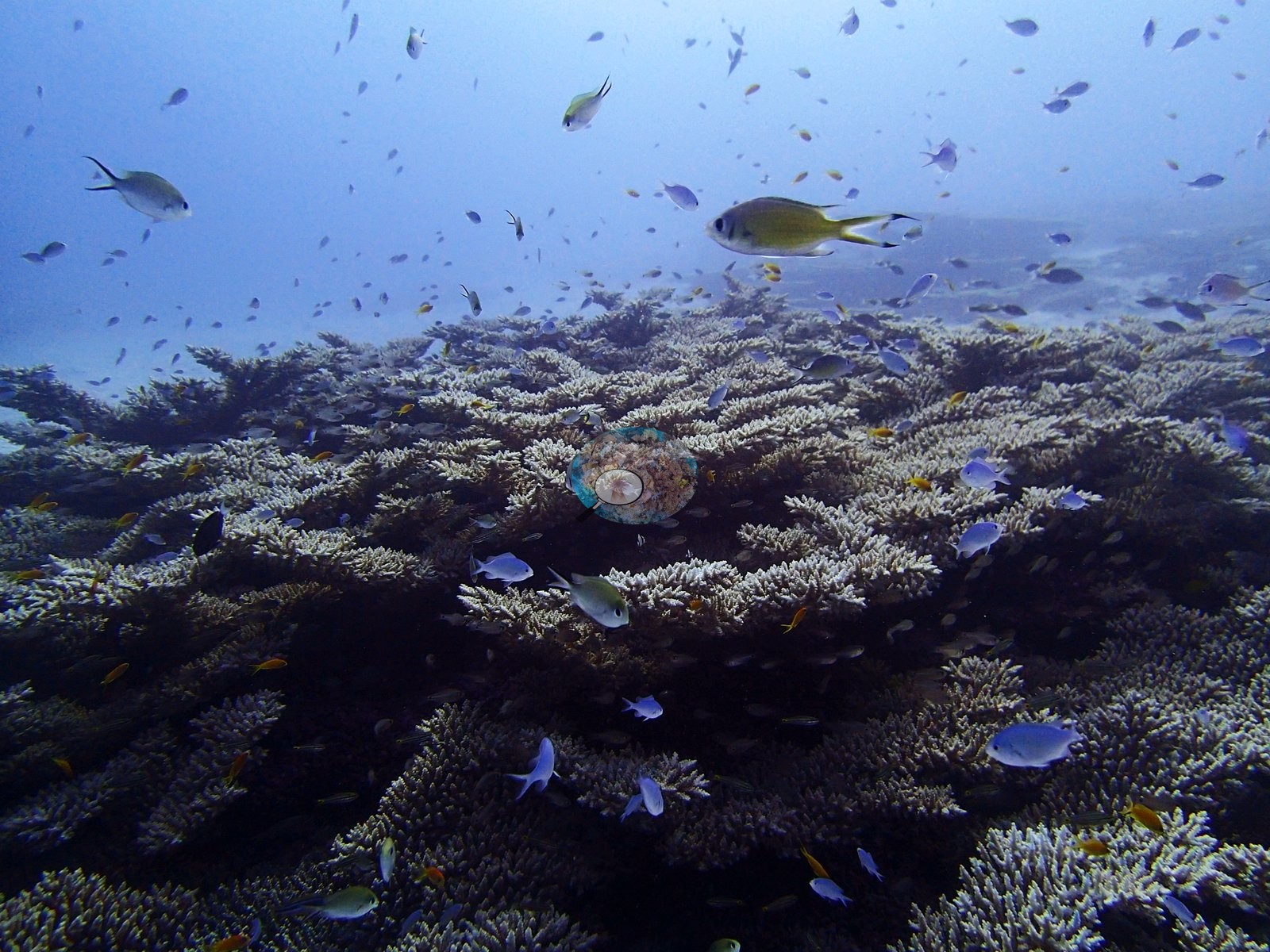

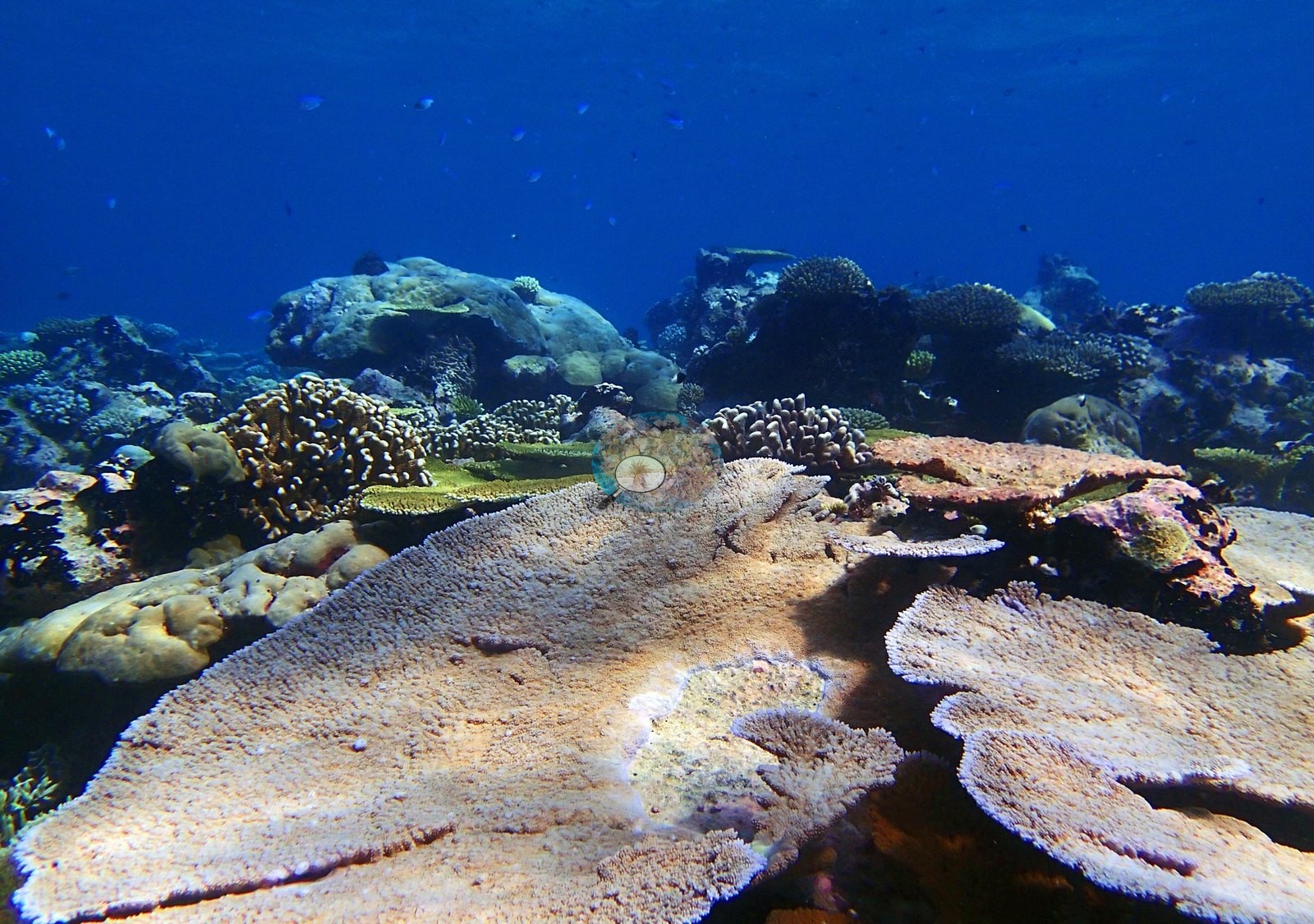

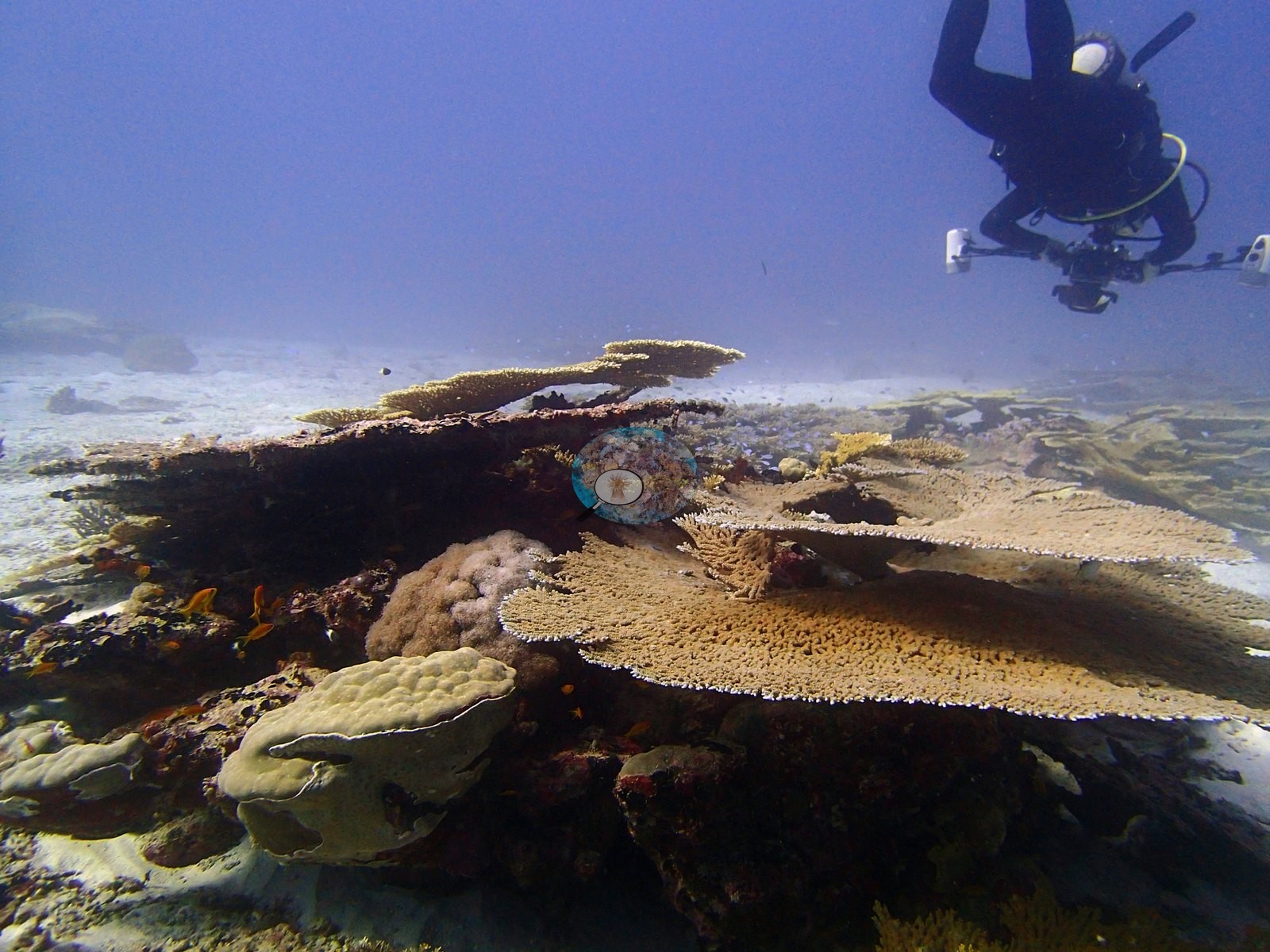

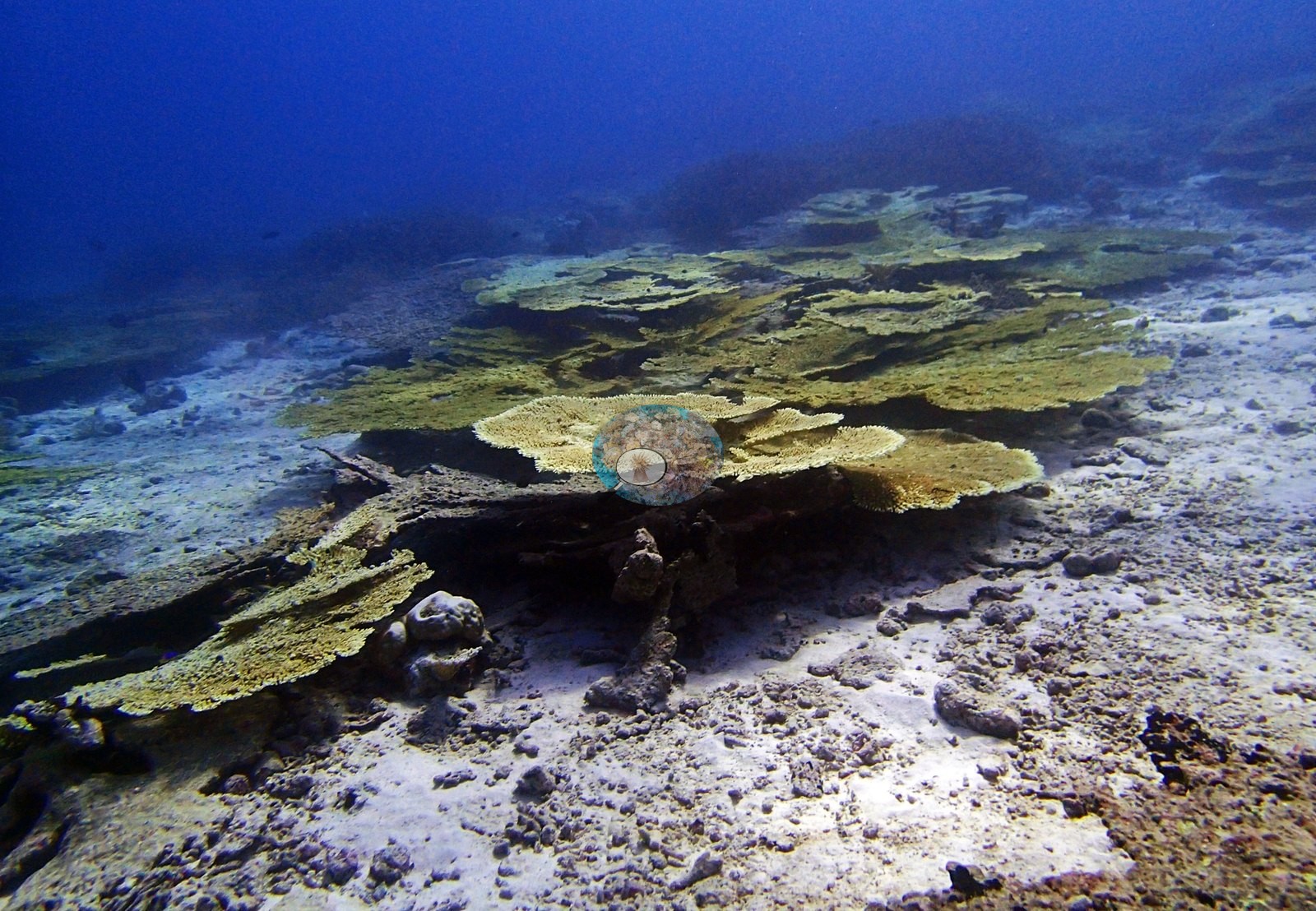

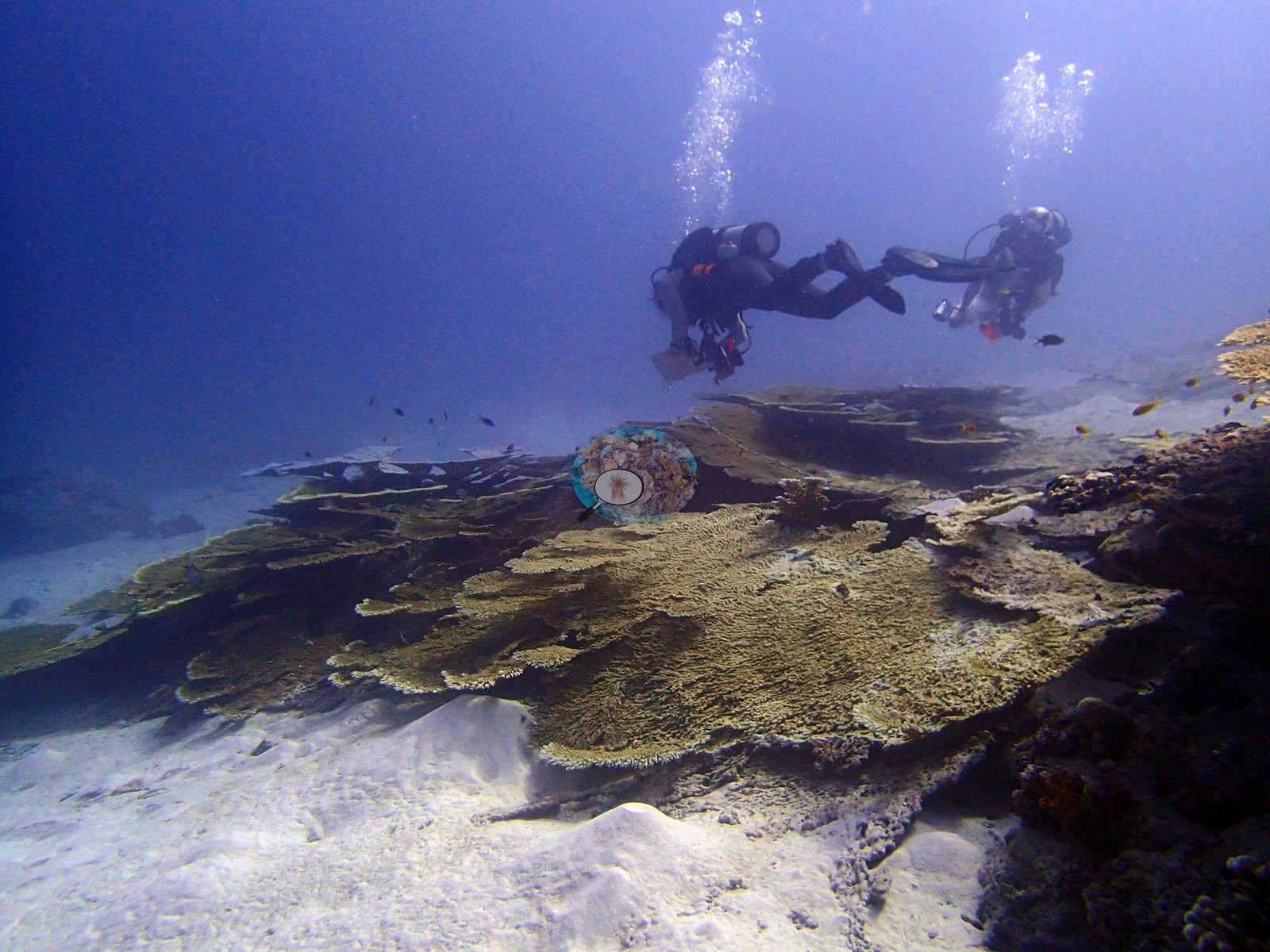

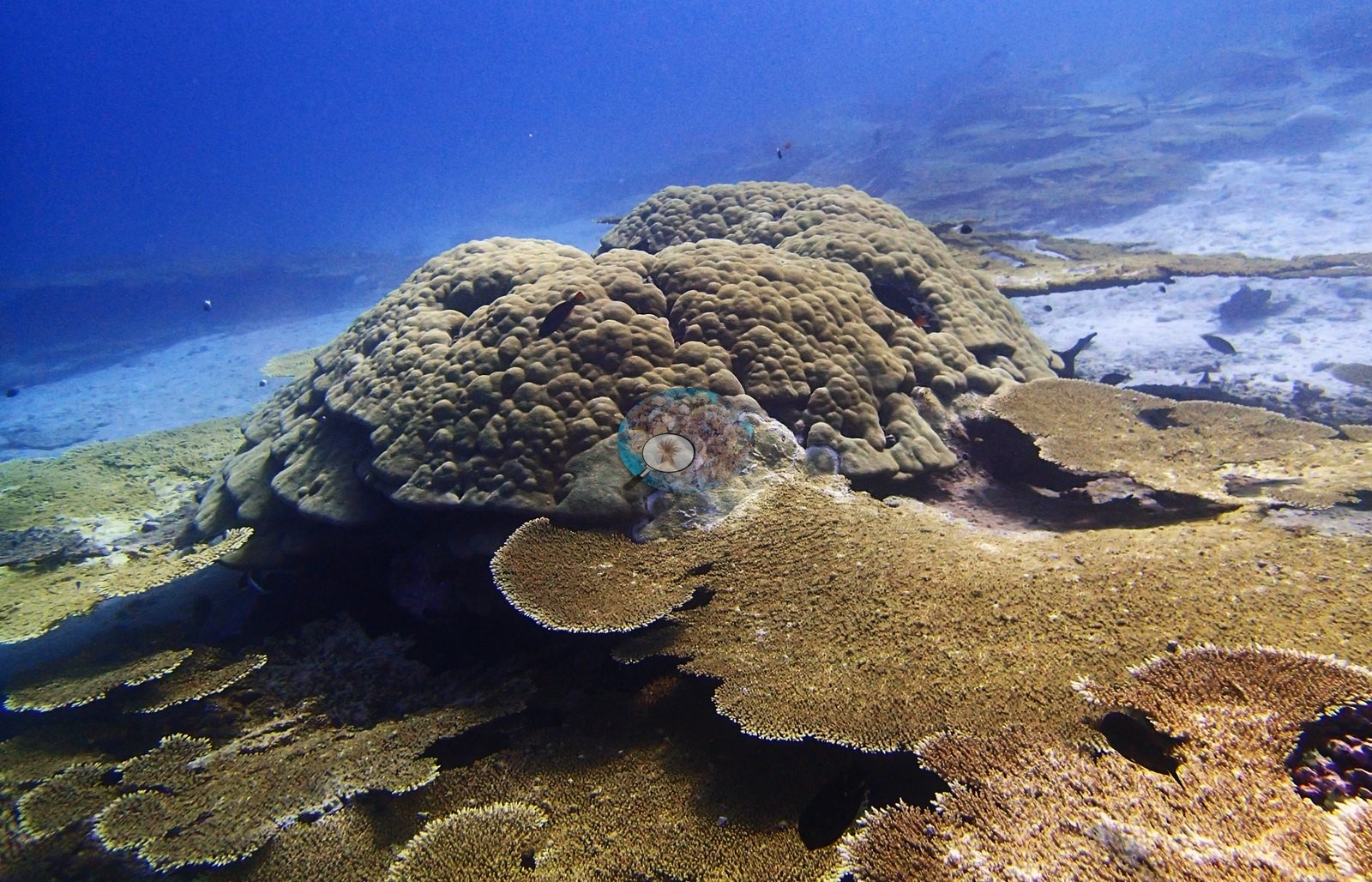

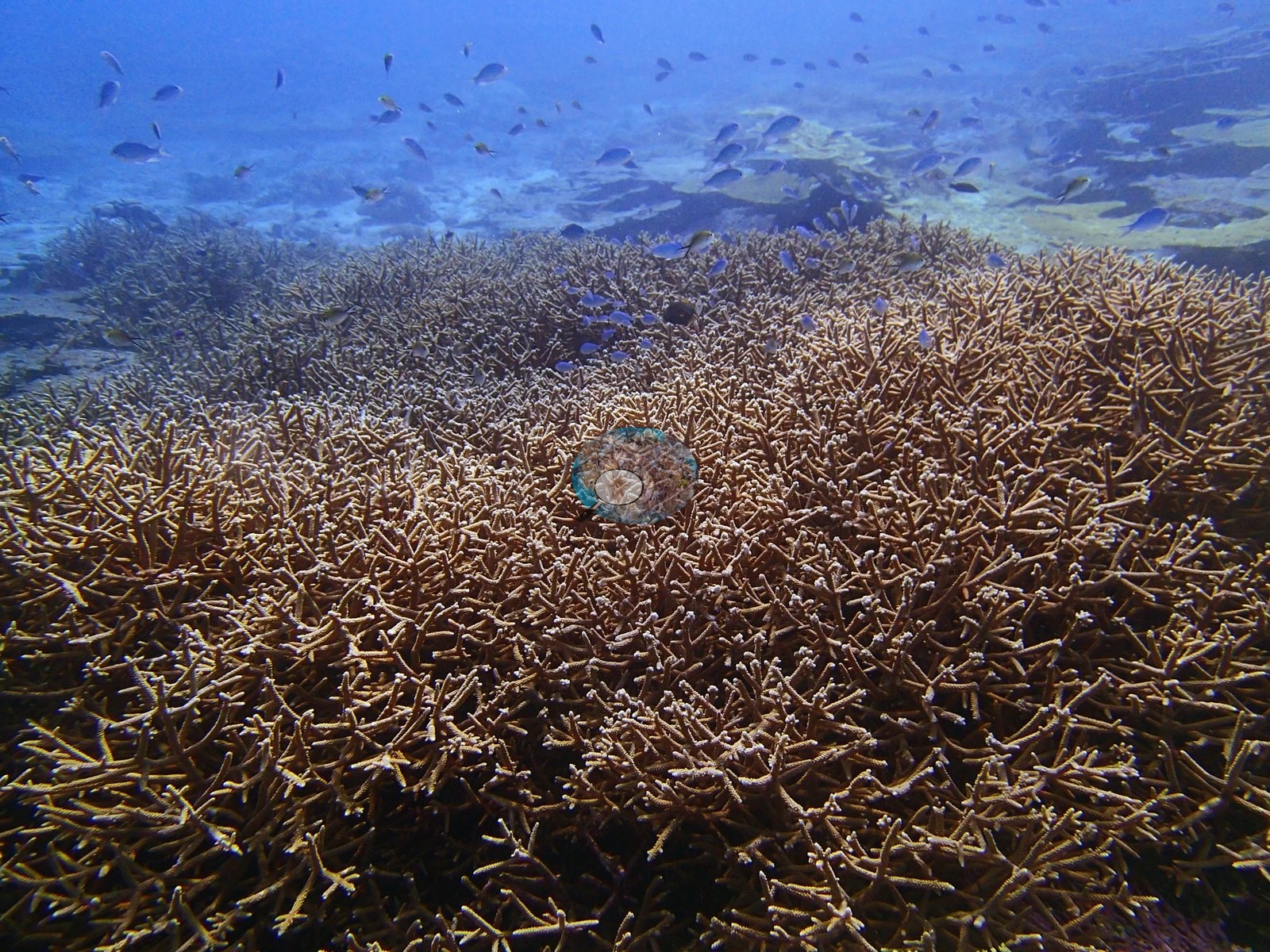

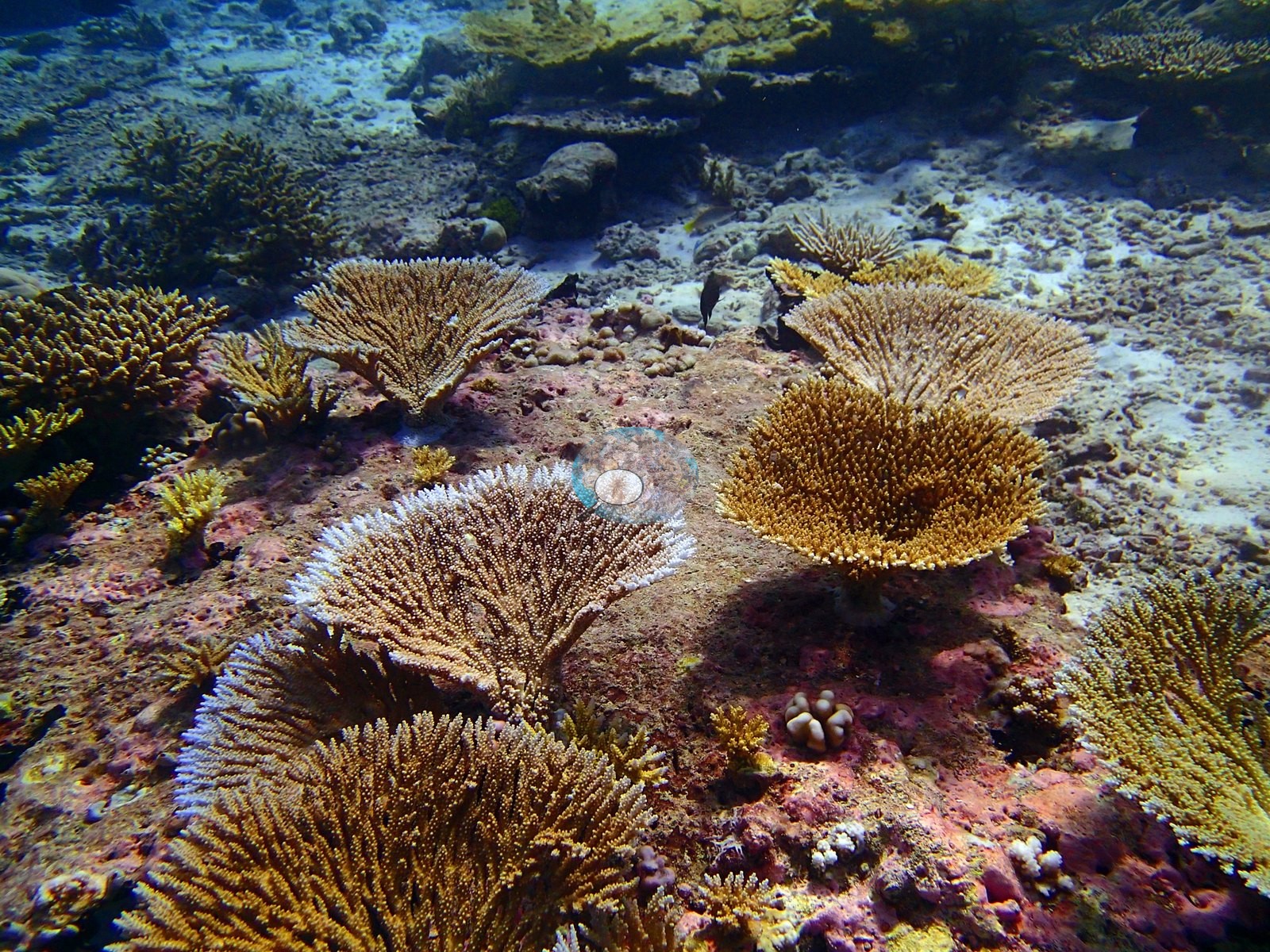

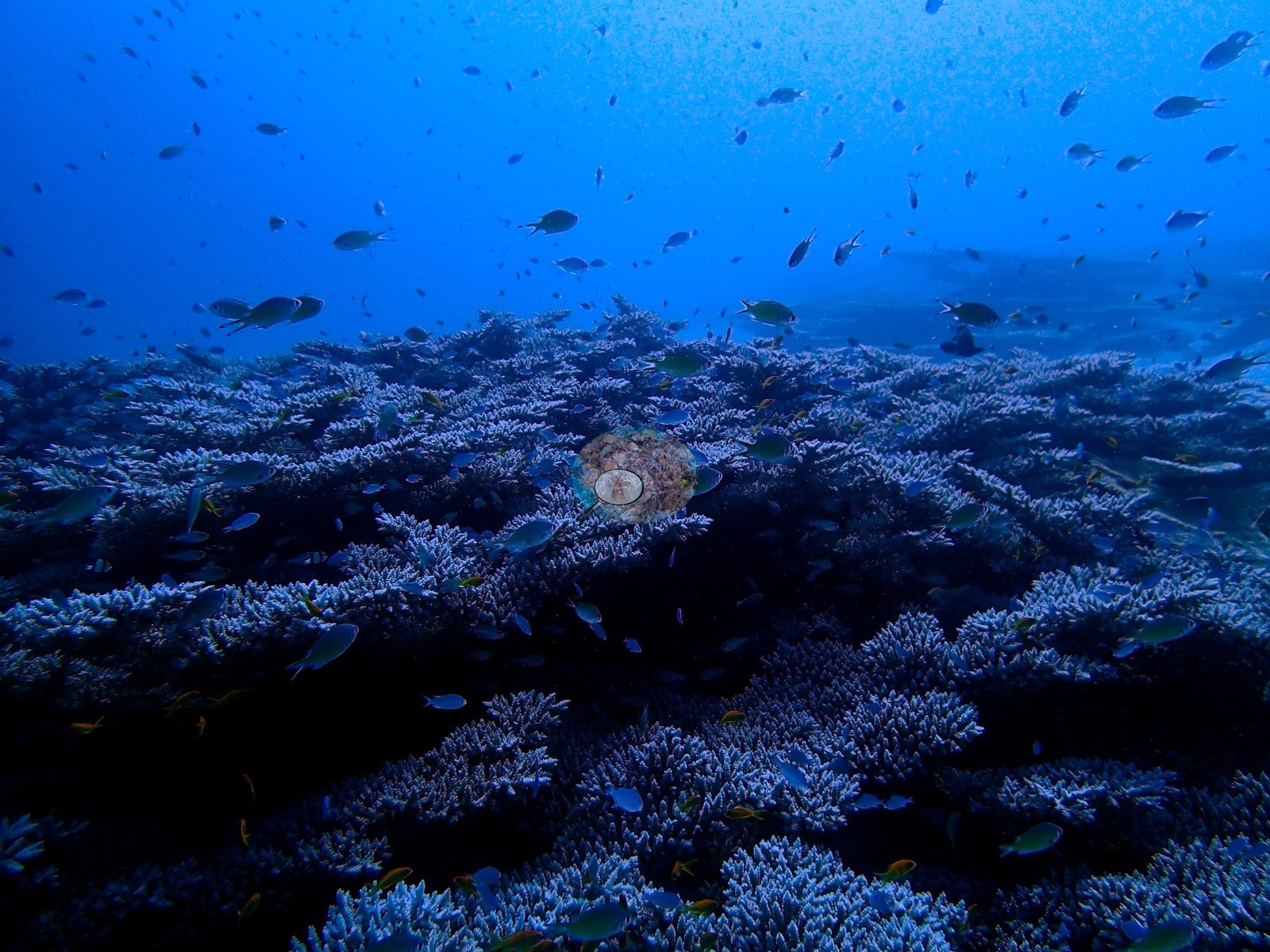

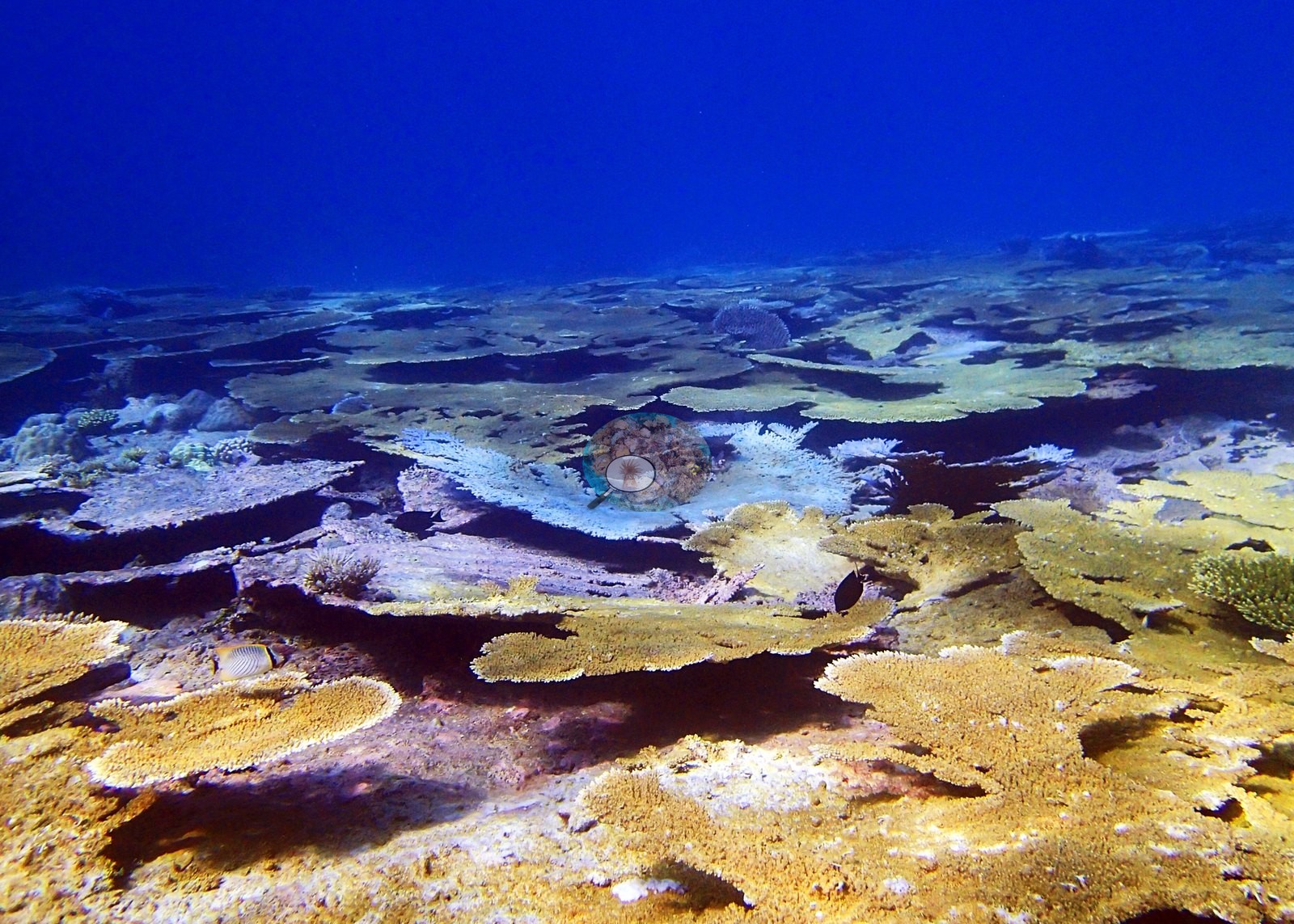

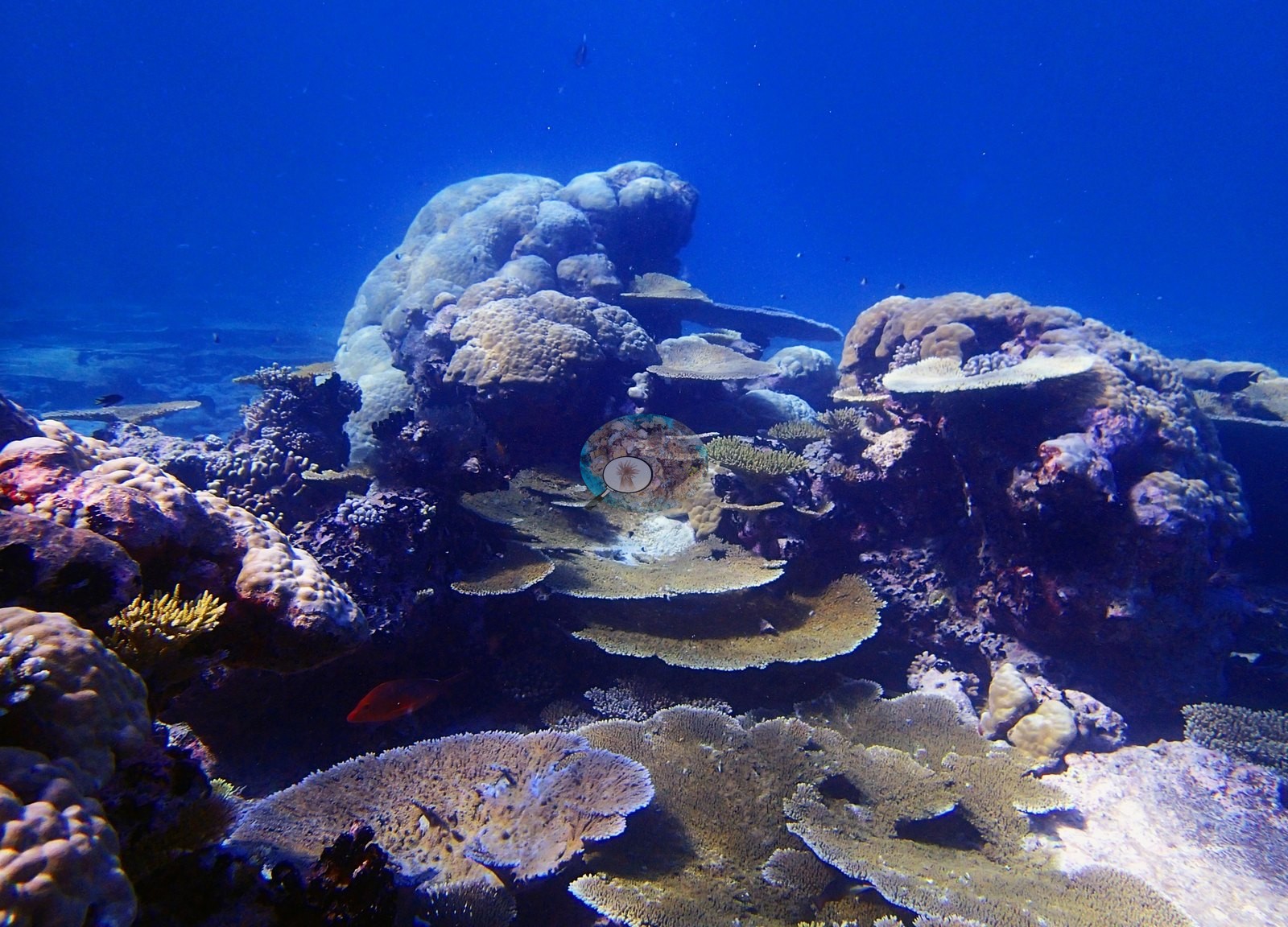

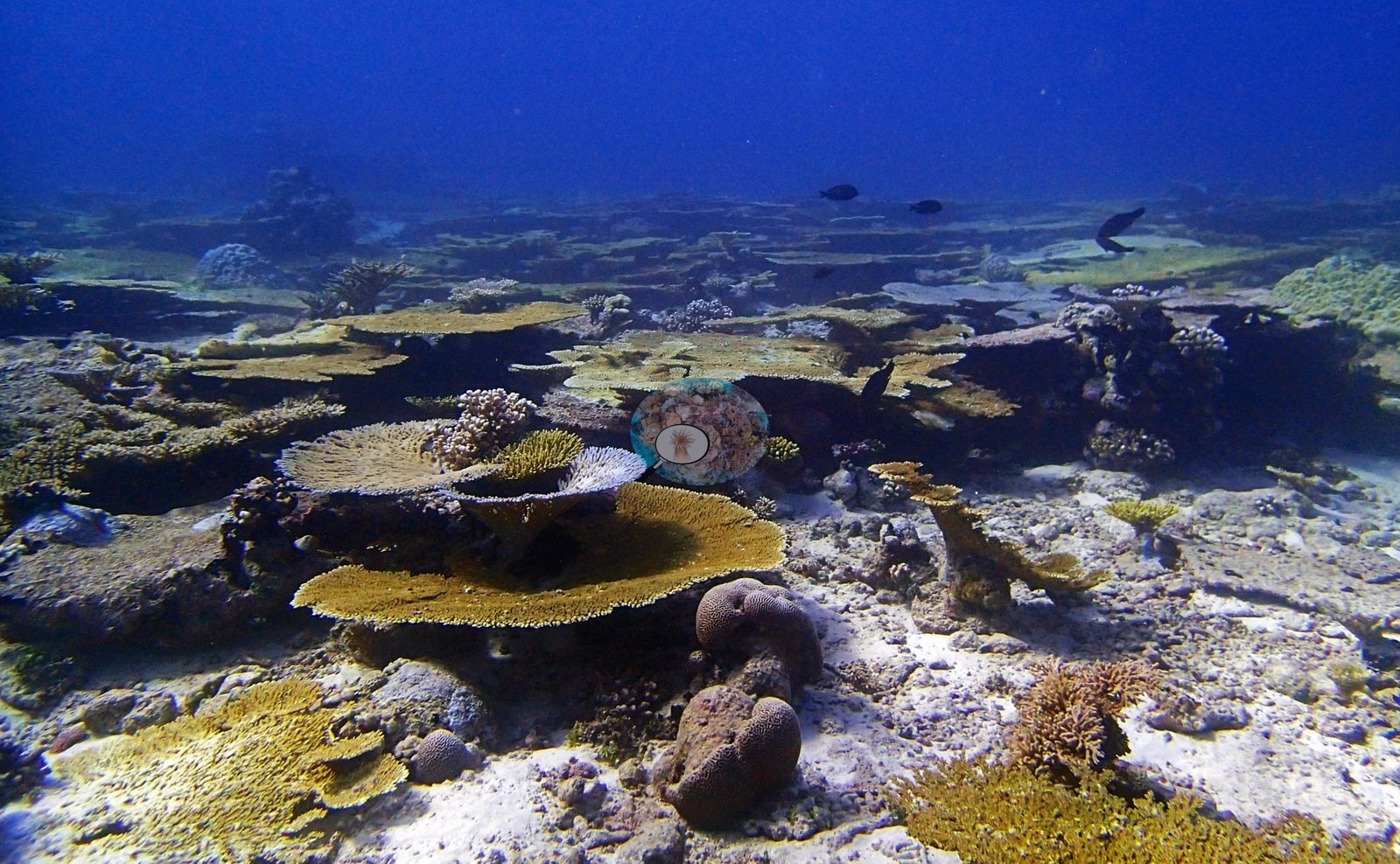

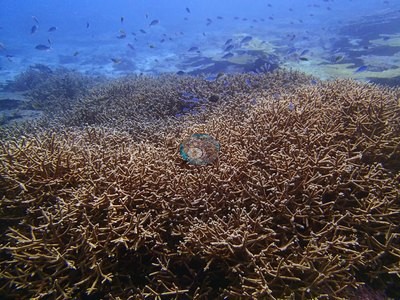

The reef is overwhelmingly a single-genus system: Acropora makes up 91% of all coral recorded, forming dense staghorn thickets and tabular shelf structures over standing dead-coral framework in the shallows (e.g., Image 1, Image 3, Image 7, Image 8, Image 10, Image 11, Image 12, Image 13, Image 14, Image 16, Image 17, Image 21, Image 24, Image 32).

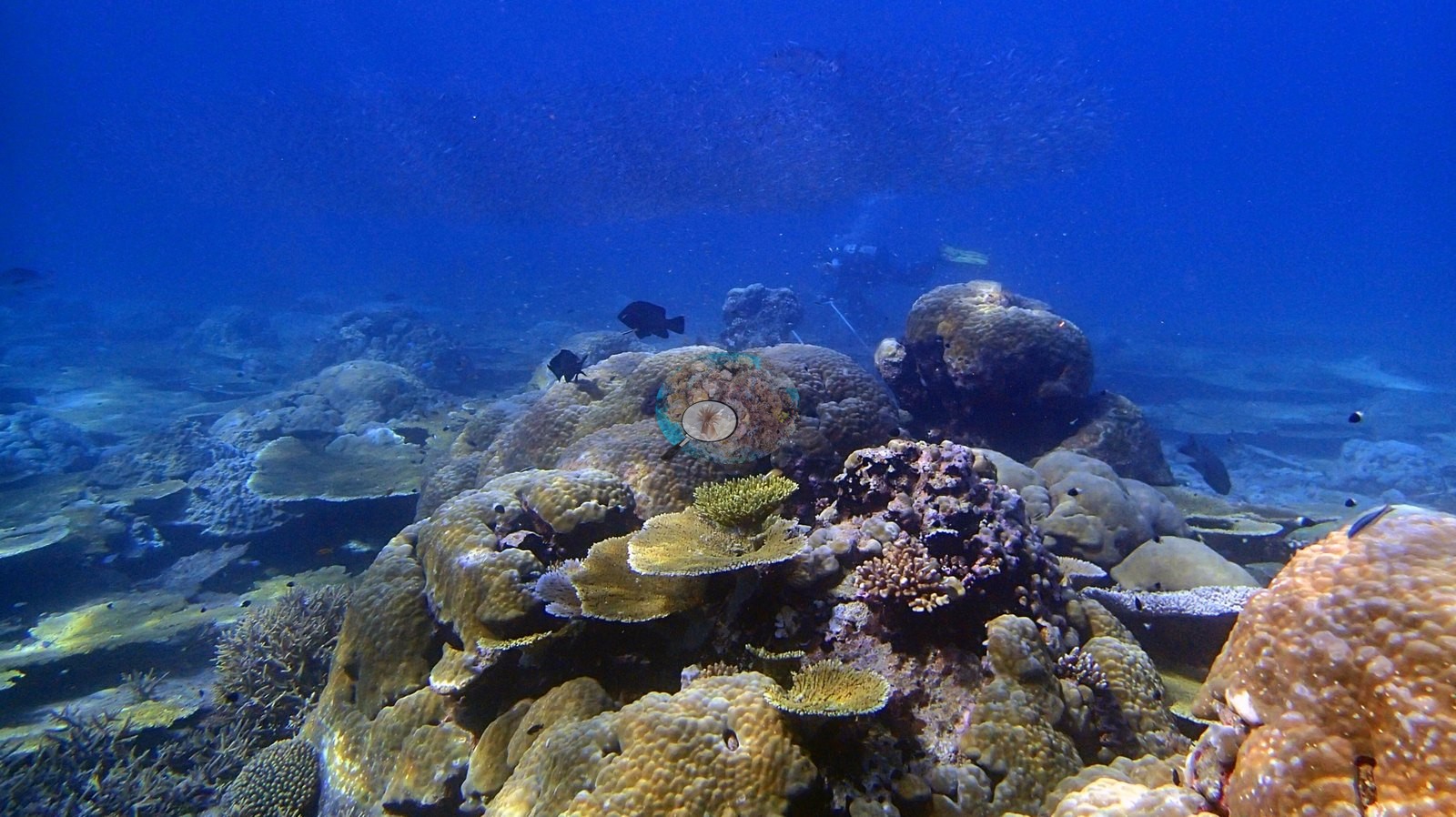

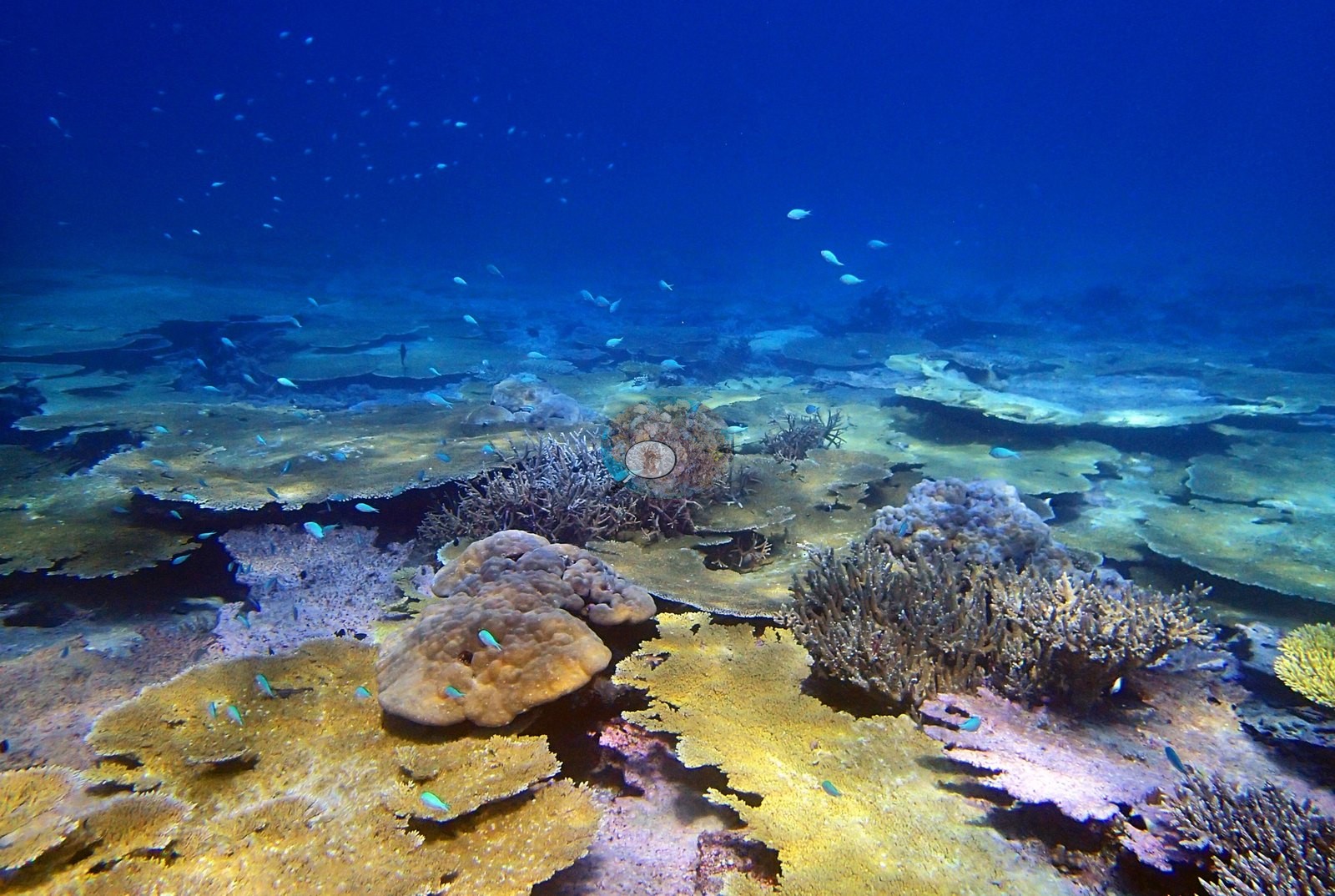

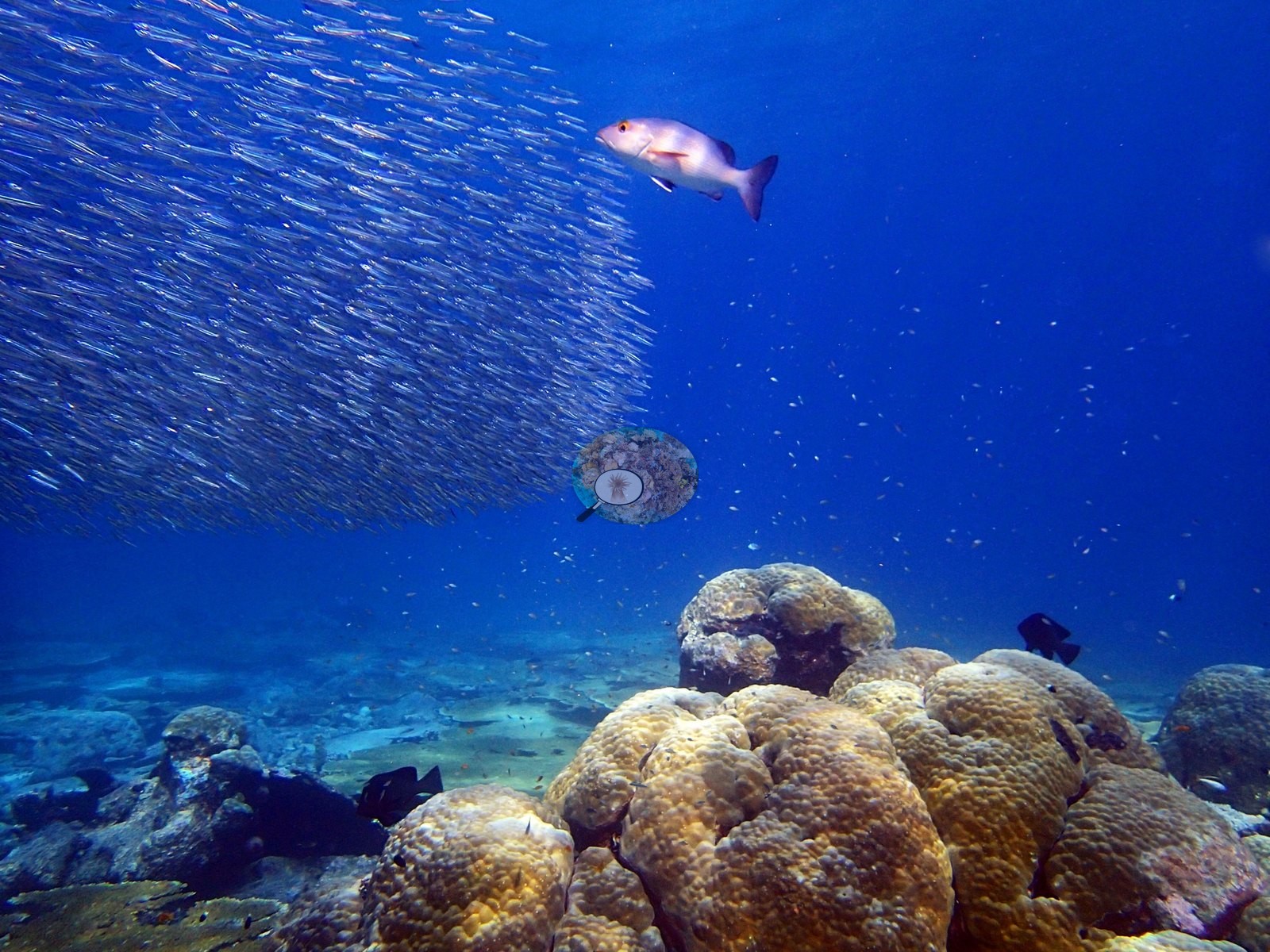

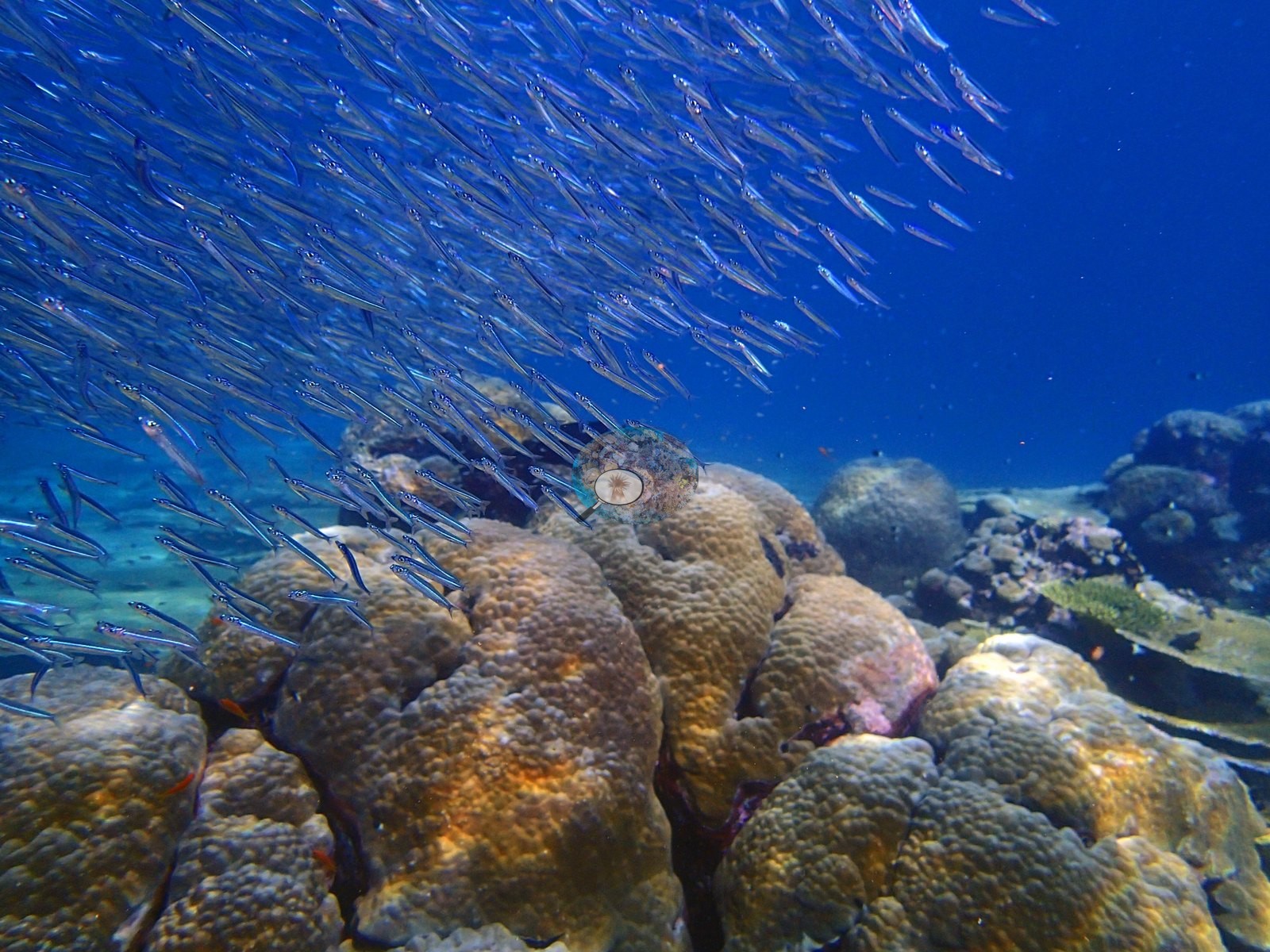

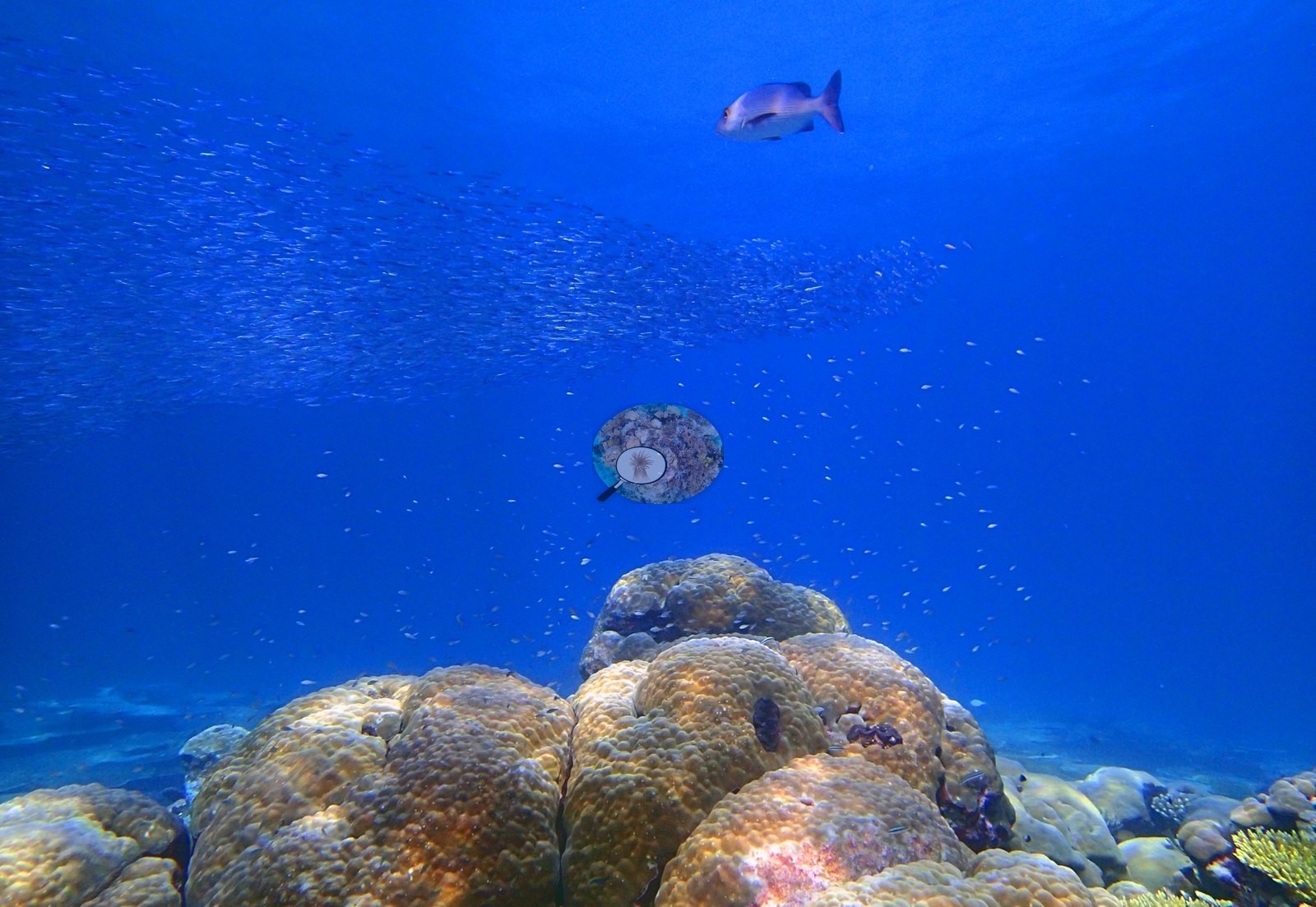

Coral cover and Acropora dominance both fall sharply with depth, giving way in the deepest stratum to a sparse, algae-dominated community of scattered massive corals (e.g., Image 5, Image 9, Image 23, Image 26, Image 30).

Coral cover

Stressors

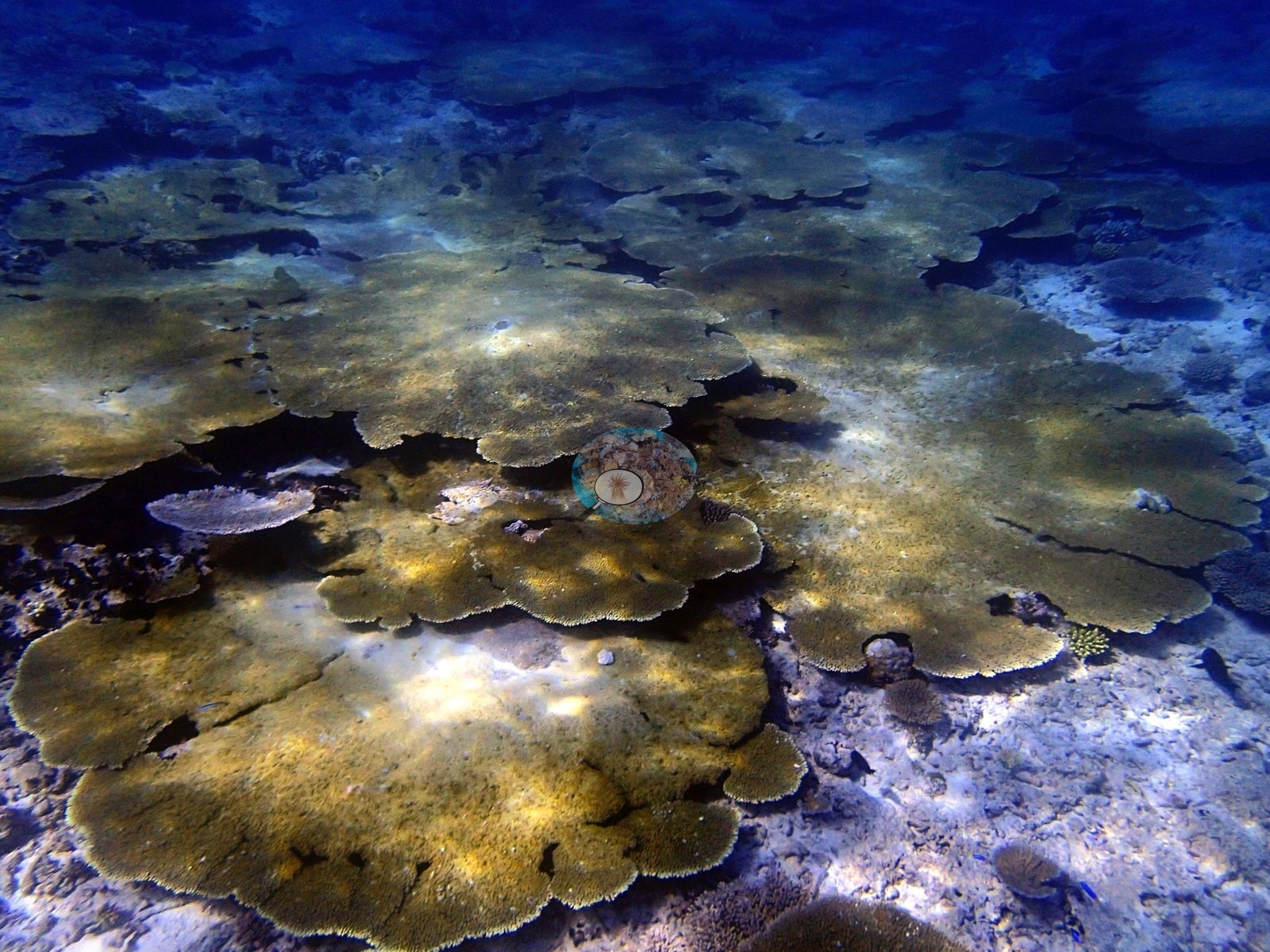

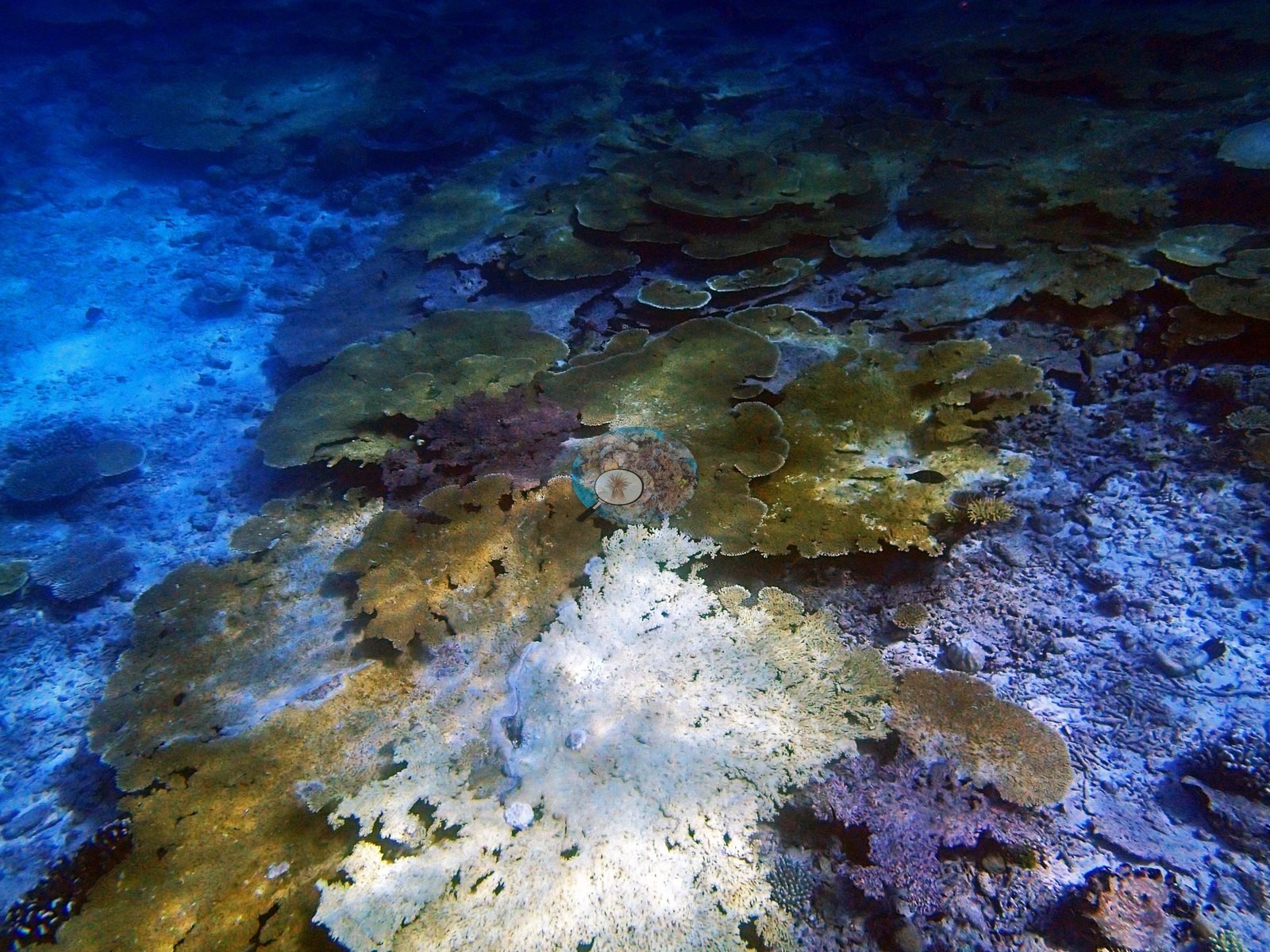

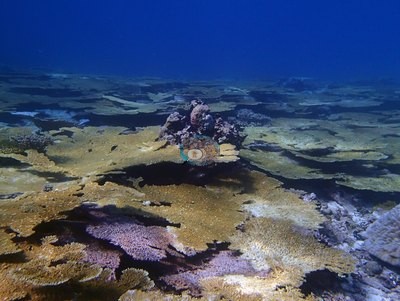

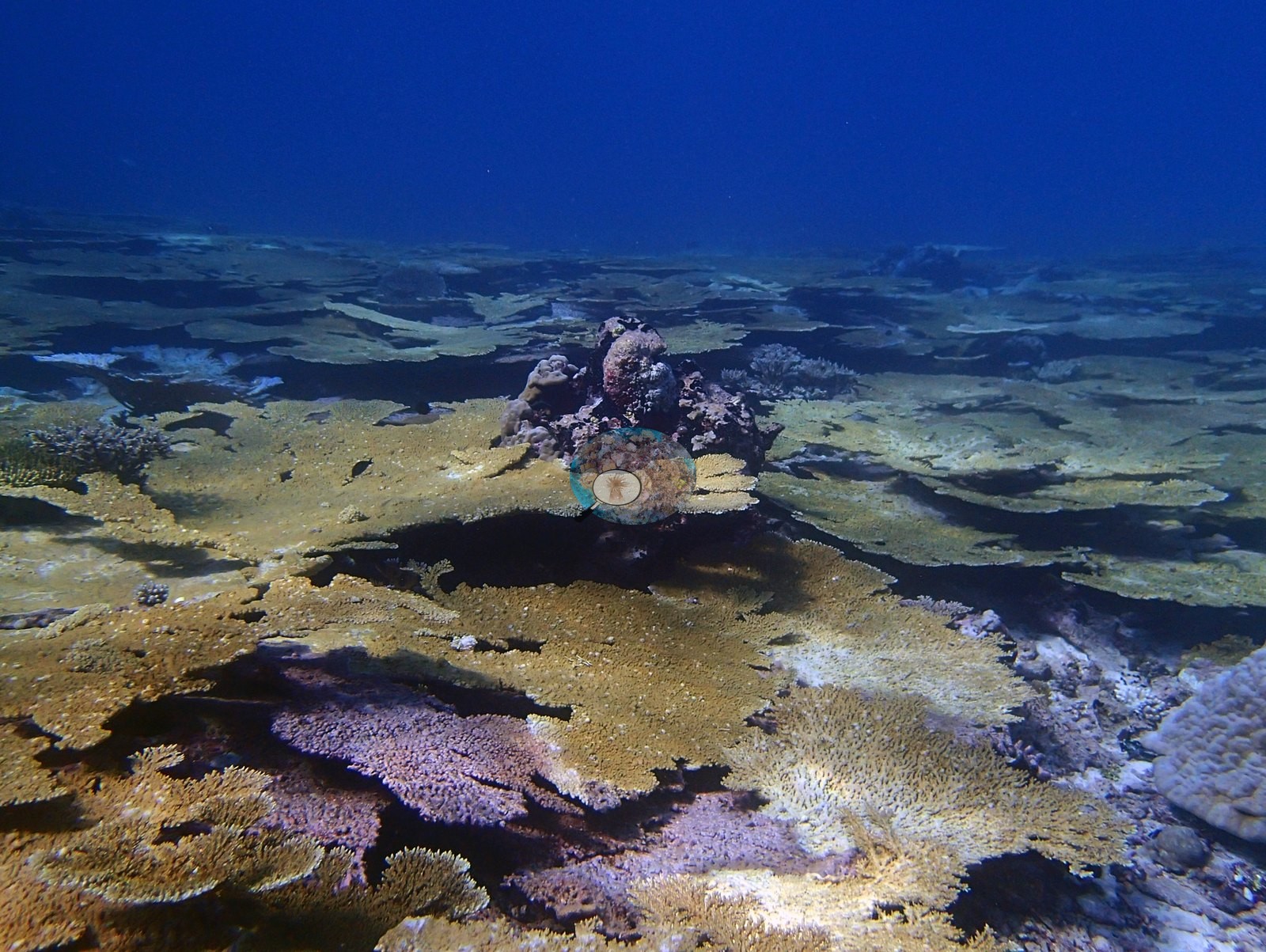

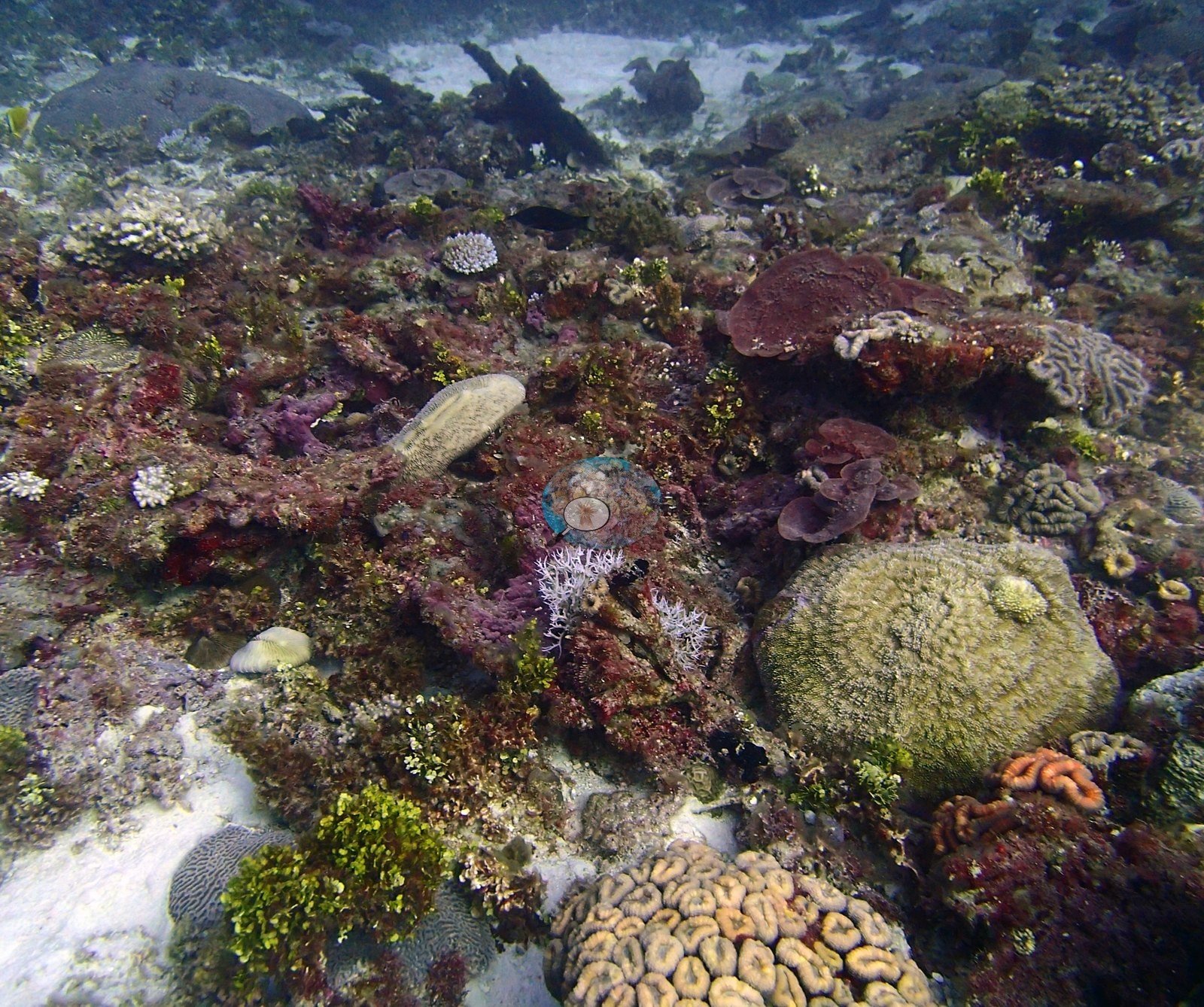

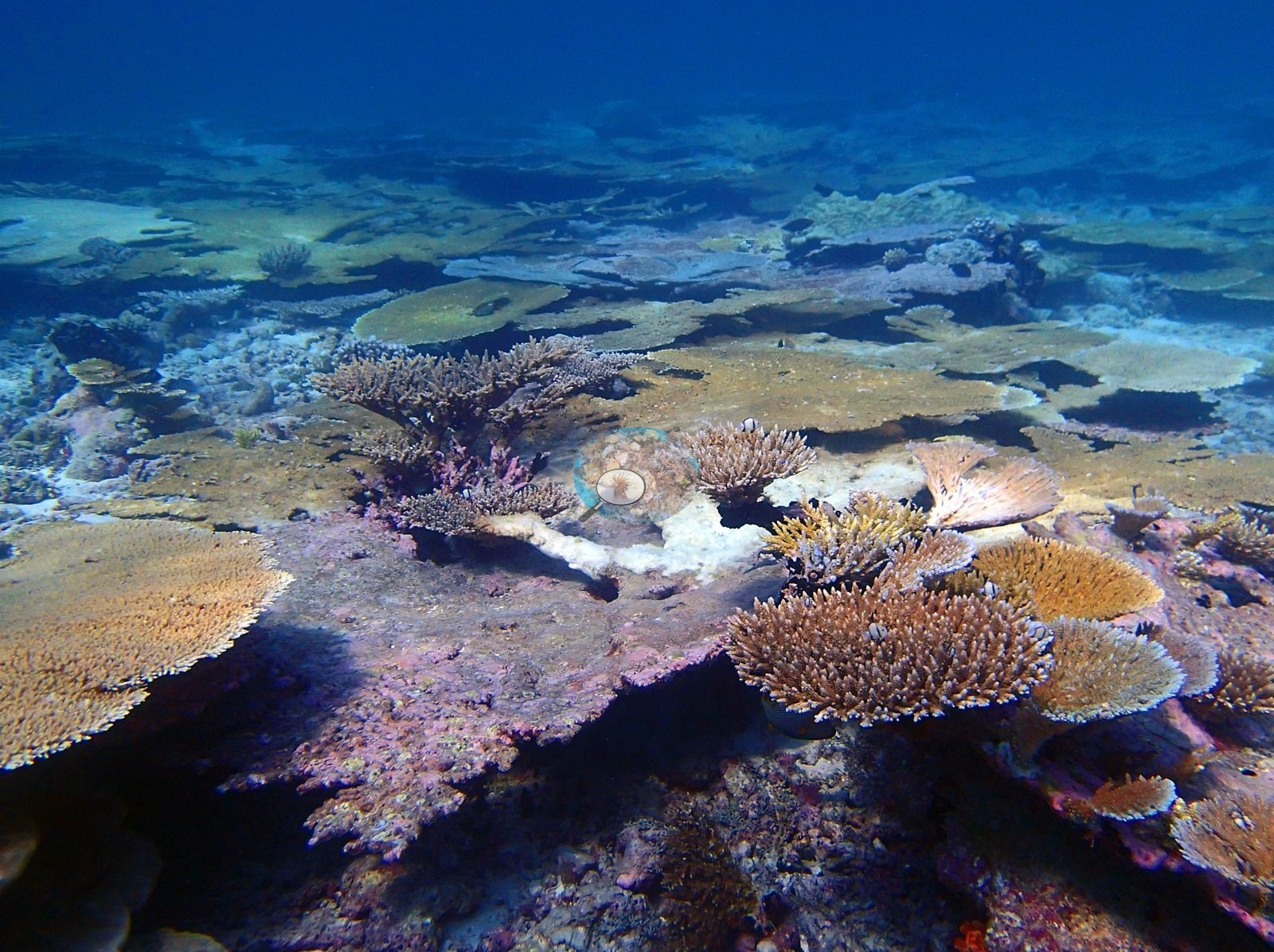

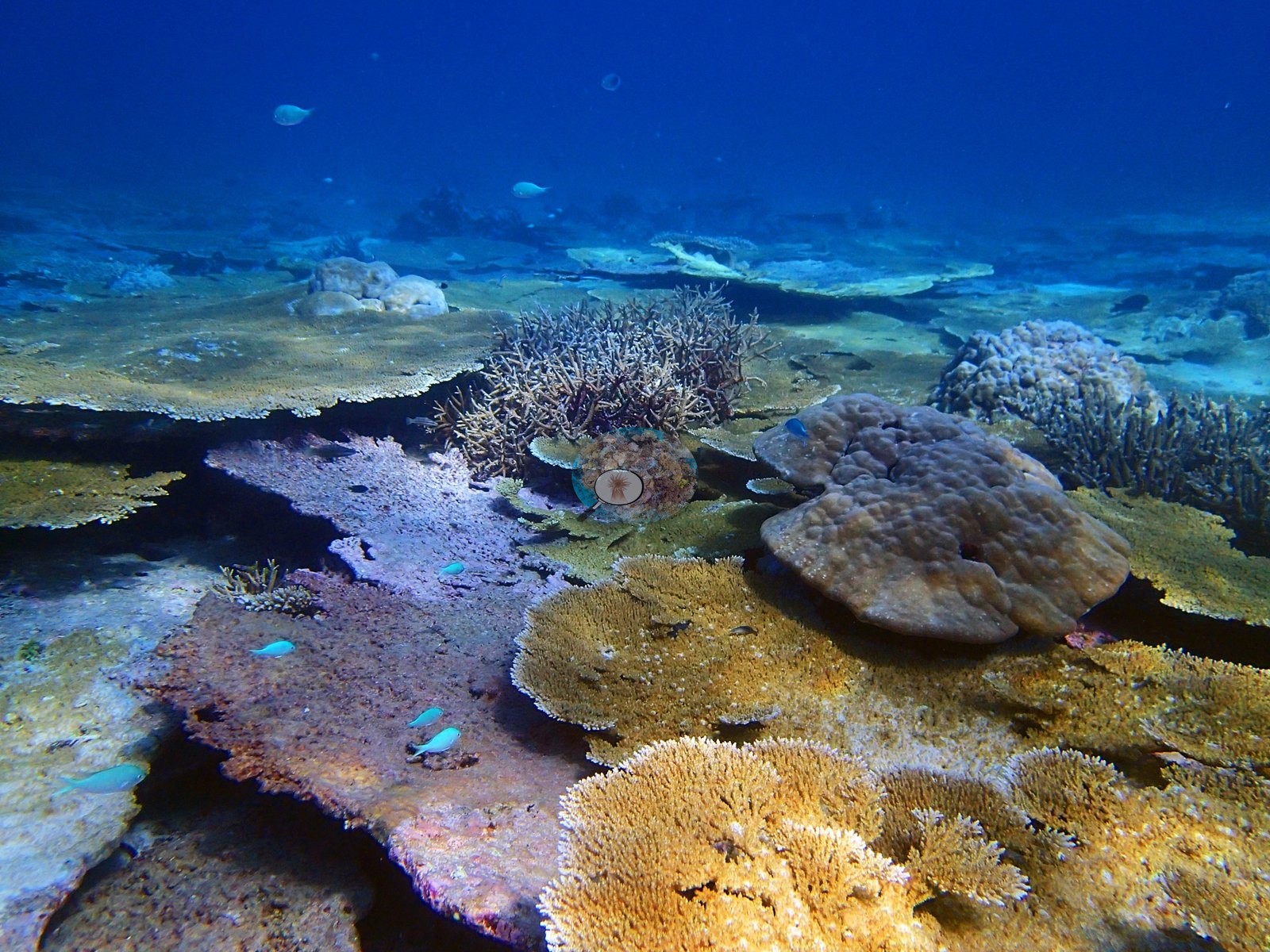

Published bleaching is 2.0% (CoralNet analysis of the survey images; Mayfield & Dempsey 2026, suppl. S1), but several photographs show colony-scale white pallor among the tabular corals (e.g., Image 4, Image 15, Image 20, Image 29, Image 33), and Anderson's sampling sheet records three Seriatopora hystrix colonies more than 90% bleached (ChSe65–ChSe67) and a 20%-bleached pocilloporid (CHPd74).

The bleaching percentage is a computer vision figure: CoralNet annotation of the informal survey images, not a diver's field estimate (Mayfield & Dempsey 2026, suppl. S1). Anderson's sampling sheet records nine colonies sampled here at 9.5–25.5 m: three Pocillopora acuta and one P. damicornis by RFLP; three Seriatopora hystrix by field call; two Pocillopora sp. sampled for a collaborator (field calls); the condition notes run from healthy to >90% bleached, with some partly dead colonies. Pocillopora acuta colonies from this archipelago were analyzed in Thomas et al. (2026, Global Ecology and Biogeography 35:e70305, https://doi.org/10.1111/geb.70305). The Living Oceans Foundation transects here recorded 0.2% cyanobacteria and no recently dead coral.

Comparisons with other data

Apart from the Living Oceans Foundation survey shown here, we found no other surveys at this site as of 2026. Within 5 km, two independent stations recorded station-year means of 27–44% hard coral cover between 2006 and 2015; the nearest, Sheppard et al. (2008) at Peros Banhos, 2.82 km away, read a mean of 44% in 2006.

Other notes

Reef type follows the LOF habitat map: the pin lies 1 m from 'lagoonal pinnacle reefs - branching coral dominated' inside the lagoon; a lagoon pin has no rim facing. Anderson's field sheet (LOF fellowship 2016 workbook) records 'lagoonal patch reef', 'leeward'; the expedition's 933-site table classes the station as 'protected' (patch reef).

CV model comparison

Headline is the transect value; every other row is listed beside it for comparison and none is averaged in. ⚠ The reference here is NOT the same instrument as at Mauritius, Oman, Kenya, or the Red Sea.
More infoThose are point counts on the photographs; this is a diver swimming a transect. The models and the reference never saw the same thing. ⚠ SITE-LEVEL ONLY. None of the Chagos photographs (2,500 frames across all stations) can be matched to a transect taken within 200 m, so transect-vs-image comparisons use site means, never individual frames. The transect value is the mean of all of this station's own transects in the expedition's per-transect benthic data. The transect is THE coral-cover value for this site and stands alone. The rows below it are a methods comparison only: no computer-vision value is averaged with it, feeds the headline, or carries over to the site's cover figure.
MethodHard coral cover (%)Photos (n) ± SE
Transect mean (all transects)56.0
In-house DINOv333.3n = 29 · SE 3.2
CoralSCOP edited38.4n = 29 · SE 3.3
Claude35.0n = 29 · SE 5.3

The three computer-vision methods agree within 5.1 pp (33.3–38.4%) and read 17.6–22.7 pp below the in-water transect (56.0%); the headline is the in-water transect because a diver transect is independent of the photographs.

Independent surveys nearby

Data availability near this site
Agency / programYear(s)Stations / distanceLink
Sheppard et al. (2008)20061 station, 2.82 kmRecords ↓
Spalding et al. (2025)—2 stations, 1.91 kmRecords ↓
XL Catlin Seaview Survey20151 station, 4.62 kmRecords ↓

Within 5 km, 2 independent survey stations recorded hard coral cover in 6 records between 2006 and 2015. The most recent nearby survey is from 2015, so these values predate recent heat stress. This site's own estimate (56%) is not compared with these surveys: none lies within 2 km. 2 further rows in the table have no survey date, so they are listed but not part of this summary.

Collected by other programs using different methods (the XL Catlin Seaview Survey uses photo-transects with automated image annotation), so these are context for the figures above, not a like-for-like comparison. Where a station was surveyed more than once, the cell shows either the range of its values or, as a single value, the mean of surveys made in one year. Station names are not dive-site names. Values above 70% are marked “best patch”: surveys often target the densest coral on a reef, so these may overstate the site as a whole.

Independent survey data near this site
AgencySite / locationDateHard coral cover (%)DistanceLink
Sheppard et al. (2008)Peros Banhos200644% (5 records)2.82 kmdoi:10.3354/meps07436
XL Catlin Seaview Surveytransect 36006201527%4.62 kmdoi:10.14264/uql.2019.930
Spalding et al. (2025)Peros Banhos - lagoon Knoll (N, 9-12 m)pre-bleaching baseline80% best patch1.91 km—
Spalding et al. (2025)Peros Banhos - lagoon Knoll (N, 6-9 m)pre-bleaching baseline70%1.91 km—

Data & links

All images from Coral Reef Diagnostics. Data are from the Khaled bin Sultan Living Oceans Foundation Global Reef Expedition, Coral Reef Diagnostics, and the organizations named in the data sources above.

© Coral Reef Diagnostics.

References

  1. Mayfield AB, Dempsey AC (2026). Using tourist diver images to estimate coral cover and bleaching prevalence in a remote Indian Ocean coral reef system. Oceans 7(1):1. PDF
  2. Sheppard C, Harris A, Sheppard A (2008). Archipelago-wide coral recovery patterns since 1998 in the Chagos Archipelago, central Indian Ocean. Marine Ecology Progress Series 362:109-117. PDF
  3. Spalding M, Bourasseau M, et al. (2025). Coral bleaching and mortality in the Chagos Archipelago, 2024. British Indian Ocean Territory Administration report (gray literature). PDF
  4. Gonzalez-Rivero M, et al. (2019). Seaview Survey photo-quadrat and image classification dataset. The University of Queensland (UQ eSpace) data collection. DOI
