Coral Reef Diagnostics

Maldives - Ari Atoll south tip

Reef Check Foundation
⬇ Download this page as a report card
05
Photo: Anderson Mayfield/Coral Reef Diagnostics
Country
Survey date(s)
2017-05-24
Coordinates
3.4700, 72.8550
Coral cover
19%
Computer vision (20 photos) · details below
Observations
Heat stress
Today’s heat load
16 Sep 2026 · Bleaching Watch
5-year thermal stress load
5-year mean max. degree heating weeks (DHW)
2021–2025
NOAA Coral Reef Watch — Maldives virtual station
i 5-year mean max. DHW is the mean of the annual maximum DHWs over the five complete years named above, not conditions today.
More infoMaldives (NOAA CRW virtual station) · Maldives ecoregion mean=2.9°C-heating weeks
Photographs
25
Site summary

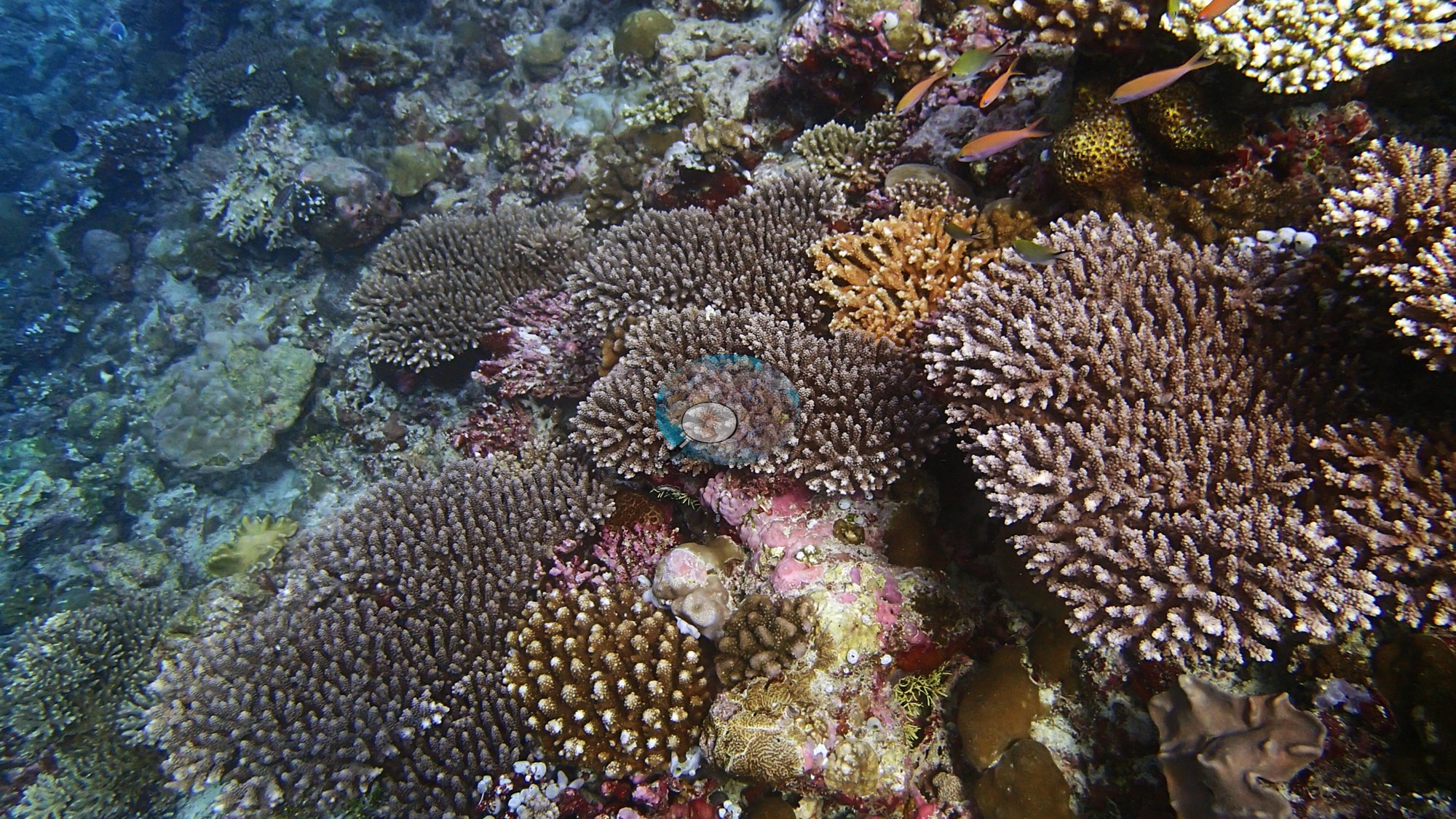

Ari Atoll's southern tip is caught mid-crisis, with crown-of-thorns starfish wedged under ledges amid the fresh white skeletons of eaten staghorn and cauliflower coral - an outbreak in progress even as anemone gardens and coral thickets persist nearby. The second dive delivered a whale shark gliding along the slope. Computer vision cover estimate is around 18.6%.

Six independent survey stations shown with the program’s logo — click one to see how far it is from this site.

Three other CRD dive sites within 5 km shown in orange — click a marker to open its page.

24 of these 25 photographs are shown beside the text that discusses them under "Site description" below.

22

Photo credit & attribution

Site description

Setting

Two dives at Ari's southern tip, and both extremes of reef drama in one morning.

General benthic features

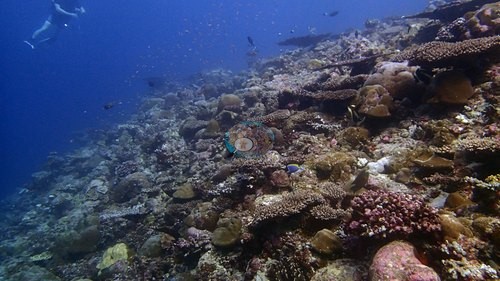

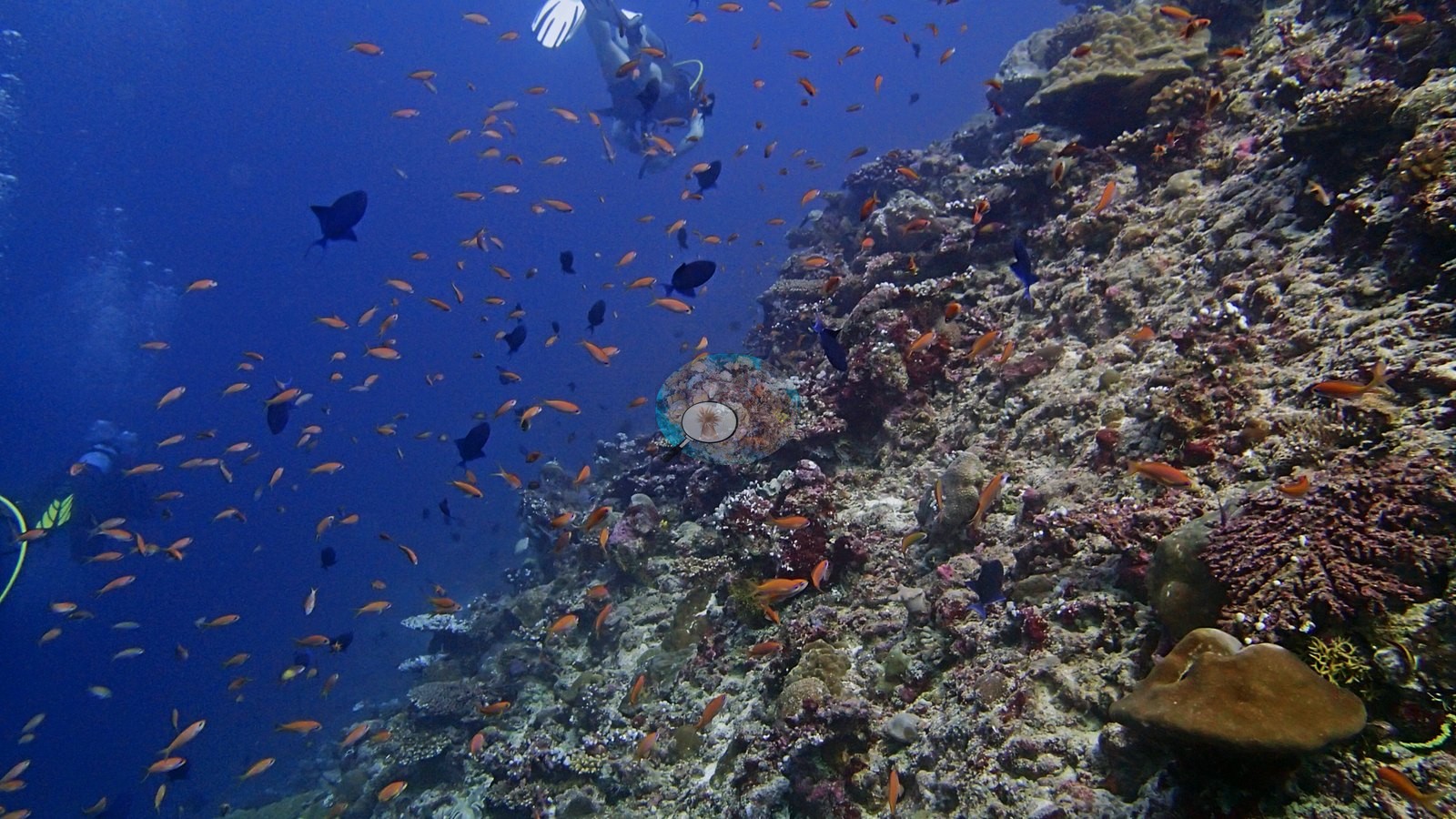

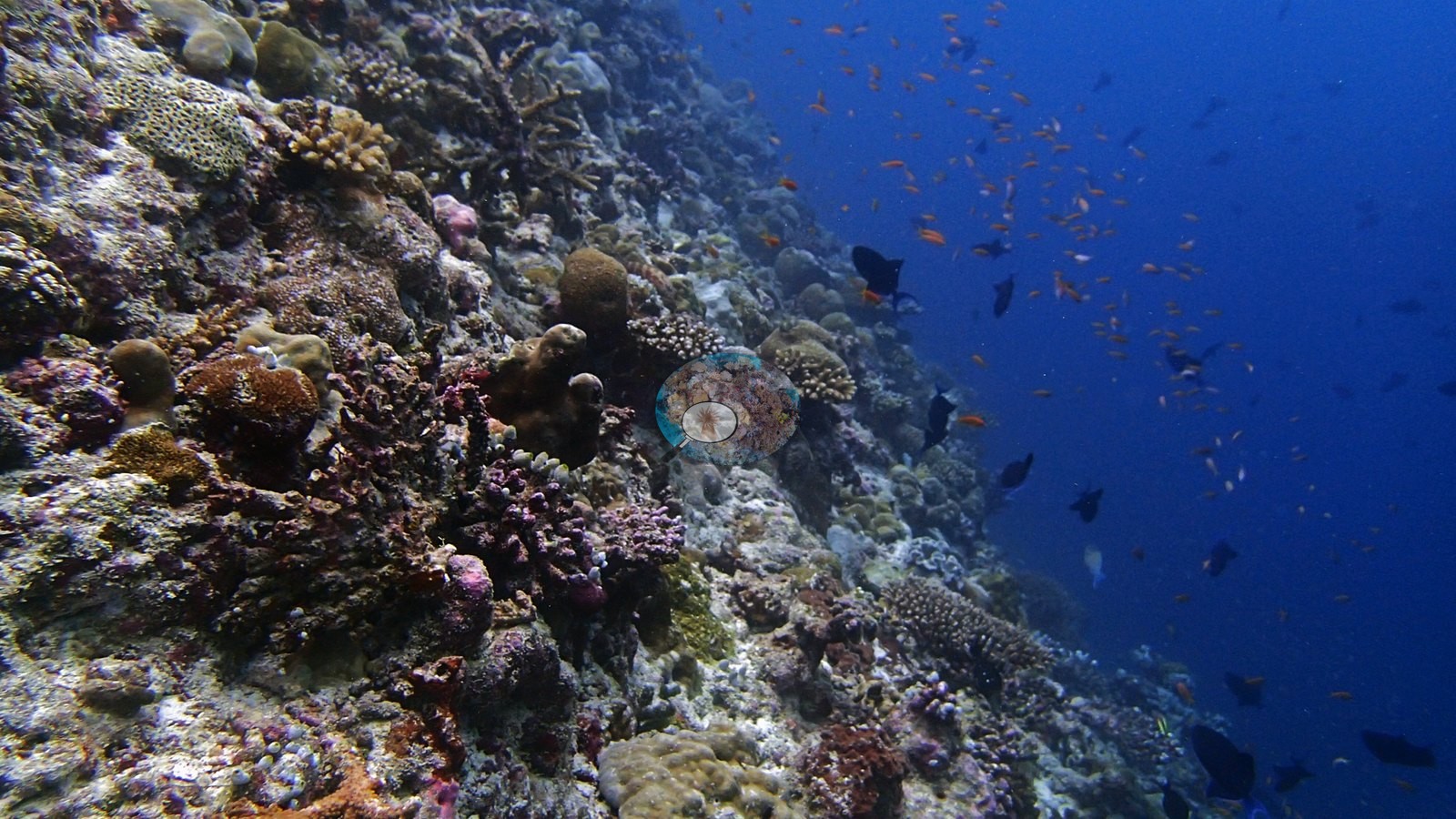

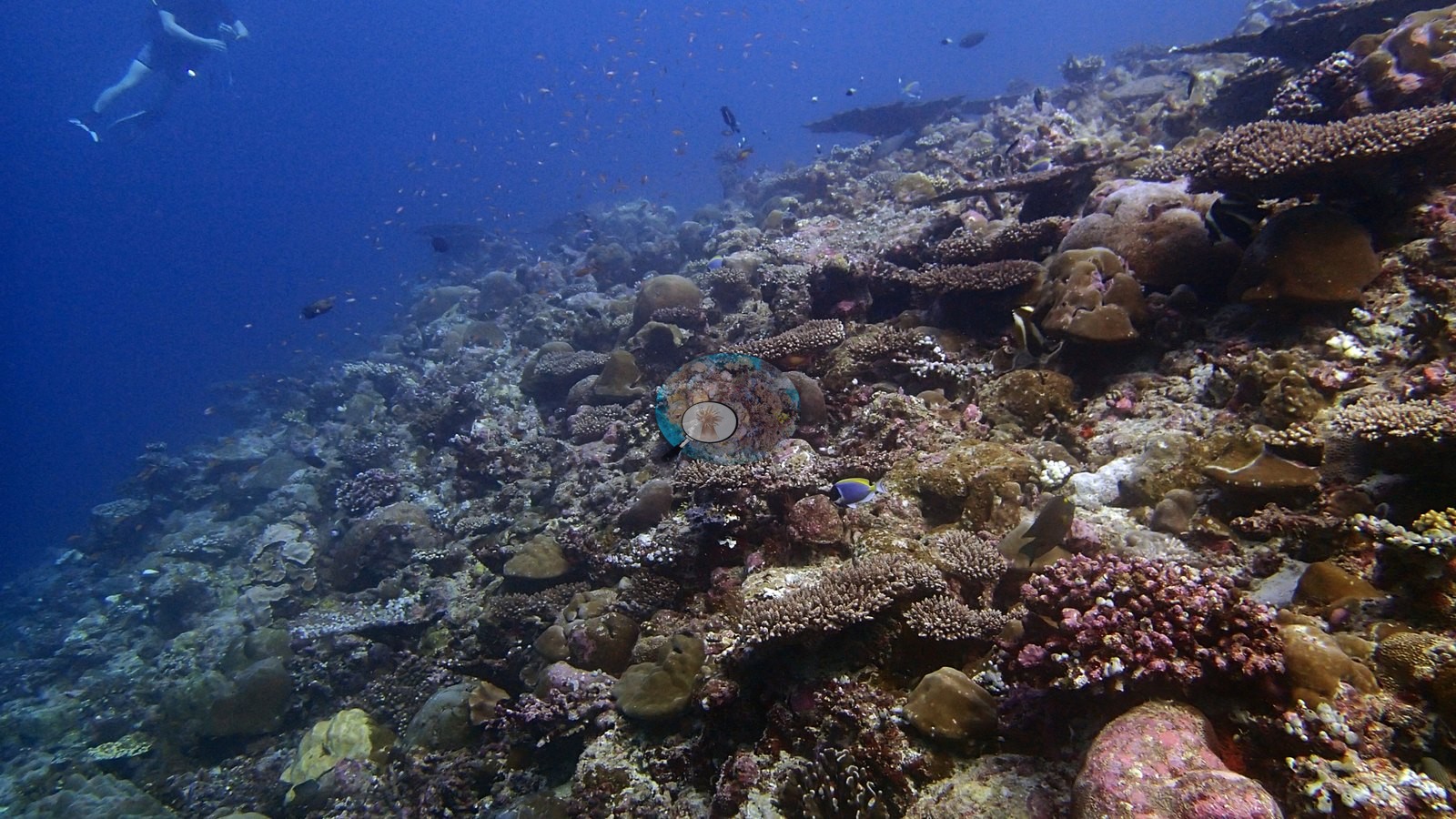

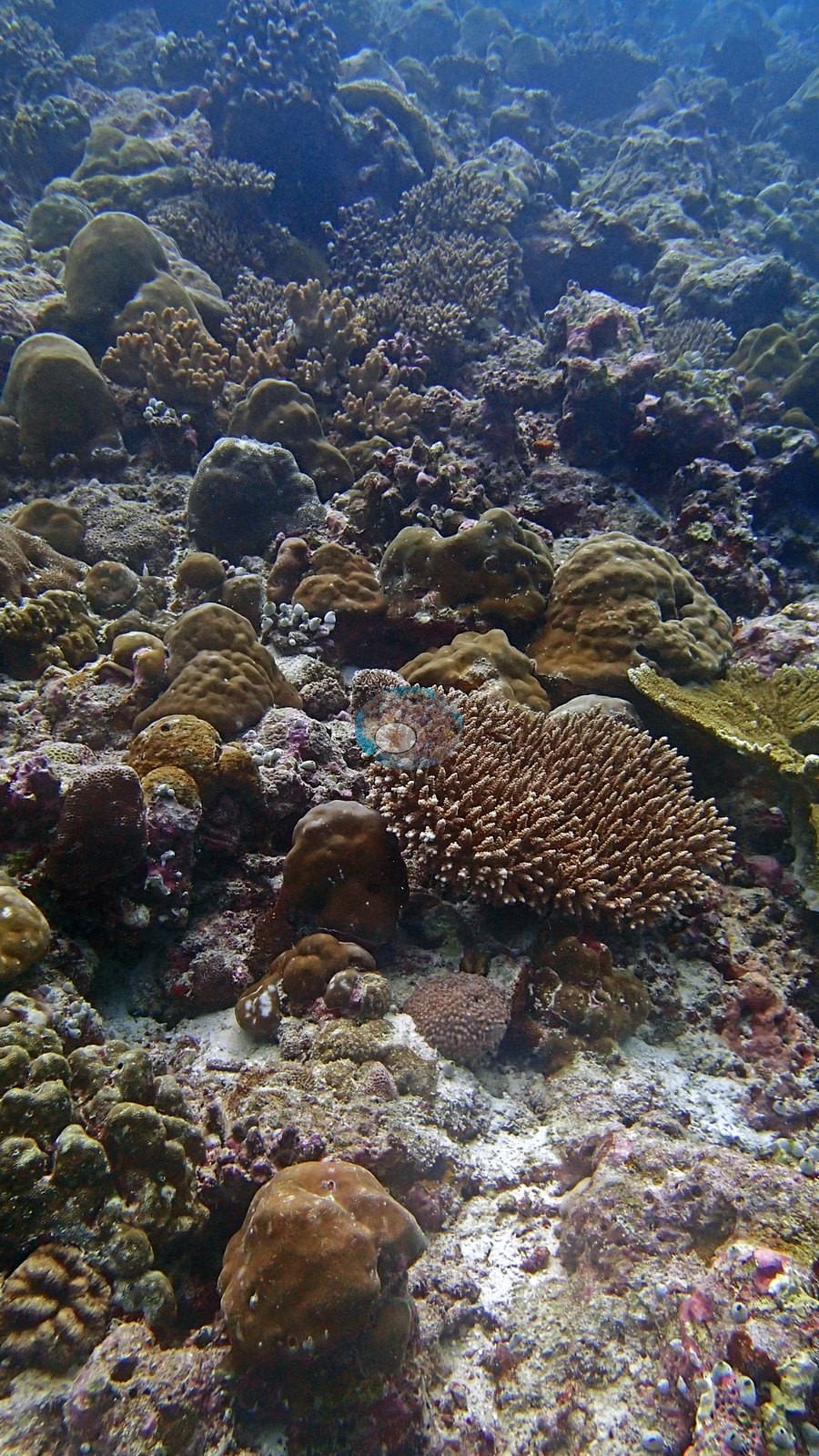

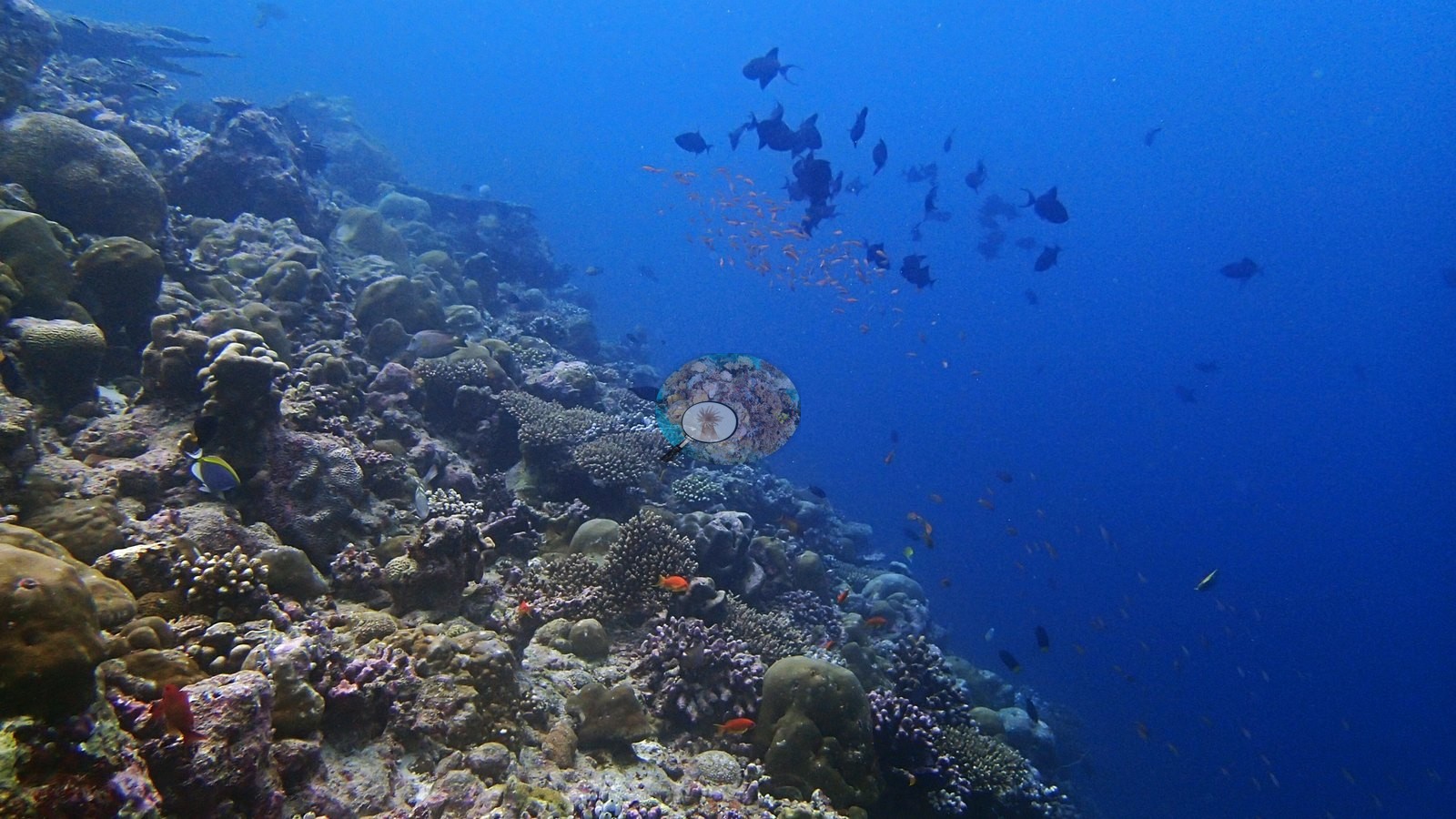

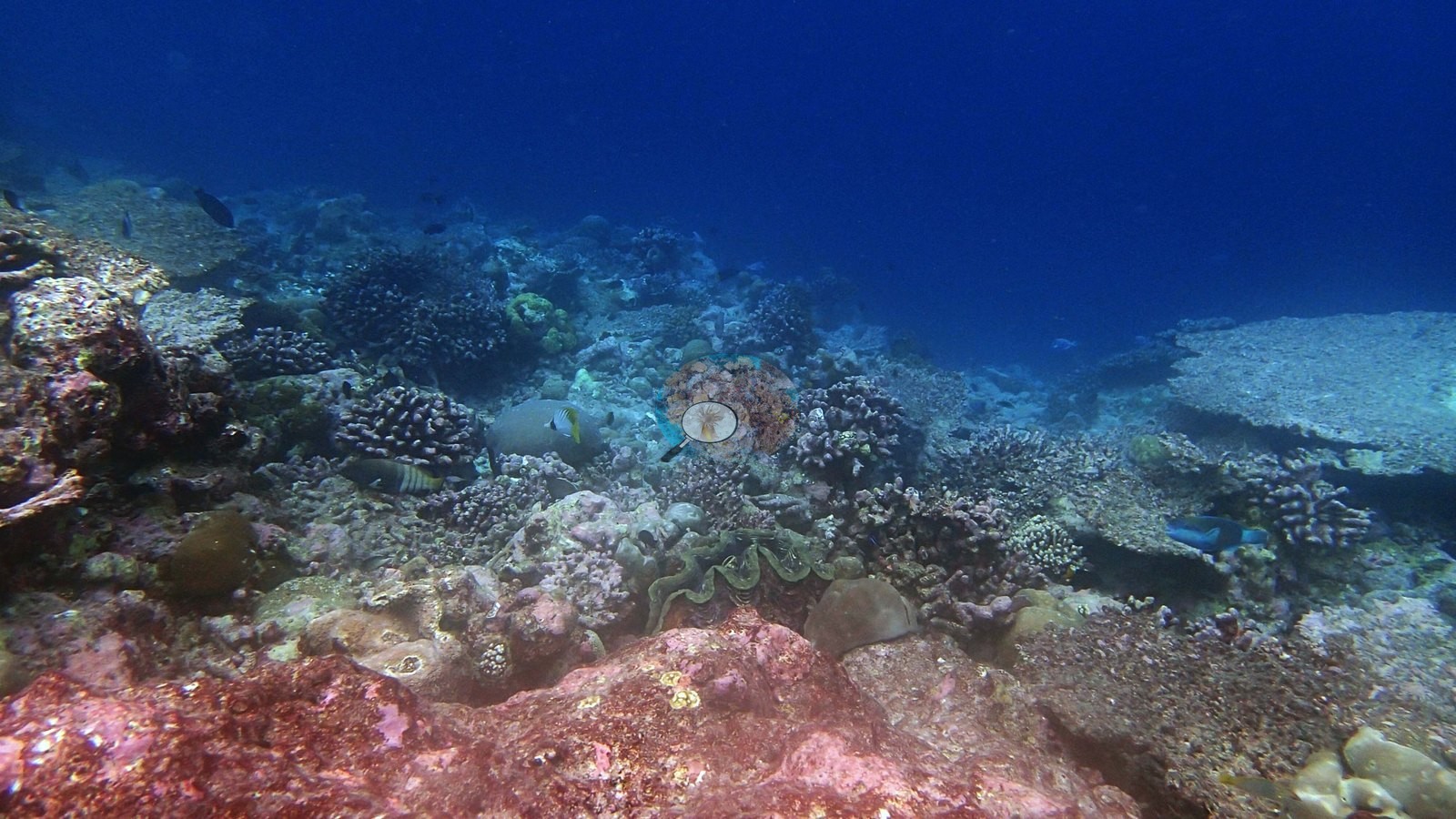

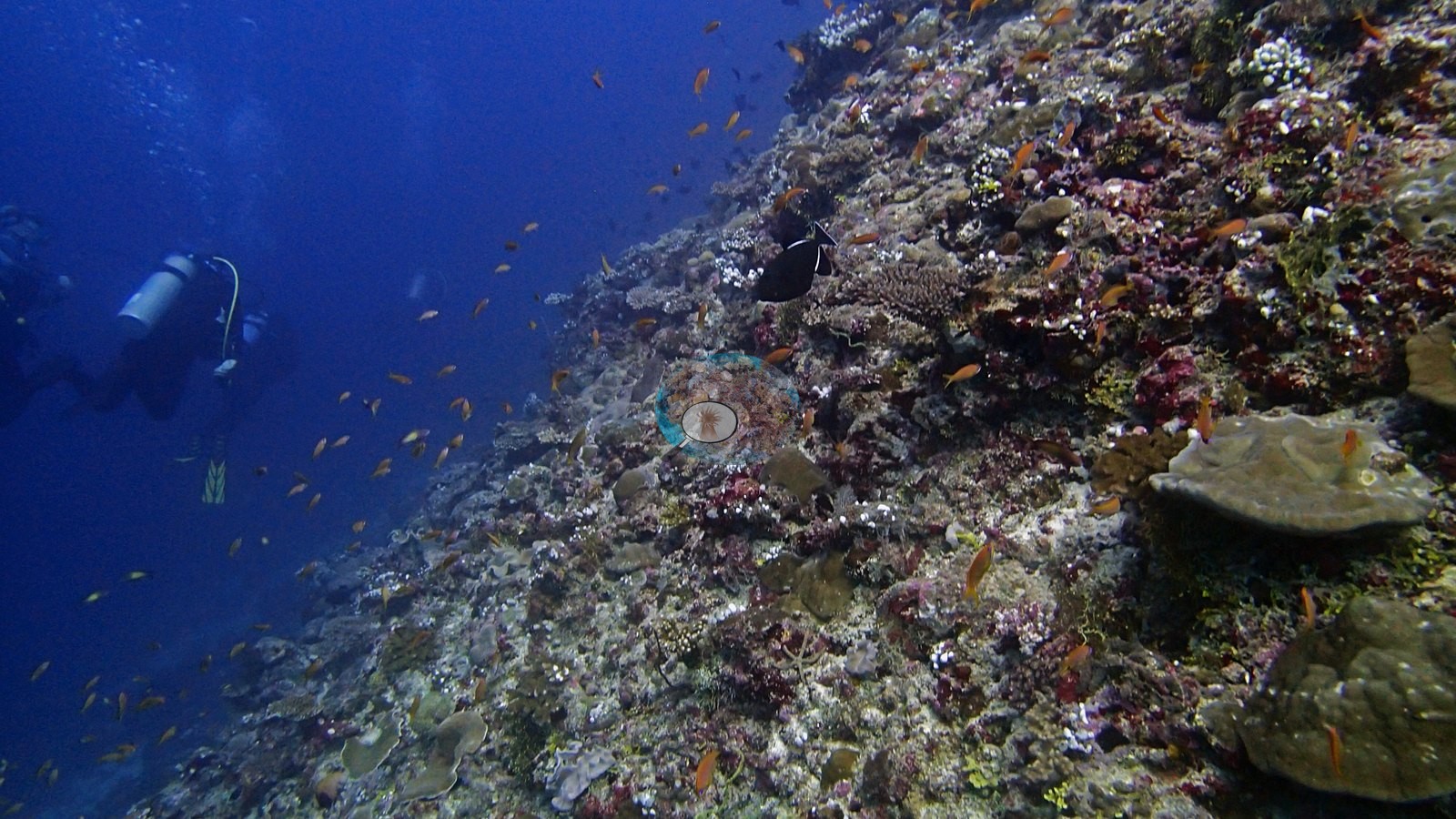

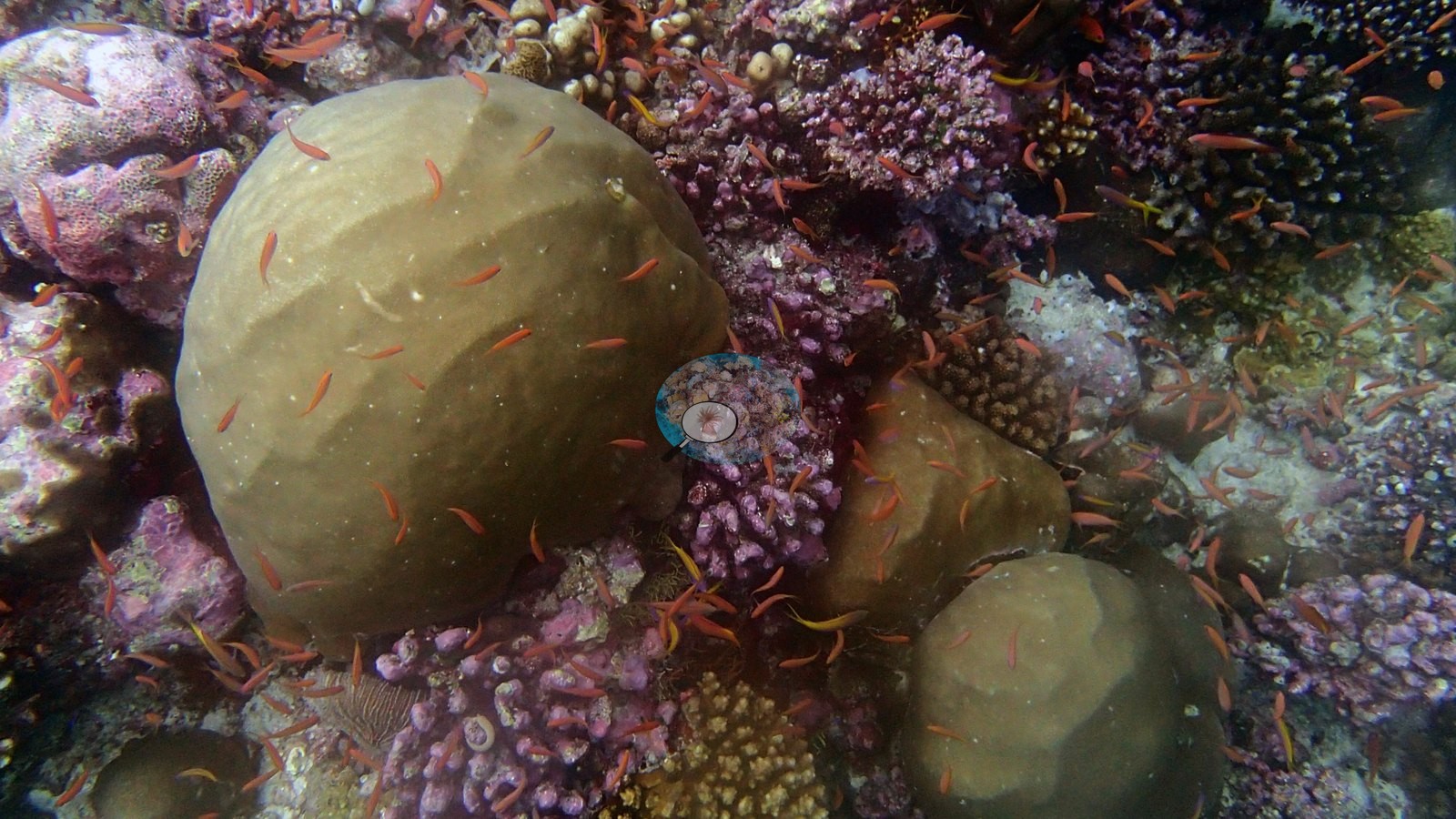

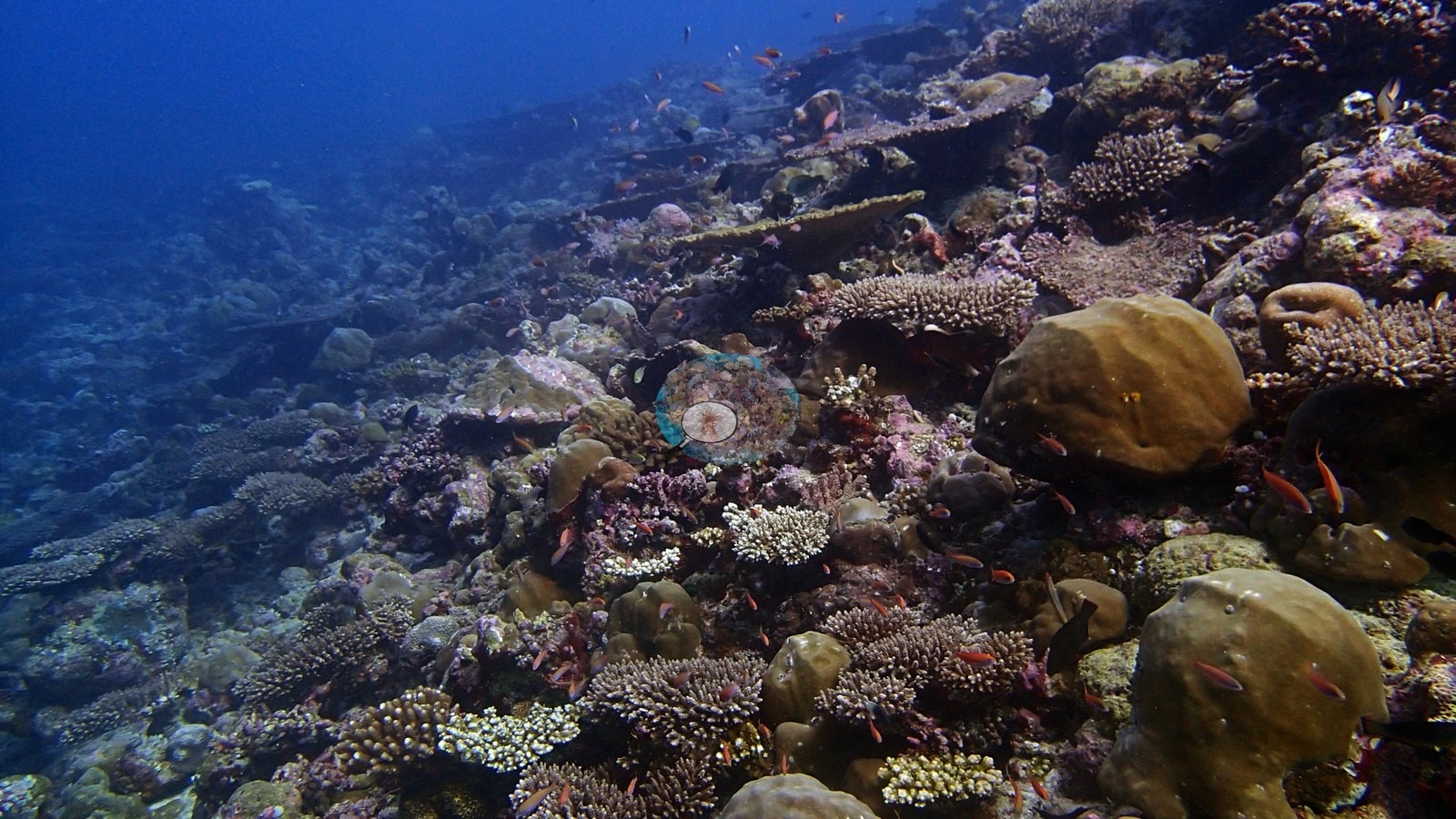

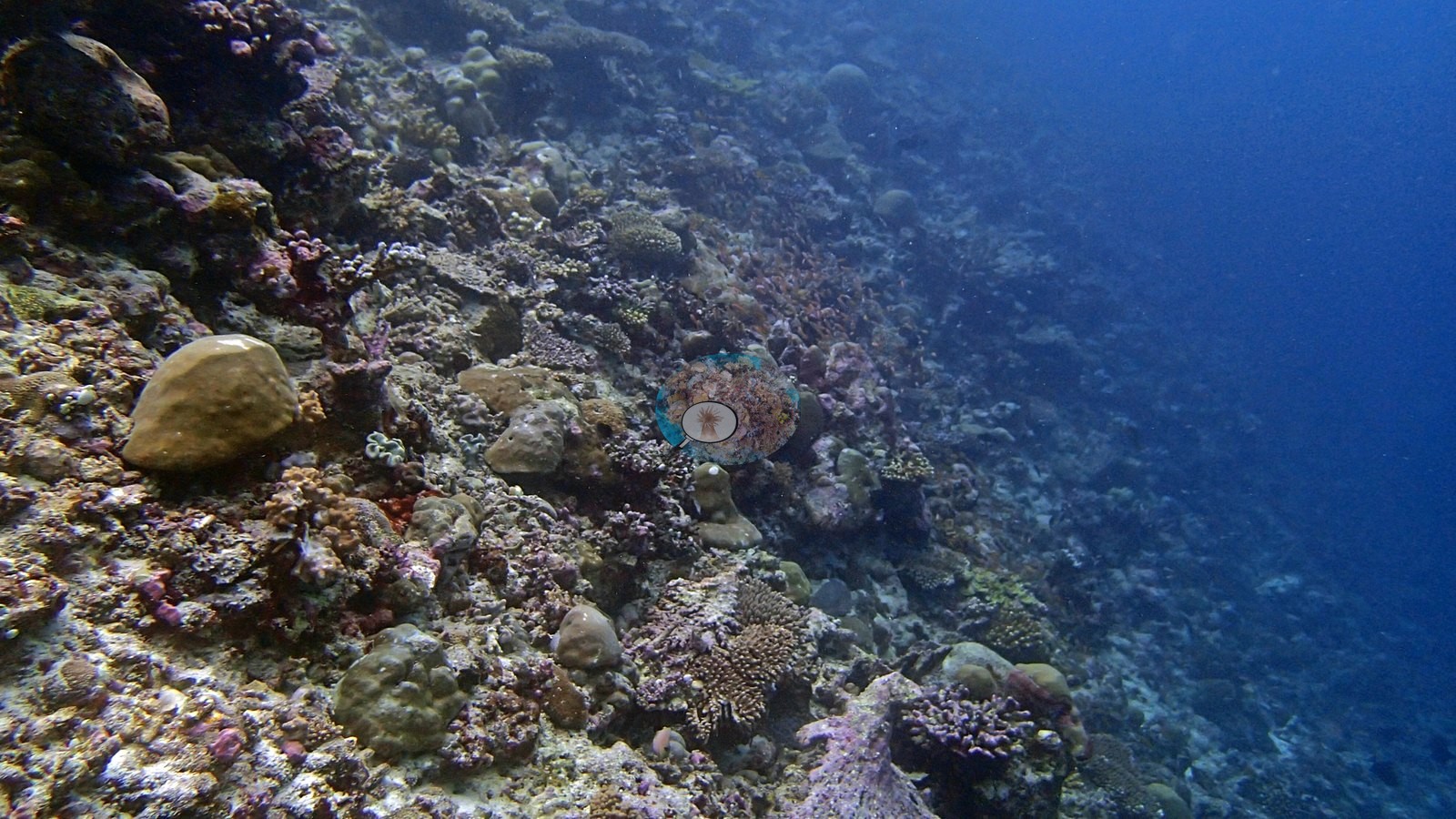

Yet the reef shoulder still carries dense living coral thickets, anemone gardens with a crimson, balled-up showpiece hiding its anemonefish, a cruising sea turtle, and clouds of anthias along the drop (e.g., Image 3, Image 4, Image 6, Image 7, Image 16, Image 17, Image 18, Image 19, Image 21).

Coral cover

Coral cover: 19% — photo-derived, and the two methods broadly agree (19% vs 19%). This site's figure is the mean of two independent computer vision passes over Anderson's own frames: a DINOv3 calibrated point classifier reads 18.5% and a CoralSCOP computer vision reads 18.7%, a spread of 0.2 percentage points. The map publishes the mean so sites can be sorted against one another, but the honest statement of what is known here is the 19–19% range: the two products have different denominators and should not be treated as one measurement.

Stressors

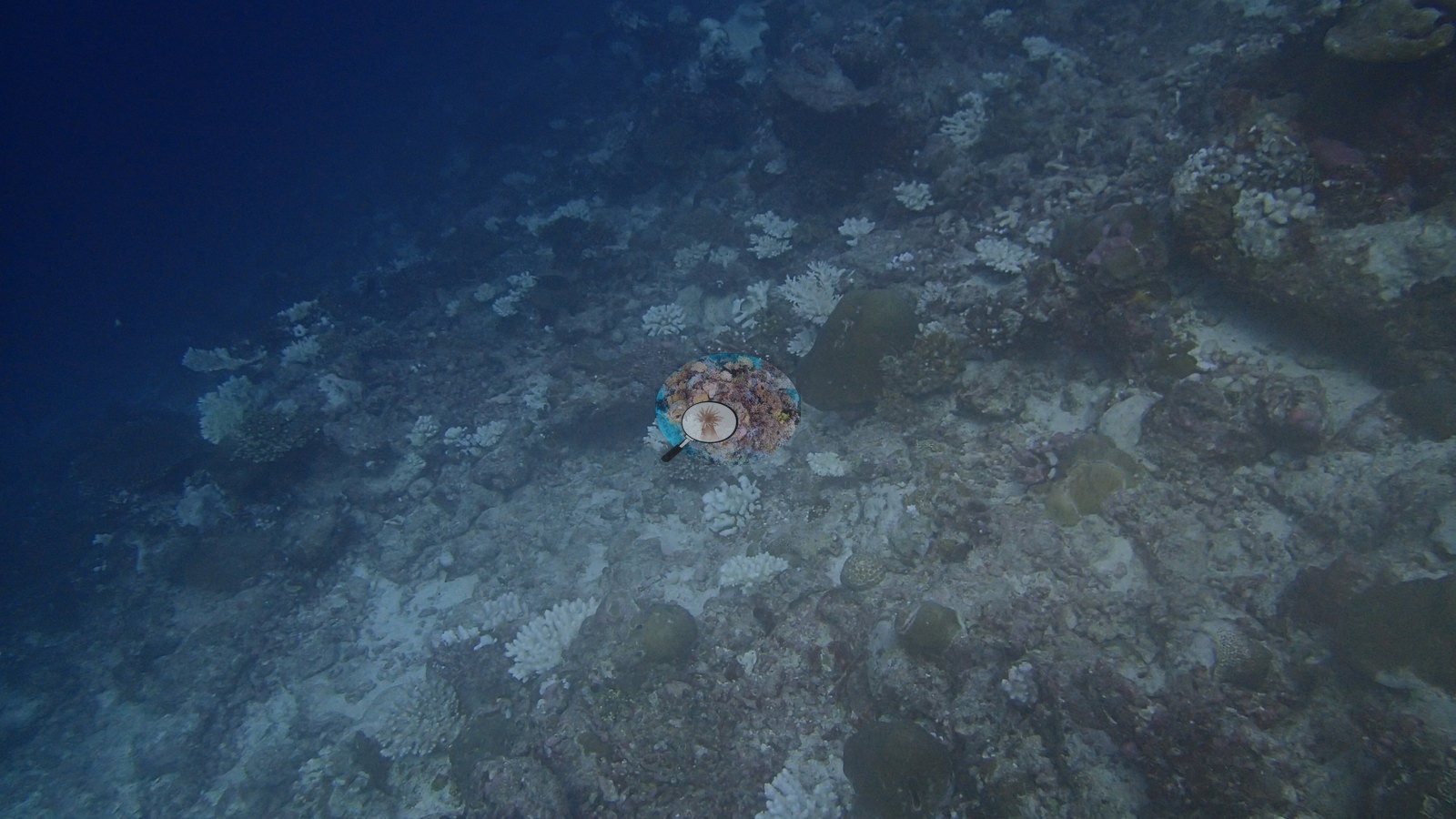

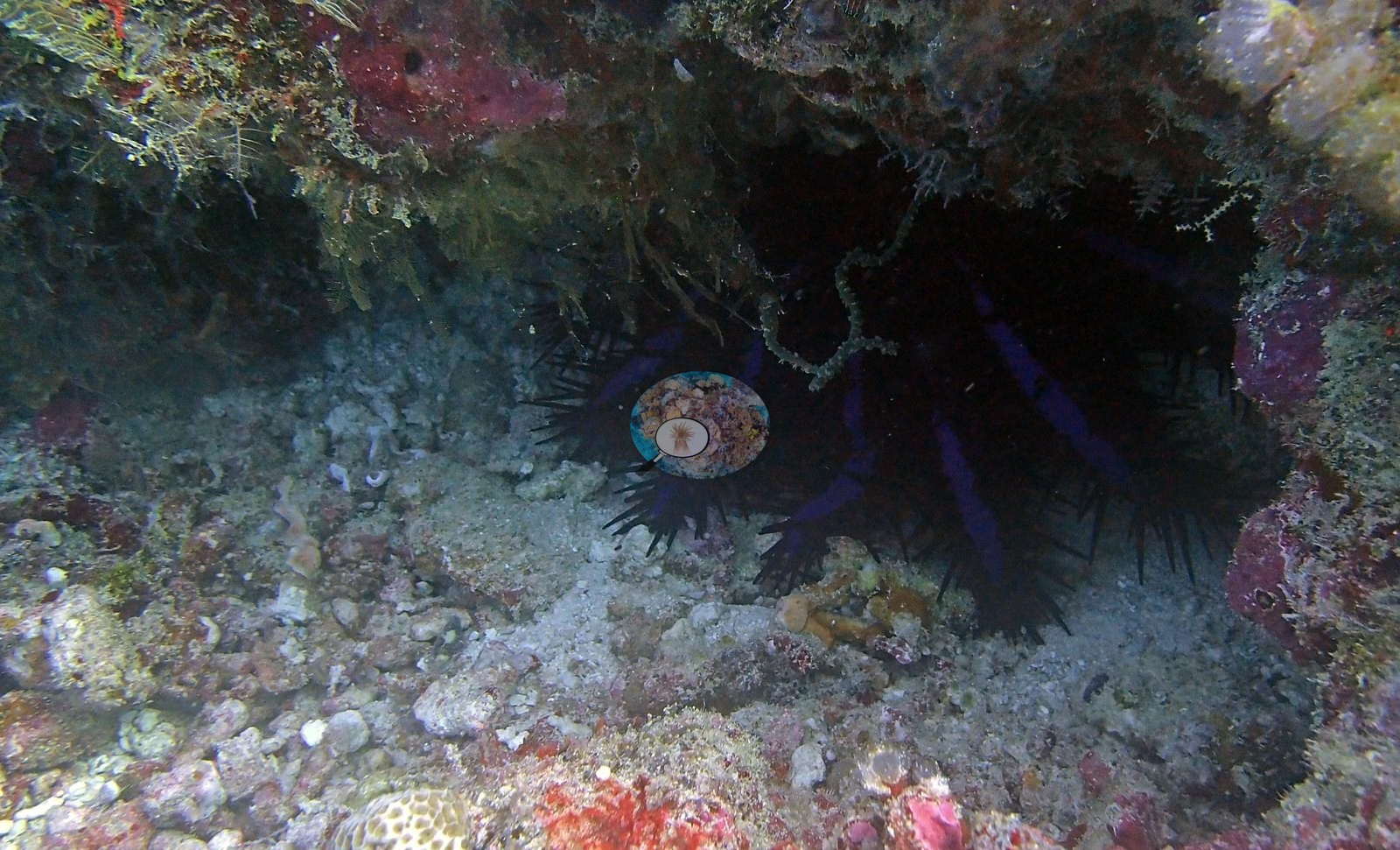

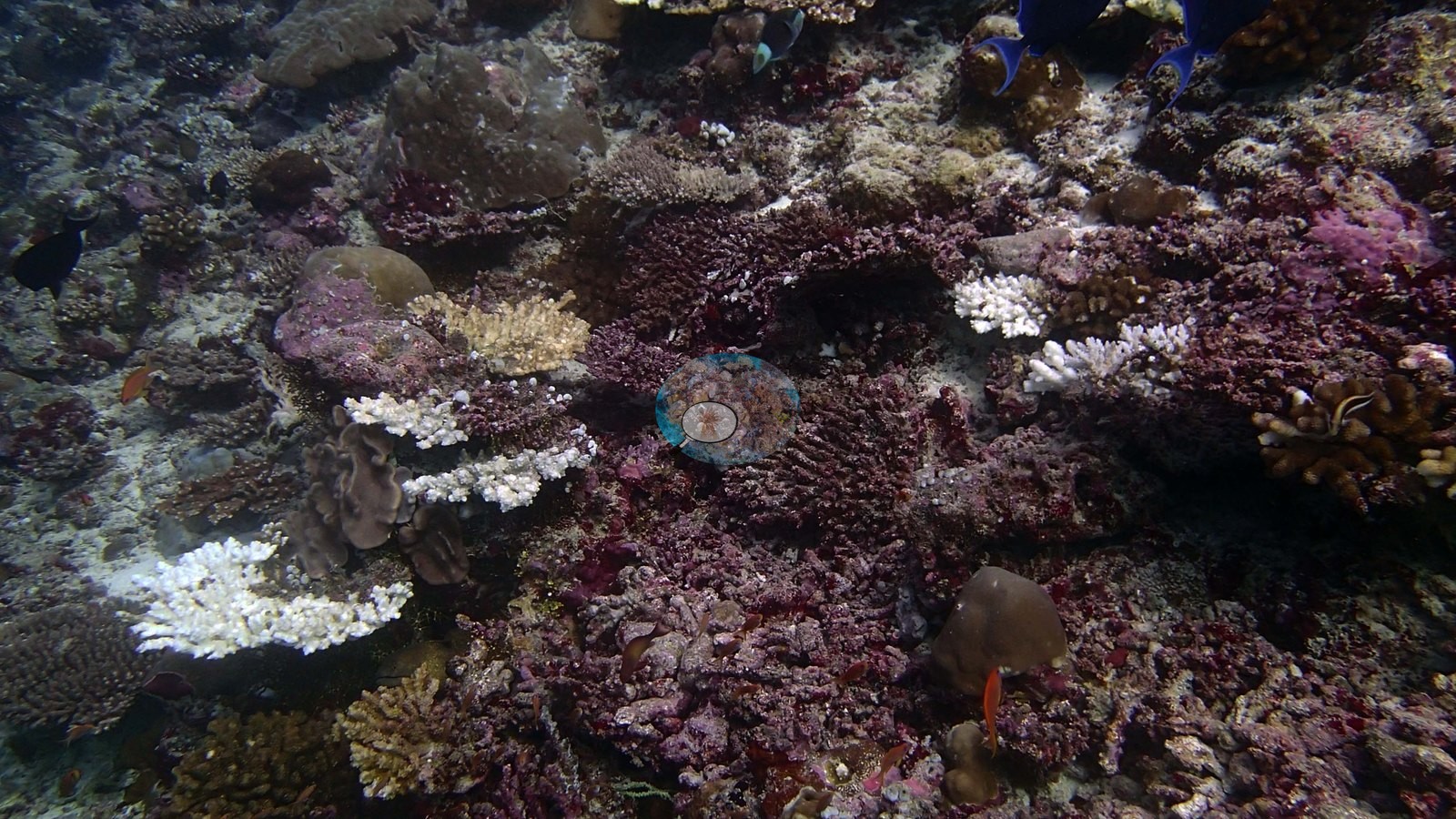

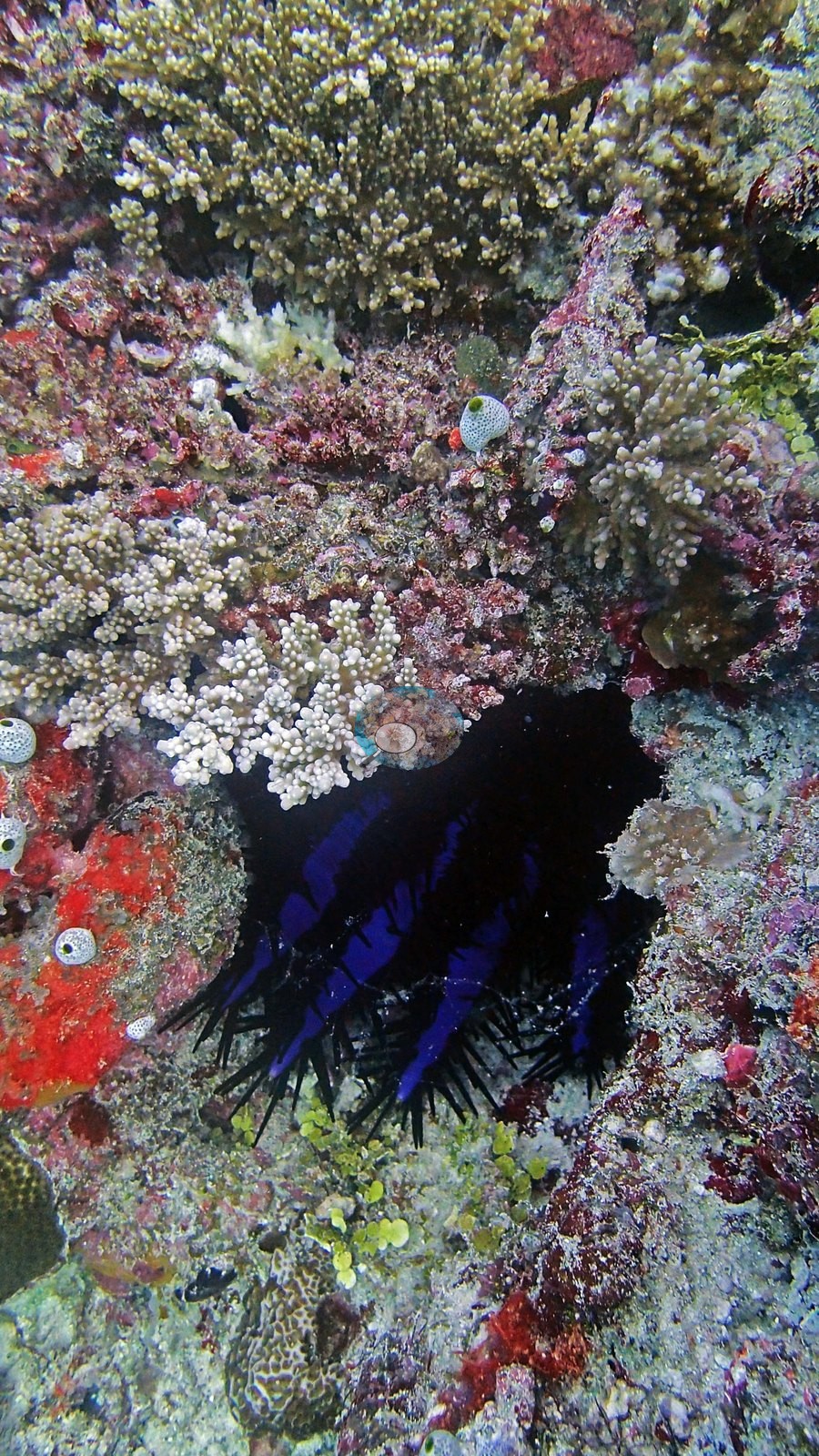

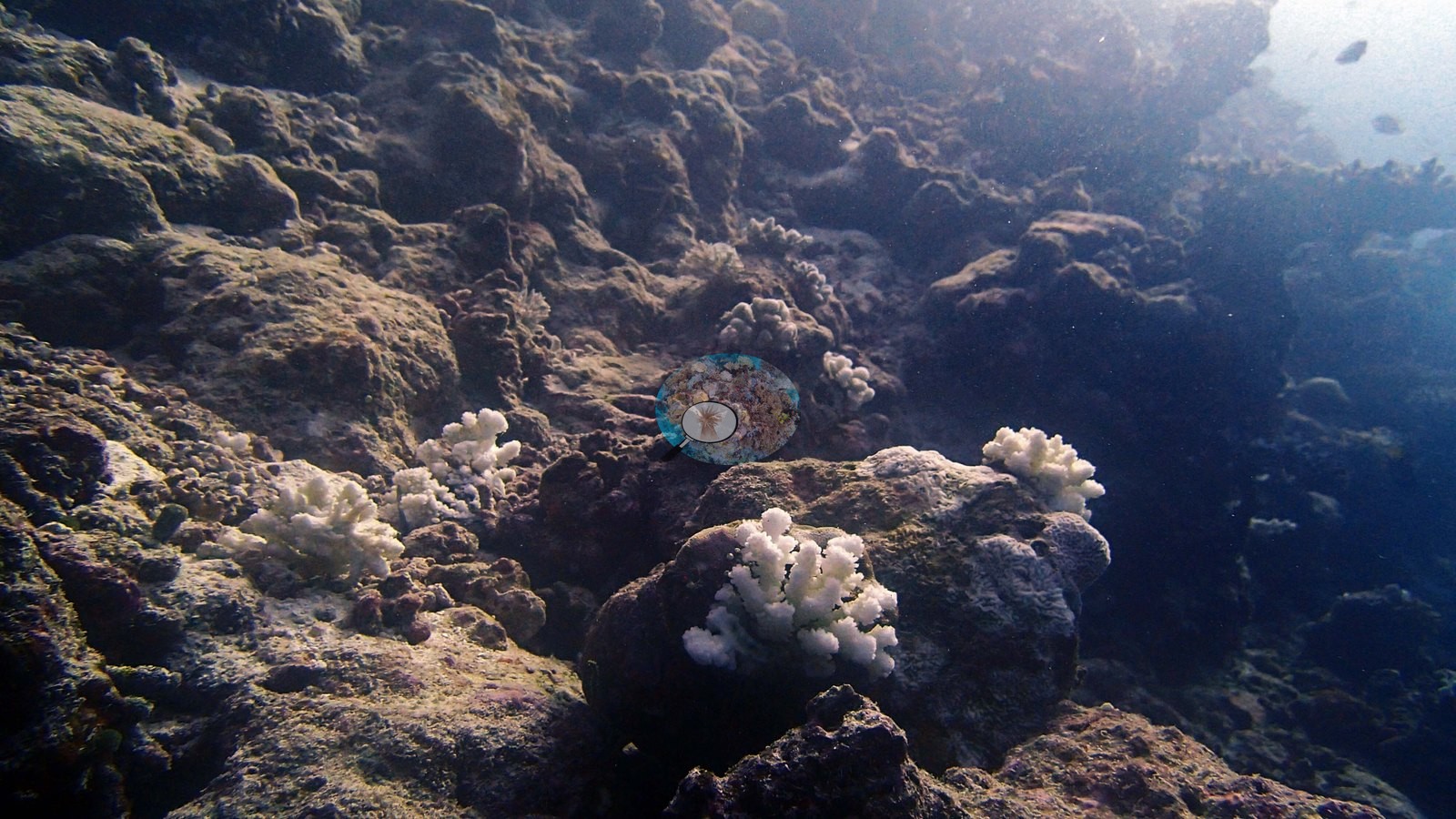

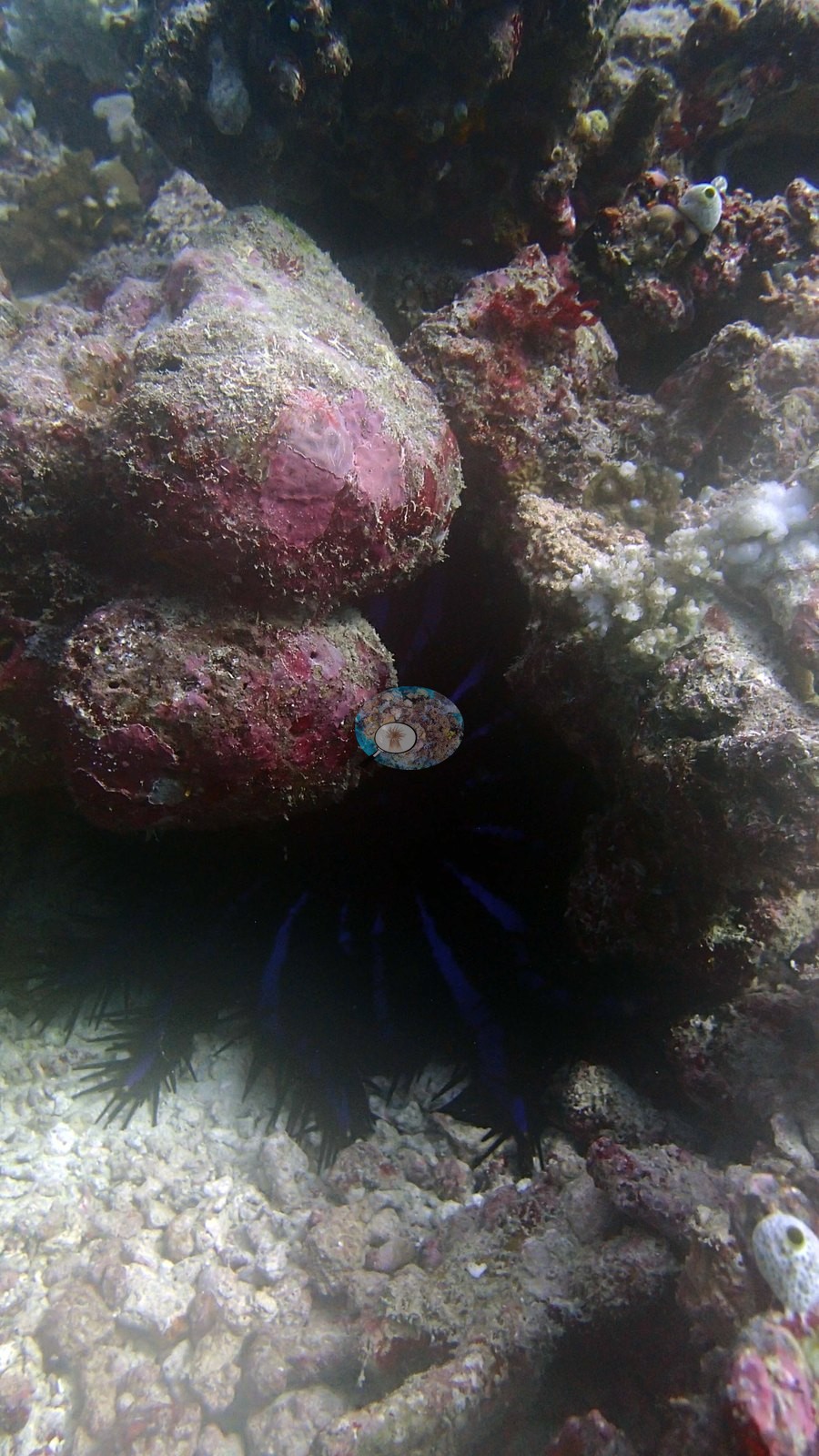

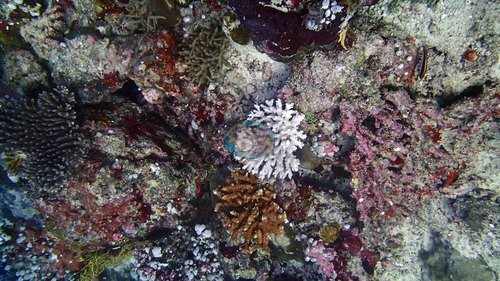

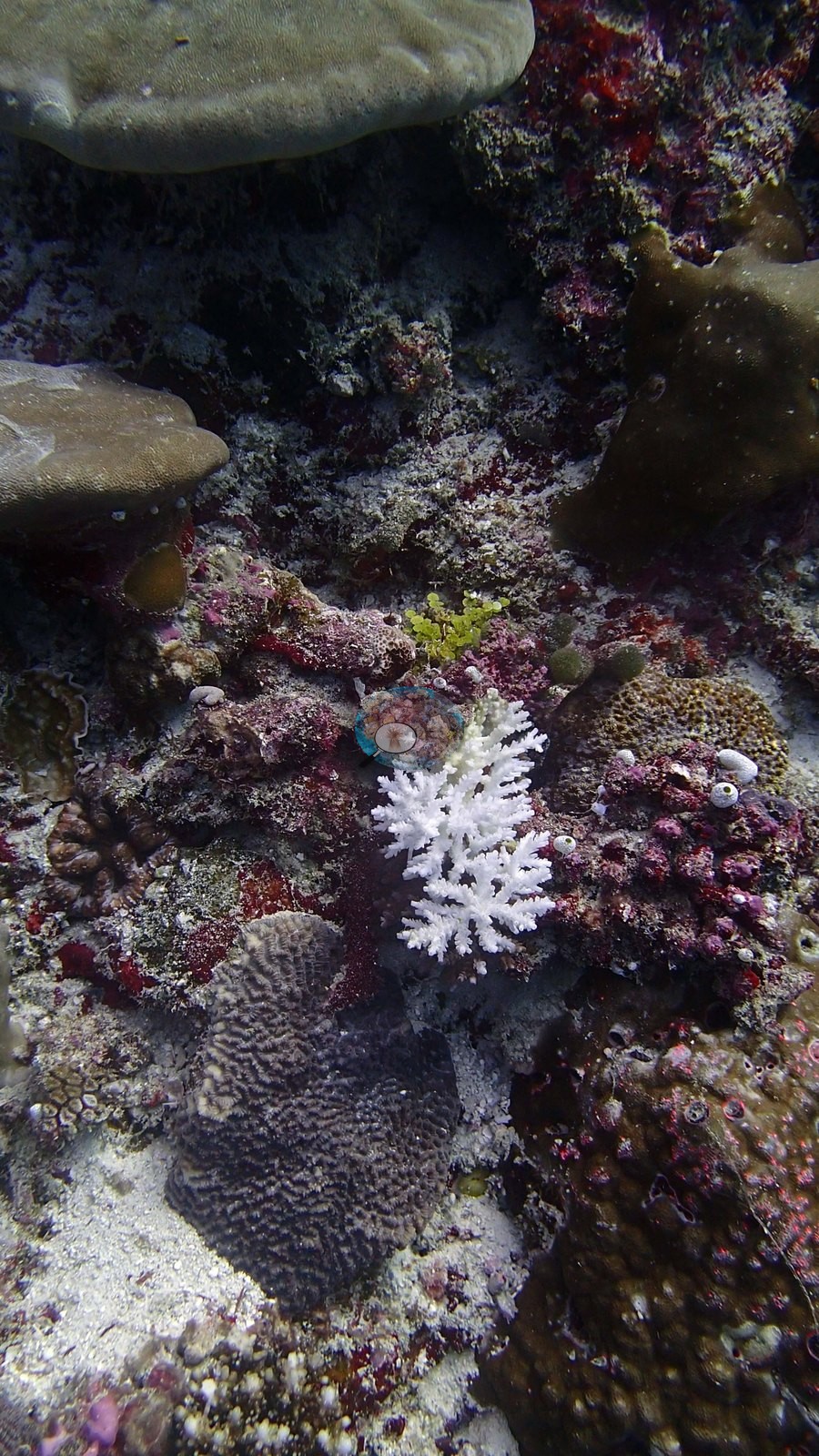

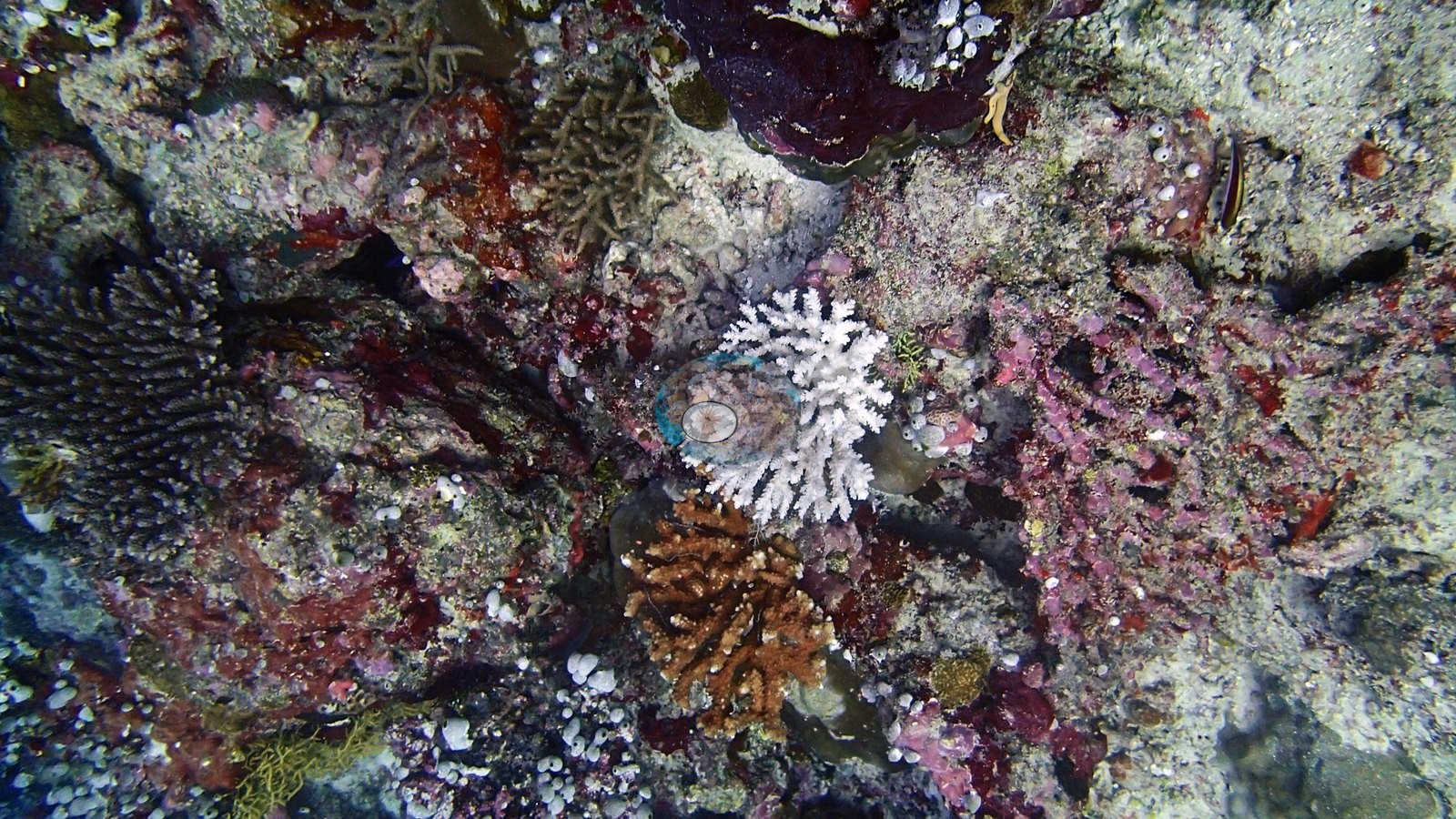

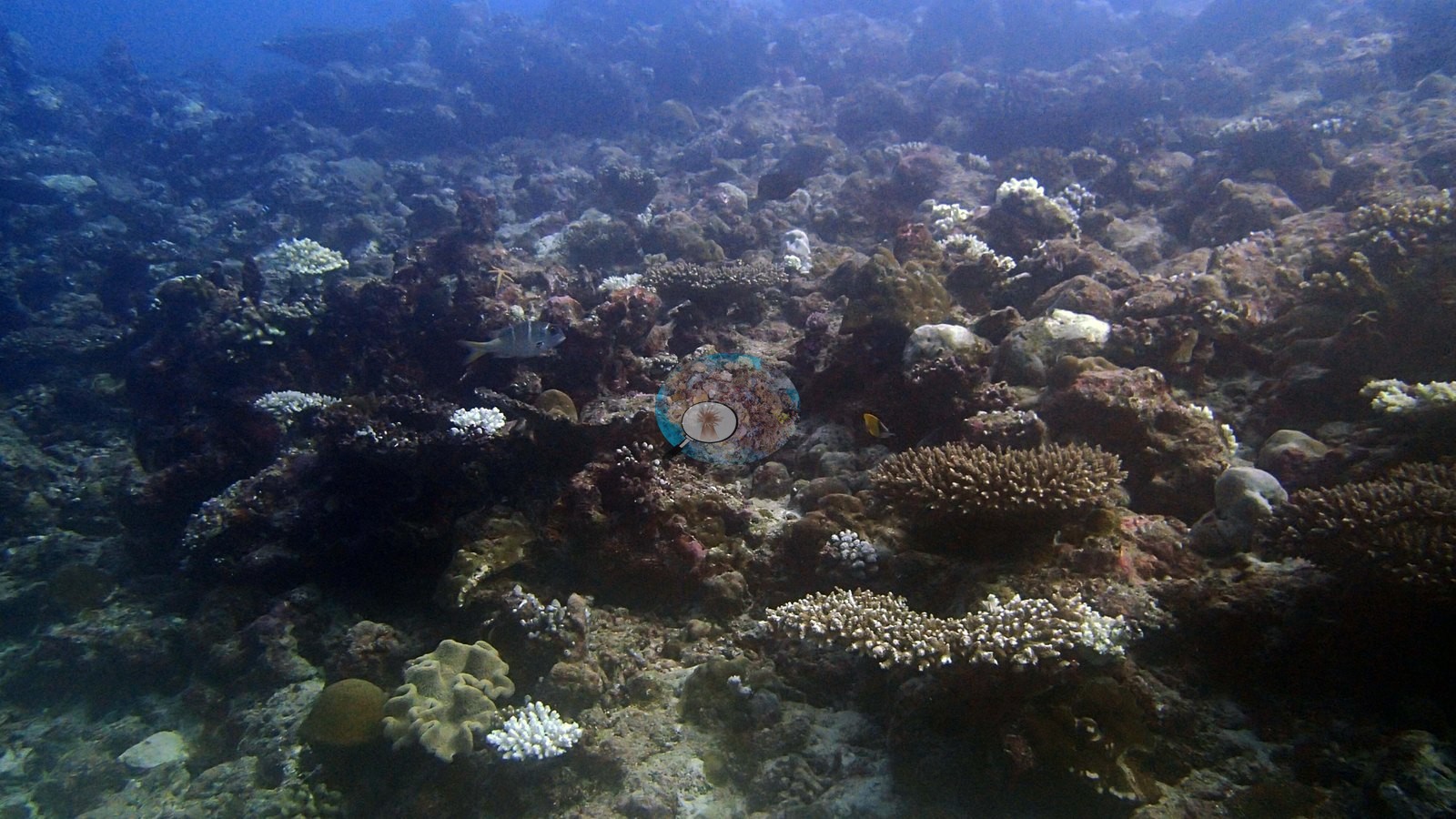

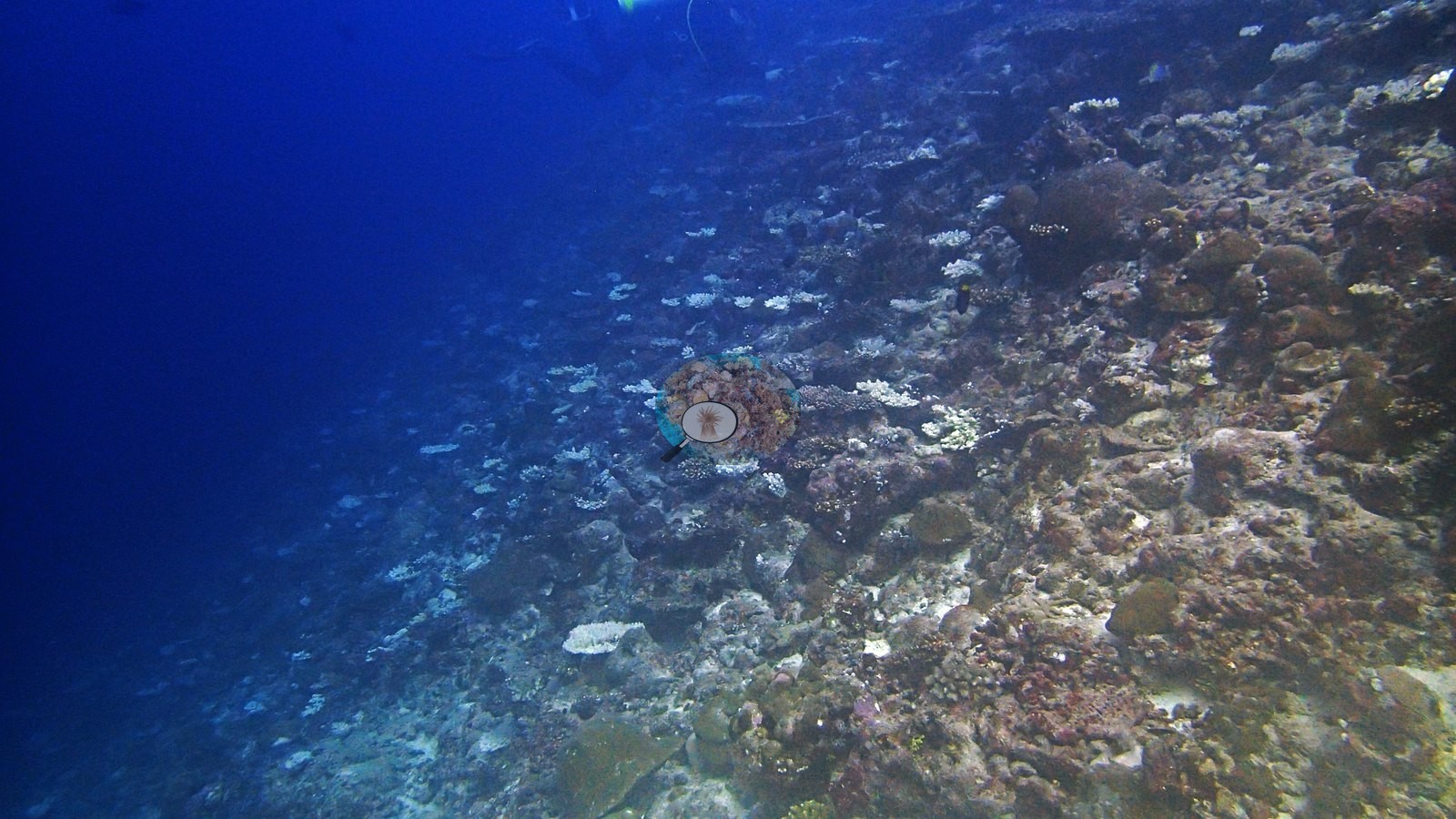

Under the overhangs lurks the villain: crown-of-thorns seastars in their gothic blue-violet livery, wedged two to a crevice, and all around them the fresh white skeletons of staghorn and cauliflower corals eaten in the preceding days — the photographer bluntly labels it an outbreak (e.g., Image 1, Image 2, Image 5, Image 8, Image 9, Image 10, Image 11, Image 12, Image 13, Image 14).

Fish and other fauna

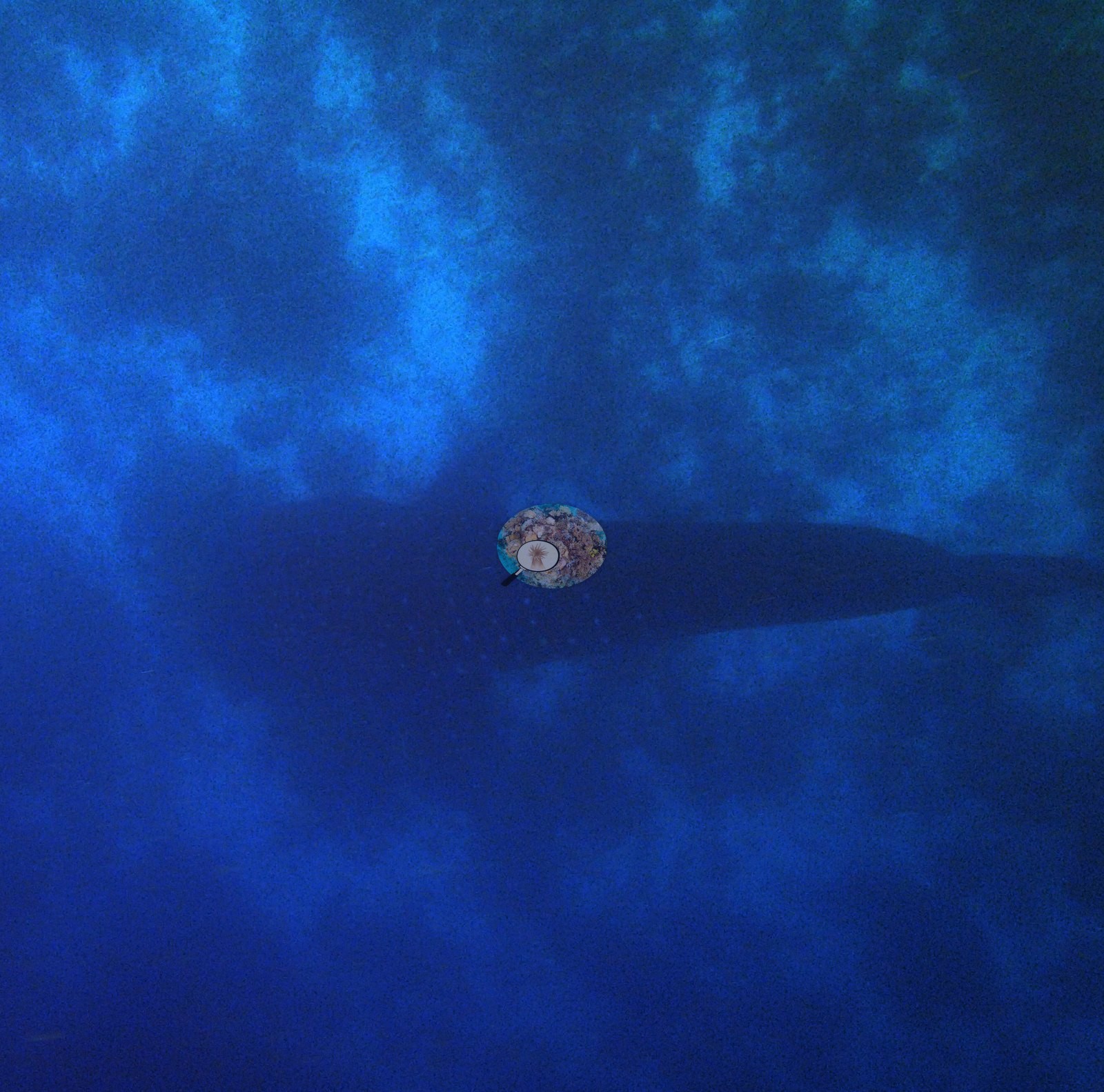

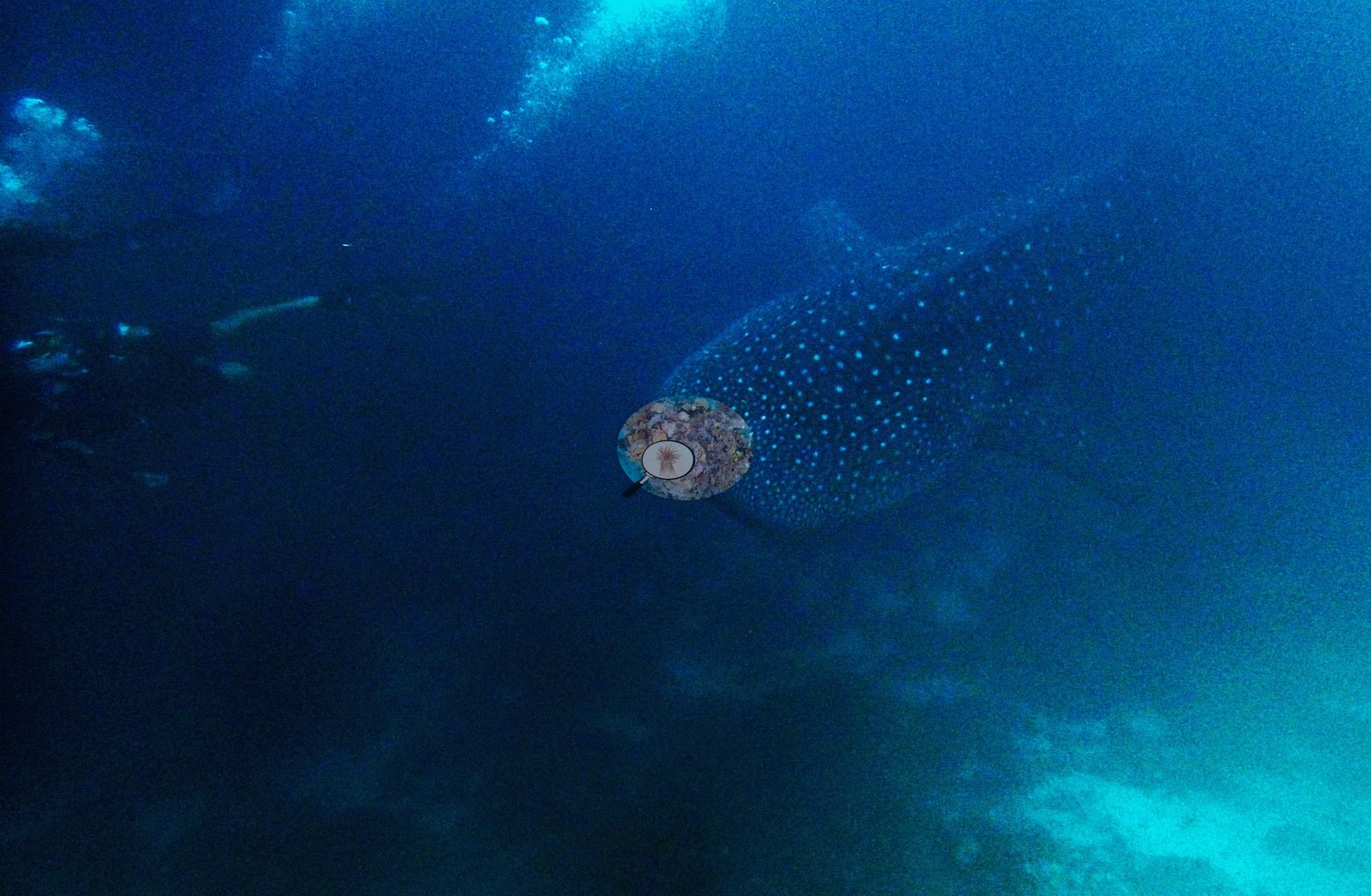

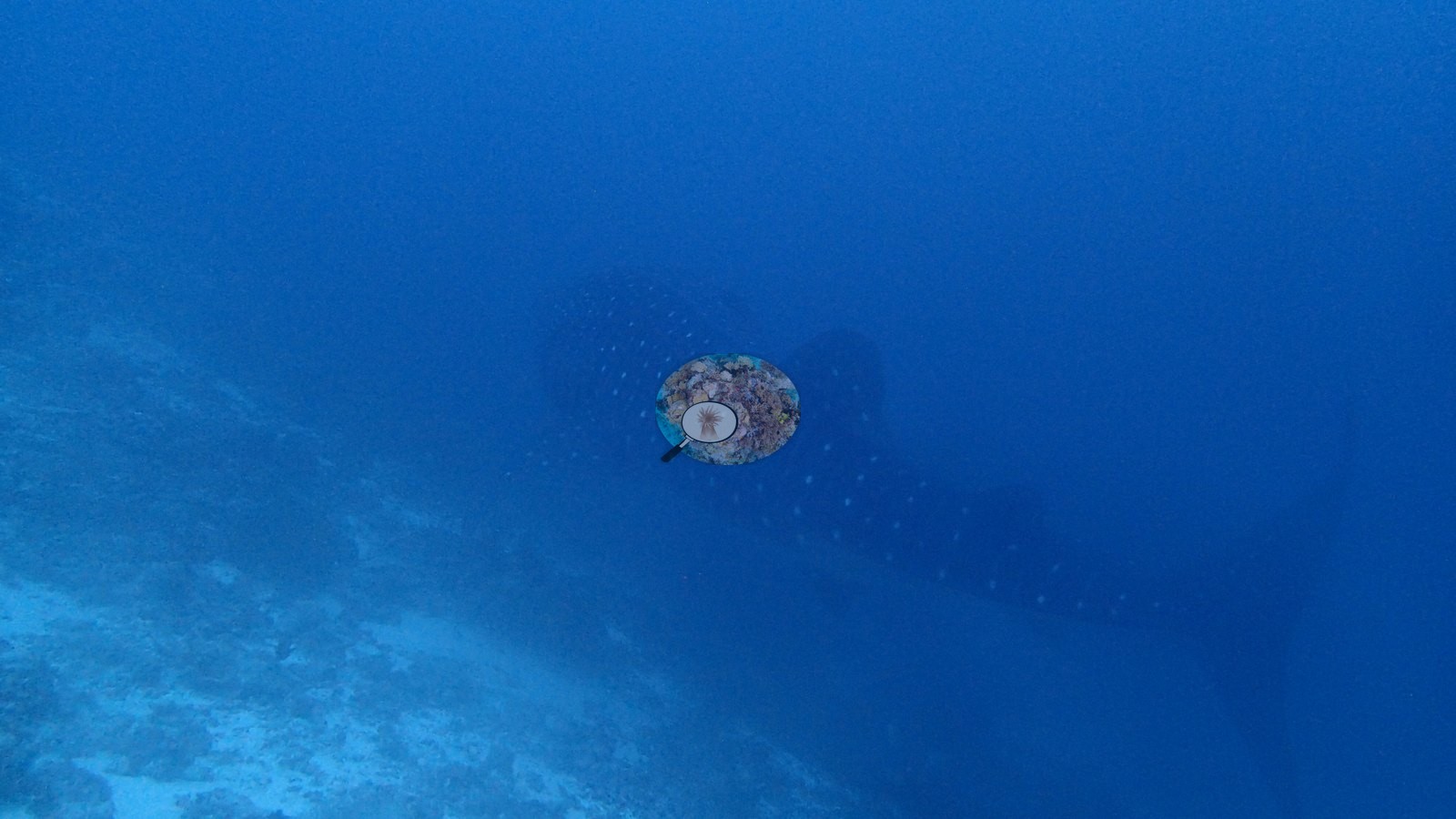

Then, on the second dive, the blue delivers a whale shark — first a ghostly bulk in the haze, then the full constellation of pale spots gliding along the slope while divers scramble (e.g., Image 15, Image 20, Image 23, Image 24, Image 25).

Comparisons with other data

No independent survey was made at this exact site; the nearest ones are listed in the table below.

Other notes

A dive log entry with everything: destruction, resilience, and the biggest fish in the sea.

CV model comparison

DINOv3 19%, CoralSCOP 19%; the headline is their mean.
More infoAs of September 2026 no computer-vision method estimates coral cover accurately on new images, so treat this as indicative rather than a measurement; it is revised as the methods improve.
The two methods broadly agree (spread 0.2 pp).
More infoThe published figure is the mean of the two methods.
MethodHard-coral cover (%)
In-house DINOv318.5
CoralSCOP18.7
Mean (± SD)18.6 ± 0.1
Range18.5–18.7

Mean ± SD and range are across the computer-vision methods shown.

Independent surveys nearby

Data availability near this site
Agency / programYear(s)Stations / distanceLink
Reef Check2011–20254 stations, 1.15–4.46 kmRecords ↓
XL Catlin Seaview Survey20152 stations, 2.28–4.41 kmRecords ↓
Hard coral cover over time — this site and every independent station within 5 km. Programs are shown separately because they use different methods at different stations; the lines are not one comparable series.
0%15%30%45%60%201120182025Reef Check 2011: 38%Reef Check 2011: 48%Reef Check 2011: 54%Reef Check 2015: 13%Reef Check 2016: 11%Reef Check 2017: 7.8%Reef Check 2025: 28%XL Catlin Seaview Survey 2015: 6.7%XL Catlin Seaview Survey 2015: 12%Dr. Coral (CRD) 2017: 19%Year-averaged across all programs: no detectable trend (-0.65 pp per year, not separable from zero; 5 years)
Reef Check XL Catlin Seaview Survey Dr. Coral (CRD)Year-average (no detectable trend)

Within 5 km, 6 independent survey stations recorded hard coral cover in 19 records between 2011 and 2025. Of the 1 station surveyed in more than one year, 1 increased between their first and latest surveys. The longest record, Holiday Thila (Reef Check, 4.46 km away), went from 13% in 2015 to 28% in 2025. One survey since 2021 recorded 28%. This site's own estimate (19%) sits 8.9 points below the recent value (28%); the methods differ, so the comparison is context, not a like-for-like test.

Collected by other programs using different methods (Reef Check uses point-intercept transects; the XL Catlin Seaview Survey uses photo-transects with automated image annotation), so these are context for the figures above, not a like-for-like comparison. Where a station was surveyed more than once the range is shown. Station names are not dive-site names.

Independent survey data near this site
AgencySite / locationDateHard coral cover (%)DistanceLink
Reef CheckMaamigili201148% (2 surveys)1.15 km—
Reef CheckHoliday Thila South201154% (3 surveys)4.46 km—
Reef CheckHoliday Thila North201138% (3 surveys)4.46 km—
XL Catlin Seaview Surveytransect 37012201512%2.28 km—
XL Catlin Seaview Surveytransect 3701320156.7%4.41 km—
Reef CheckHoliday Thila2015–20257.8–28% (9 surveys)4.46 km—
