Atauro - Raiketa

Coral Triangle Center (CTC)
⬇ Download this page as a report card
05

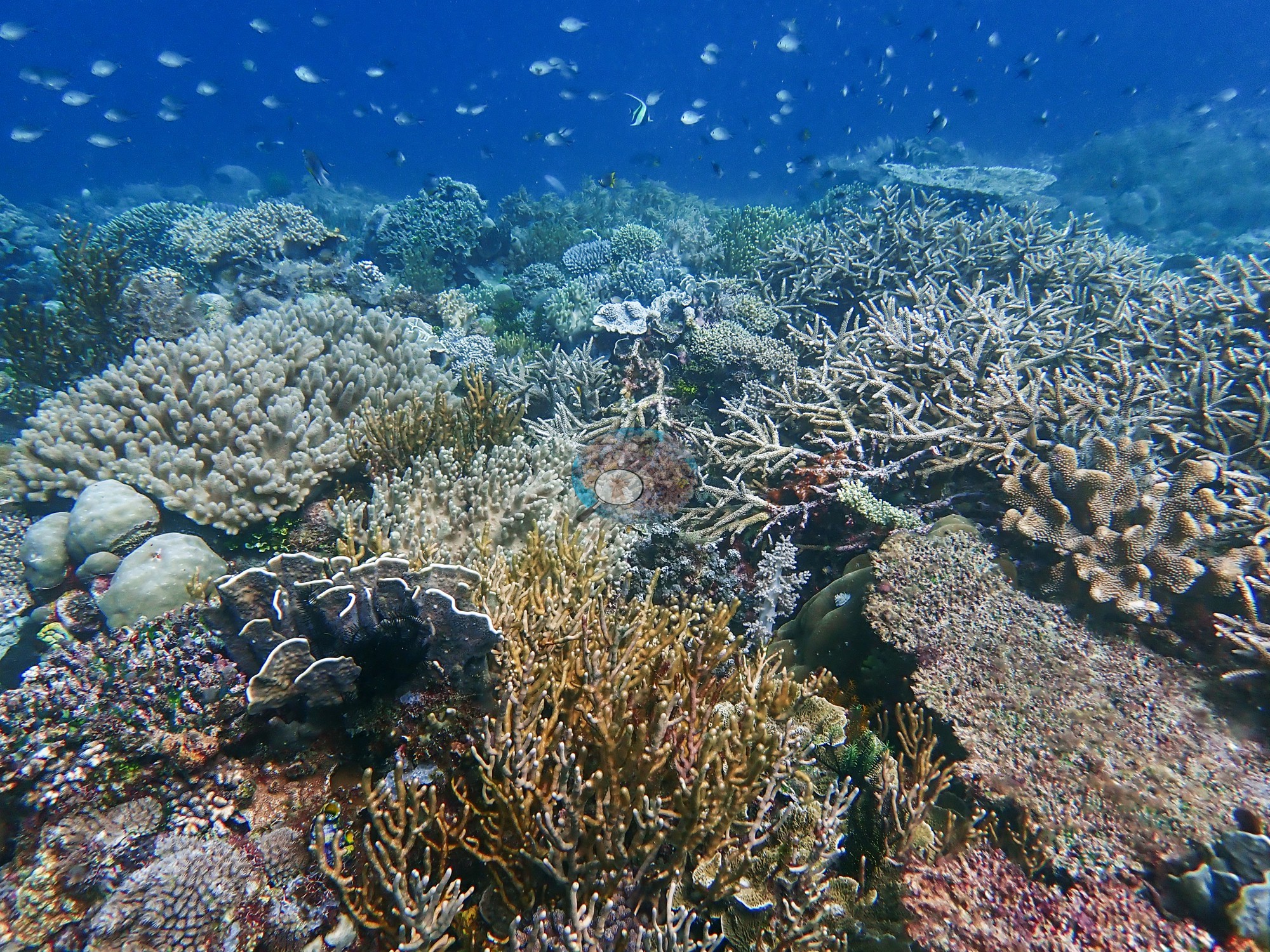

Photo: Anderson Mayfield/Coral Reef Diagnostics
Survey date(s)
2024-01-29
Coordinates
-8.2405, 125.6140
Coral cover
46%
Claude computer vision (200 edited photos) · other methods below
↗ 20%, 2017–2024
Observations
not yet tagged for this site
Heat stress
Today’s heat load
16 Sep 2026 · No heat stress
5-year thermal stress load
5-year mean max. degree heating weeks (DHW)
2021–2025
i 5-year mean max. DHW is the mean of the annual maximum DHWs over the five complete years named above, not conditions today.
More infoTimor-Leste (NOAA CRW virtual station) · Lesser Sunda ecoregion mean=6.9°C-heating weeks
Photographs
4
Site summary

A steep Atauro coral ridge dominated by near edge-to-edge staghorn Acropora thickets running down into blue water, with black and white feather stars perched on the branches. Closer views show plating corals and pink, olive, and silver branching colonies with essentially no bare substrate.

Max. depth dived
16.5 m
Water temp. during survey
27.2°C
-1.8°C vs the 2024 mean sea temperature (29.0°C)

Twelve independent survey stations shown with the program’s logo — click one to see how far it is from this site.

Six other CRD dive sites within 5 km shown in orange — click a marker to open its page.

Photo credit & attribution

Site description

Setting

Across all four: visibility is moderate with visible particulate load, the reef is structurally complex and branching-Acropora-dominated, and living cover in the photographed patches is locally very high with little open sand or rubble.

General benthic features

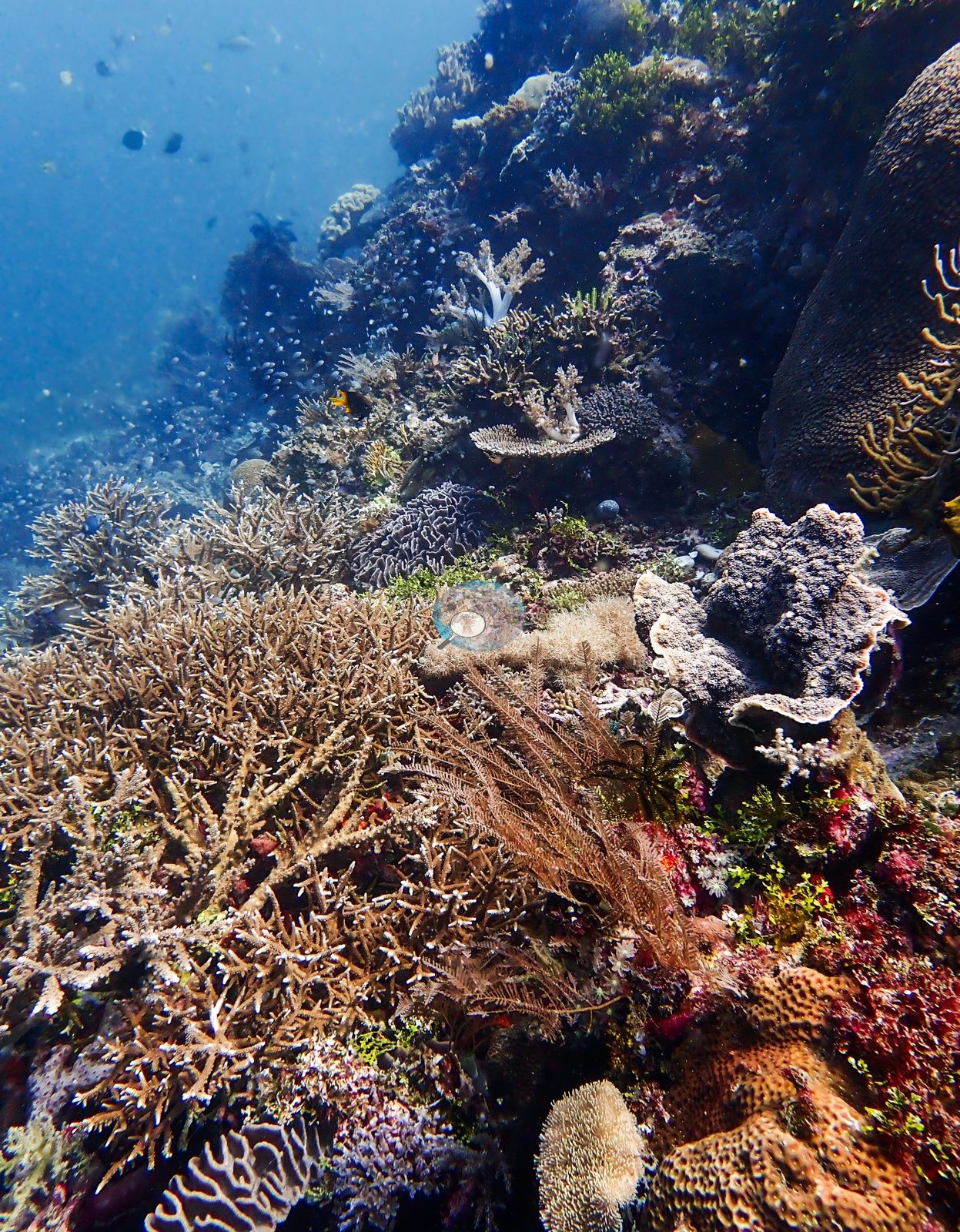

Frame by frame: the first is a steep portrait view up a coral ridge into blue water, and it is the most mixed of the four — tan staghorn Acropora thickets and one small tabulate Acropora plate, a pale ridged meandroid brain coral, a large dark massive head in shadow at upper right, beige folded foliose plates, yellow-brown digitate growth, brown feather stars (crinoids) perched mid-frame, brown xeniid soft-coral polyps, red and maroon crustose coralline crusts, and short green algal tufts along the lower right (e.g., Image 1).

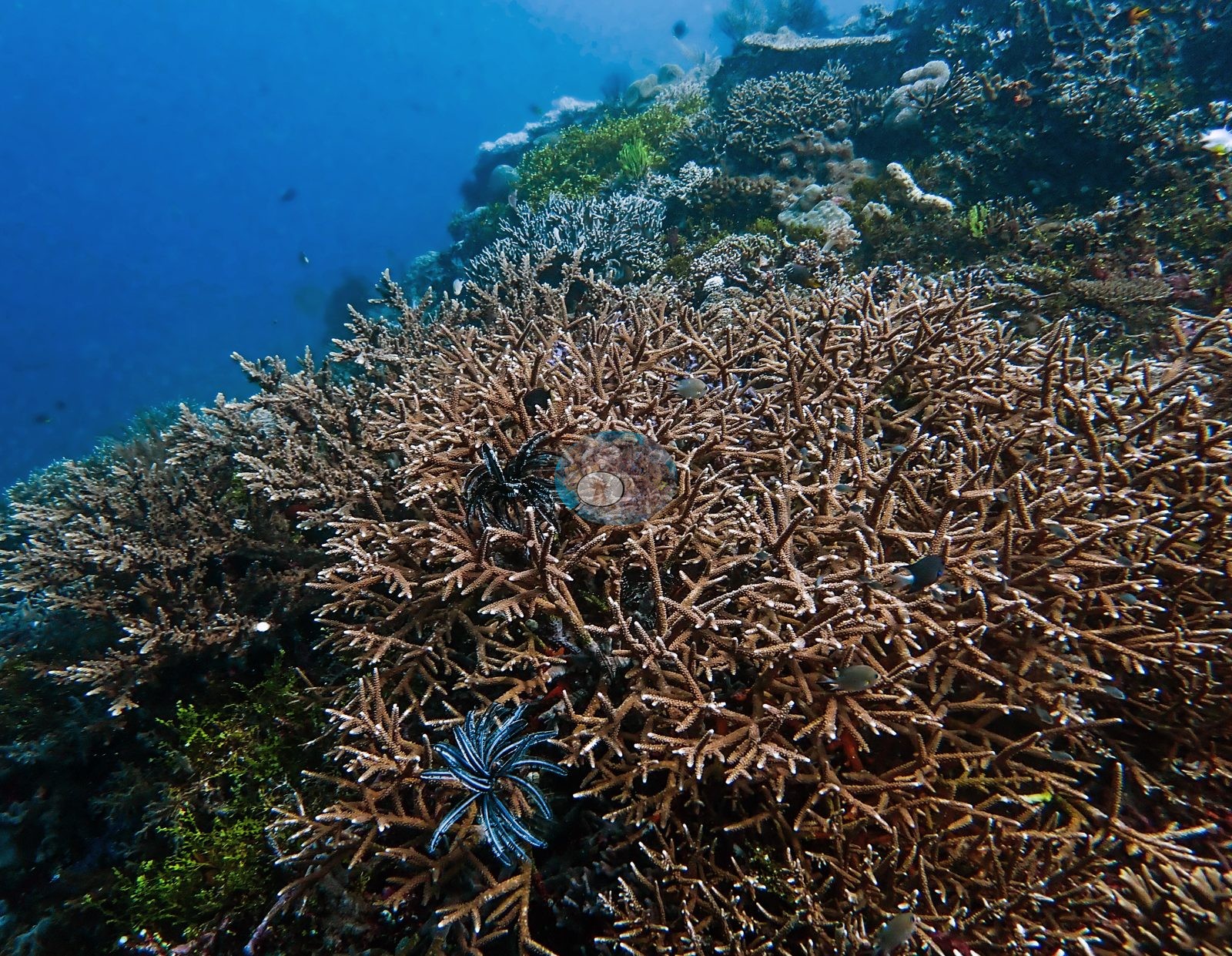

The second frame is a near edge-to-edge staghorn Acropora thicket running down a slope into blue, with two feather stars sitting on the branches — one black, one white-banded — gray damselfishes tucked among the branches, and green filamentous algae in the gaps (e.g., Image 2).

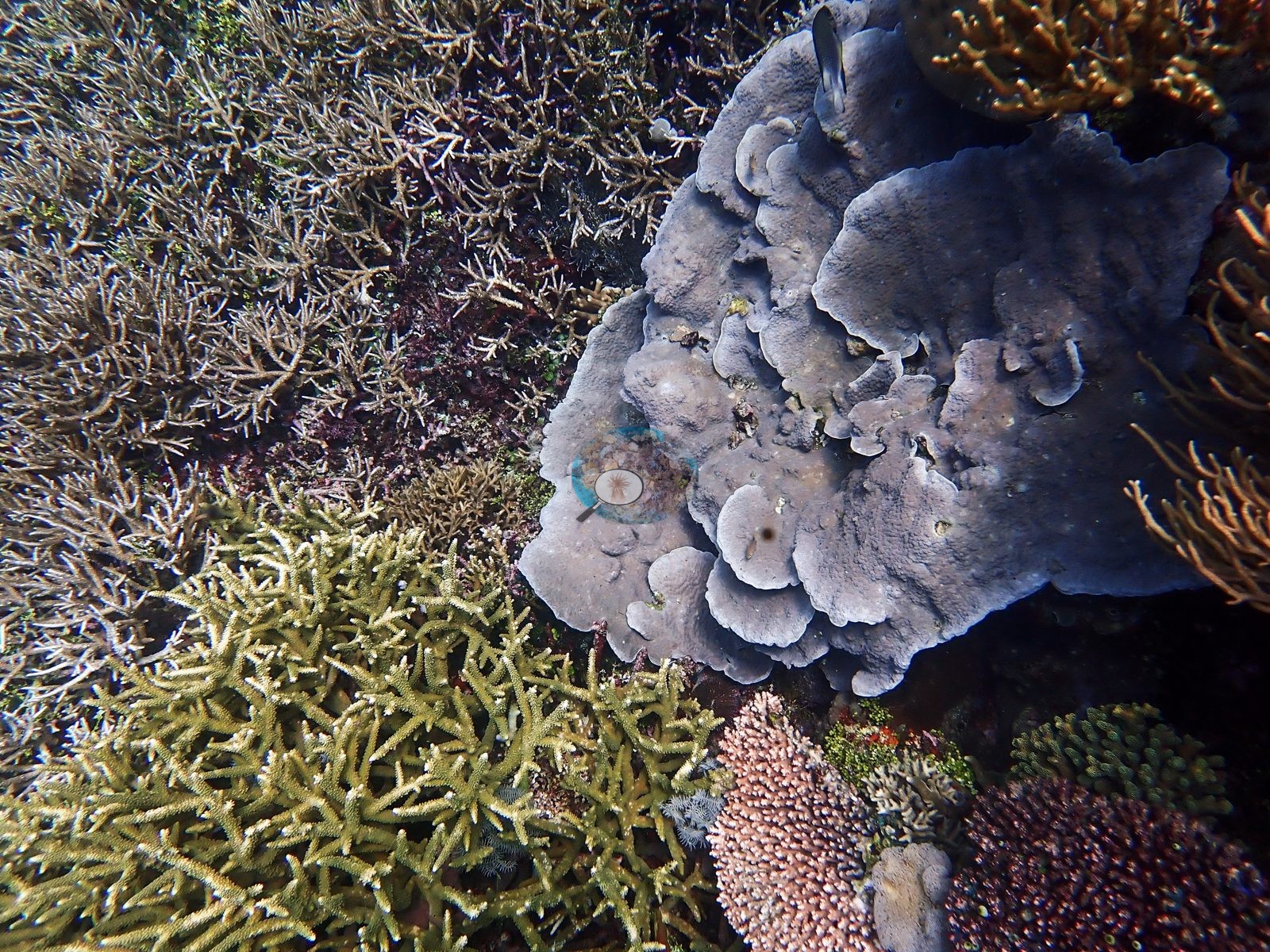

The third is the closest view: a large lavender-gray plating colony with folded margins (Montipora-like) surrounded by silver-gray, olive-green, and salmon-pink branching and corymbose Acropora, a maroon coralline patch, and a dark corymbose colony — essentially no bare substrate in the frame (e.g., Image 3).

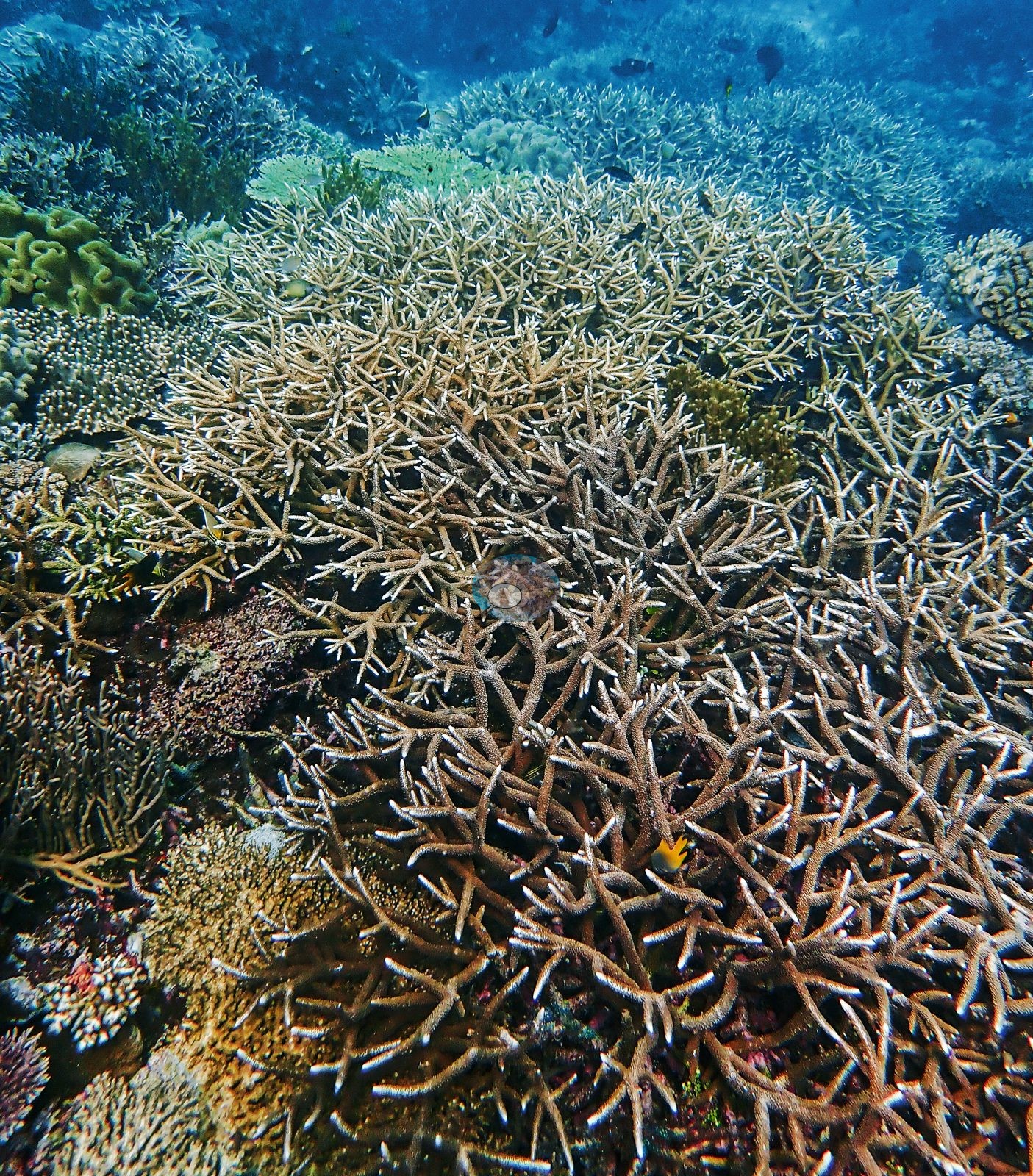

The fourth is again wall-to-wall staghorn Acropora, with a pale plating Acropora and further branching thickets receding up-slope, yellow-green lobate and columnar colonies along the left edge, and small damselfishes throughout (e.g., Image 4).

Coral cover

Coral cover: 46% — a blind Claude computer-vision point count of 200 of Anderson's edited photographs (20 points per photo; water, fish, and obstructions excluded). Other computer-vision methods are listed in the method table.

Stressors

On stress — white branch tips are pervasive but are normal Acropora growth-tip pigmentation, not bleaching; a small number of pale-to-white colonies sit in the background of frames two and four, and from photographs alone these cannot be separated into bleaching, recent mortality, or simply pale pigment. No disease lesions, predation scars, gear, tape, or man-made objects appear in any frame.

Comparisons with other data

Also on record for this site: Small planktivorous reef fishes, including anthias- and damselfish-like schools, are conspicuous above the reef. Color from encrusting sponges and coralline growth is real but confined to a minority of frames; most of the sequence reads as earth-toned rather than brightly colored. The galleries also show rubble, older framework, and lower-cover patches, so the reef is heterogeneous rather than uniformly carpeted. Nevertheless, the photographed route contains repeated expanses of exceptionally dense branching-coral habitat and strong three-dimensional complexity. A pale-to-white branching-coral signal recurs across roughly a third of the reviewed sequence — several independent frames, not one isolated shot — so this is better described as a recurring paling pattern than a site with no bleaching signal; whether it reflects genuine thermal stress, natural branch-tip whitening, or a mix of the two cannot be determined from the photographs alone.

Dive record

Raiketa was dived on 29 January 2024 to 16.5 m maximum, 8.8 m average.

CV model comparison

As of September 2026 no computer-vision method estimates coral cover accurately on new images, so treat this as indicative rather than a measurement; it is revised as the methods improve.
Headline: Claude computer vision — a blind point count of this site's own photographs (Anderson, 2026-09-27: Claude CV is the main coral-cover value).
More infoDINOv3 and CoralSCOP were run on the same photos and are listed for comparison. Coralscapes v2 and v1 were also run but are not shown: Anderson does not consider Coralscapes reliable for these photos. No diver transect exists for this trip, so agreement between the rows is not accuracy, and as of September 2026 no computer-vision method estimates coral cover accurately on new images; treat every row as indicative.
MethodHard-coral cover (%)
In-house DINOv339.9
CoralSCOP edited44.4
Claude (edited photos)46.4

Independent surveys nearby

Data availability near this site
Agency / programYear(s)Stations / distanceLink
Coral Triangle Center (CTC)20174 stations, 1.29–4.00 kmRecords ↓
Reef Check2004–20176 stations, 0.32–4.80 kmRecords ↓
XL Catlin Seaview Survey20142 stations, 1.57–3.32 kmRecords ↓
Hard coral cover over time — this site and every independent station within 5 km. Programs are shown separately because they use different methods at different stations; the lines are not one comparable series.
0%17%34%51%68%200420142024Reef Check 2004: 33%Reef Check 2017: 25%Reef Check 2017: 39%Reef Check 2017: 49%Reef Check 2017: 53%Reef Check 2017: 65%XL Catlin Seaview Survey 2014: 17%XL Catlin Seaview Survey 2014: 21%XL Catlin Seaview Survey 2014: 21%Coral Triangle Center (CTC) 2017: 36%Coral Triangle Center (CTC) 2017: 41%Coral Triangle Center (CTC) 2017: 47%Coral Triangle Center (CTC) 2017: 49%Dr. Coral (CRD) 2024: 46%Year-averaged across all programs: no detectable trend (+0.80 pp per year, not separable from zero; 4 years)
Reef Check XL Catlin Seaview Survey Coral Triangle Center (CTC) Dr. Coral (CRD)Year-average (no detectable trend)

Within 5 km, 12 independent survey stations recorded hard coral cover in 30 records between 2004 and 2017. The most recent nearby survey is from 2017, so these values predate recent heat stress. This site's own estimate (46%) sits within the range of these surveys (17–65%); the methods differ, so the comparison is context, not a like-for-like test.

Collected by other programs using different methods (Reef Check uses point-intercept transects; the XL Catlin Seaview Survey uses photo-transects with automated image annotation), so these are context for the figures above, not a like-for-like comparison. Where a station was surveyed more than once the range is shown. Station names are not dive-site names.

Show all 12 independent survey records
Independent survey data near this site
AgencySite / locationDateHard coral cover (%)DistanceLink
Reef CheckSouth of Tanjung Reta200433% (2 surveys)4.80 km—
XL Catlin Seaview Surveytransect 30015201421%1.57 km—
XL Catlin Seaview Surveytransect 30014201417%3.32 km—
Reef CheckRai keta rala201739%0.32 km—
Reef CheckWatu ai201749%0.36 km—
Reef CheckRai keta tungu201765%0.91 km—
Coral Triangle Center (CTC)Vila (11)201736% (2 surveys)1.29 kmCurrier K, Marine P, Welly M. 2017. Atauro Island MPA. MERMAID
Coral Triangle Center (CTC)Beloi (10)201749% (8 surveys)1.59 kmCurrier K, Marine P, Welly M. 2017. Atauro Island MPA. MERMAID
Reef CheckHaru ina201753% (2 surveys)2.19 km—
Coral Triangle Center (CTC)Outer Reef (09)201741% (7 surveys)2.24 kmCurrier K, Marine P, Welly M. 2017. Atauro Island MPA. MERMAID
Reef CheckVila South201725% (3 surveys)3.17 km—
Coral Triangle Center (CTC)Lampian (12)201747%4.00 kmCurrier K, Marine P, Welly M. 2017. Atauro Island MPA. MERMAID
