Coral Reef Diagnostics

Alor - Sulambali Wall

Komodo Dragon Liveaboards — Naga Biru
⬇ Download this page as a report card
05
Photo: Anderson Mayfield/Coral Reef Diagnostics
Country
Survey date(s)
2026-08-03
Coordinates
-8.2751, 124.3444
Coral cover
22%
Claude computer vision (208 photos) · other methods below · median 19%
Observations
fishing gear
Heat stress
Most recent heat load record
26 Oct 2026 · No heat stress
5-year thermal stress load
5-year mean max. degree heating weeks (DHW)
2021–2025
NOAA Coral Reef Watch — East Nusa Tenggara virtual station
i 5-year mean max. DHW is the mean of the annual maximum DHWs over the five complete years named above, not conditions today.
More infoEast Nusa Tenggara (NOAA CRW virtual station) Alor and the Pantar Strait sit in a zone of exceptionally strong upwelling, which holds these reefs several degrees cooler than NOAA’s satellite-derived figures imply. Read the heat-stress numbers here as a regional-scale indication, not as this reef’s own temperature history.
Photographs
212
50 shown on this page
Site summary
Read this summary in:

A steep upper slope rolling over into a near-vertical Alor wall, where the standout habitat is meter-scale fields of stacked plating corals, one carpeted in thousands of red anthias. Live coral is genuinely patchy, with large aprons of dead, coralline-bound branching rubble and sand chutes between the live stands.

Max. depth dived
26.1 m
dive-log maximum
Water temp. during survey
26–27°C
Water-temperature range logged on the dive (26-27°C, the author's dive notes).
Bottom time
56 min
in at 07:31
Dive setting
Sloping Reef / Wall · Beginner

Two independent survey stations shown with the program’s logo — click one to see how far it is from this site.

Five other CRD dive sites with their own pages within 5 km shown in orange — click a marker to open its page.

These are unedited originals; edited versions will replace them.

This page shows 50 of the 212 photographs from this site, including every one the text cites.

20 of the 50 photographs on this page are shown beside the text that discusses them under "Site description" below.

378101112141516171920222528313234353637384041424445464748

Photo credit & attribution

Site description

Setting

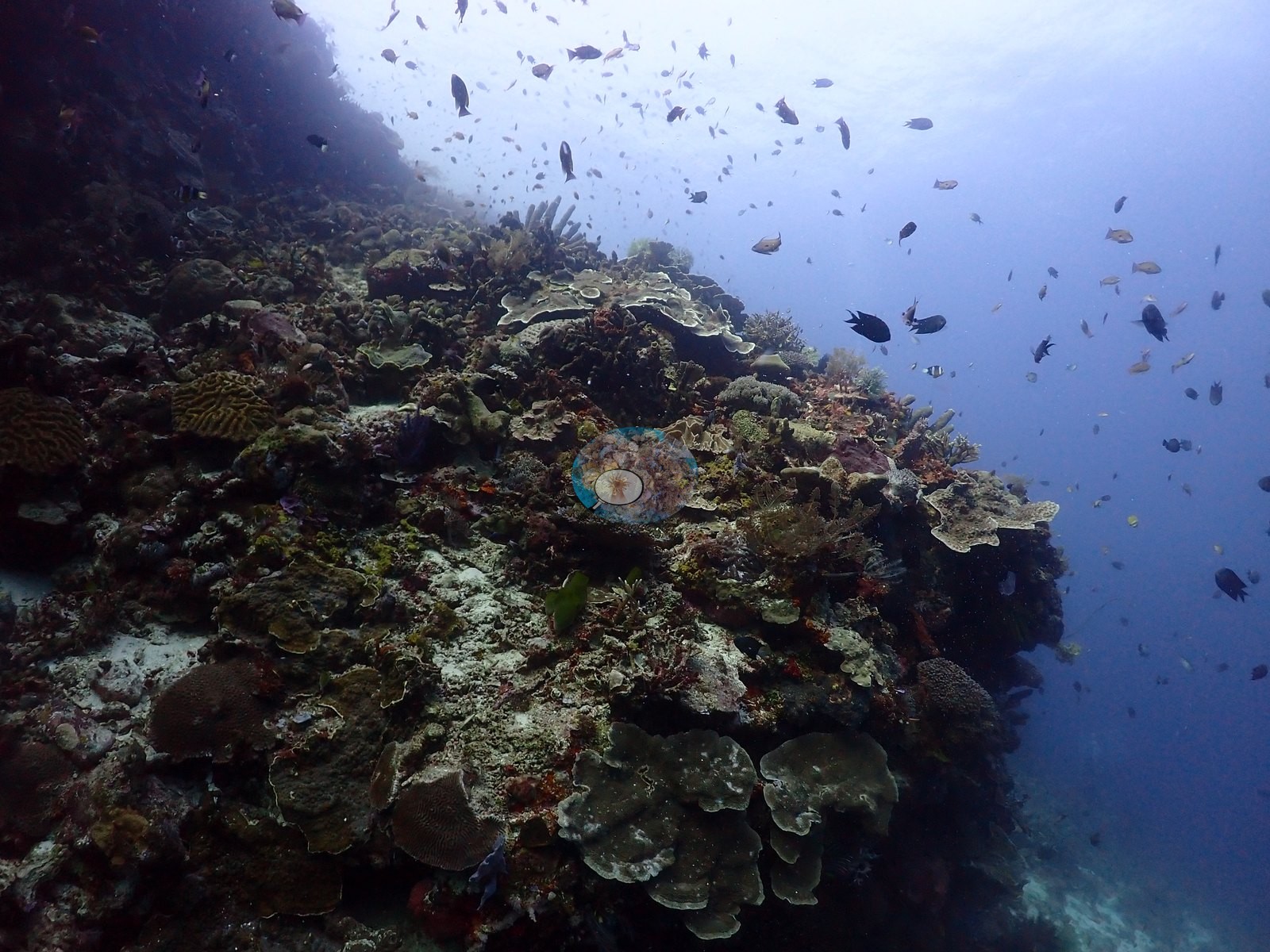

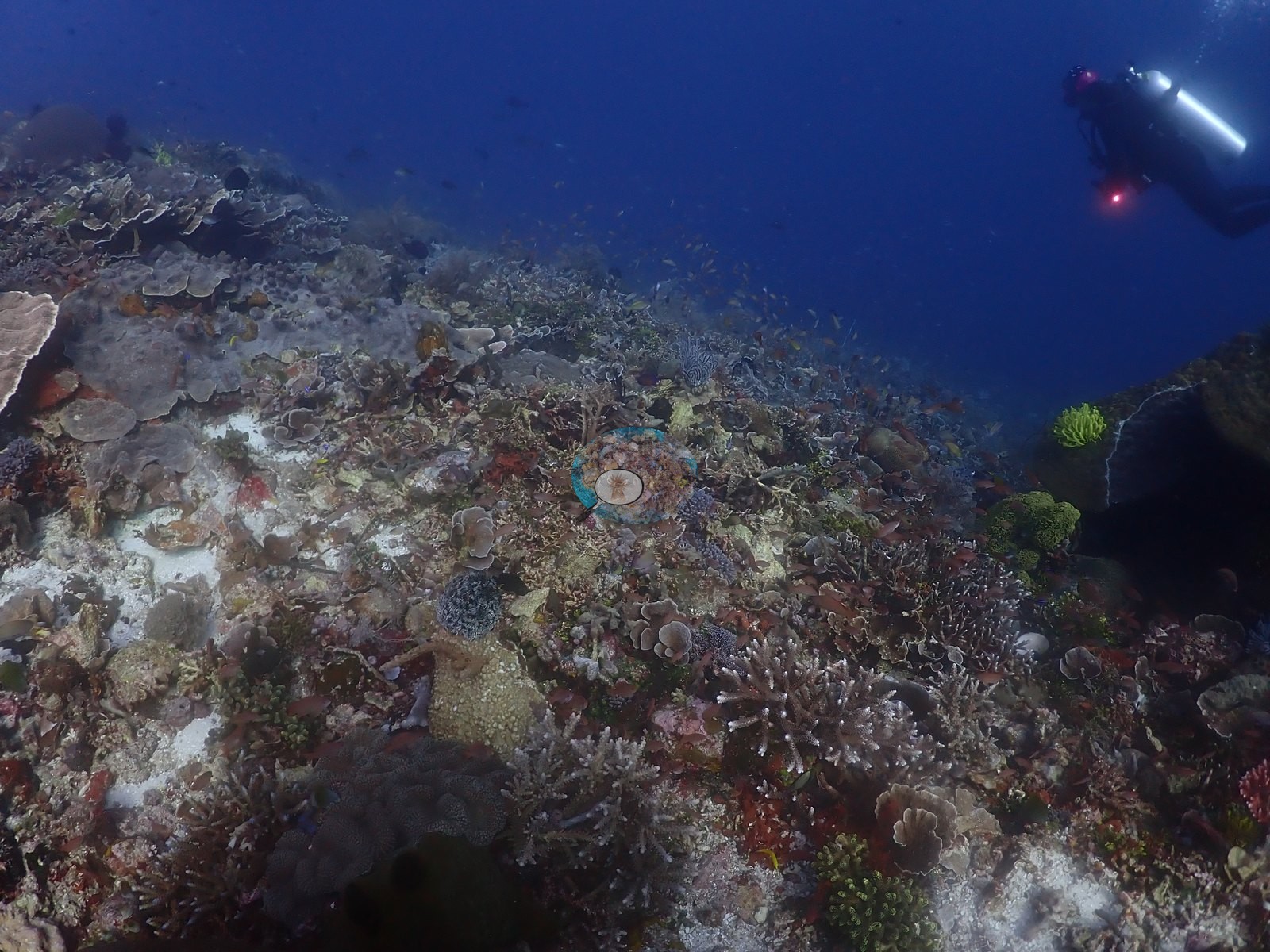

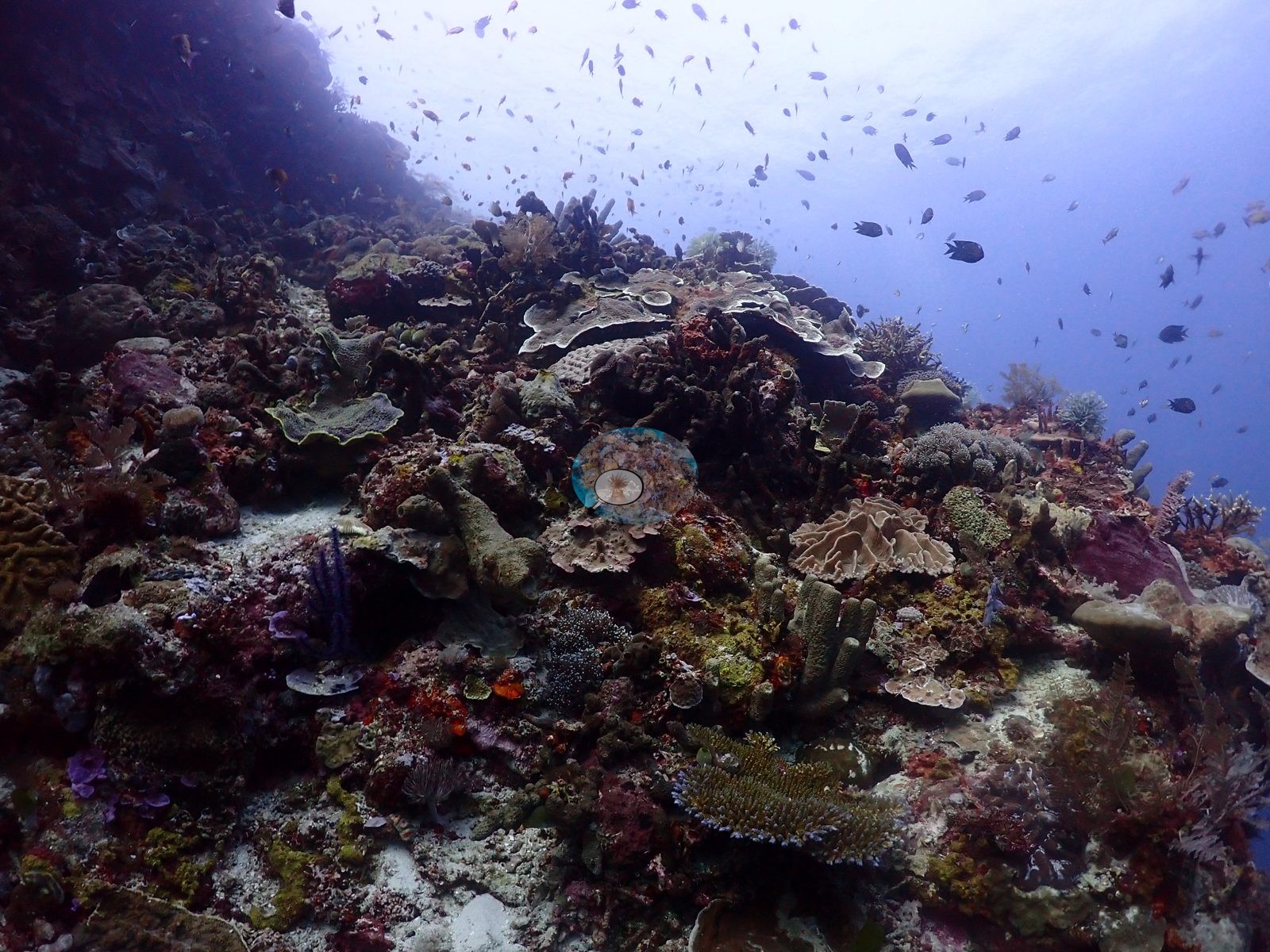

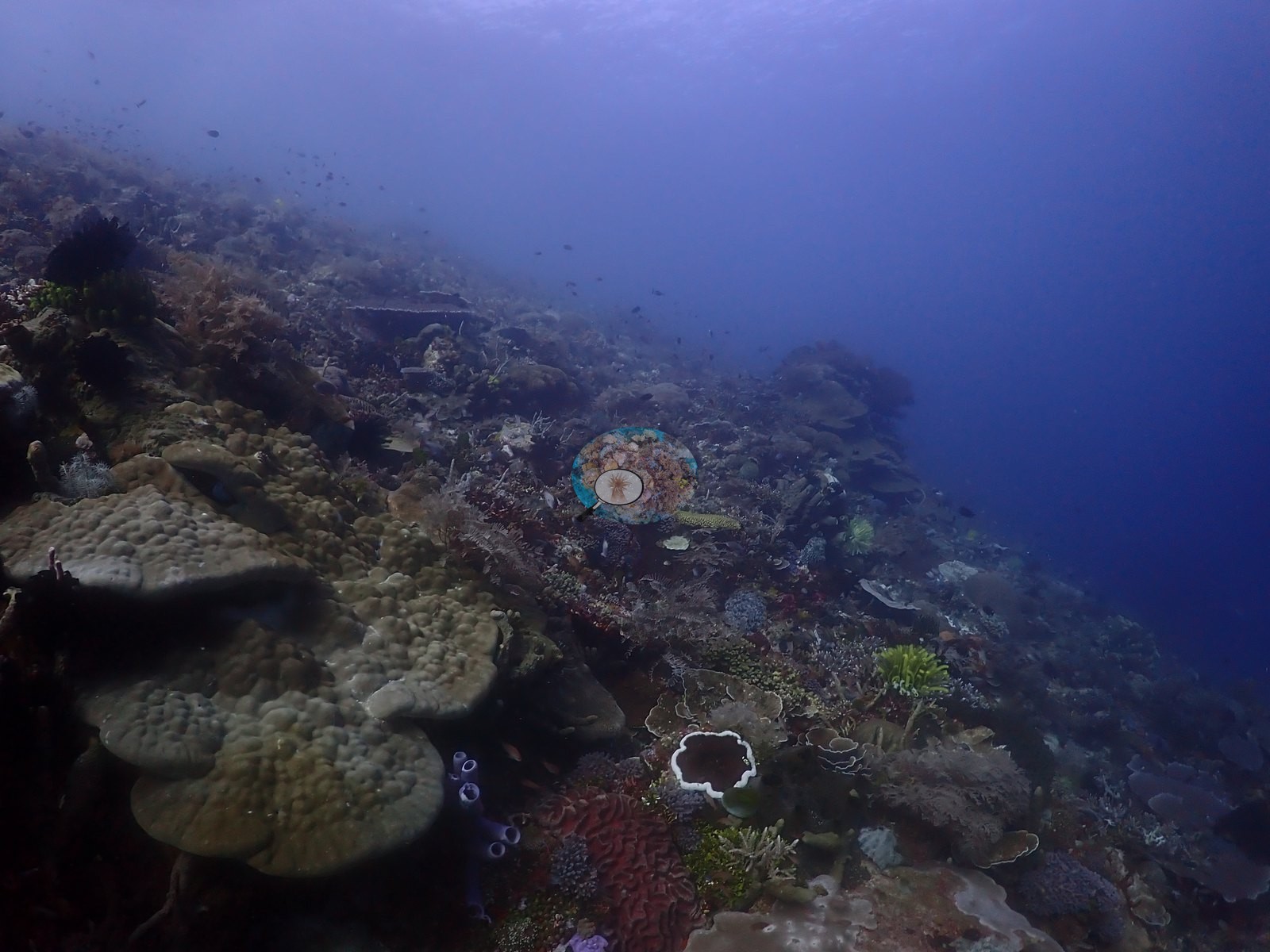

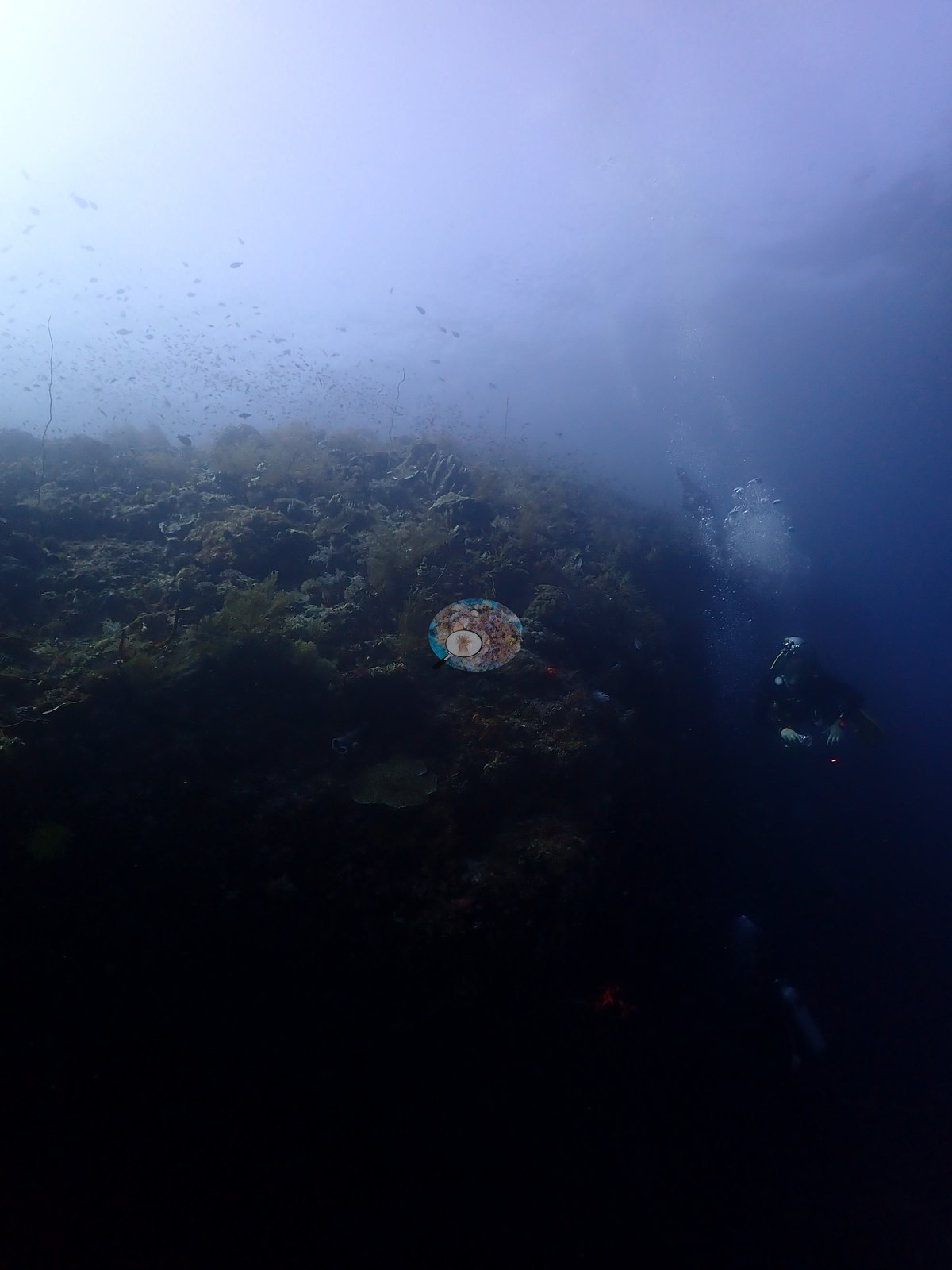

A broad, steep upper slope rolls over into a near-vertical wall and drop-off, with open blue water on its seaward side (e.g., Image 1, Image 2, Image 26).

General benthic features

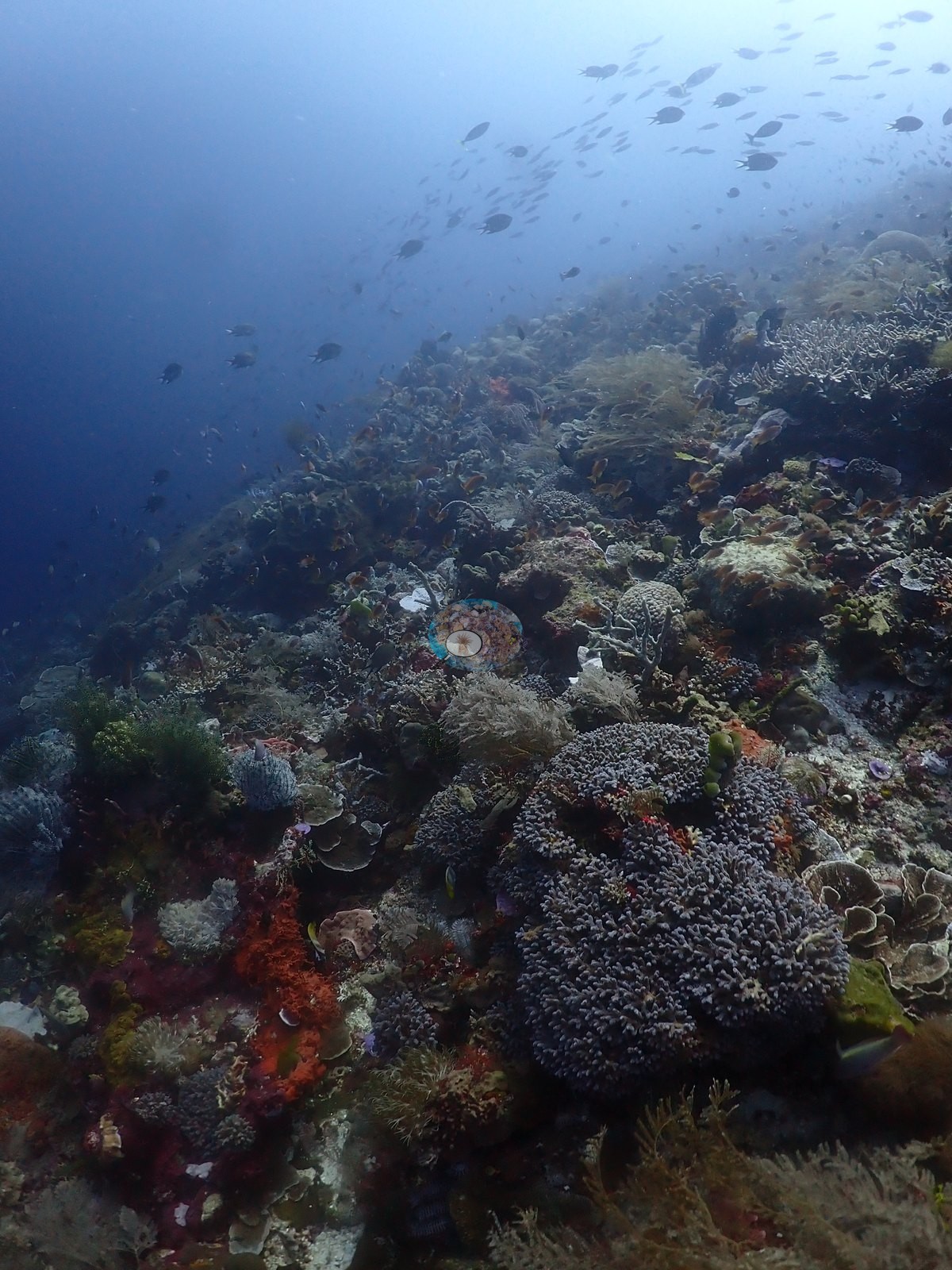

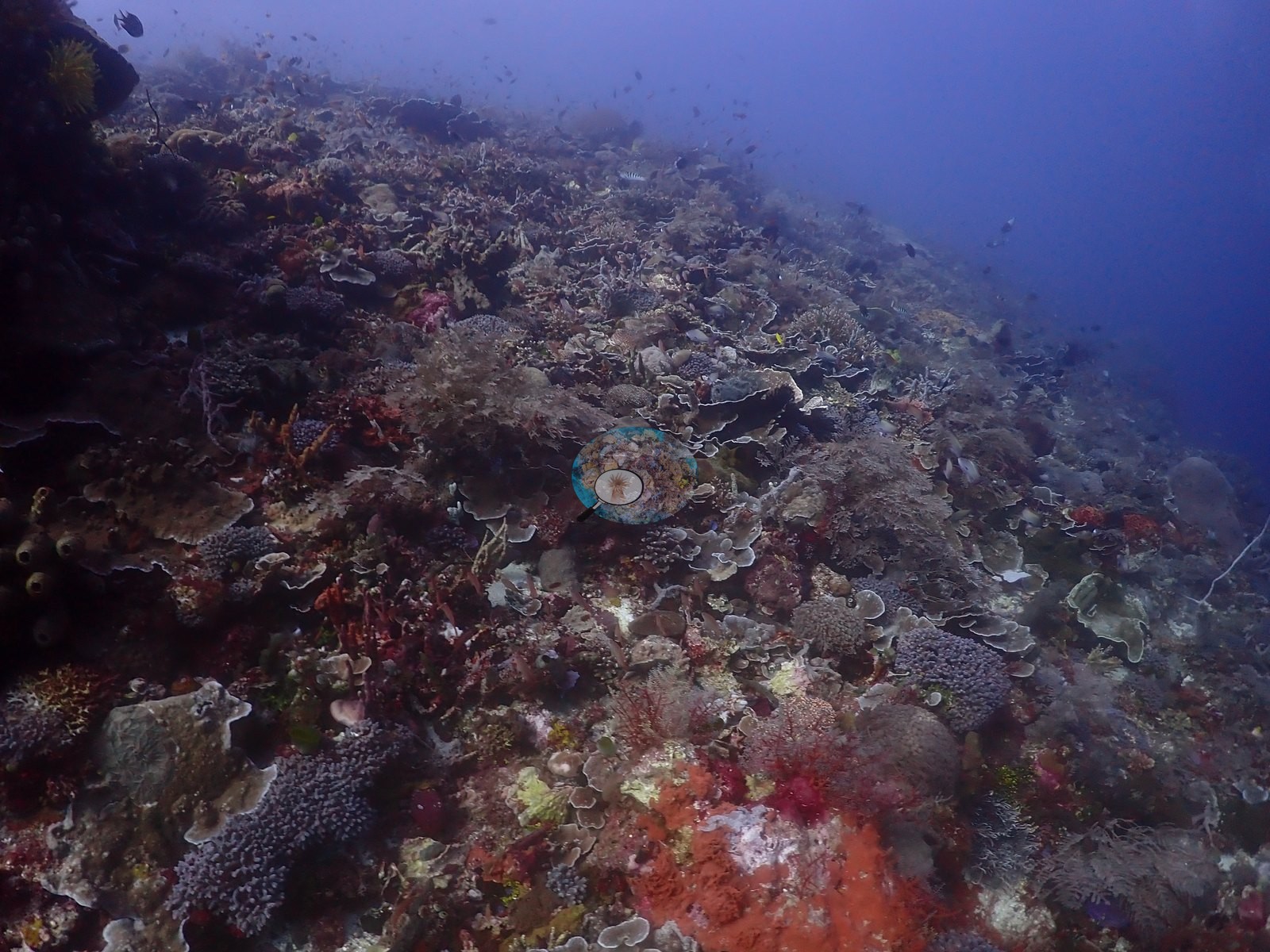

The deep and mid wall is encrusting rather than framework-building: pink and magenta crustose coralline algae, red, orange, yellow, lilac, and blue encrusting sponges, tunicates, and turf, punctuated by stacked foliose plates (e.g., Image 6, Image 9, Image 21, Image 23).

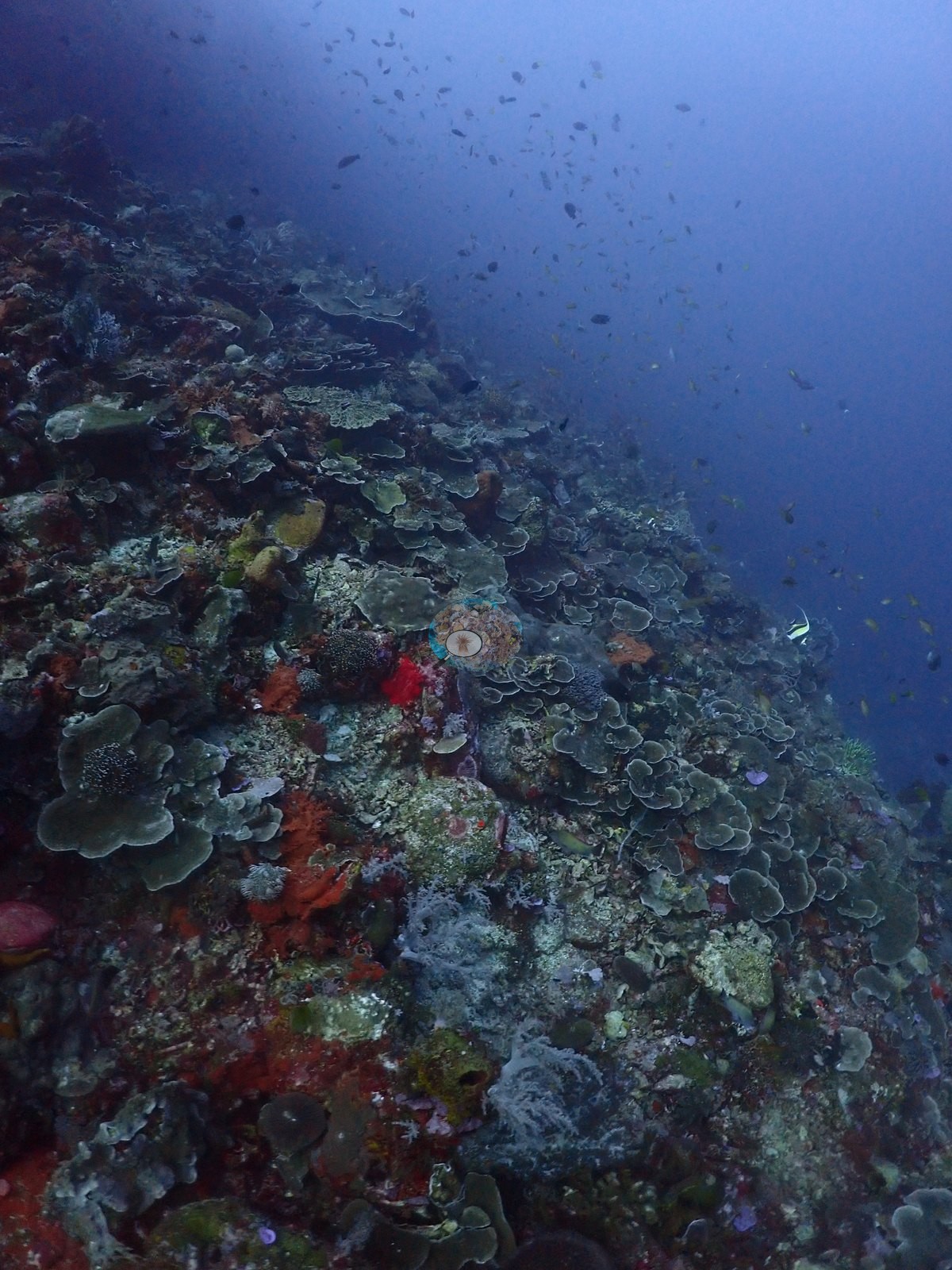

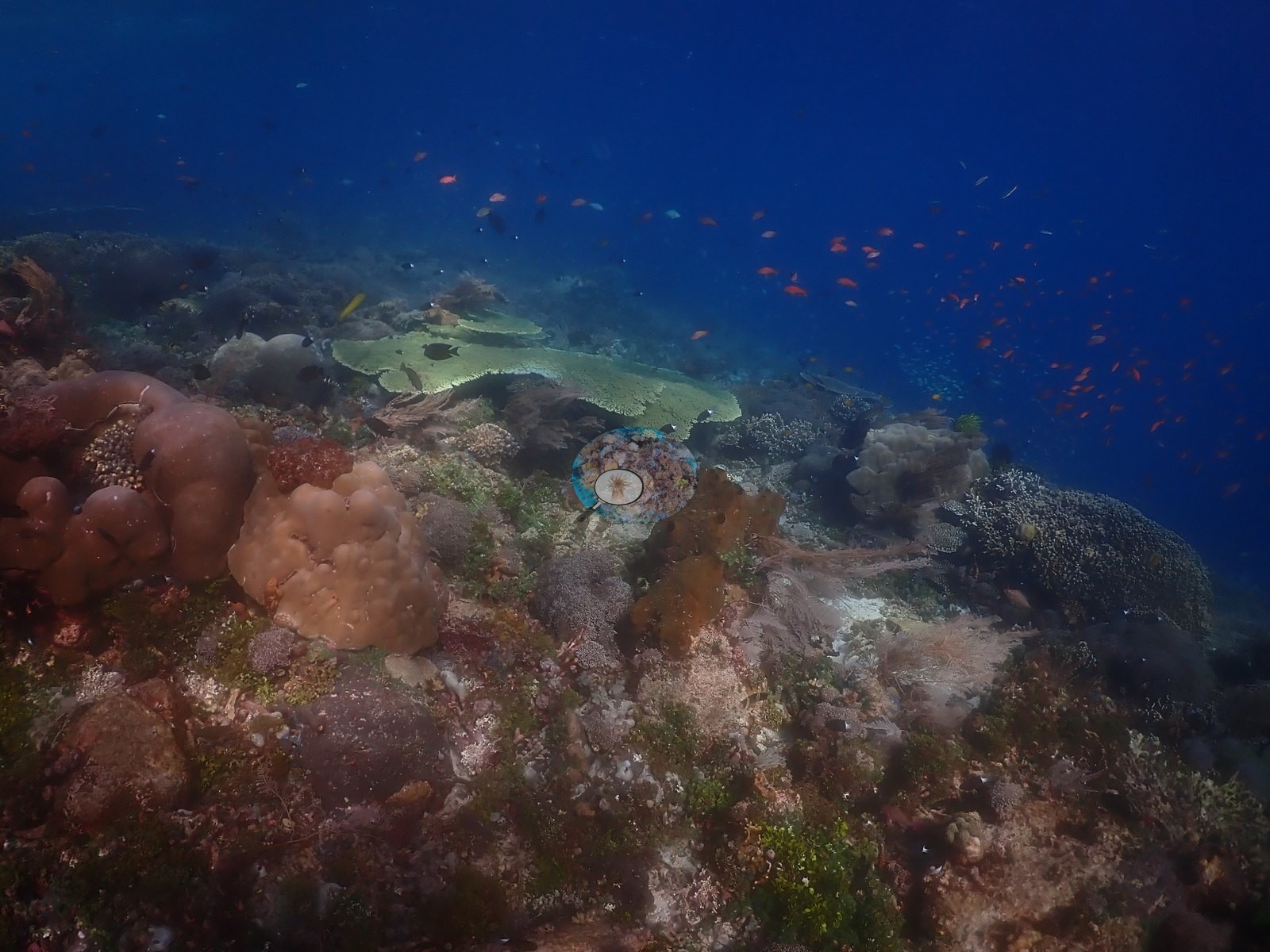

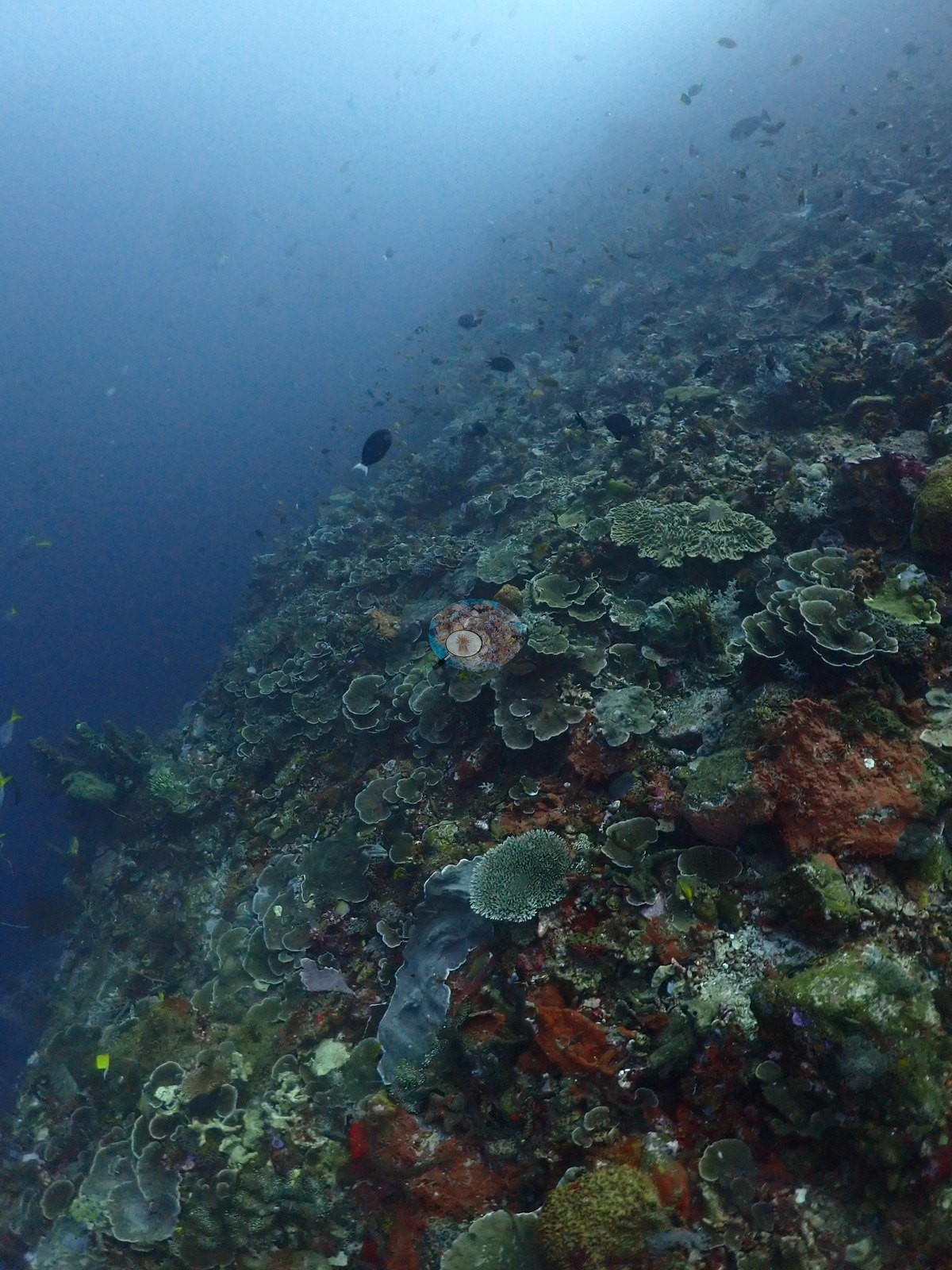

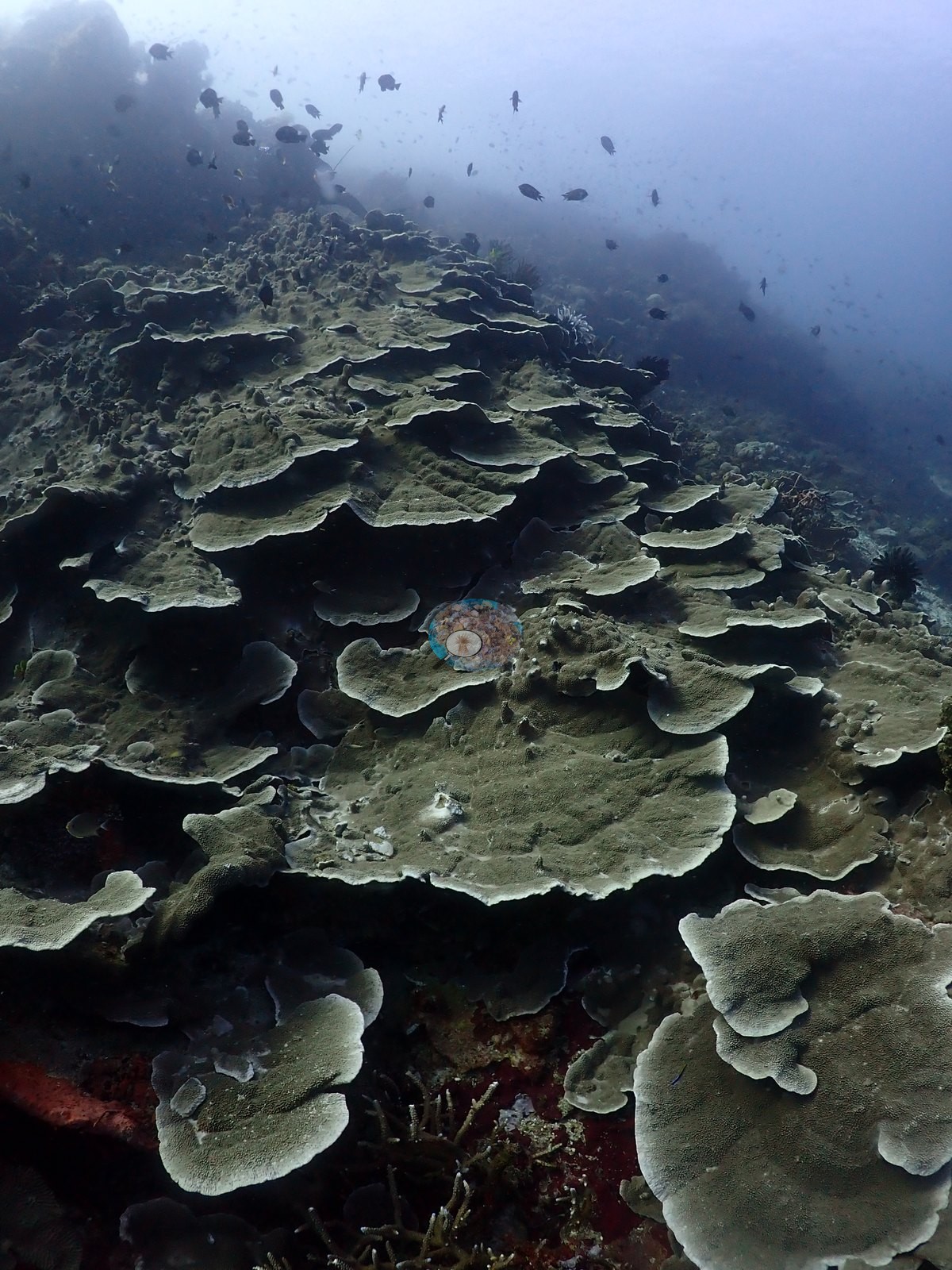

Those plate beds are the standout habitat here — meter-scale fields of overlapping whorls, one field carpeted in red Pseudanthias (e.g., Image 5, Image 29, Image 30).

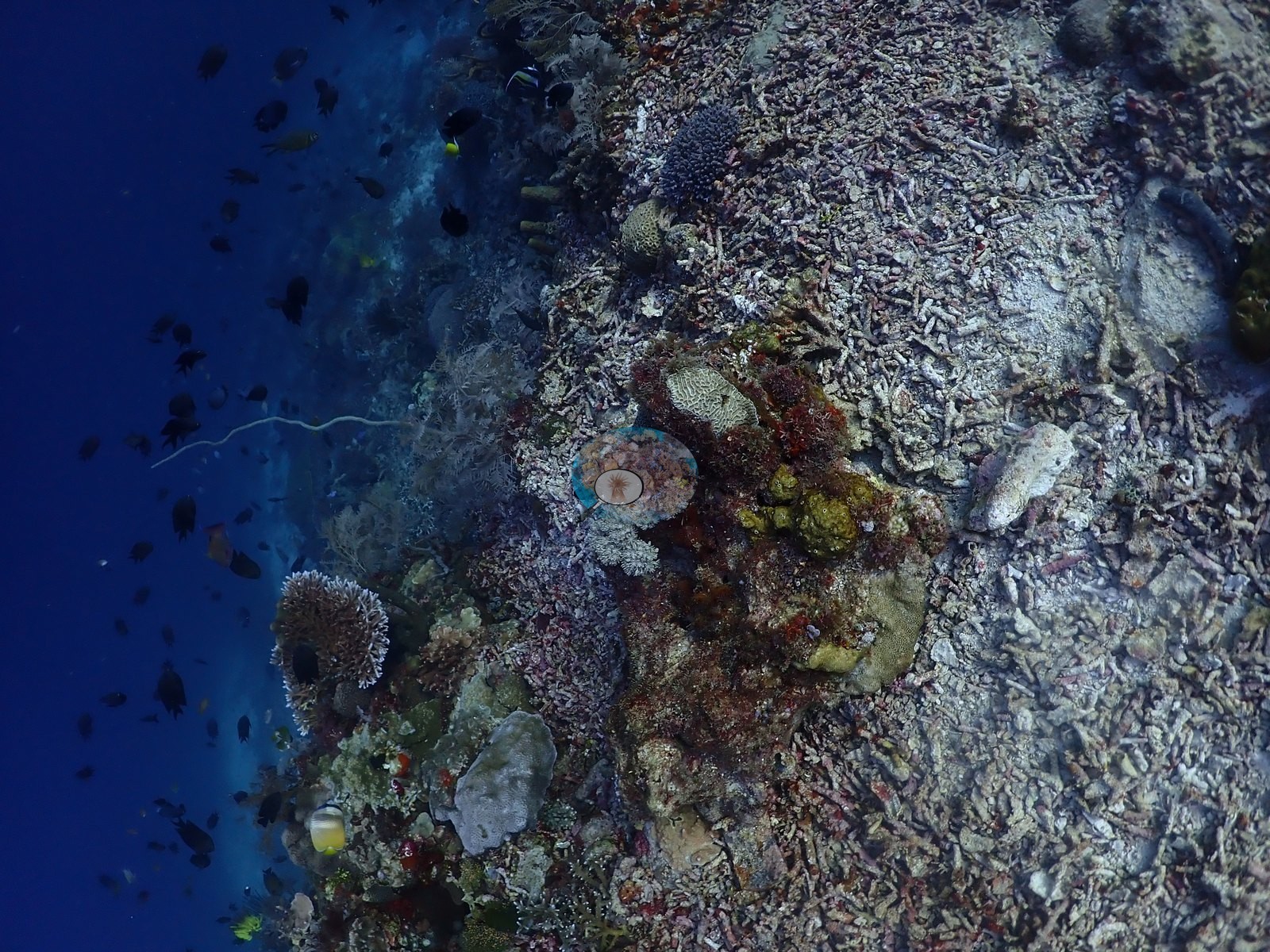

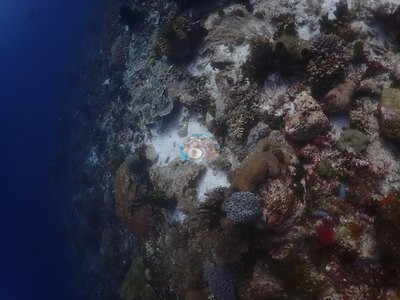

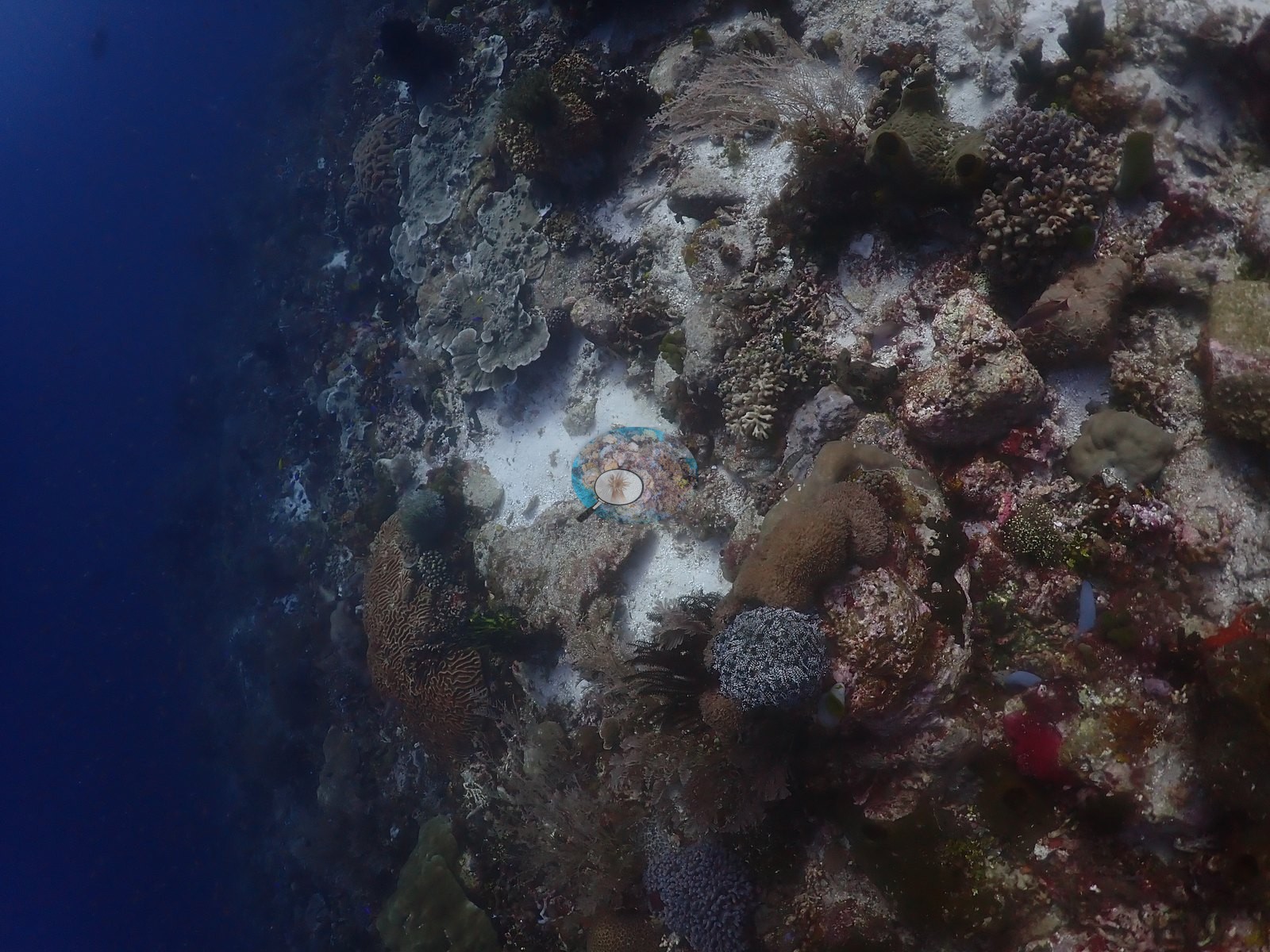

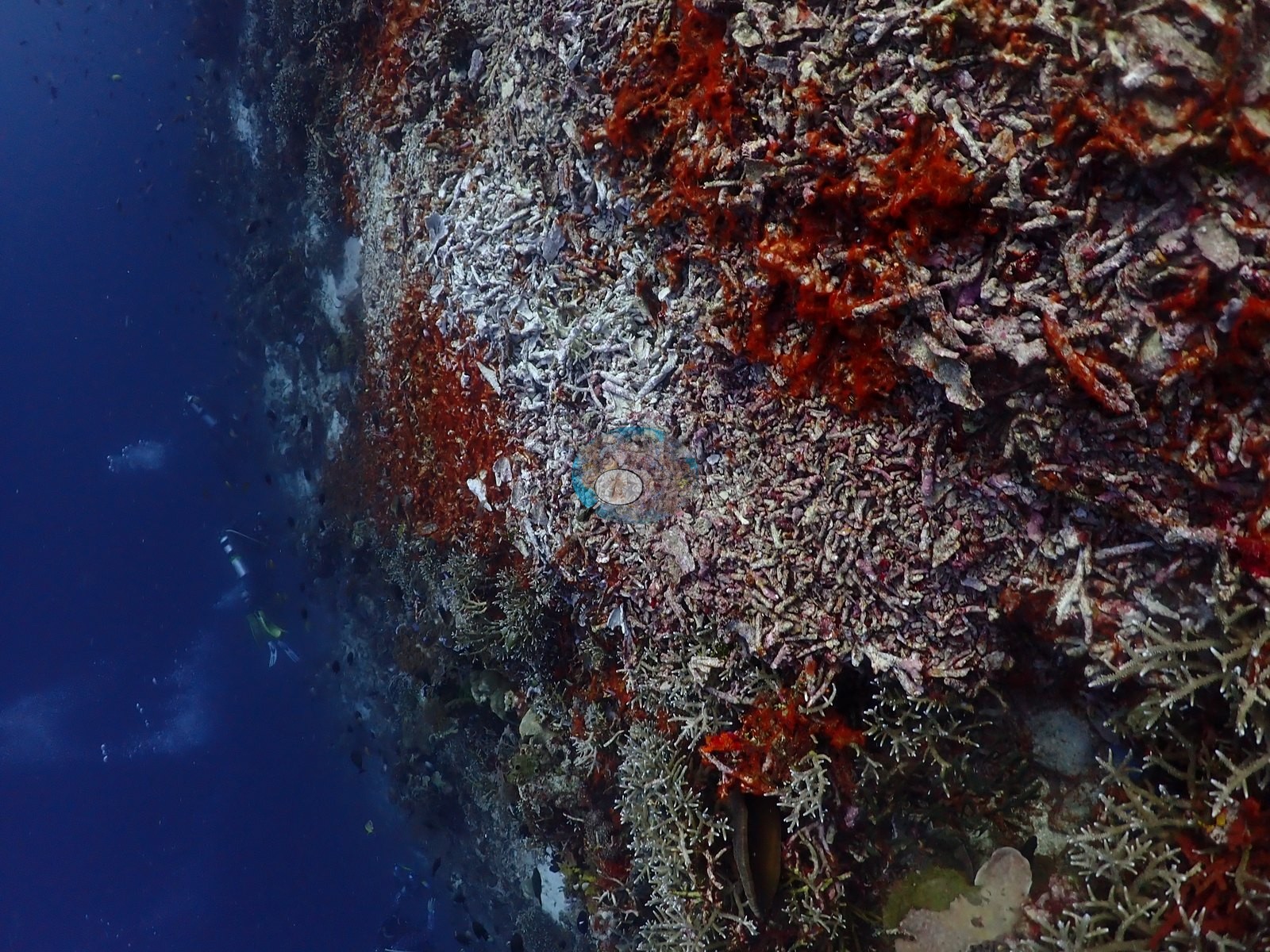

Large aprons of dead branching-coral rubble, bleached white and bound by coralline algae, run along the upper wall between the live stands, and pale sand chutes cut through repeatedly — live coral is genuinely discontinuous at this site (e.g., Image 27, Image 33).

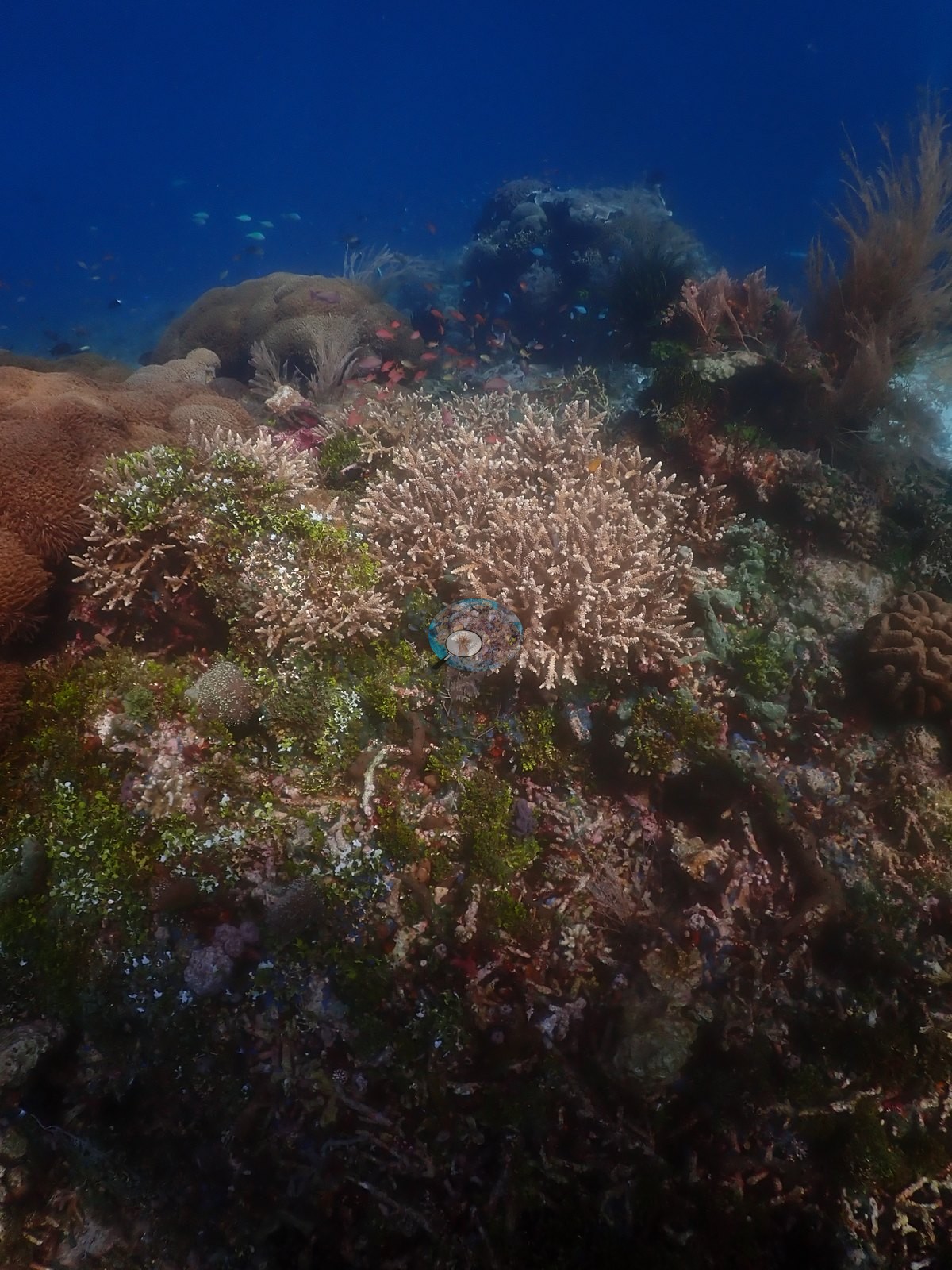

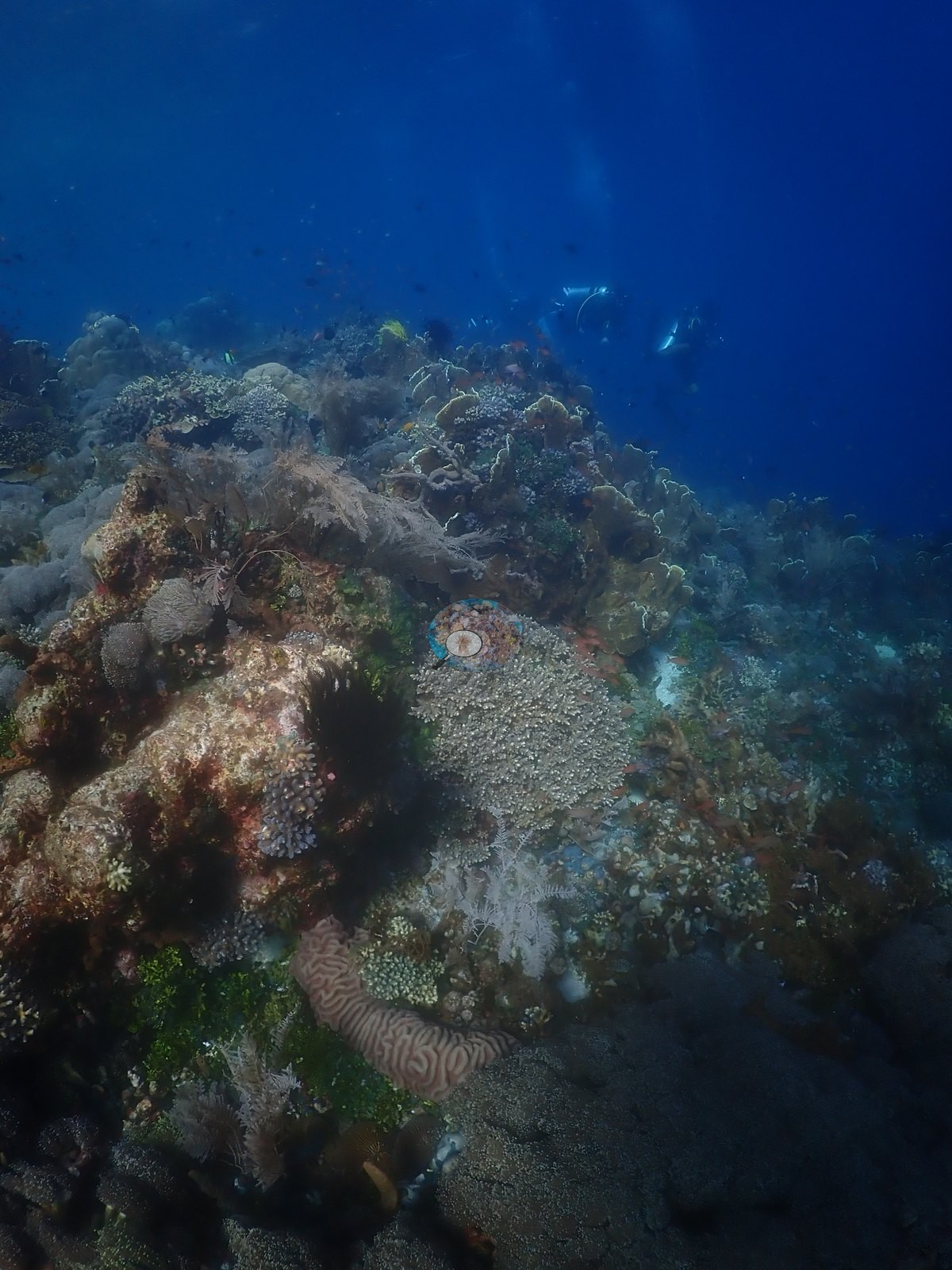

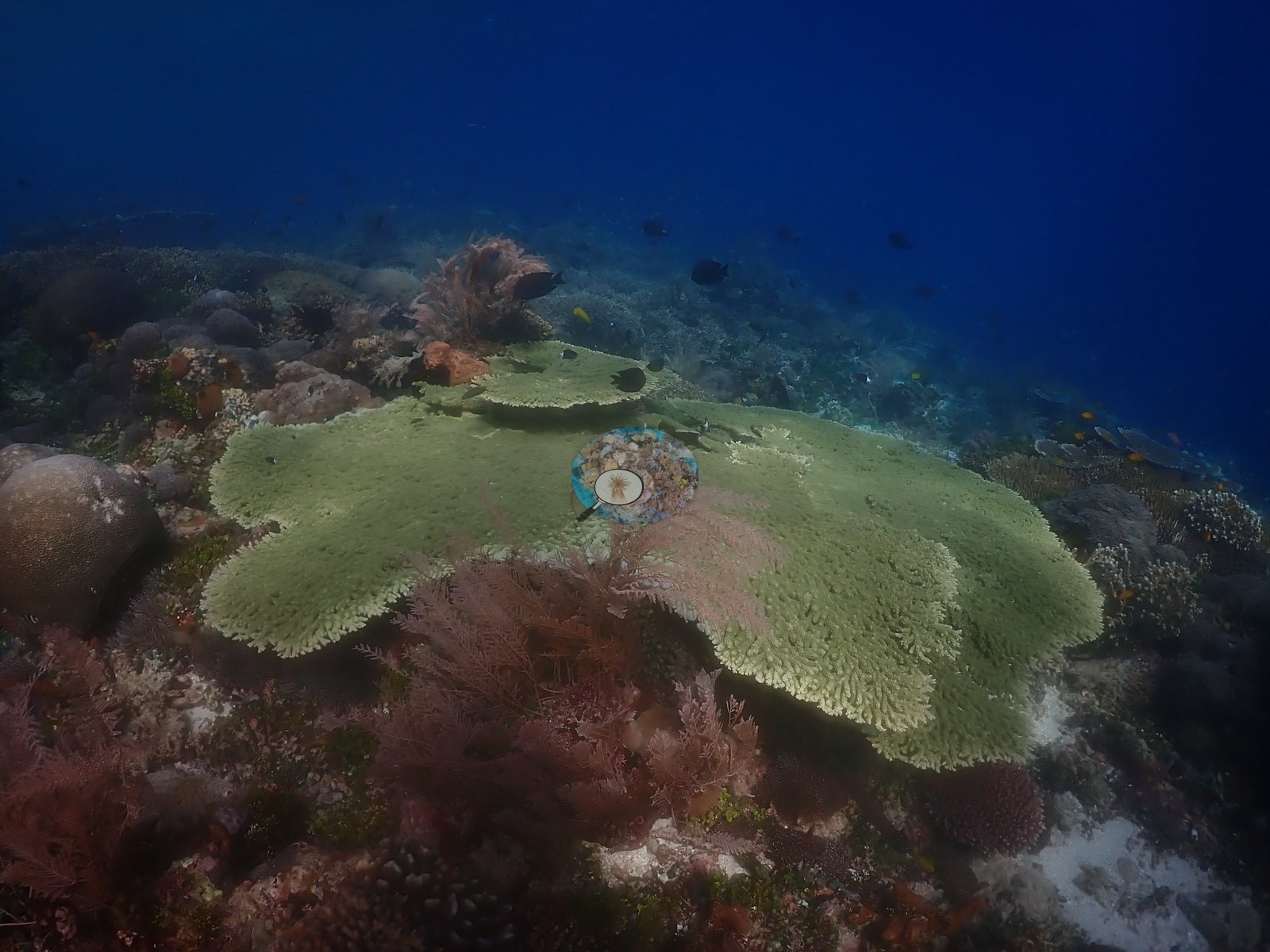

Also present: blue-gray finger and tube sponges, orange and brown barrels of Xestospongia form, tan feather-hydroid and gorgonian plumes, black and yellow feather stars, two blue Linckia laevigata, a sea cucumber, and mauve host anemones with anemonefish. The shallow reef top is a different community again: green, tan, and brown table corals, broad staghorn and corymbose coral thickets, bushy branching corals, massive corals, meandering brain corals and fleshy large-polyped corals, free-living mushroom corals, and continuous pulsing xeniid and leather soft-coral meadows (e.g., Image 13, Image 18, Image 24, Image 39, Image 43).

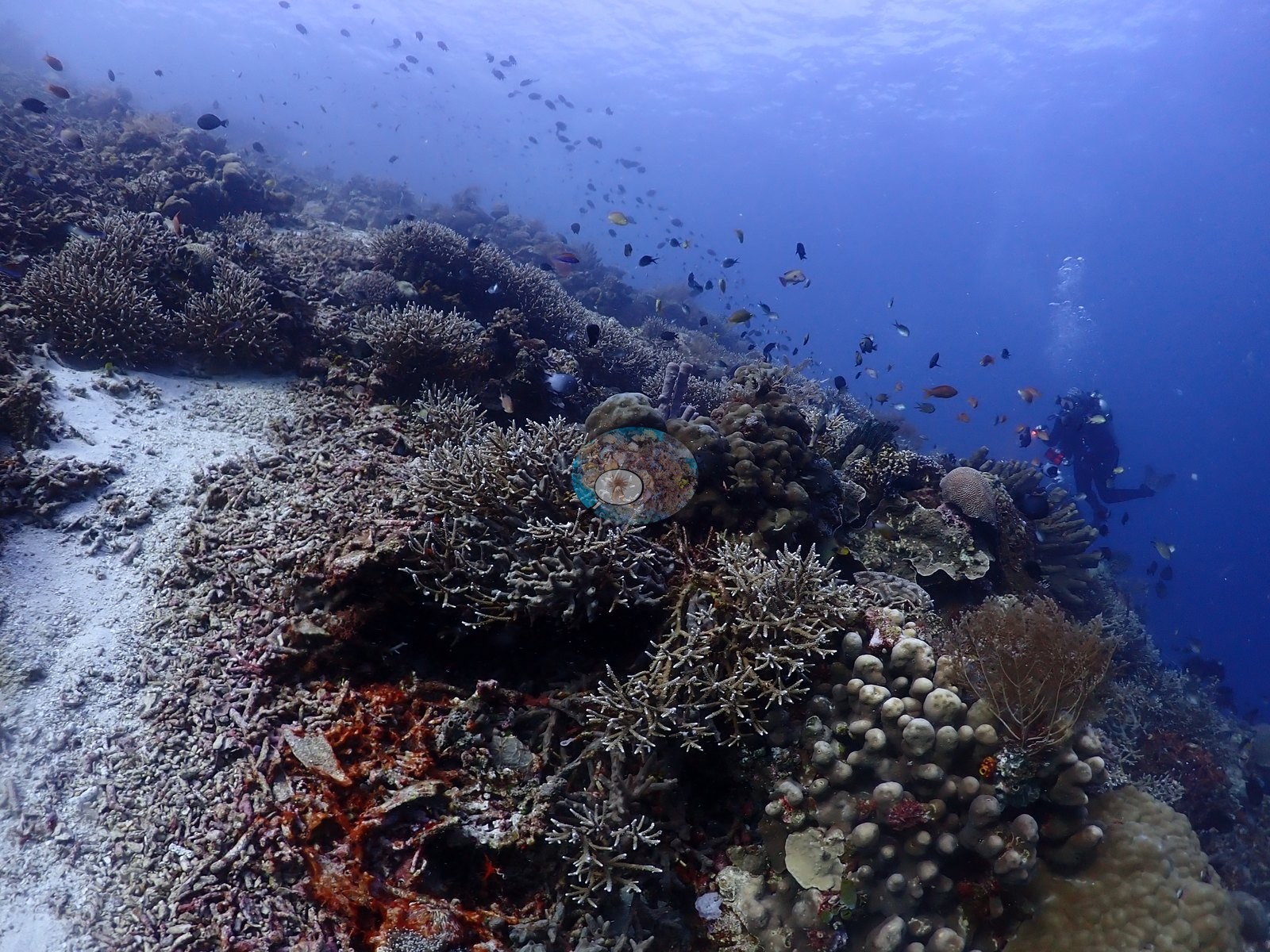

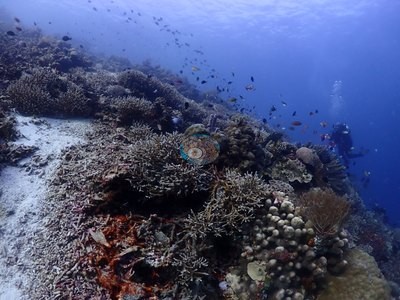

Sand and rubble channels separated patchy to locally high coral cover, and the shallower frames became increasingly mixed and coral-dense.

Coral cover

Stressors

Condition is mixed rather than uniformly good: no basin-wide bleaching, but one large massive colony seen on the dive is bleached over roughly half its surface (stark-white tissue with a few brown, still-pigmented spots) (e.g., Image 55), and several smaller colonies carry white patches, alongside the extensive older rubble.

A thin white monofilament line or rope is stretched taut across the upper slope in two frames (e.g., Image 56, Image 57).

No crown-of-thorns starfish (COTS) or other corallivores were evident.

Fish and other fauna

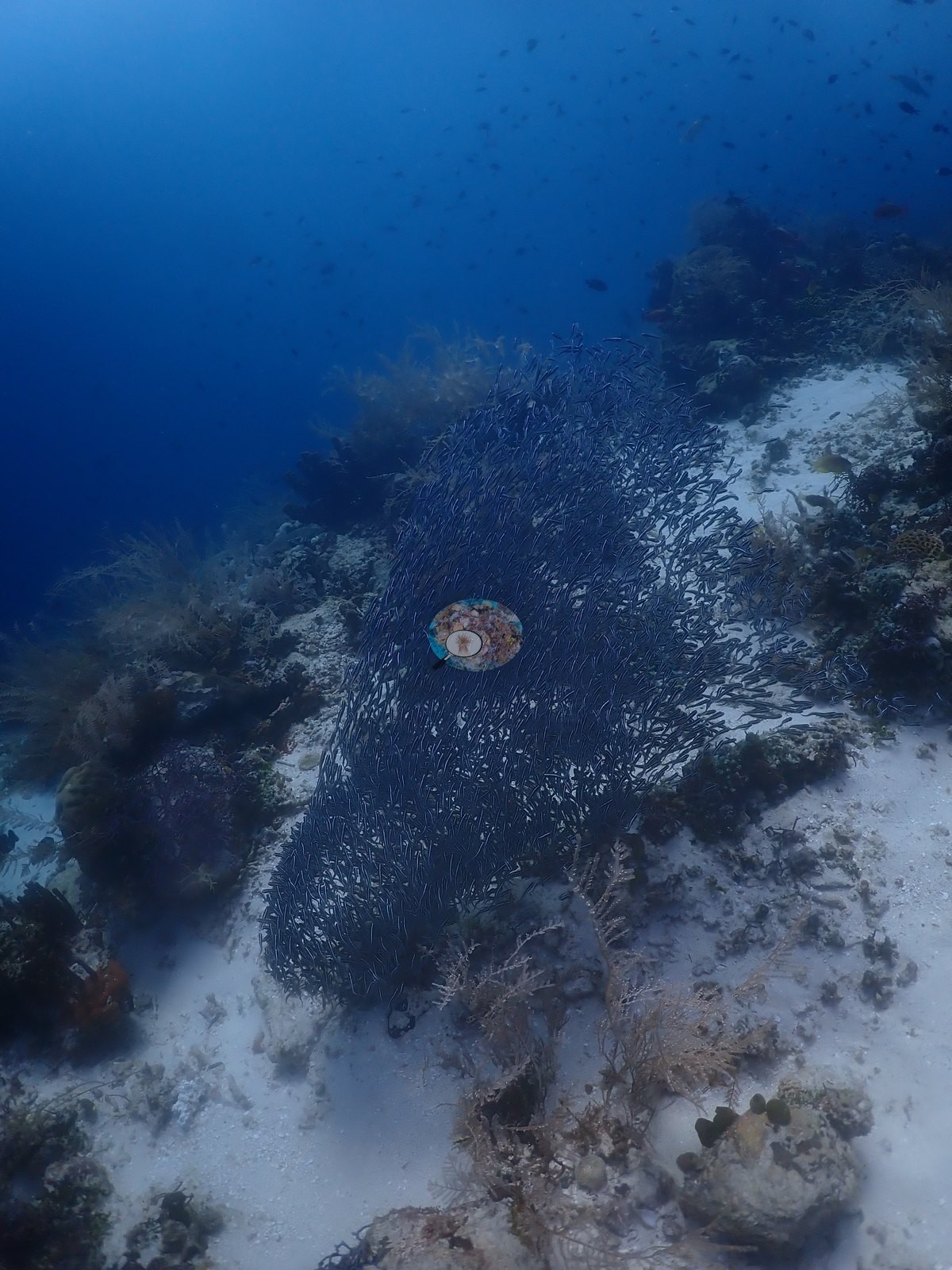

Fish: red anthias in thousands, dark damselfish shoals over the drop-off, yellow-and-blue fusiliers, butterflyfishes, surgeonfishes, and three tight silverside baitballs.

Comparisons with other data

We found no other surveys at this site as of 2026. Within 5 km, two WWF-US / WWF-Indonesia stations recorded station-year means of 8.0–24% hard coral cover in 2014; the nearest, WWF-US / WWF-Indonesia at station 5003, 2.14 km away, read 24% in 2014.

Regional context, not a survey of this site: Razak et al. (2026) found no significant trend in hard coral cover around Alor (a decline of 0.6% per year at 23 sites, surveyed by point-intercept transect at about 8–10 m in 2014, 2017, 2021, and 2023 by Yayasan WWF Indonesia); this is a trend for that location, not this site’s cover. Cover at those sites fell by 3% between the 2014 and 2017 surveys, which bracket 75 days of NOAA Bleaching Alert Level 1 from December 2016 to February 2017.

CV model comparison

Mean 22%, median 19% across 208 photos.
More infoA few colony-focused photos raise the mean; the median is the typical photo. No computer-vision method yet estimates coral cover accurately on new images, so treat this as indicative rather than a measurement; it is revised as the methods improve.
Headline: Claude computer vision — a blind point count of this site's own photographs.
More infoDINOv3 and CoralSCOP were run on the same photos and are listed for comparison. No diver transect exists for this trip, so agreement between the rows is not accuracy, and no computer-vision method yet estimates coral cover accurately on new images; treat every row as indicative.
MethodHard coral cover (%)Photos (n) ± SE
In-house DINOv325.1n = 208 · SE 0.6
CoralSCOP unedited16.3n = 208 · SE 0.8
Claude22.3n = 208 · SE 1.2

The two computer-vision methods differ by 8.8 pp (16.3–25.1%) and read within 6.0 pp of Claude's blind point count (22.3%); the headline is Claude's blind point count because no transect or manual count exists here.

Independent surveys nearby

Within 5 km, 2 independent survey stations recorded hard coral cover in 2014. The most recent nearby survey is from 2014, so these values predate recent heat stress. This site's own estimate (22%) is not compared with these surveys: none lies within 2 km.

Collected by other programs using different methods, so these are context for the figures above, not a like-for-like comparison. Where a station was surveyed more than once, the cell shows either the range of its values or, as a single value, the mean of surveys made in one year. Station names are not dive-site names.

Independent survey data near this site
AgencySite / locationDateHard coral cover (%)DistanceLink
WWF-US / WWF-Indonesia5003201424%2.14 kmAmkieltiela, Abdillah T, Amkieltiela A, Andradi-Brown D, Lazuardi E. 2015. MBD 2014 & 2015. MERMAID
WWF-US / WWF-Indonesia500220148.0%4.79 kmAmkieltiela, Abdillah T, Amkieltiela A, Andradi-Brown D, Lazuardi E. 2015. MBD 2014 & 2015. MERMAID

Data & links

All images from Coral Reef Diagnostics. Data are from Coral Reef Diagnostics and the organizations named in the data sources above.

© Coral Reef Diagnostics.

References

  1. Razak TB, Alisa CAG, Abrar M, Ardiwijaya R, Bachtiar I, Budaya RR, et al. (2026). Two decades of coral monitoring reveal thermal stress thresholds on Indonesian reefs. Biological Conservation 318:111781. DOI
