Alor - Pasir Merah (Red Sand)

Setting

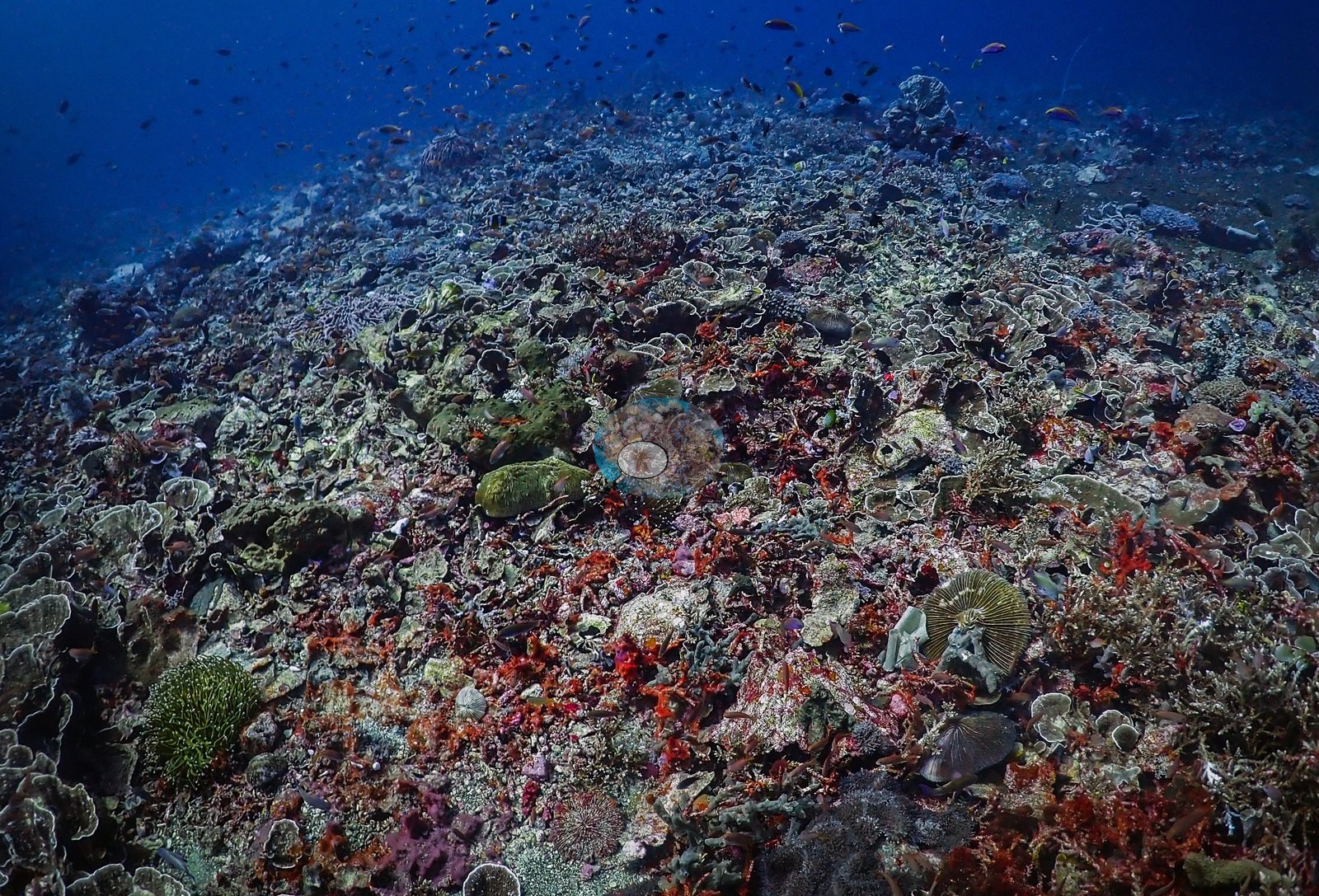

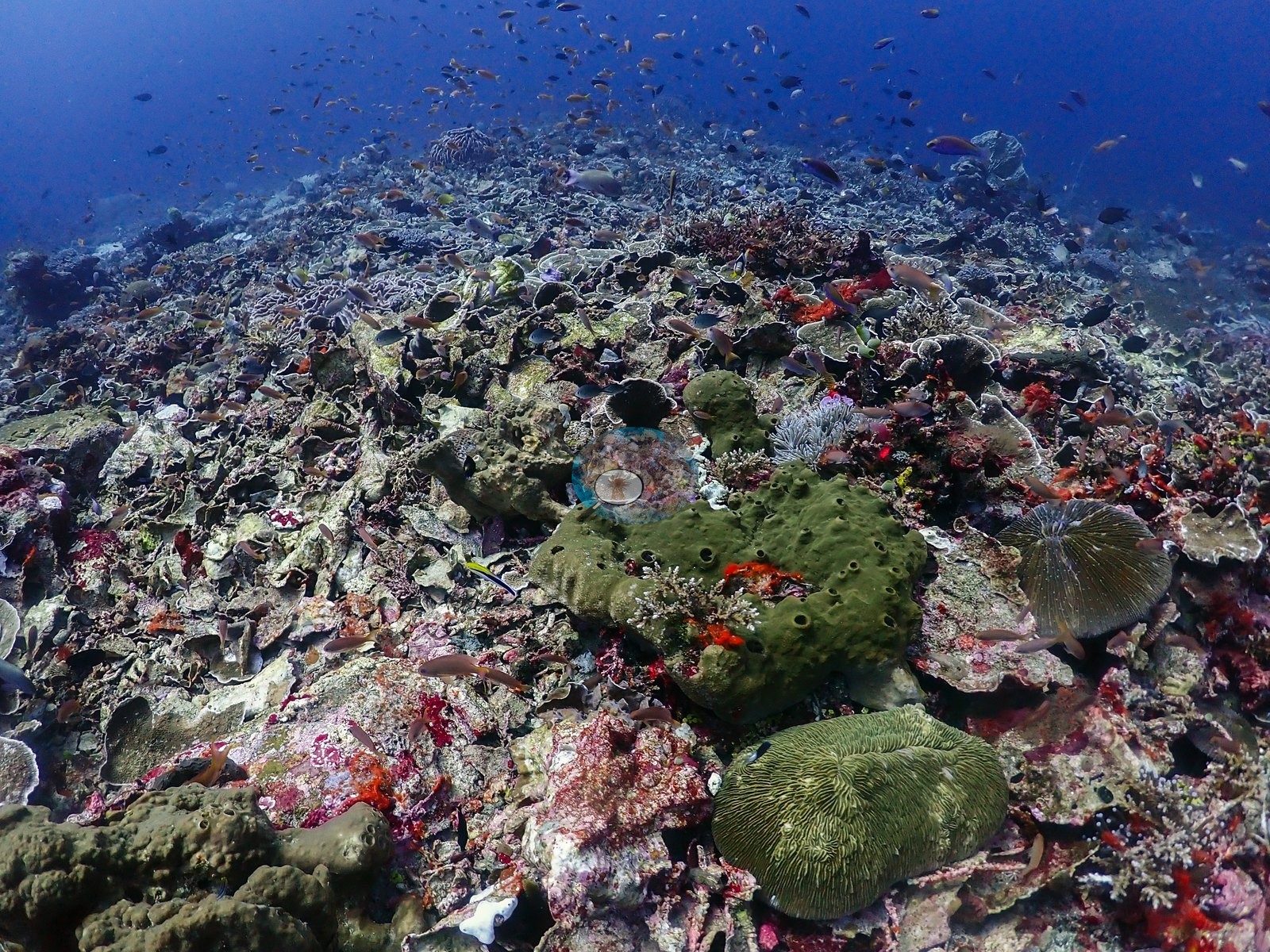

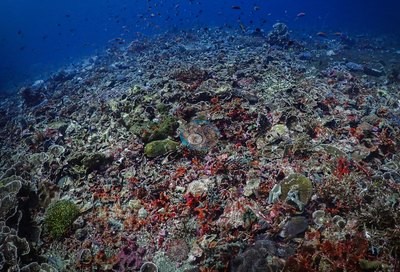

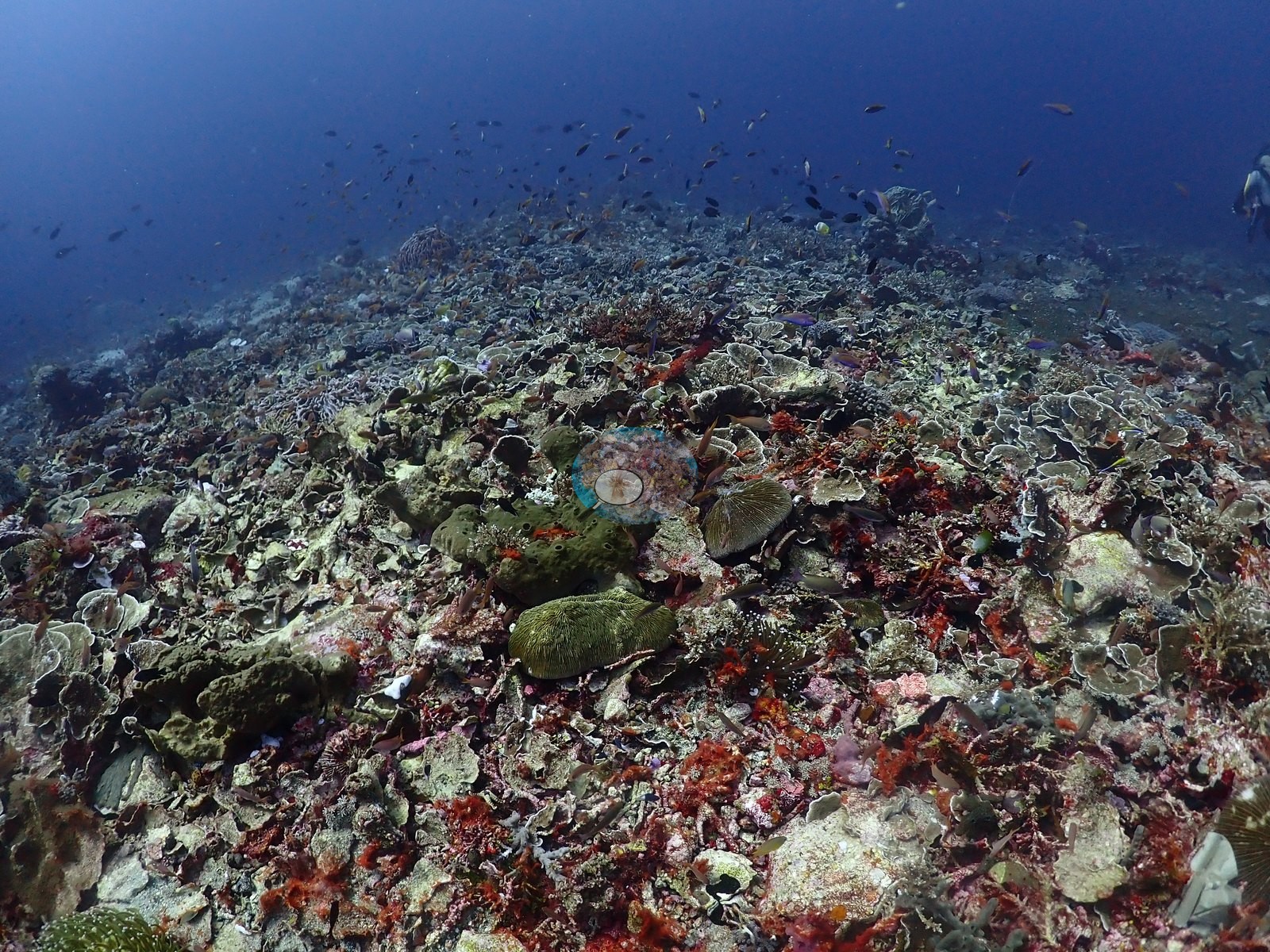

A heterogeneous volcanic slope of sand, rubble, and red or pink encrusted substrate interspersed with coral outcrops (e.g., Image 5, Image 7, Image 23).

5723

Visibility is good throughout with strong ambient light. A reef-to-wall transition with locally enhanced water movement; the gas vents reported for the site were not clearly captured (e.g., Image 27).

27

General benthic features

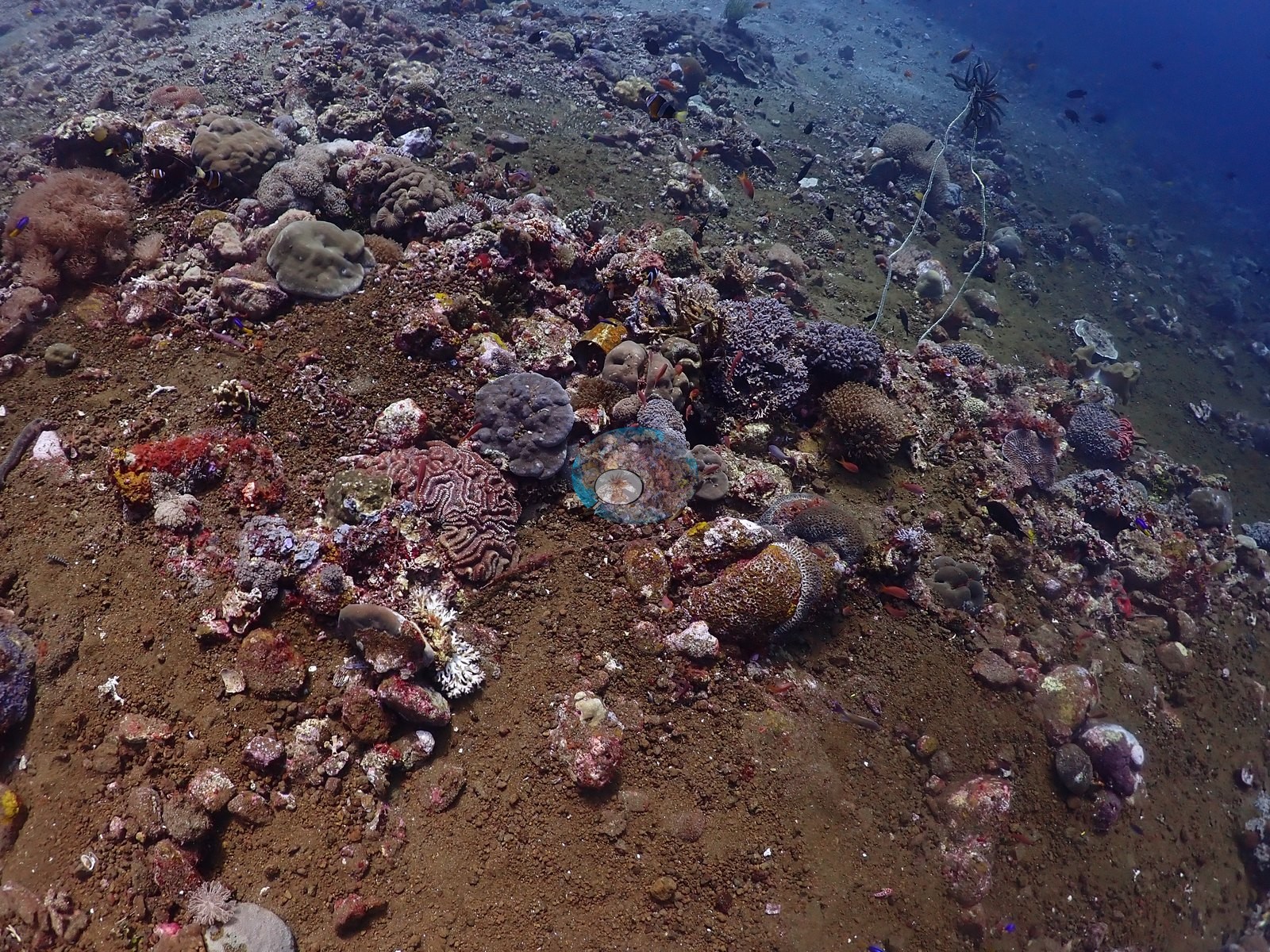

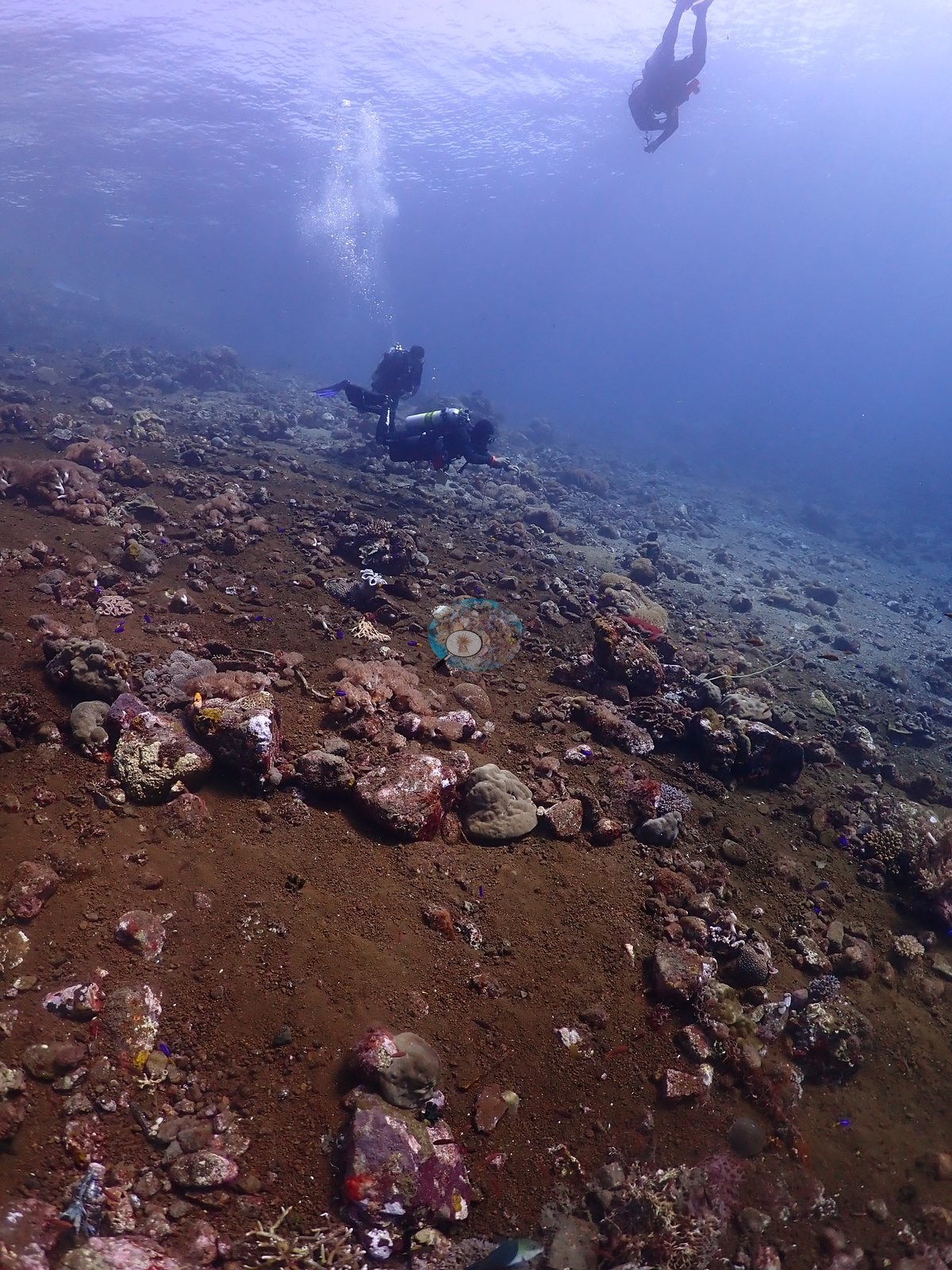

The opening frames confirm the site's name: a reddish-brown sediment/rubble plain (a mix of fine sand and small coral fragments giving it a distinctive rust-red hue) with only isolated small coral colonies (a pale mounding head, a purple encrusting patch, small faviid heads) and a black damselfish with an orange-tipped tail (e.g., Image 16, Image 51).

1651

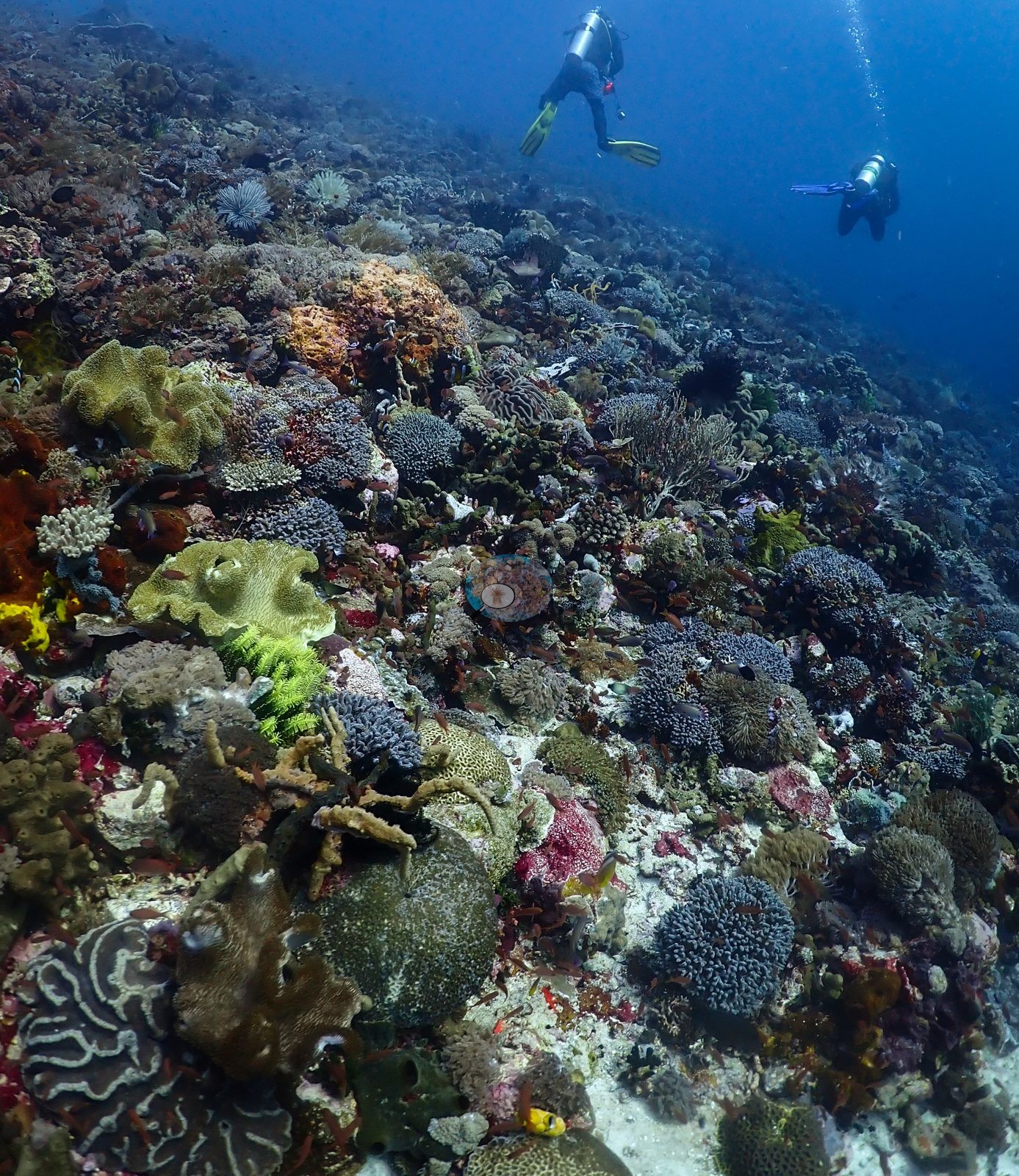

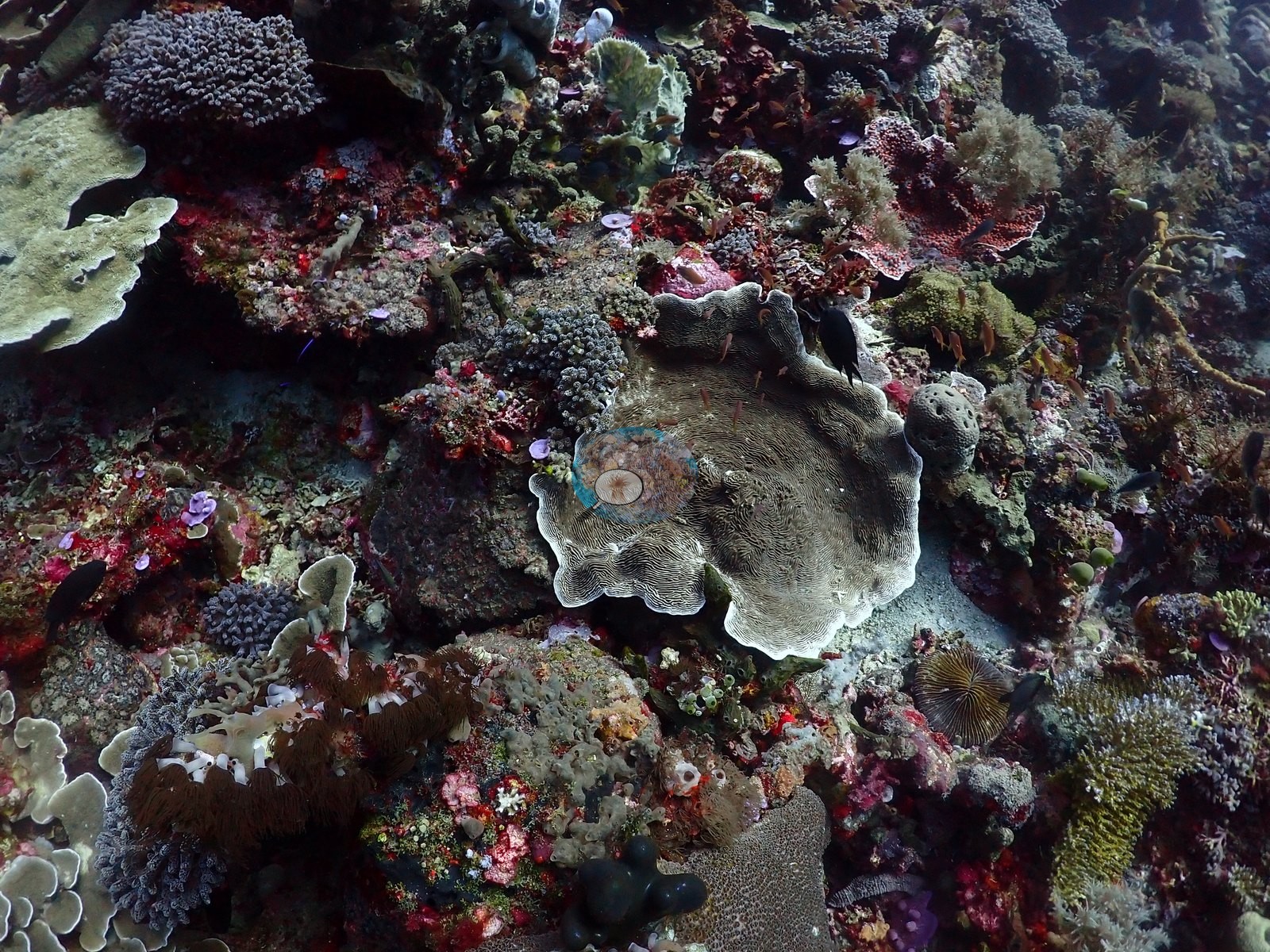

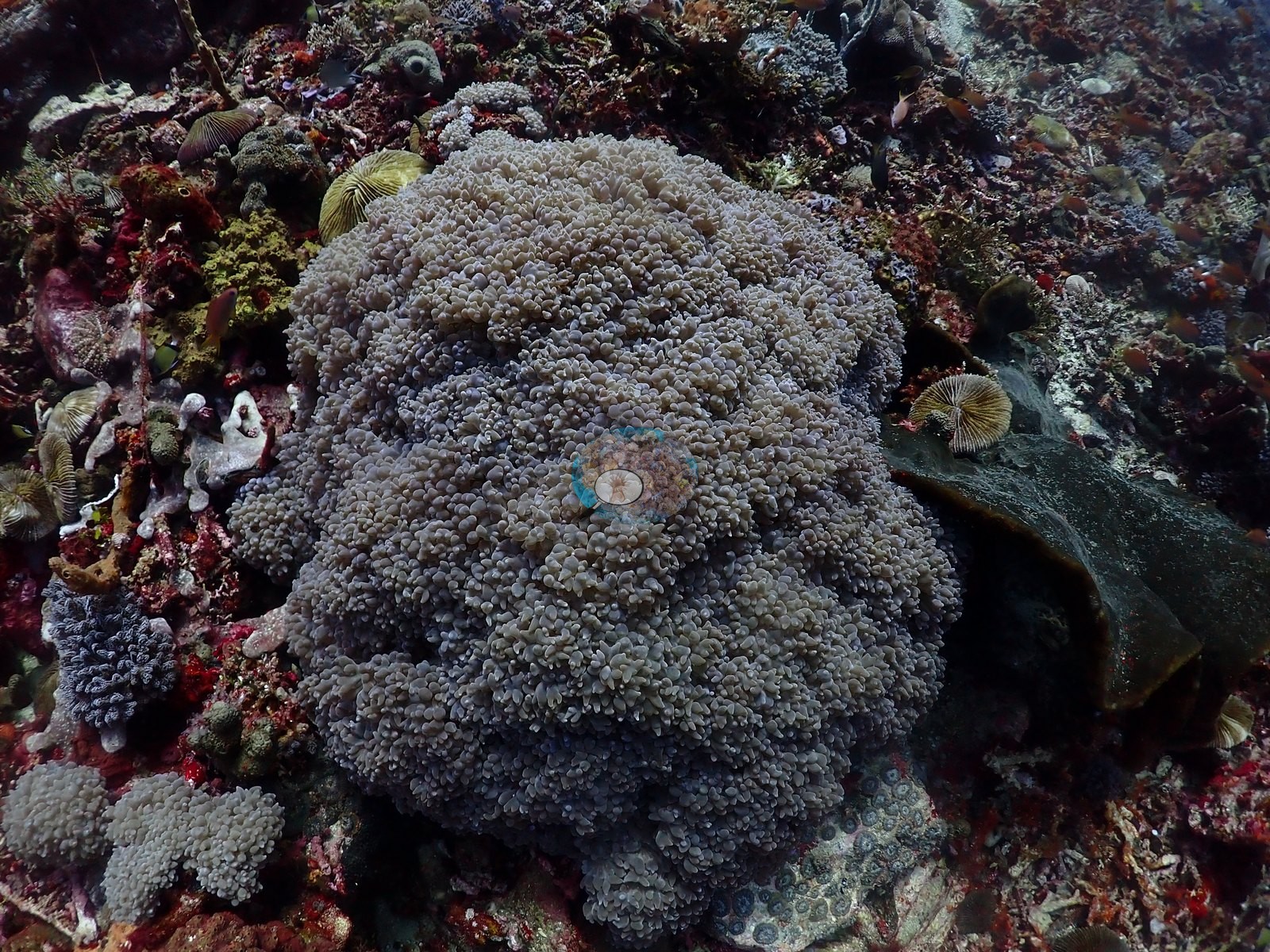

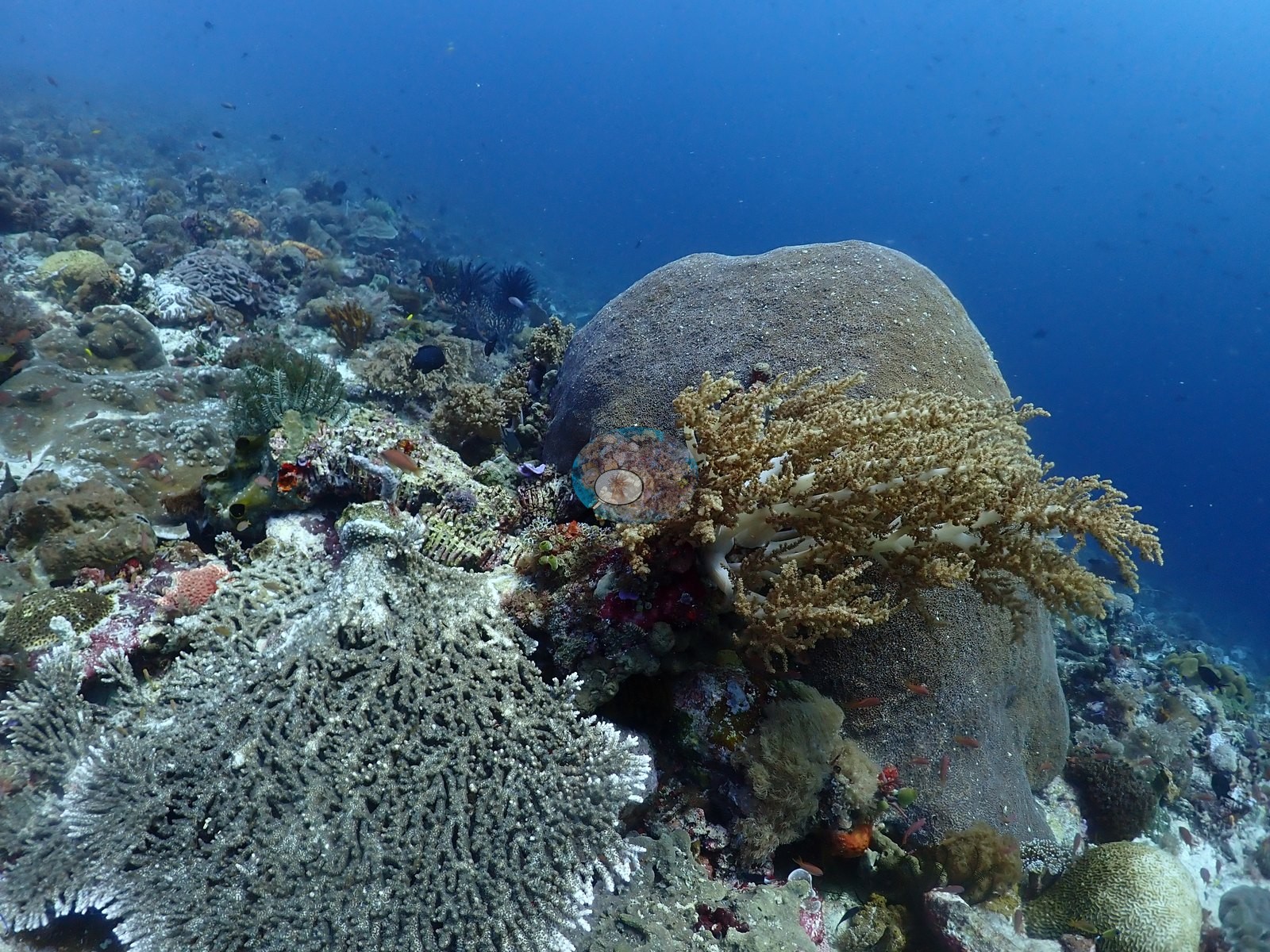

Further along the dive, the habitat becomes a dense low-relief coral garden: massive Porites and Platygyra-type brain corals with maze-like grooved surfaces, foliose plating colonies with pale rims, and large anemones (one brown carpet-type, one smaller) each hosting anemonefish (e.g., Image 2, Image 17, Image 21, Image 40).

2172140

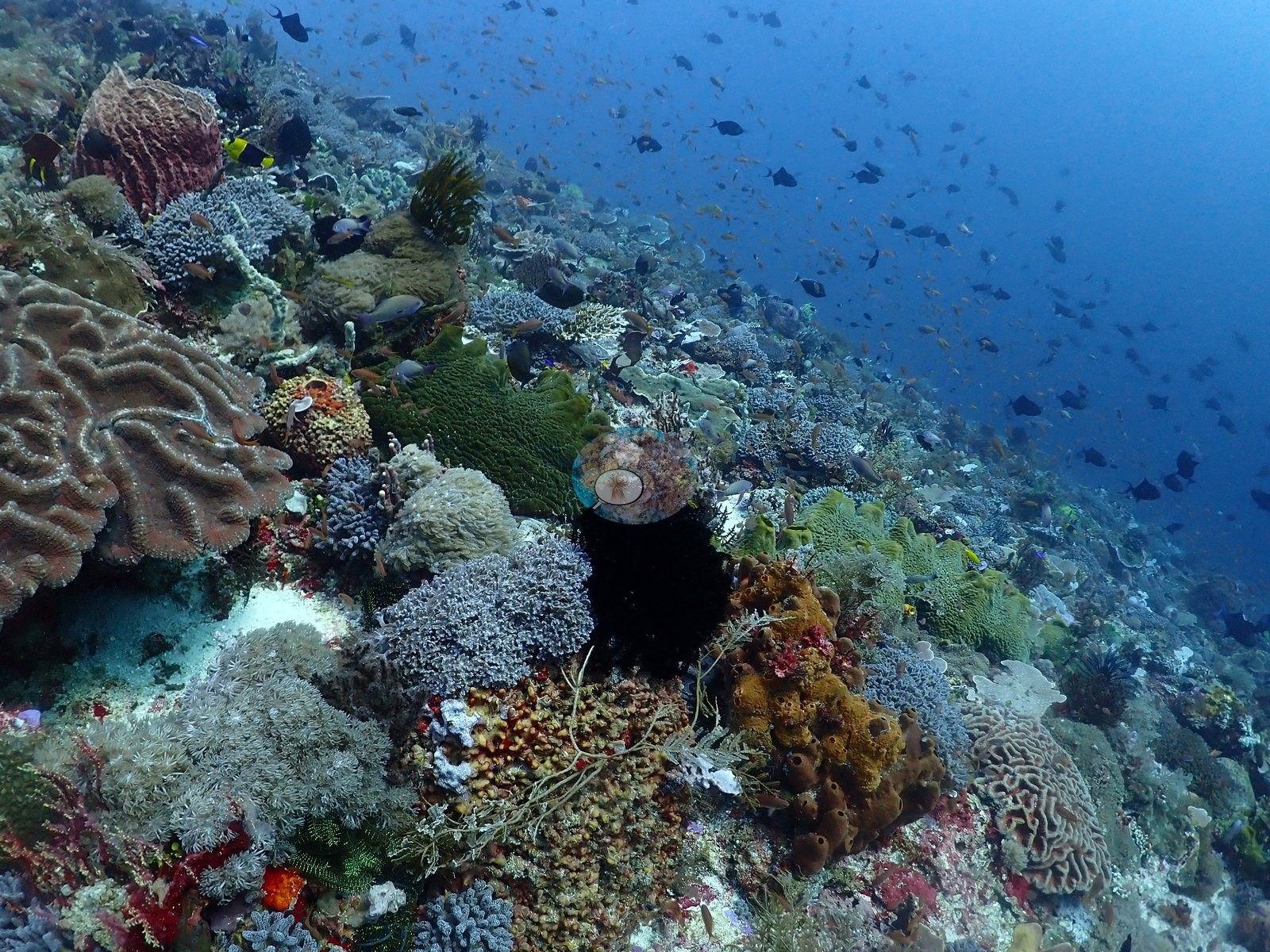

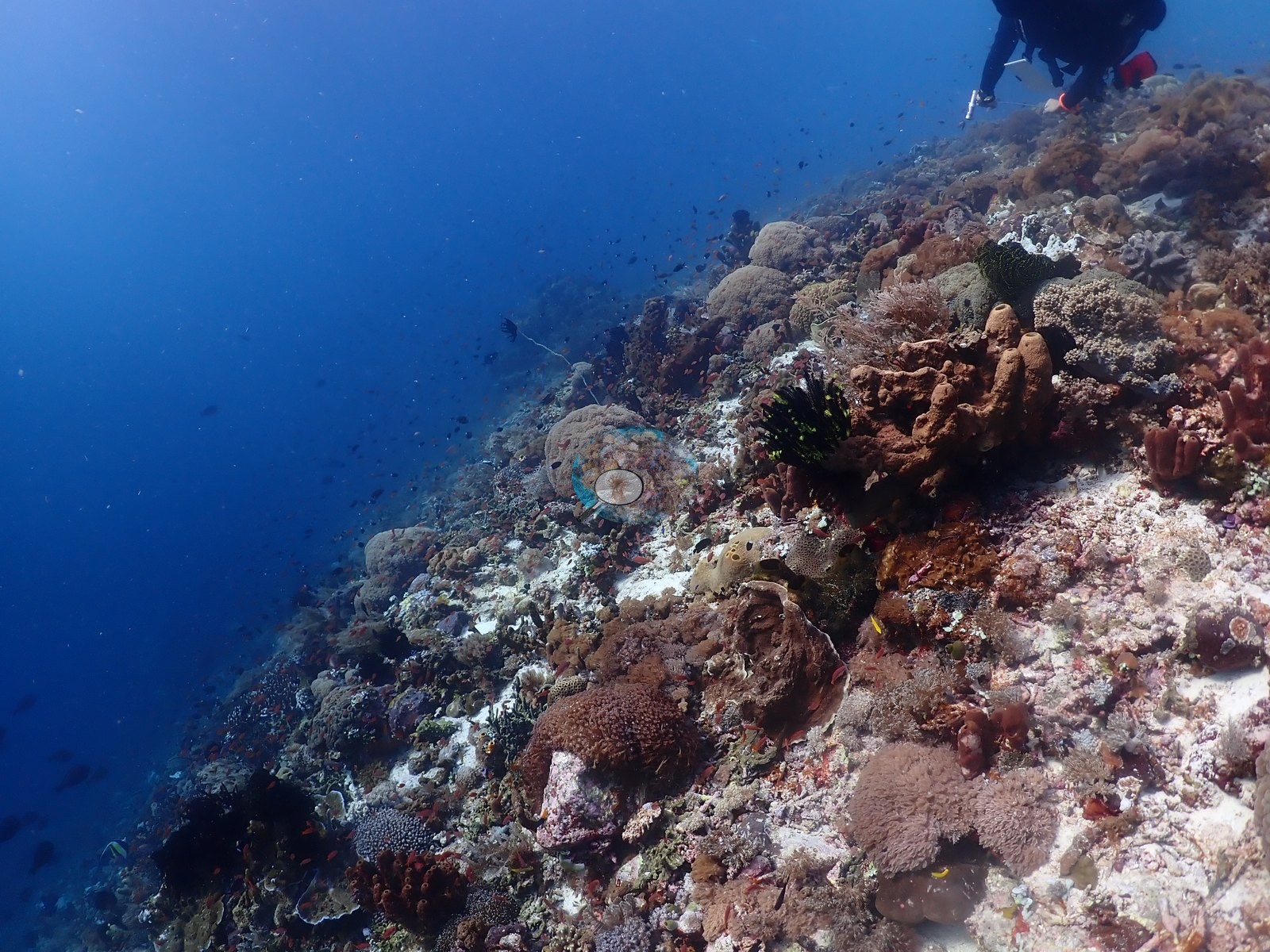

Black bushy growth consistent with black coral, a maroon/purple crinoid feather star, and a blue Linckia sea star recur on the reef structure (e.g., Image 30, Image 44).

3044

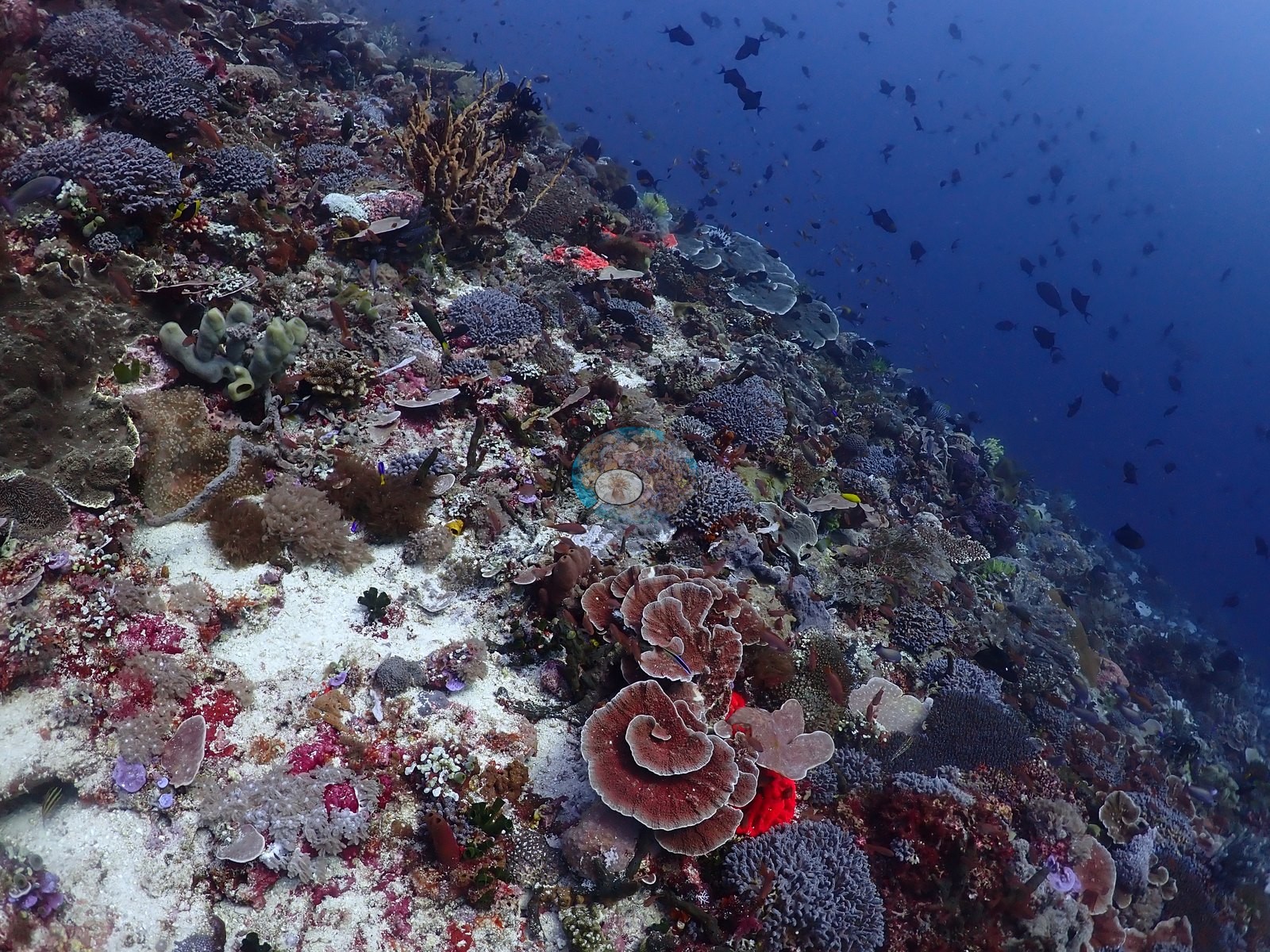

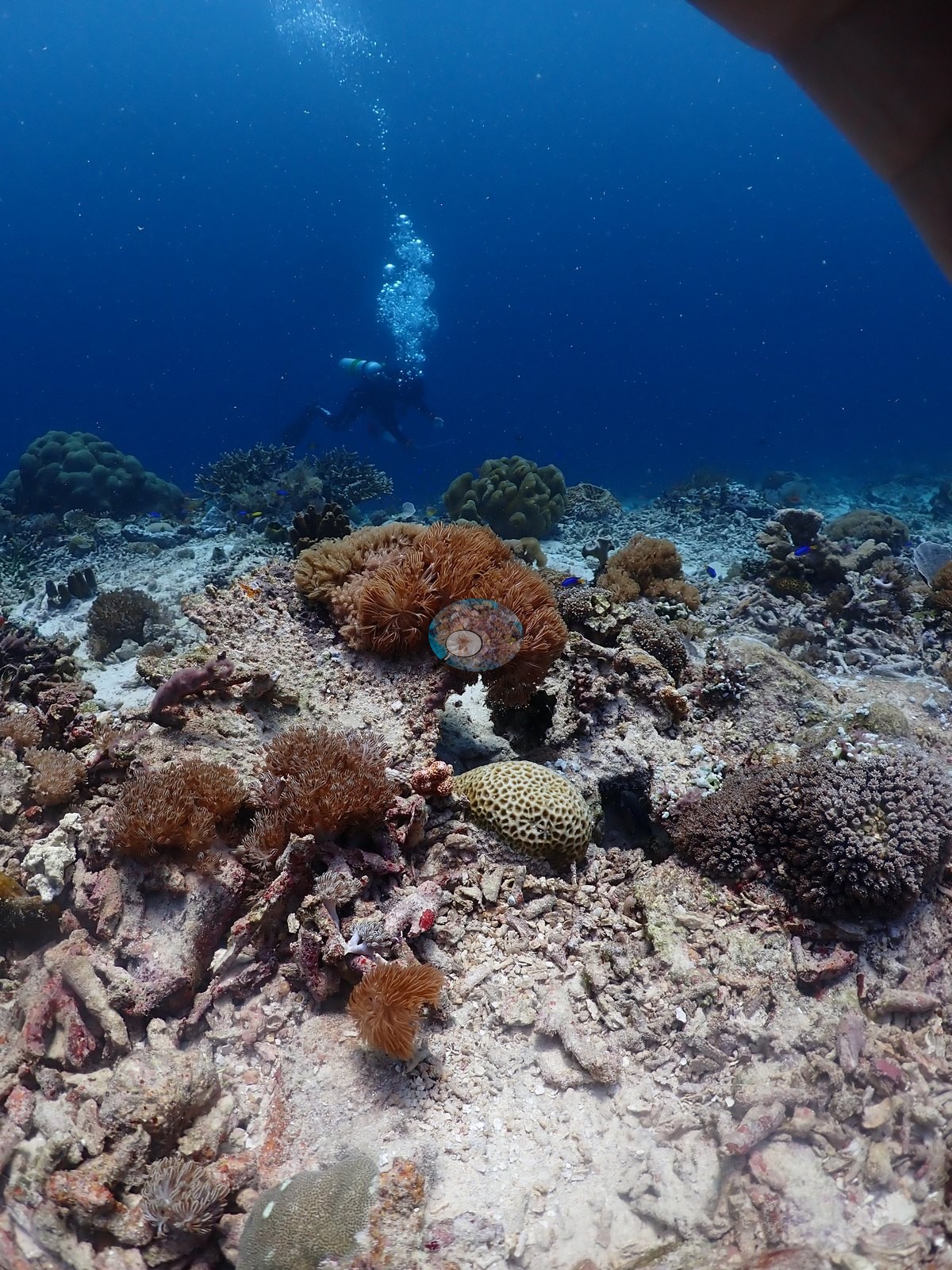

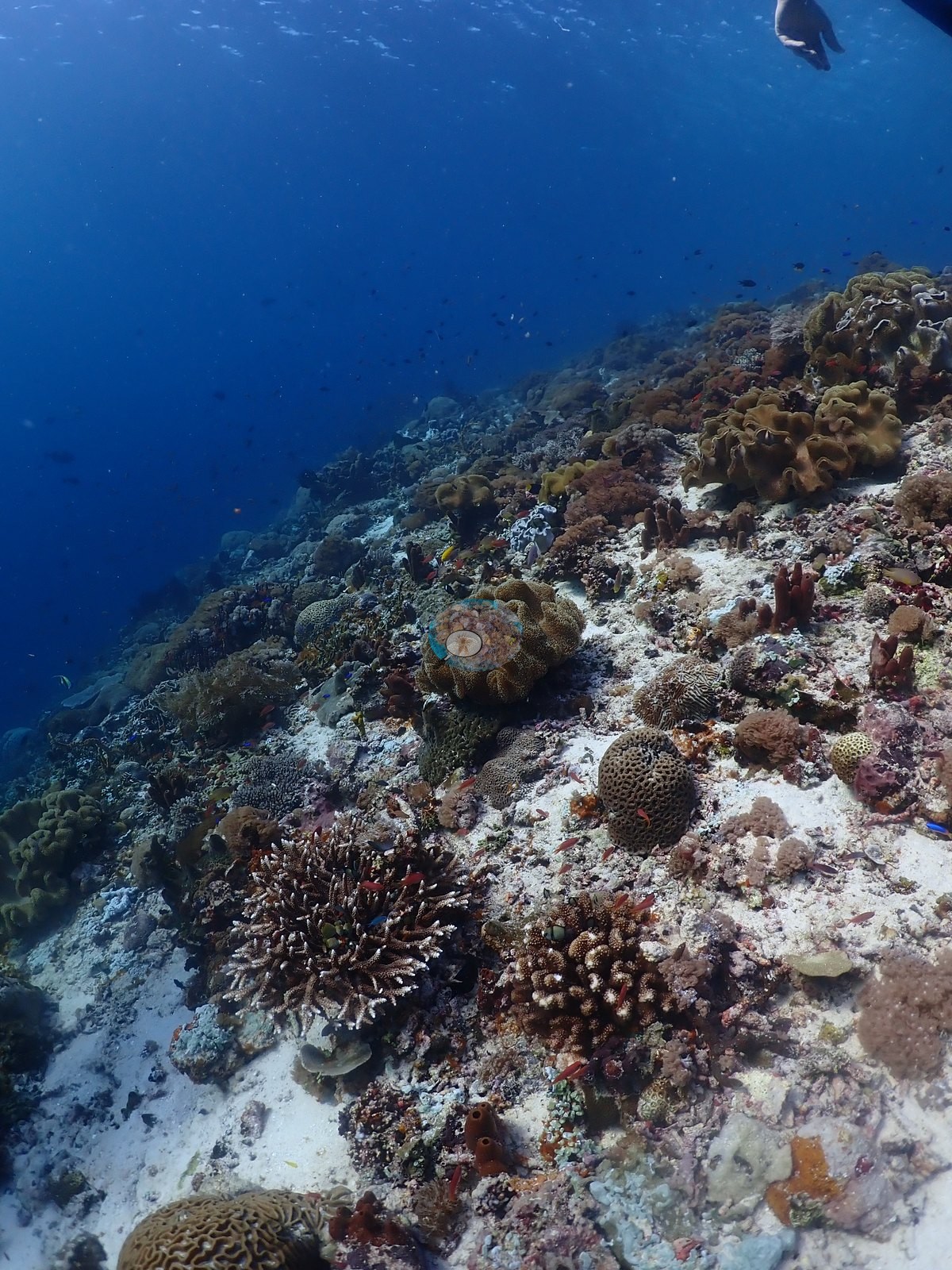

Coral cover is patchy rather than uniform: dense clusters of massive and plating corals alternate with open white sand patches hosting only scattered small colonies, consistent with a mixed sand/coral mosaic rather than continuous reef framework (e.g., Image 22, Image 32, Image 42).

223242

Coral cover

• Reference: Claude CV point count (this site's photos)
• Coral cover: 16% — a blind Claude computer-vision point count of 174 of Anderson's unedited photographs (20 points per photo; water, fish, and obstructions excluded). Other computer-vision methods are listed in the method table.

Stressors

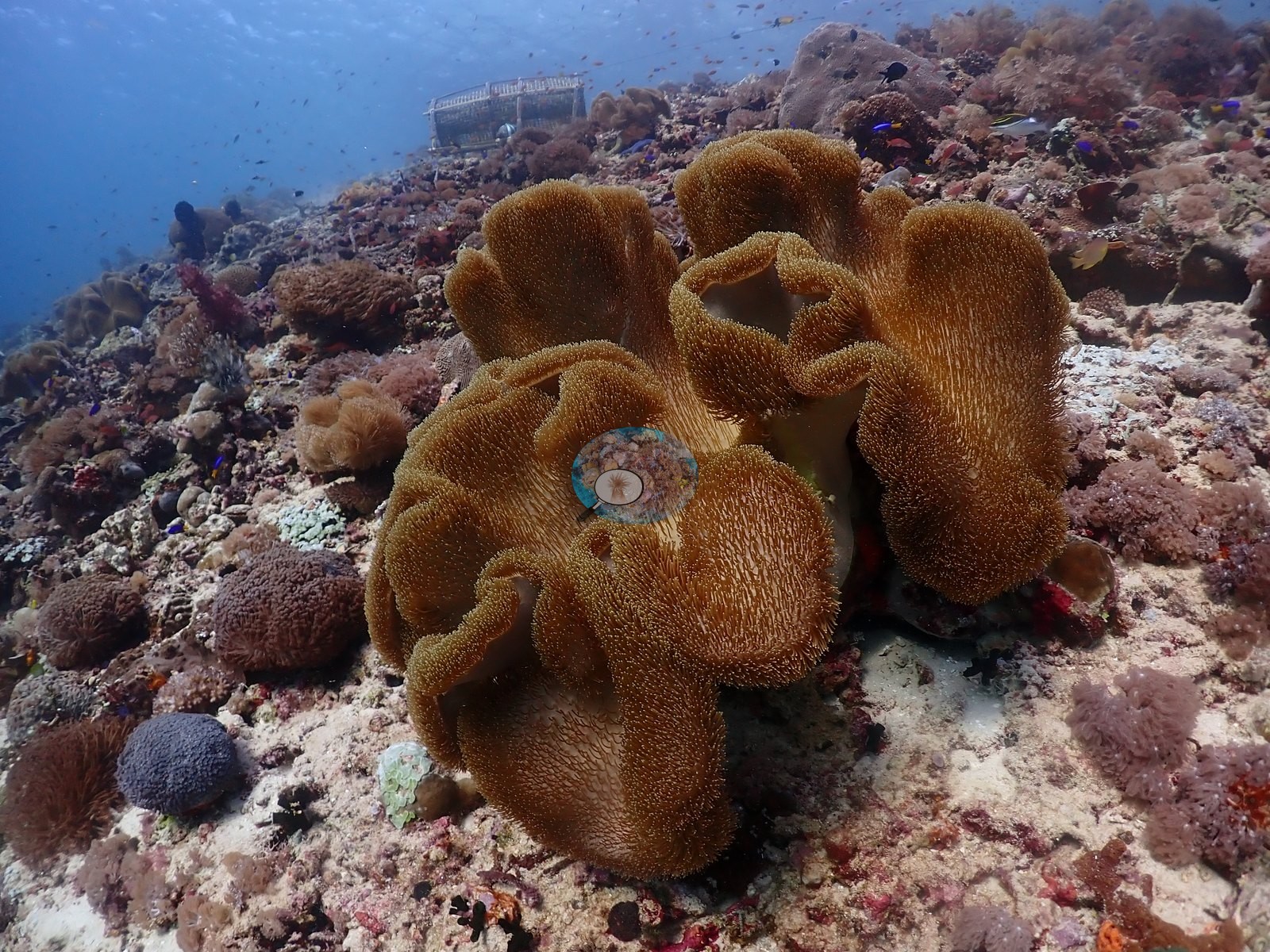

Fishing gear: a woven-bamboo fish trap (bubu) sits on the reef slope behind a large leather coral (e.g., Image 10), and thin trap lines run over the reef and up into the water column on at least seven frames along the dive; one, fouled with algae, lies draped across colonies.

10

One gray-white to stark-white lobed patch is a mix of recently dead soft and hard corals, cause unclear (e.g., Image 55).

55

Other colonies show normal brown/tan/olive pigmentation, with white growing rims on plate margins. A computer-vision point count called 0.2% of coral points bleached (1 of 174 photos), which the photographs could not confirm. No crown-of-thorns starfish (COTS) or other corallivores were evident.

Fish and other fauna

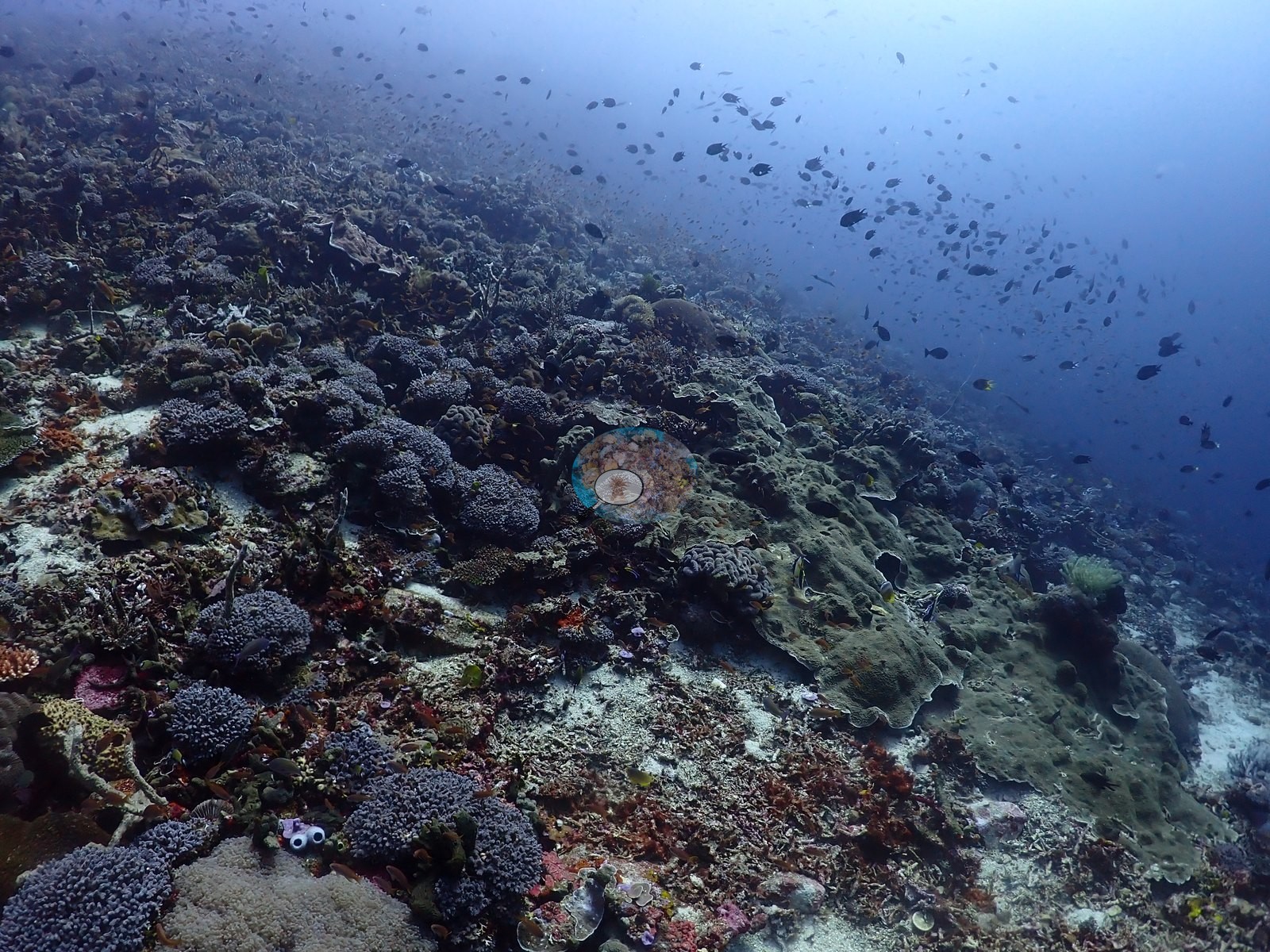

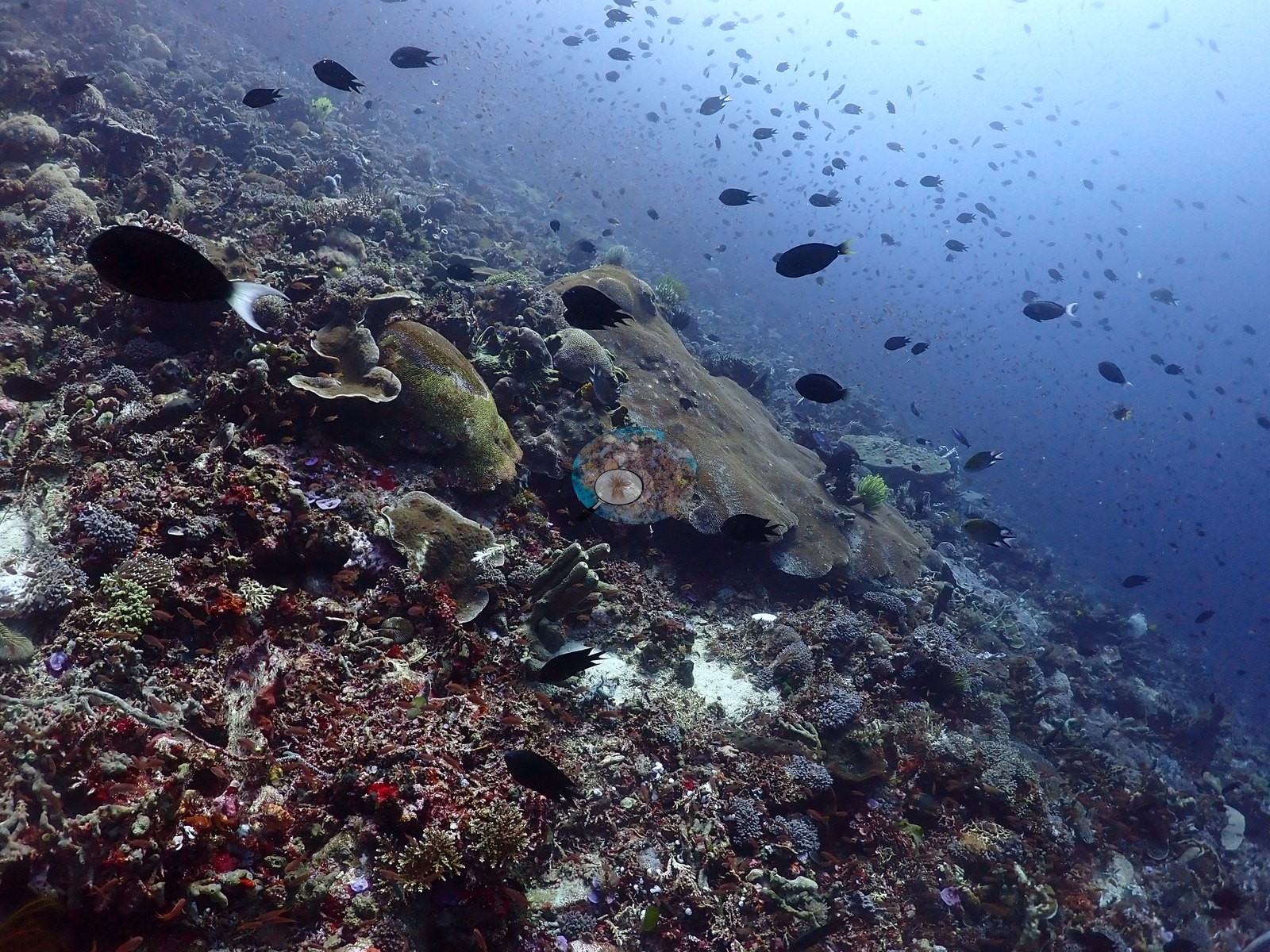

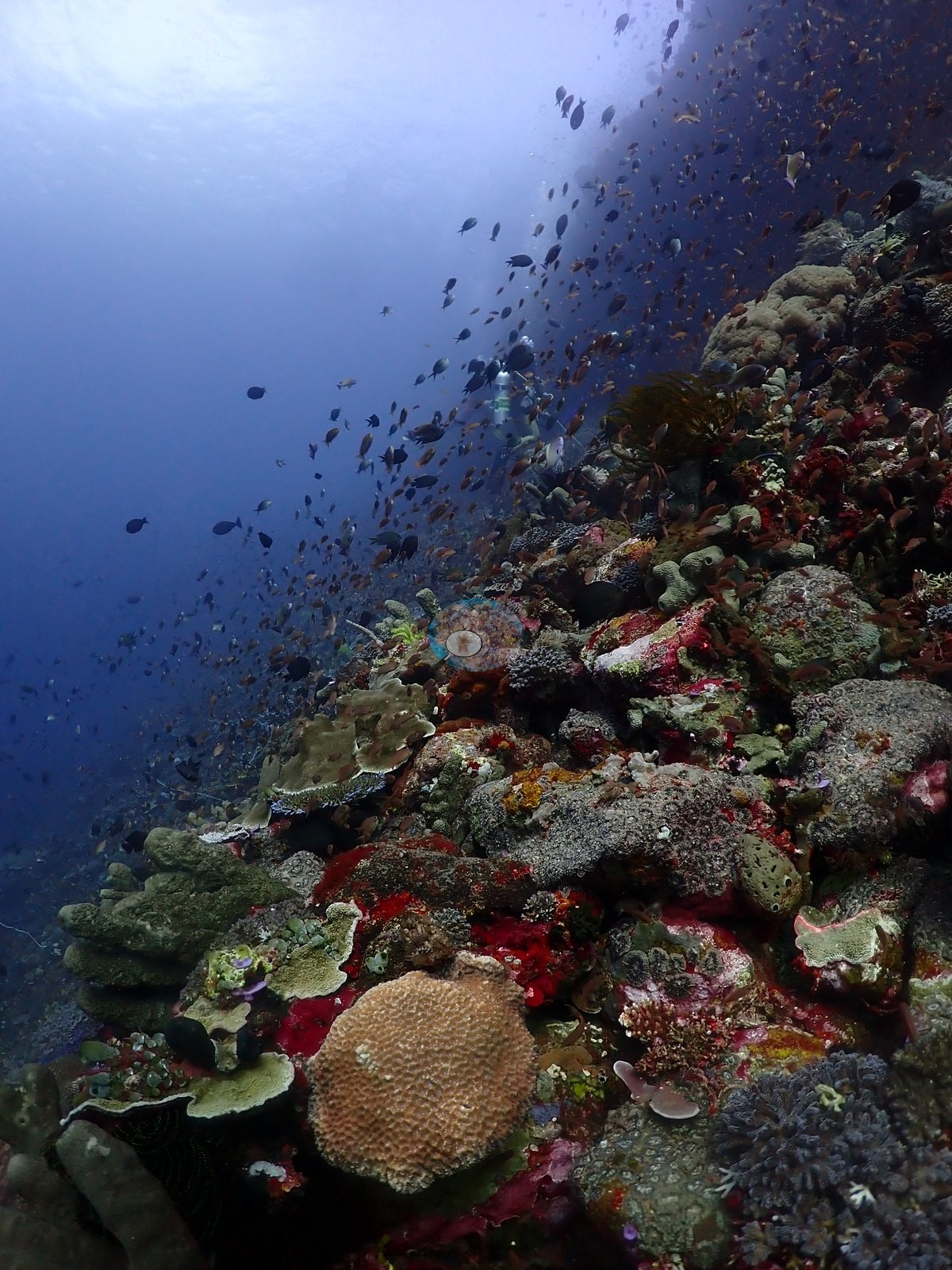

Anthias, chromis, and other damselfishes were locally dense above the slope (e.g., Image 18, Image 39, Image 54).

183954

Comparisons with other data

We found no other surveys at this site as of 2026. Within 5 km, one independent station, WWF-US / WWF-Indonesia at station 5003, 0.99 km away, read 24% in 2014.

Regional context, not a survey of this site: Razak et al. (2026) found no significant trend in hard coral cover around Alor (a decline of 0.6% per year at 23 sites, surveyed by point-intercept transect at about 8–10 m in 2014, 2017, 2021, and 2023 by Yayasan WWF Indonesia); this is a trend for that location, not this site’s cover. Cover at those sites fell by 3% between the 2014 and 2017 surveys, which bracket 75 days of NOAA Bleaching Alert Level 1 from December 2016 to February 2017.

Other notes

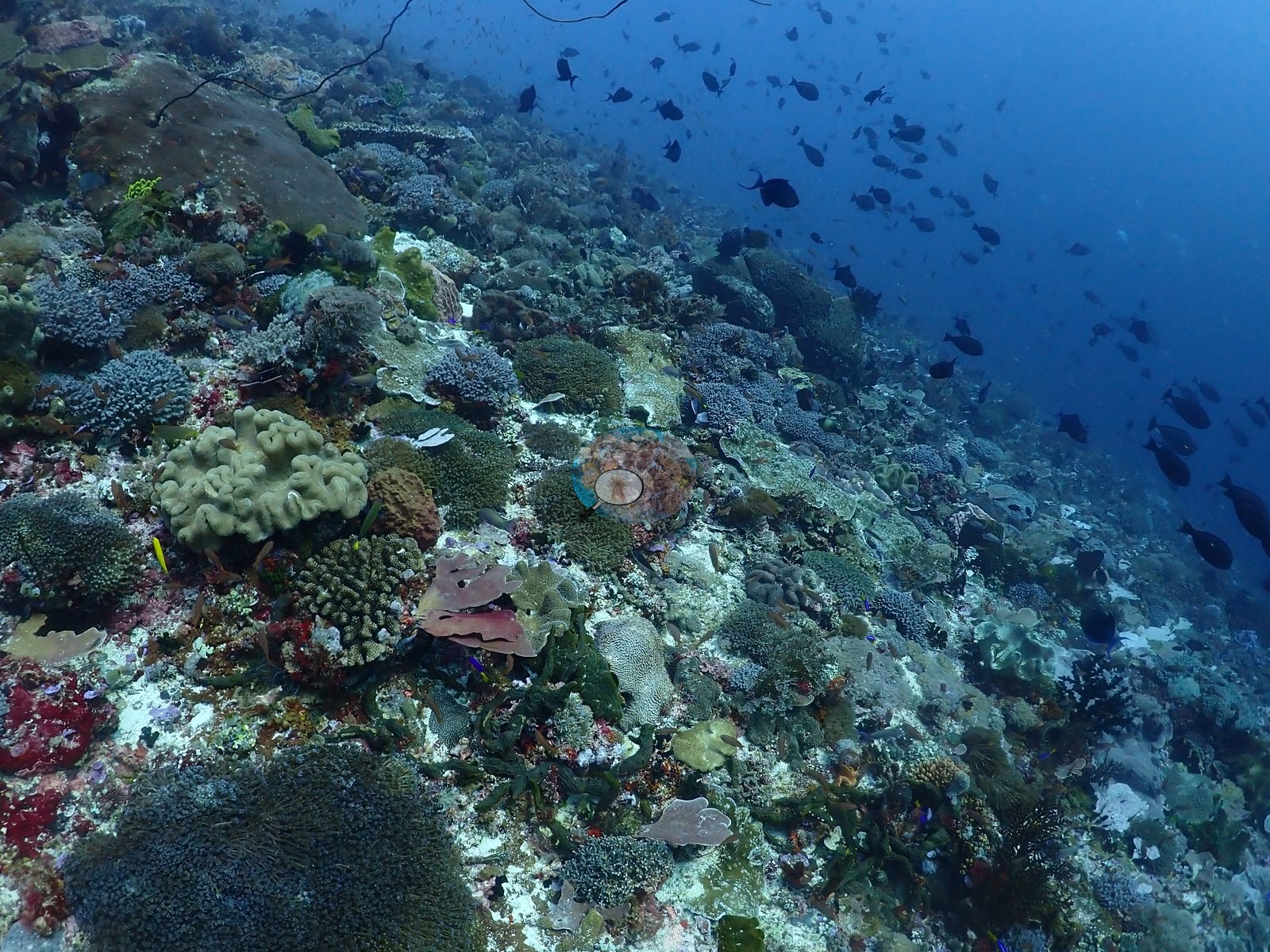

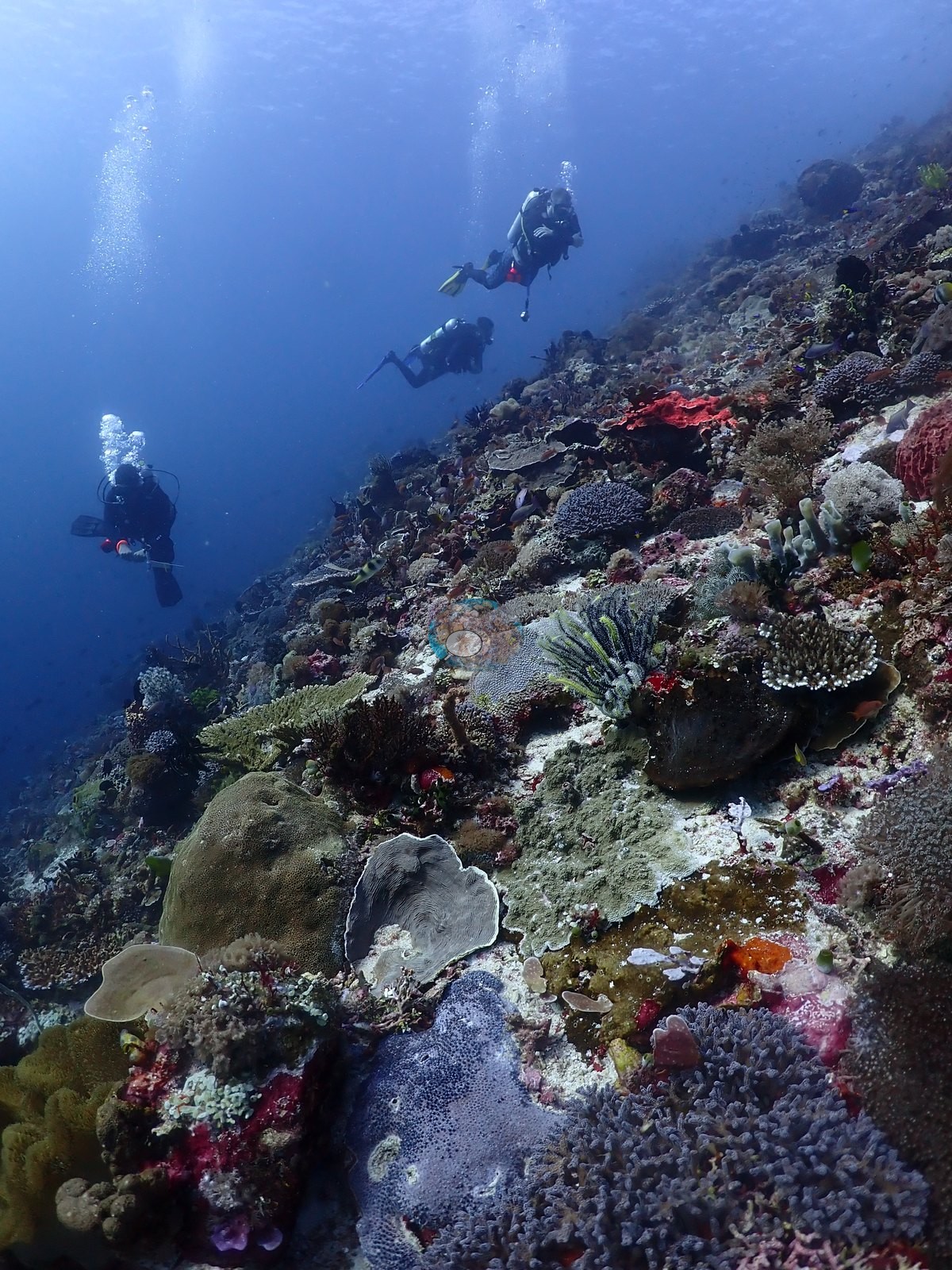

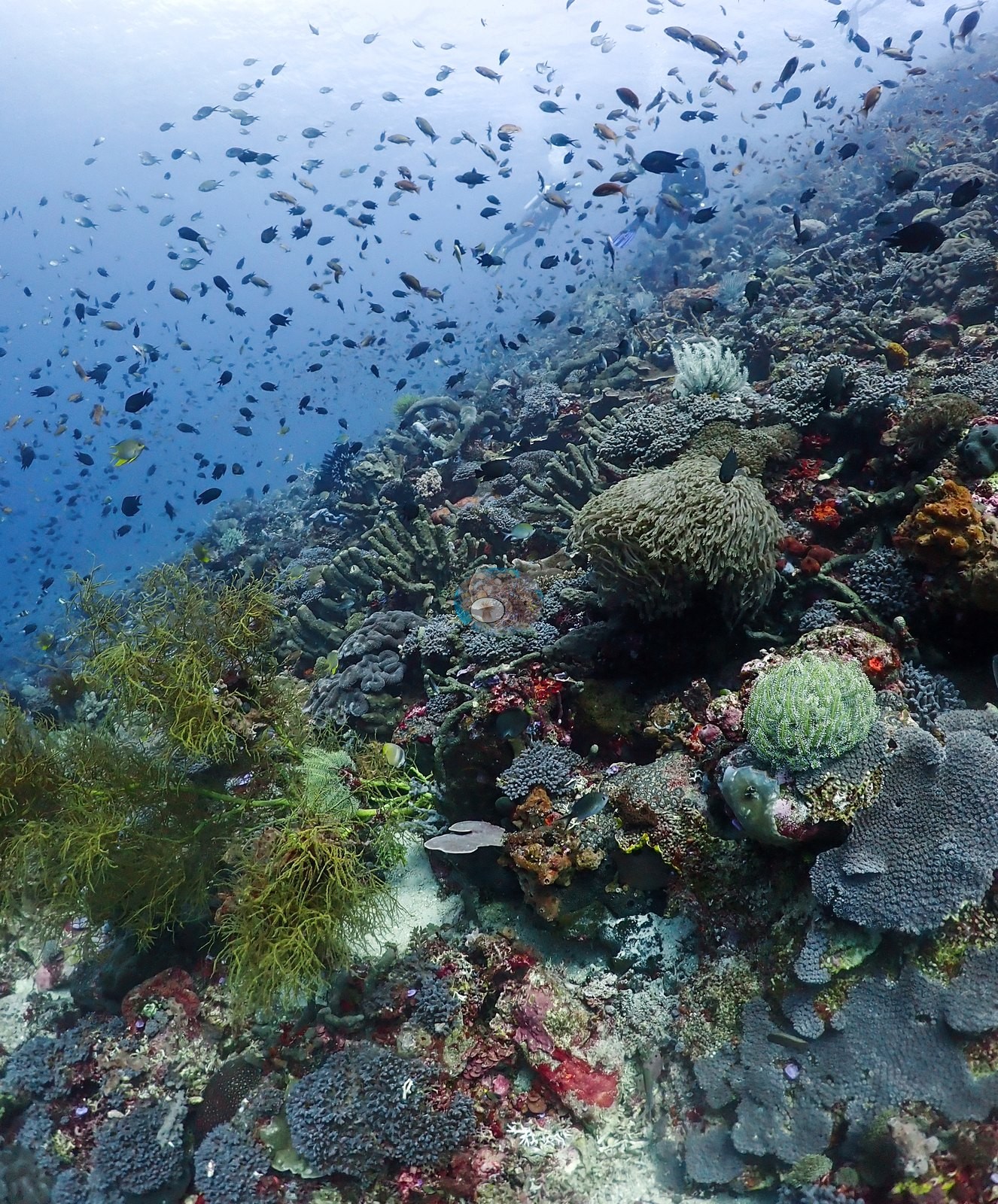

One wide frame shows a large school of dozens of small dark fish (chromis/damsel-type) streaming along the reef edge in blue water with two divers visible in the distance (e.g., Image 8, Image 12, Image 13).

81213
